ProArt Display PA147CDV
14-inch, 32:9, IPS, Full HD (1920 x 550), 100% sRGB, 100% Rec.709, Color Accuracy ΔE
Specifications
Display
Panel Size (inch)
14
Pixels Per Inch (PPI)
143
Aspect Ratio
32:9
Display Viewing Area (H x V)
344.22 x 98.60 mm
Display Surface
Non-Glare
Backlight Type
LED
Panel Type
IPS
Viewing Angle (CR≧10, H/V)
178°/ 178°
Pixel Pitch
0.179mm
Resolution
1920 x 550
Color Space (sRGB)
100%
Brightness (Typ.)
400cd/㎡
Contrast Ratio (Typ.)
1200:1
Display Colors
16.7M
Response Time
5ms (GTG)
Refresh Rate (Max)
60Hz
Touch
Yes, Projective Capacitive 10-point Touch
Protection Glass
Yes
Flicker-free
Yes
Video Feature
ProArt Preset
Standard, sRGB, DCI-P3, Rec. 709, Scenery, Reading, Darkroom, User mode1, User mode2
Color Temp. Selection
Yes (5 modes)
Color Adjustment
6-axis adjustment (R,G,B,C,M,Y)
Gamma Adjustment
Yes (Support Gamma 1.8/2.0/2.2/2.4/2.6)
Color Accuracy
â–³E
ProArt Palette
Yes
QuickFit
Yes
HDCP
Yes, 1.4
ProArt Chroma Tune
Yes
Low Blue Light
Yes
Audio Feature
Speaker
Yes (1W x 2)
I/O Ports
USB-C
2 (DP Alt Mode)
HDMI (v1.4)
1
Signal Frequency
Digital Signal Frequency
HDMI: 24 KHz~83 KHz (H) / 23Hz~60Hz (V)
USB-C: 24 KHz~83 KHz (H) / 23Hz~60Hz (V)
Power Consumption
Power Consumption
5.05 W
Power Saving Mode
Voltage
100-240V, 50/60Hz
Mechanical Design
Tilt
Yes (+25° ~ 70°)
Pivot
Yes (0° ~ 90° Clockwise)
Dimensions (Esti.)
Physical Dimension (W x H x D)
35.72 x 12.77 x 2.07 cm (14.06″ x 5.03″ x 0.81″)
Box Dimension (W x H x D)
44.00 x 29.00 x 9.20 cm (17.32″ x 11.42″ x 3.62″)
Weight (Esti.)
Net Weight
0.95 kg (2.09 lbs)
Gross Weight
2.3 kg (5.07 lbs)
Accessories (vary by regions)
Color pre-calibration report
Yes
HDMI cable
Yes
Power adapter
Yes
ProArt Sleeve
Yes
Quick start guide
Yes
USB Type-C to A adapter
Yes
USB-C cable
Yes
USB-C to A cable
Yes
Certificate
TÃœV Flicker-free
Yes
TÃœV Low Blue Light
Yes
Calman Verified
Yes
ASUS ProArt Display PA147CDV Creative Tool, 14″ FHD (1920 x 550) IPS Touch Display, 60Hz Refresh Rate, 5ms (GtG) Response Time, Projective Capacitive 10-Point Touch, Black | 90LM0720-B01170
$680.00
14-inch, 32:9 Full HD (1920 x 550) IPS panel with 10-point multitouch and Microsoft Pen Protocol 2.0 support
Calman Verified and factory calibrated to Delta E
ASUS Dial and Control Panel provide shortcuts in supported Adobe creative software

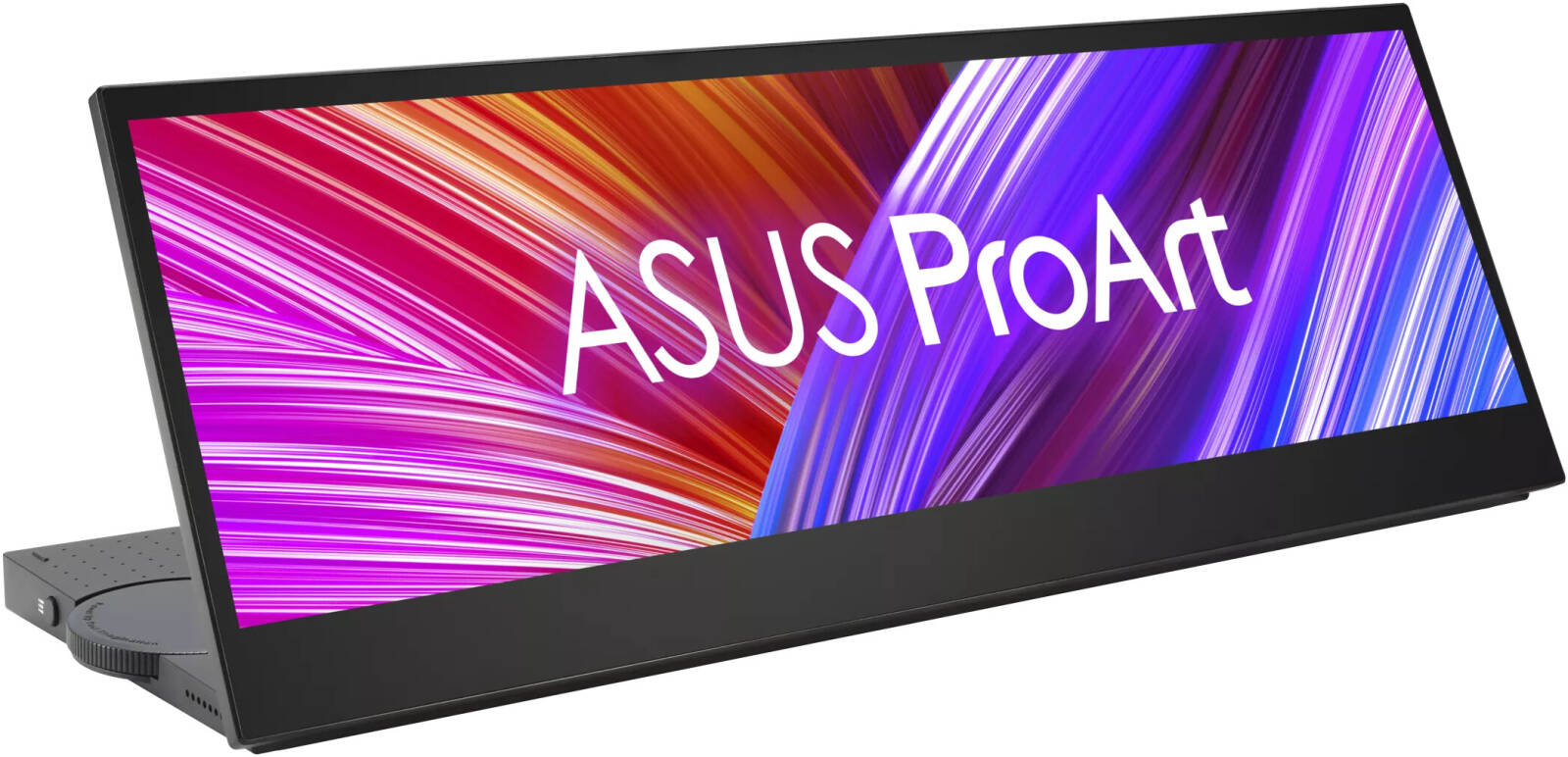

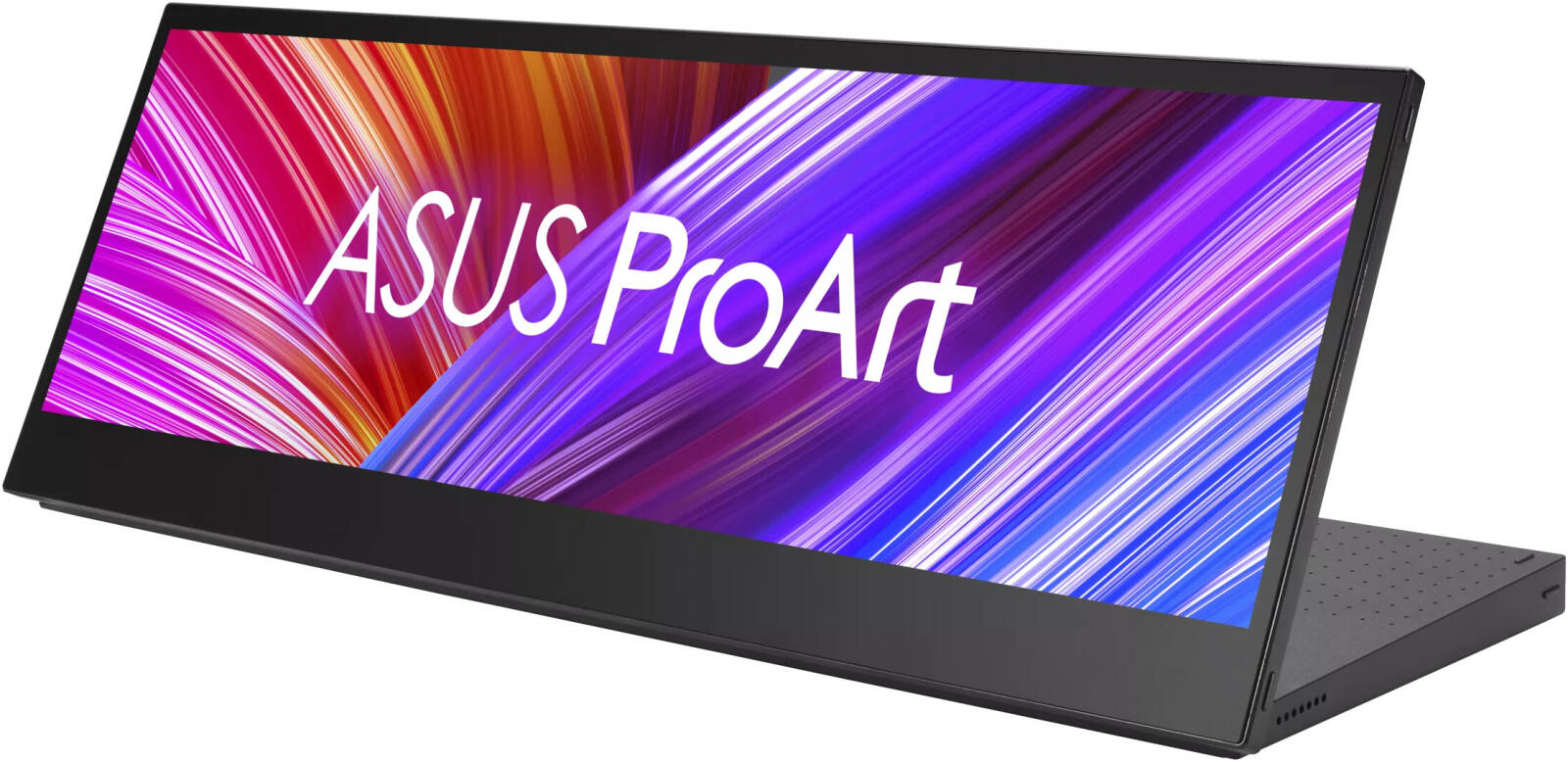

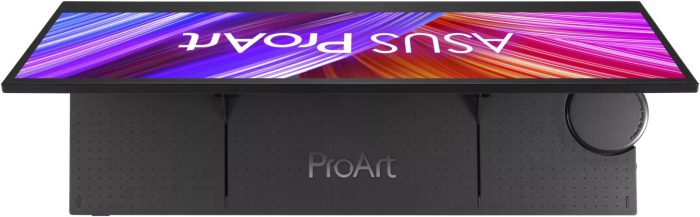

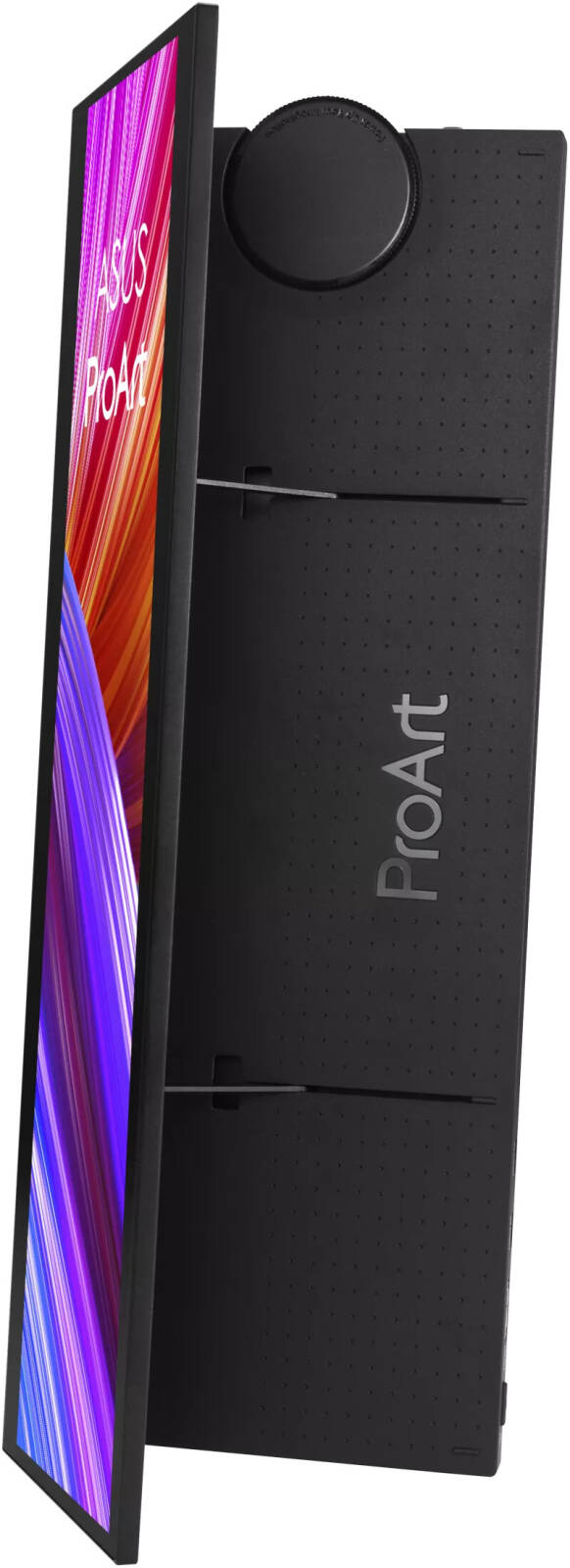

Patented mechanical kickstand design folds out smoothly and props the display up in portrait or landscape orientation to fit different creator’s scenario
Includes one standard HDMI® and two USB Type-C® (DP Alt mode) ports for variety devices connection
Multi-award winning design, including IDEA Bronze, Reddot, iF, Good Design and Computex d&I Gold Award
| Brand |
ASUS |
|---|---|
| Model |
ProArt Display PA147CDV |
| Date first available |
17 May; 2024 |
| Shipping Weight |
2.30 Kg |
| Shipping Dimensions |
44.00 cm x 9.20 cm x 29.00 cm |
| Color |
Black |
| Screen Size |
15 " |
| Aspect Ratio |
32:9 |
| Refresh Rate |
60 Hz |
| Resolution |
1920 x 550 |
| Panel Type |
IPS |
| Widescreen |
No |
| Curved |
No |
| Contrast Ratio |
1200:1 |
| Response Time |
5 ms |
