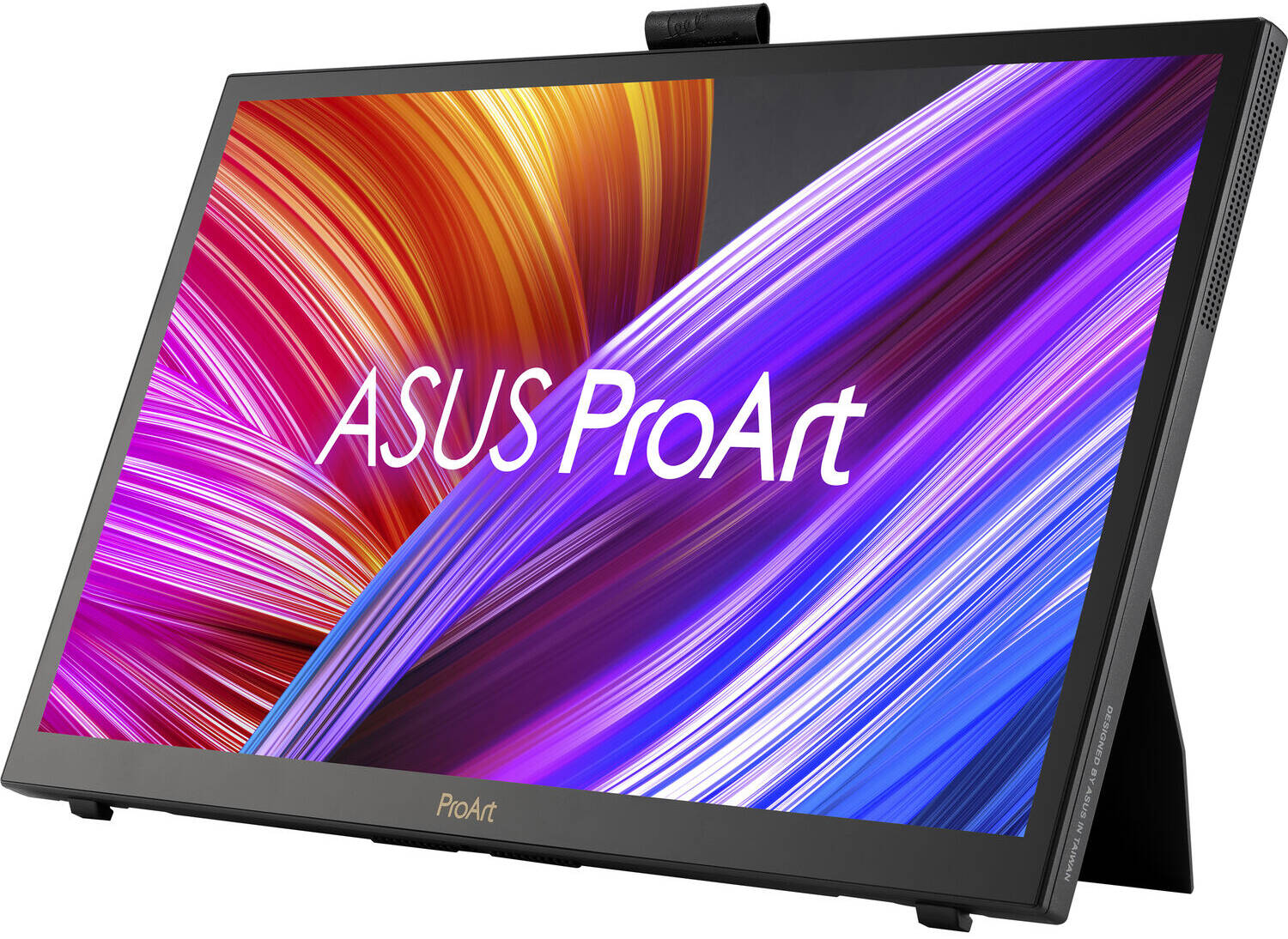

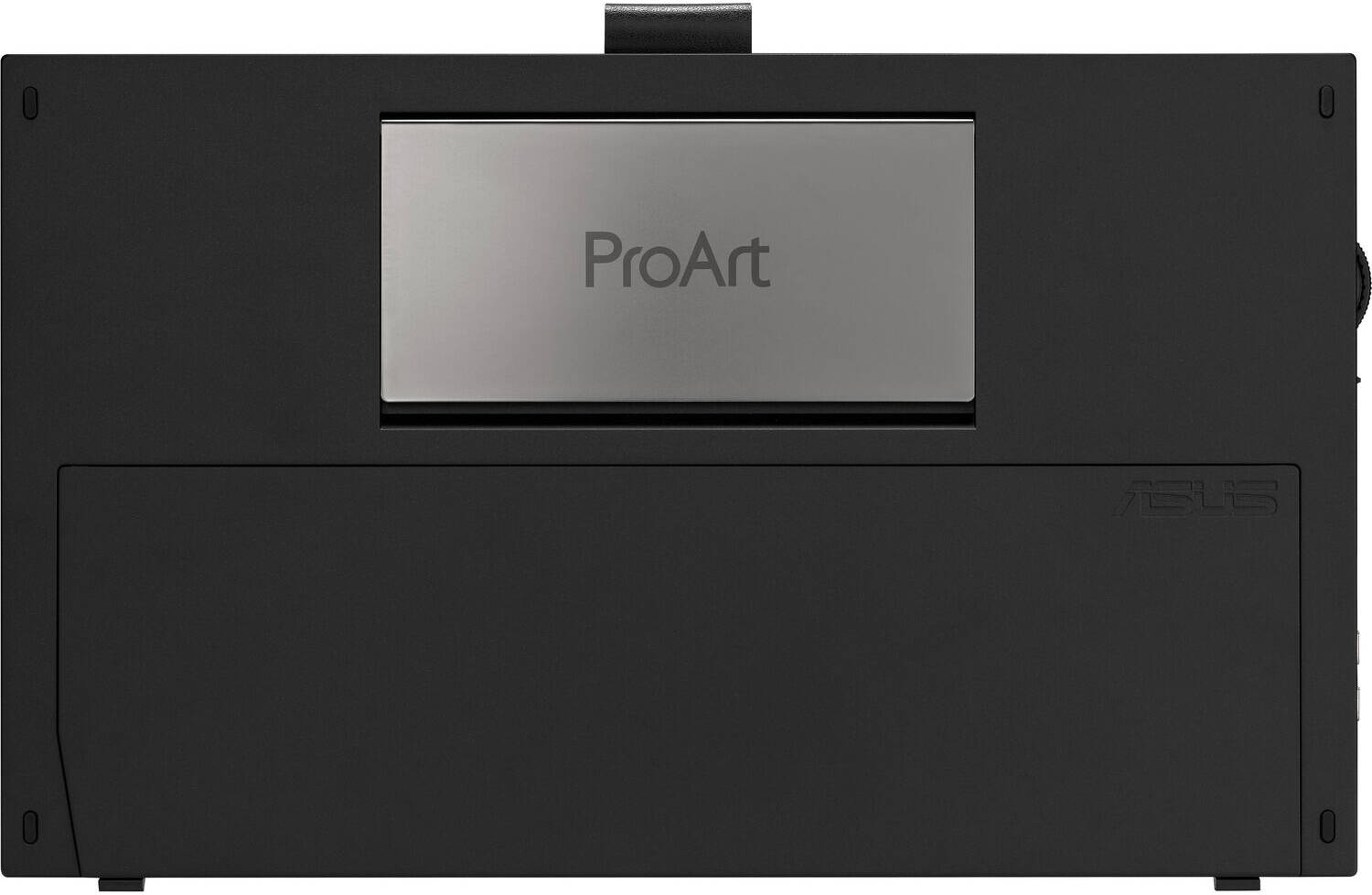

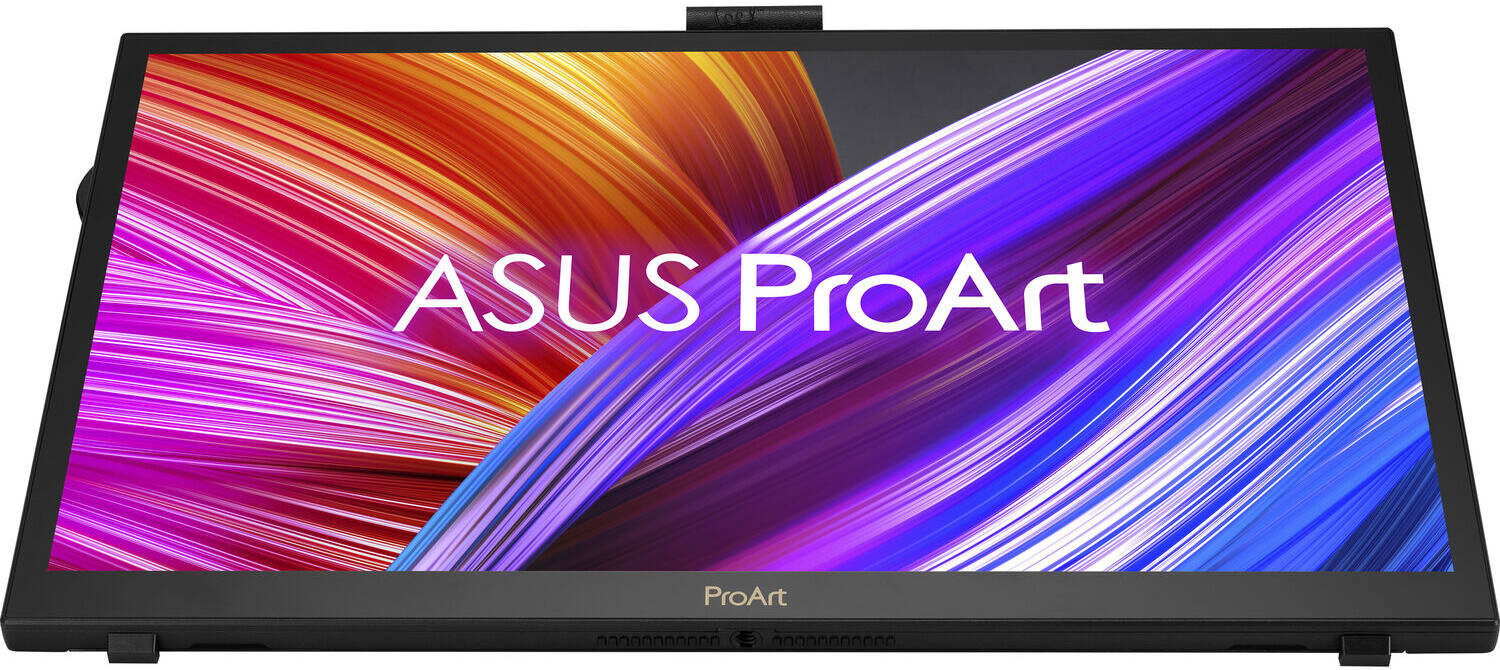

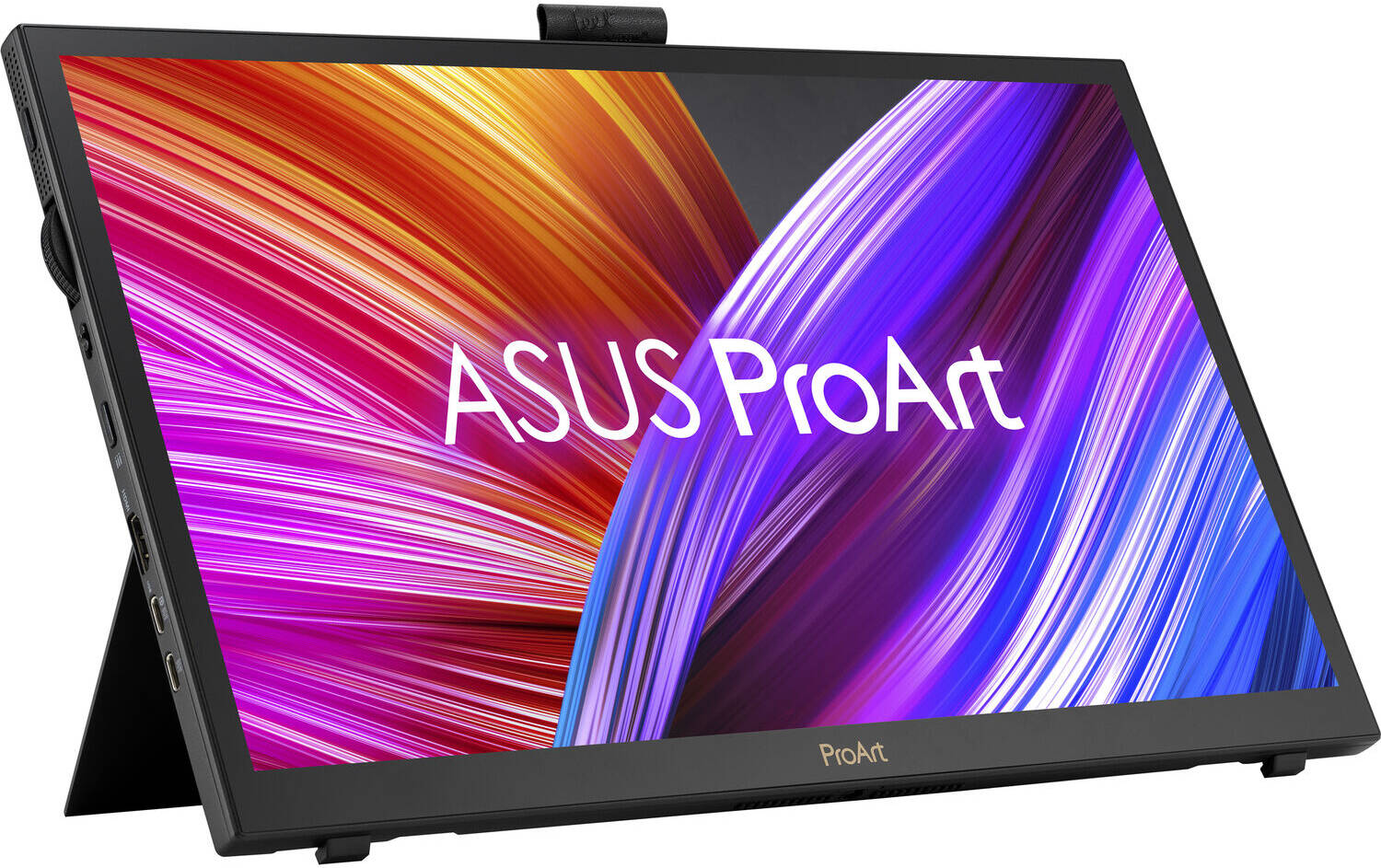

ProArt PA169CDV
ASUS ProArt PA169CDV Pen Display – 15.6-inch, IPS, 4K UHD (3840 x 2160), WACOM EMR, 100% sRGB, Color Accuracy ΔE
Specifications
Display
Panel Size (inch)
15.6
Pixels Per Inch (PPI)
282
Aspect Ratio
16:9
Display Viewing Area (H x V)
345.60 × 194.40 mm
Display Surface
AGAF (Anti-Glare, Anti-FingerPrint)
Backlight Type
LED
Panel Type
IPS
Viewing Angle (CR≧10, H/V)
178°/178°
Pixel Pitch
0.09mm
Resolution
3840×2160
Color Space (sRGB)
100%
Color Space (Adobe RGB)
92%
Color Space (DCI-P3)
88%
Brightness (HDR, Peak)
500 cd/㎡
Brightness (Typ.)
450 cd/㎡
Contrast Ratio (HDR, Max)
15,000:1
Contrast Ratio (Typ.)
1200:1
Display Colors
1073.7M (10-bit)
Response Time
10ms (GTG)
Refresh Rate (Max)
60Hz
HDR Support
HDR10
Touch
Yes, Projective Capacitive 10-point Touch
Stylus Support
Yes, Wacom EMR Technology (ProArt Pen: Feel by Wacom)
Protection Glass
Yes
Flicker-free
Yes
LCD ZBD Warranty
Yes (3 years)
Features
ProArt Preset
Standard, sRGB, Adobe RGB, DCI-P3, Rec.709, Scenery, Reading, HDR, User mode1, User mode2
Color Temp. Selection
Yes (5 modes)
Color Adjustment
6-axis adjustment (R, G, B, C, M, Y)
Gamma Adjustment
Yes (Gamma 1.8/2.0/2.2/2.4/2.6)
Color Accuracy
â–³E
ProArt Palette
Yes
QuickFit Plus
Yes
PIP / PBP Technology
Yes
HDCP
Yes, 2.2
Low Blue Light
Yes
Audio
Speaker
Yes (1W x 2)
I/O Ports
USB-C
1 (DP Alt Mode)
HDMI
1 (v2.0)
USB-C Power Delivery
15W
Signal Frequency
Digital Signal Frequency
HDMI: 29~160 KHz (H) / 40~60Hz (V); USB-C: 29~160 KHz (H) / 40~60Hz (V)
Power Consumption
Power Consumption
Power Saving Mode
Power Off Mode
Voltage
100-240V, 50/60Hz
Mechanical Design
Tilt
Yes (Upper Stand: 17°, Lower Stand: 54° ~ 75°)
Pivot
Yes (0° ~ 90° Clockwise)
1/4″ Tripod Socket
Yes
Dimensions (Esti.)
Phys. Dimension (W x H x D)
37.0 x 23.7 x 1.2 cm (14.57″ x 9.33″ x 0.47″)
Box Dimension
53.90 x 10.75 x 32.30 cm (21.22″ x 4.23″ x 12.72″)
Weight (Esti.)
Net Weight
1.07 kg (2.36 lbs)
Gross Weight
2.95 kg (6.50 lbs)
Accessories (vary by regions)
Color pre-calibration report, HDMI cable, Power adapter, ProArt Pen (Wacom EMR), ProArt Carry Bag, Quick start guide, USB-C cable
Certifications
Energy Star, TÃœV Flicker-free, TÃœV Low Blue Light, VESA DisplayHDR 400, Calman Verified, Pantone Validated
ASUS ProArt PA169CDV Pen Display, 16″ IPS Display, 4K UHD Resolution, 60Hz Refresh Rate, 10ms (GtG) Response Time, Projective Capacitive 10-point Touch, 1073.7m Color Display, Black | 90LM0711-B01I70
$1,410.00
15.6-inch 4K UHD (3840 x 2160) IPS panel with anti-glare and capacitive 10-point multitouch

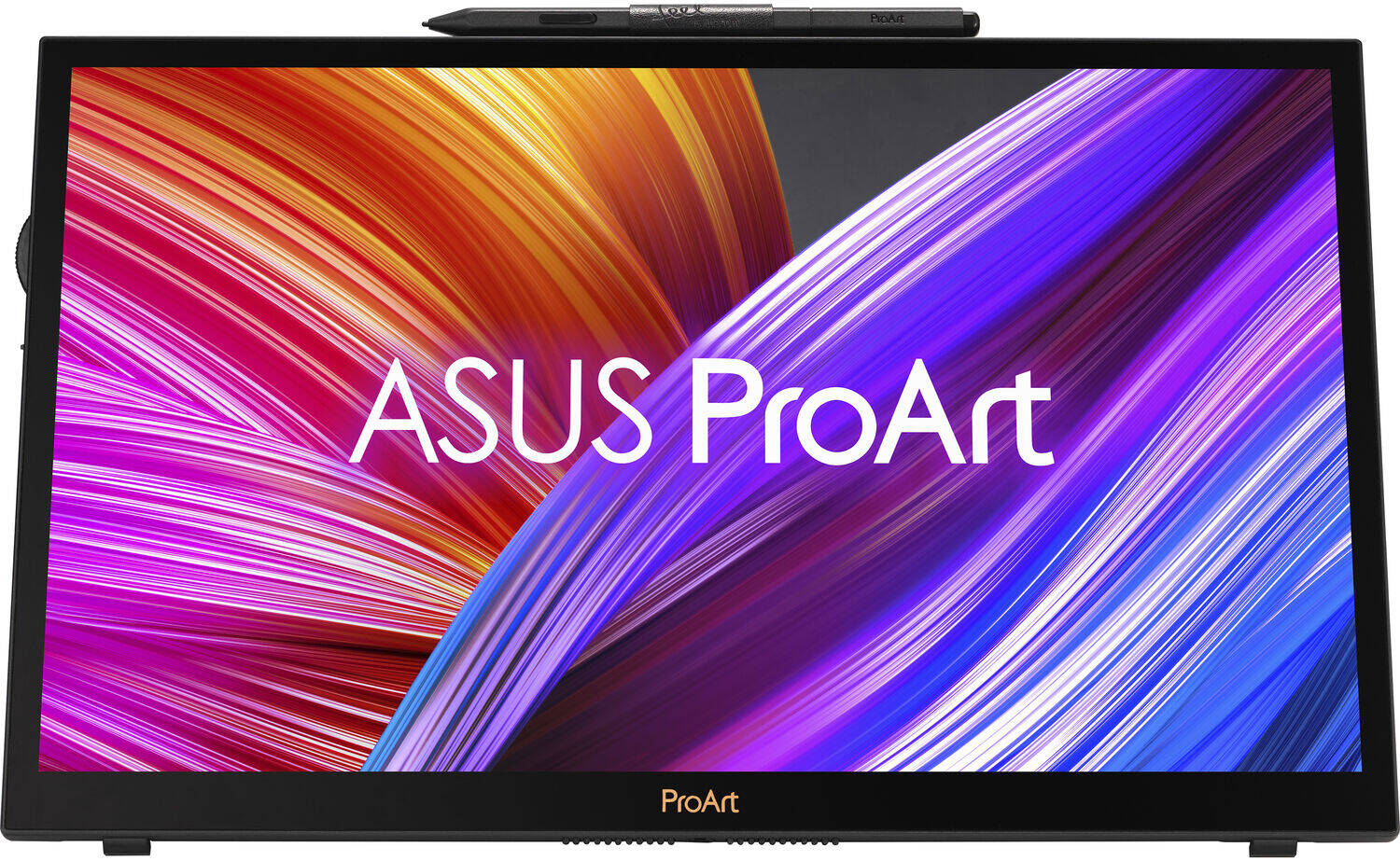

Bundled ProArt Pen with Wacom EMR technology for pen-on-paper-like writing and drawing experiences
100% sRGB, Calman Verified, and factory pre-calibrated to Delta E
ASUS Dial and Virtual Control Panel offer productive shortcuts and programmable hotkeys for compatible creative software

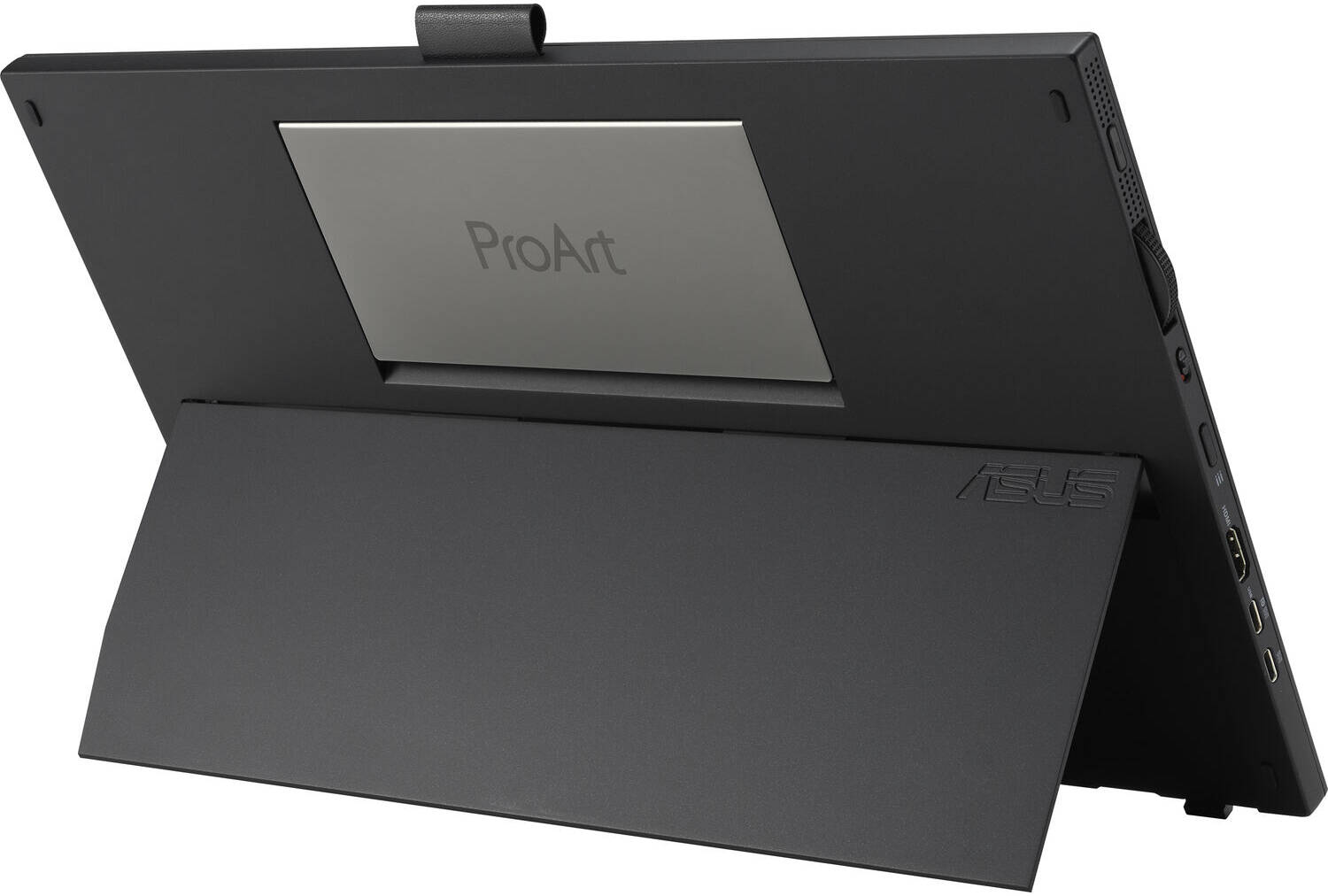

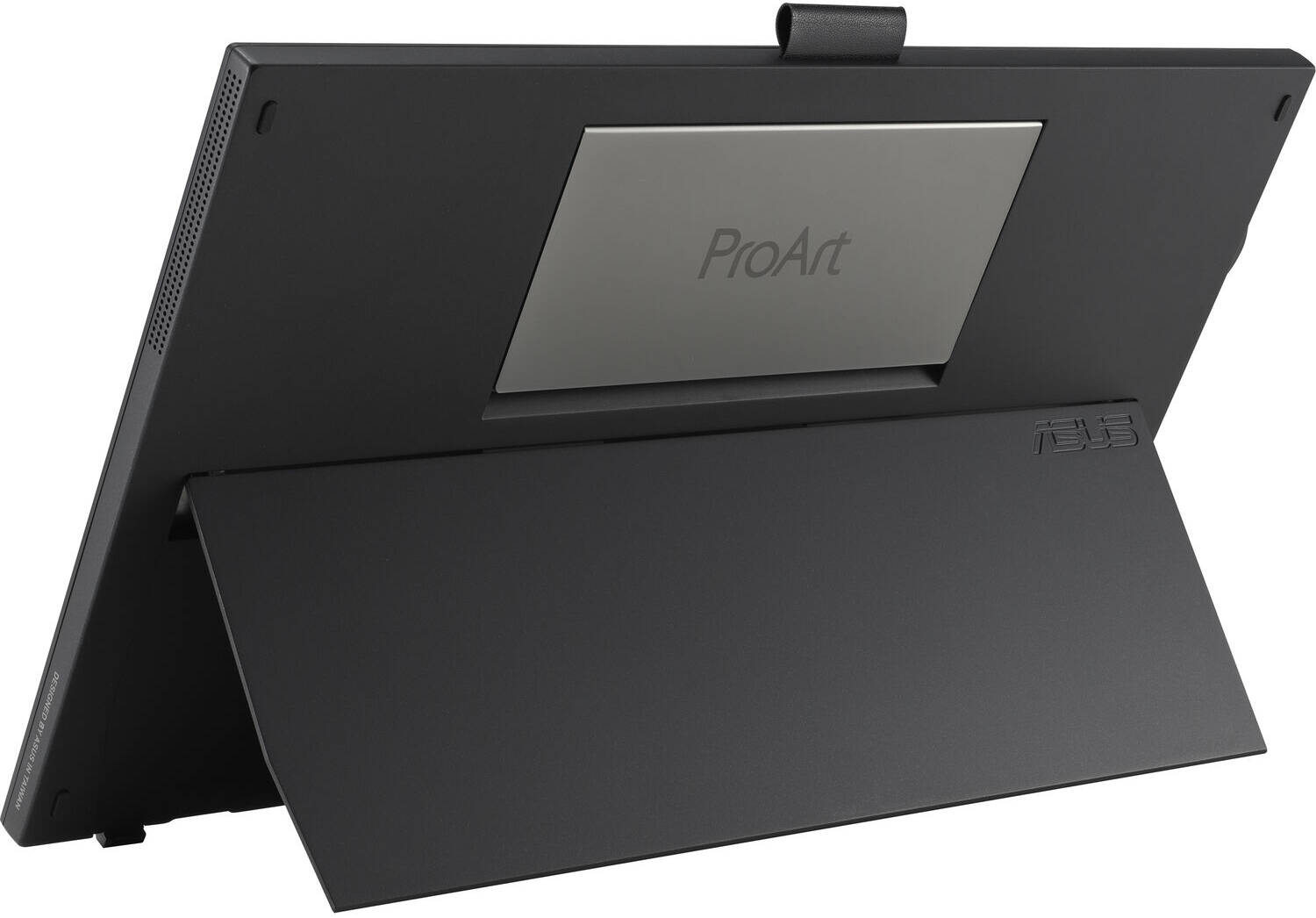

Two innovative kickstands prop the display up at different angles to suit different needs
Extensive I/O connectivity including USB-C (with DP Alt mode) and HDMI for compatibility with various devices
TÃœV Rheinland-certified Flicker-free and Low Blue Light technologies for comfortable viewing experiences
| Brand |
ASUS |
|---|---|
| Model |
ProArt PA169CDV |
| Date first available |
03 January; 2025 |
| Shipping Weight |
2.95 Kg |
| Shipping Dimensions |
53.90 cm x 32.30 cm x 10.75 cm |
| Color |
Black |
| Screen Size |
16 " |
| Aspect Ratio |
16:9 |
| Refresh Rate |
60 Hz |
| Resolution |
3840 x 2160 |
| Panel Type |
IPS |
| Widescreen |
No |
| Curved |
No |
| Contrast Ratio |
1200:1 |
| Response Time |
10 ms |
