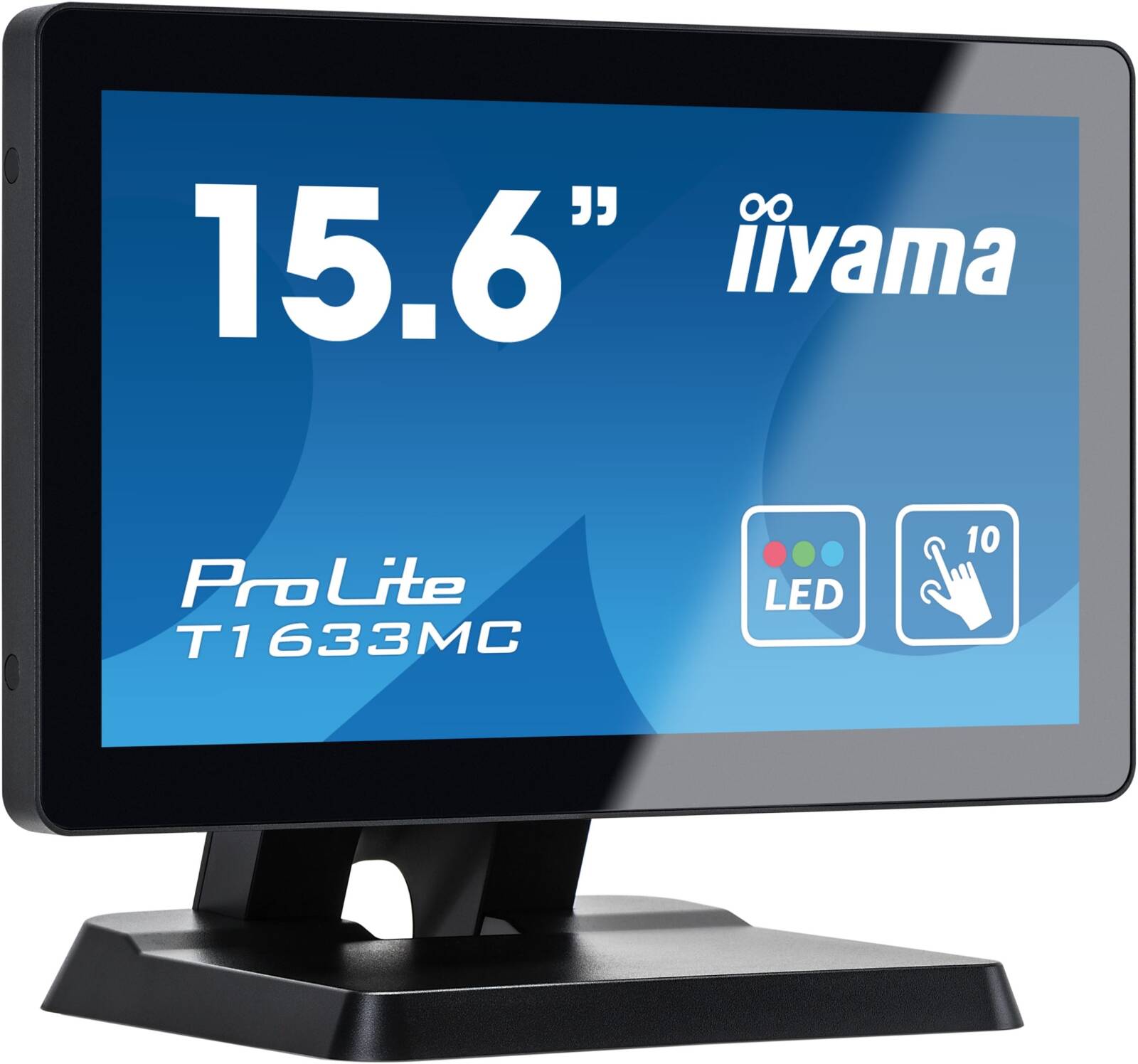

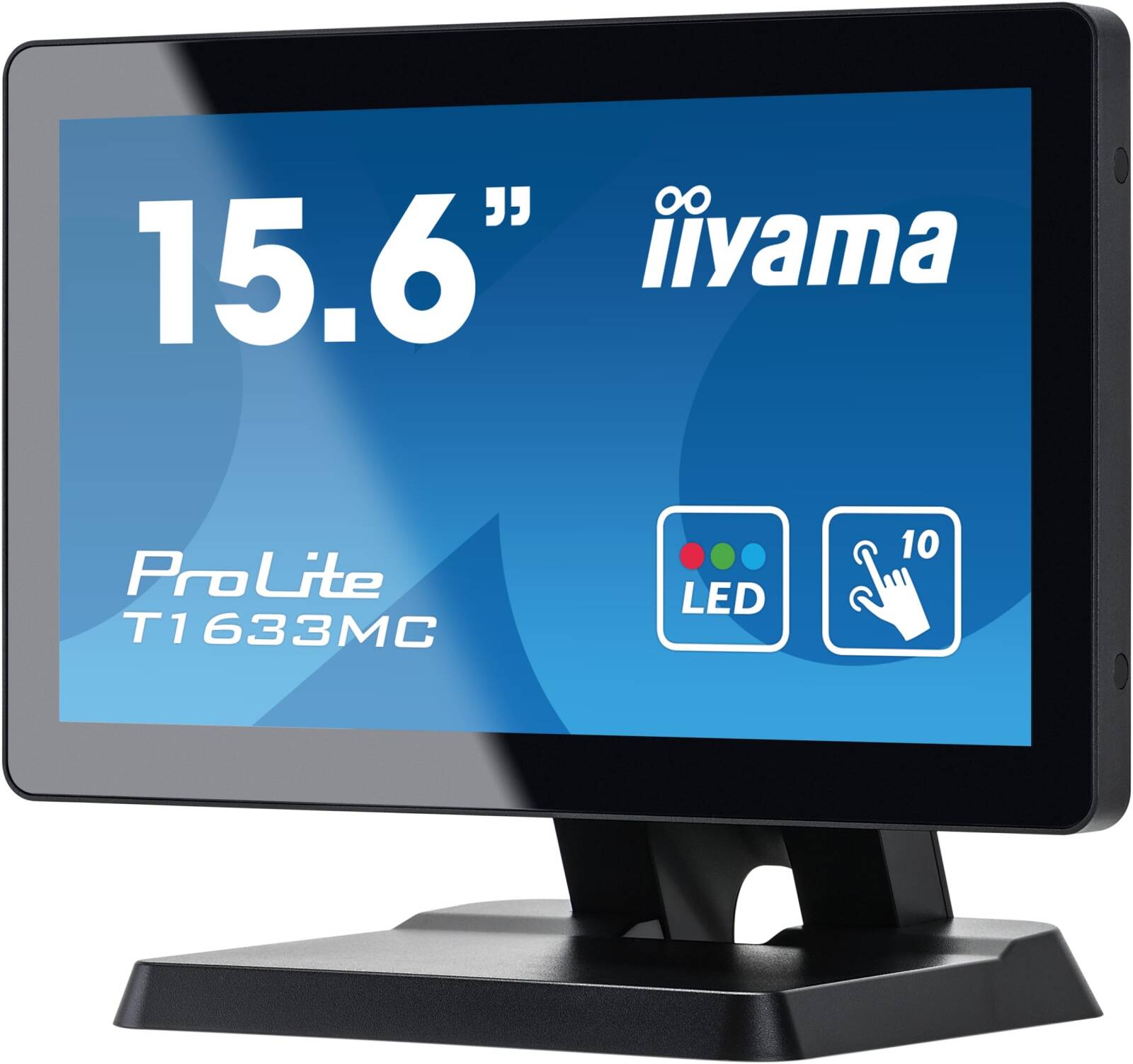

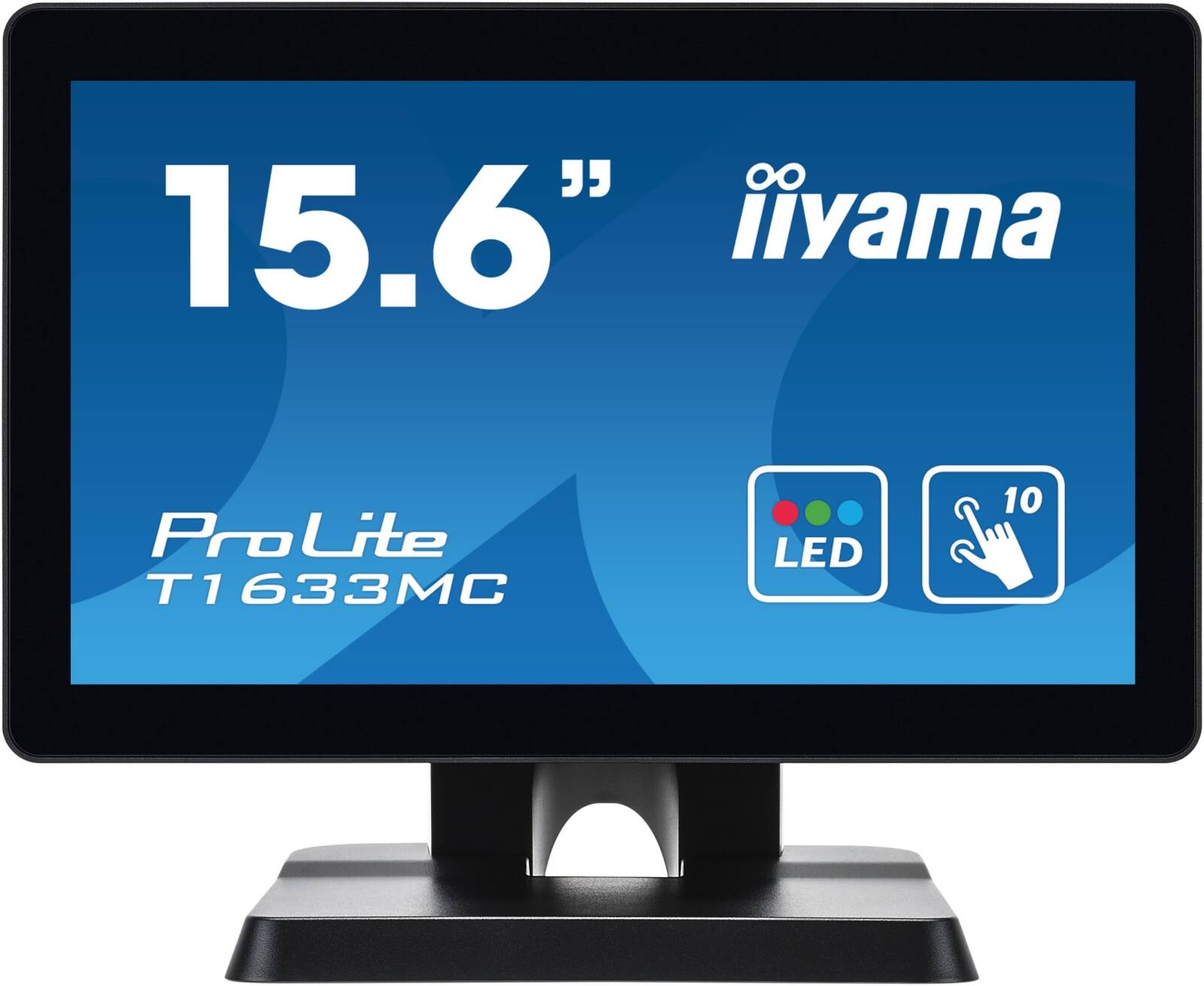

ProLite T1633MC-B1
15.6″ P-Cap 10 point multi-touch monitor with edge-to-edge glass
The 15.6” LED-backlit ProLite T1633MC-B1 uses Projective Capacitive Multi-Touch Technology and is built into an eye catching bezel with edge-to-edge glass. The screen features a 1366 x 768 resolution, triple inputs (HDMI, DisplayPort, VGA) and USB Hub, comes with a rugged bezel and IP54 rated front making it suitable for demanding environments.The ProLite T1633MC-B1 is the ideal solution for in-store retail and kiosk integration.
Specifications
DISPLAY CHARACTERISTICS
Design
Edge to edge glass
Diagonal
15.6″, 39.5 cm
Panel
TN LED
Native resolution
1366 x 768 @60Hz (1.0 megapixel)
Aspect ratio
16:9
Panel brightness
300 cd/m²
Brightness
255 cd/m² with touch
Light transmittance
85%
Static contrast
500:1 with touch
Response time (GTG)
6 ms
Viewing zone
Horizontal/vertical: 160°/160°, right/left: 80°/80°, up/down: 80°/80°
Colour support
16.7 million
Horizontal Sync
31.4 – 60.3 kHz
Viewable area W x H
344.2 x 193.6 mm, 13.6 x 7.6″
Pixel pitch
0.252 mm
Bezel colour and finish
Black, matte
TOUCH
Touch technology
Projective capacitive
Touch points
10 (HID, only with supported OS)
Touch method
Stylus, finger, glove (latex)
Touch interface
USB
Supported operating systems
Plug & Play, compatible with Windows and Linux
Palm rejection
No

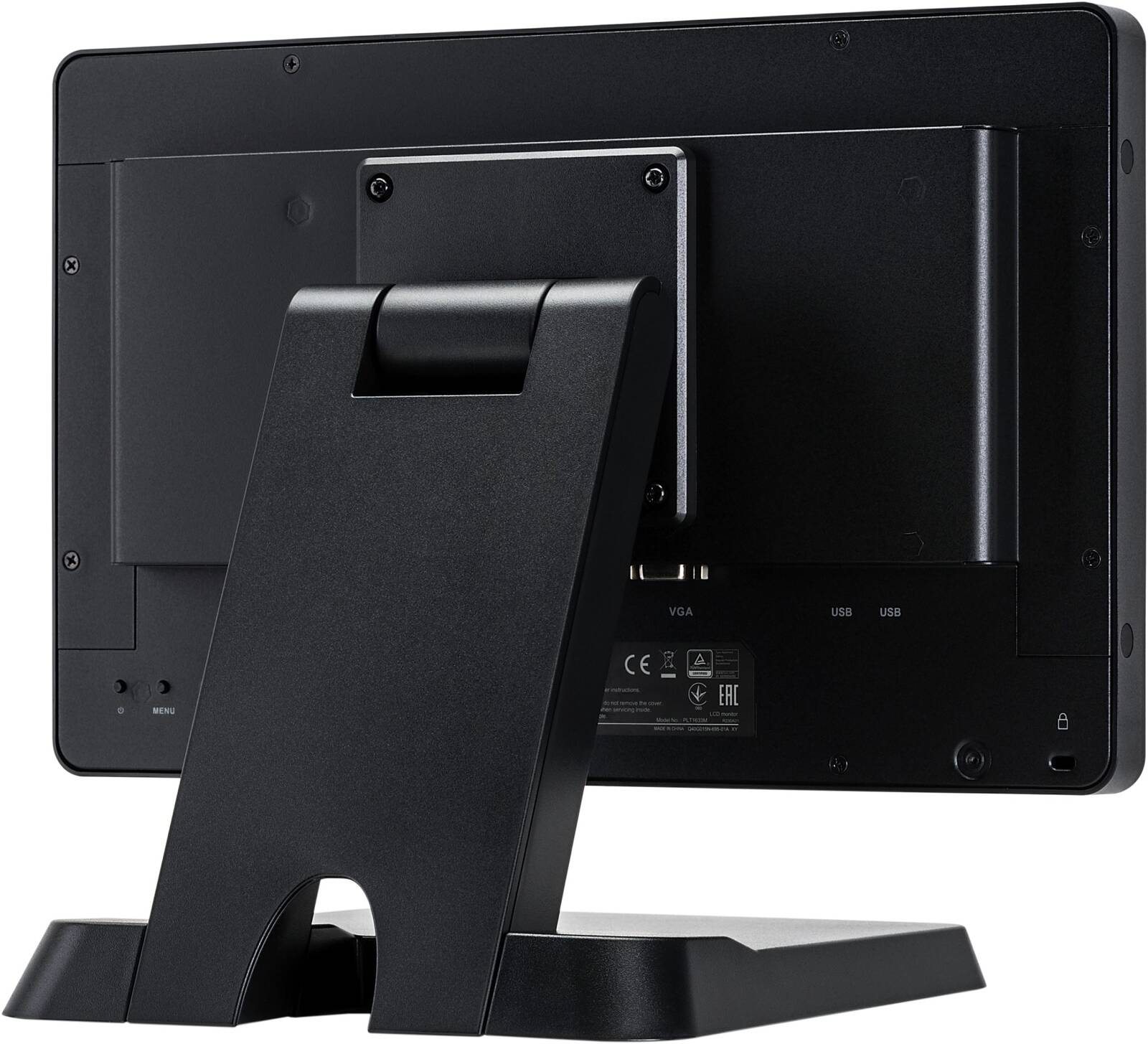

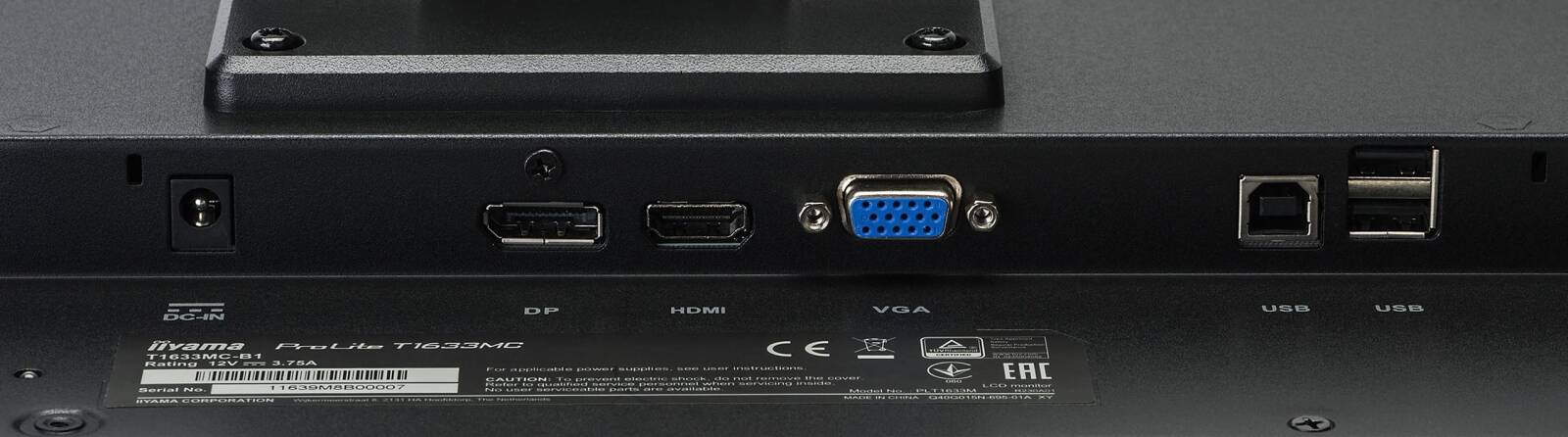

INTERFACES / CONNECTORS / CONTROLS
Analog signal input
VGA x1
Digital signal input
HDMI x1, DisplayPort x1
HDCP
Yes
USB HUB
x2 (v.2.0)
FEATURES
Glass thickness
1.5 mm
Water and dust protection
IP54 (front)
OSD key lock
Yes
GENERAL
OSD languages
EN, DE, FR, ES, IT, PT, CN, RU, JP, CZ, NL, PL

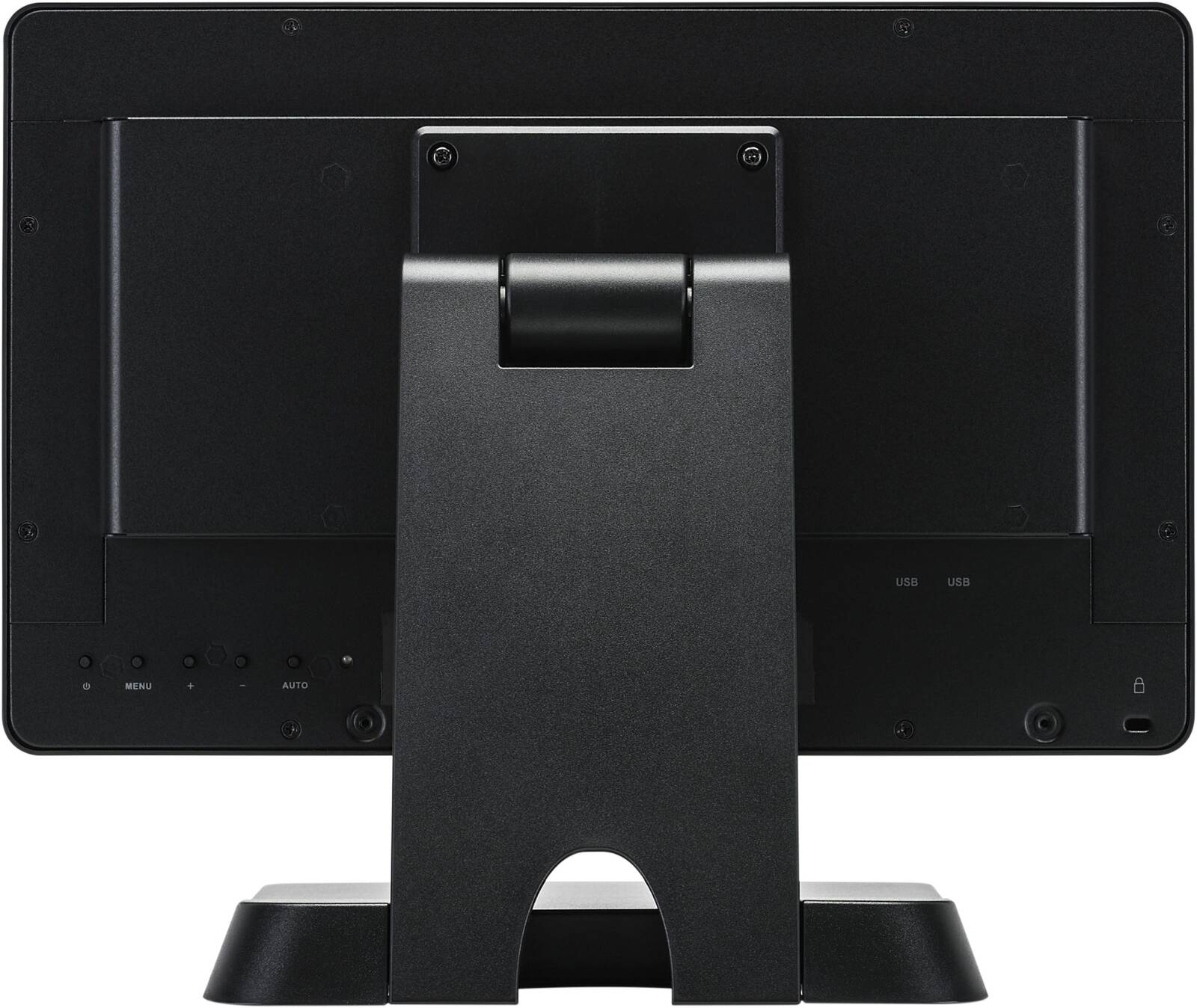

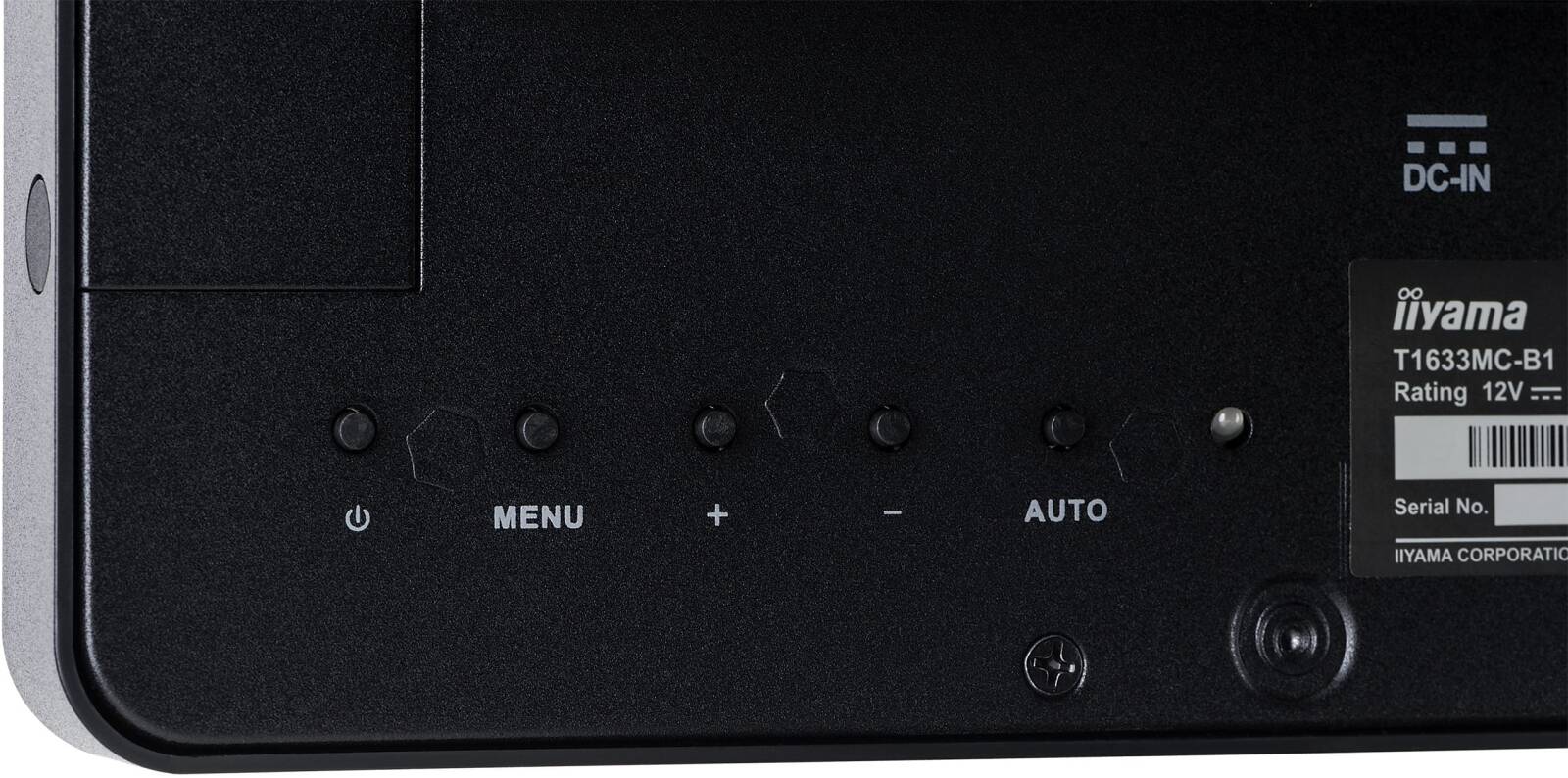

Control buttons
Auto/Input Select, -/Eco Button, +/Blue Light Reducer Button, Menu, Power
User controls
Luminance, image setup, color temp., OSD setup, extra options
Convenience
Kensington-lock™ prepared
Blue light reducer
Yes
Plug&Play
DDC2B

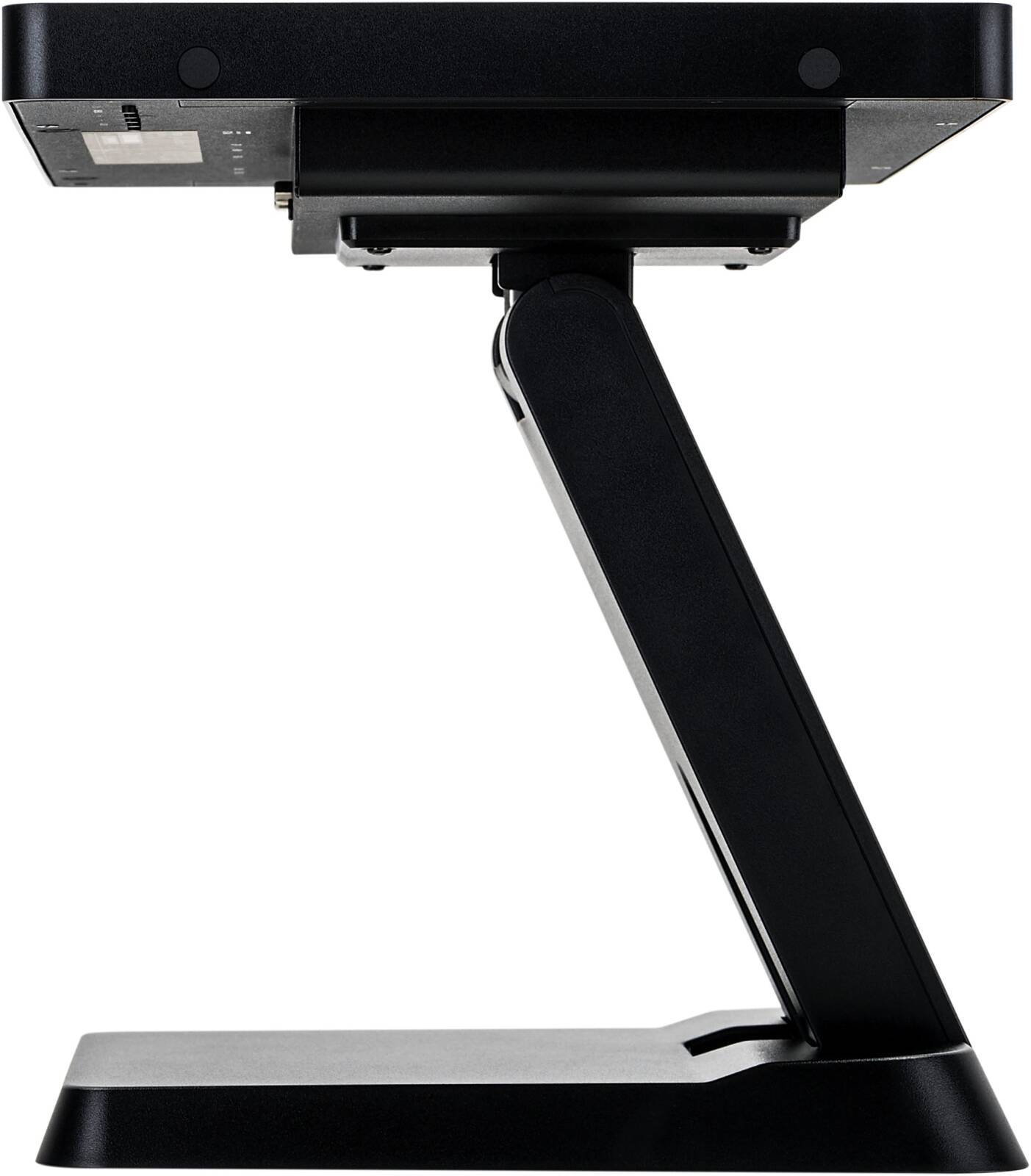

MECHANICAL

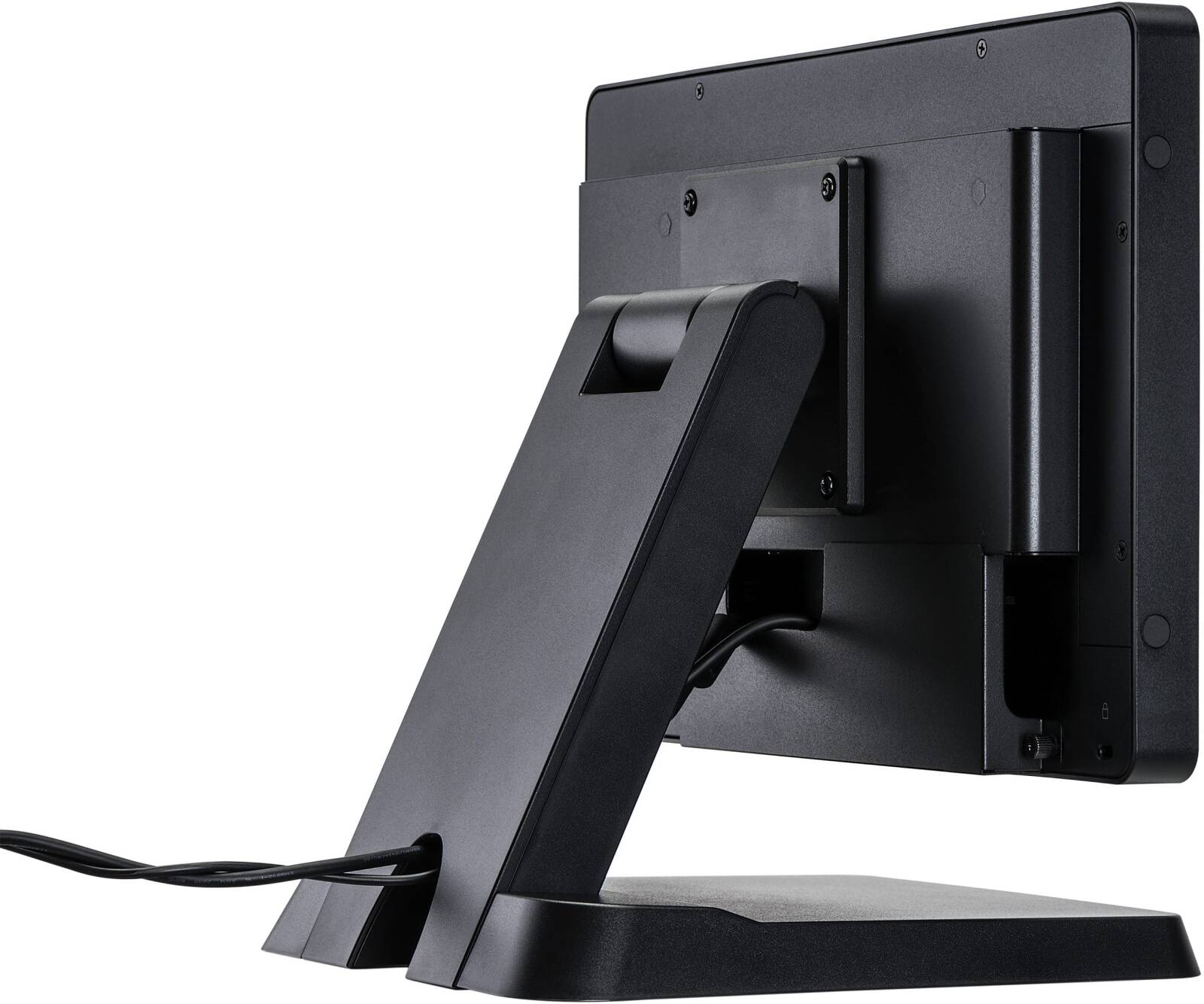

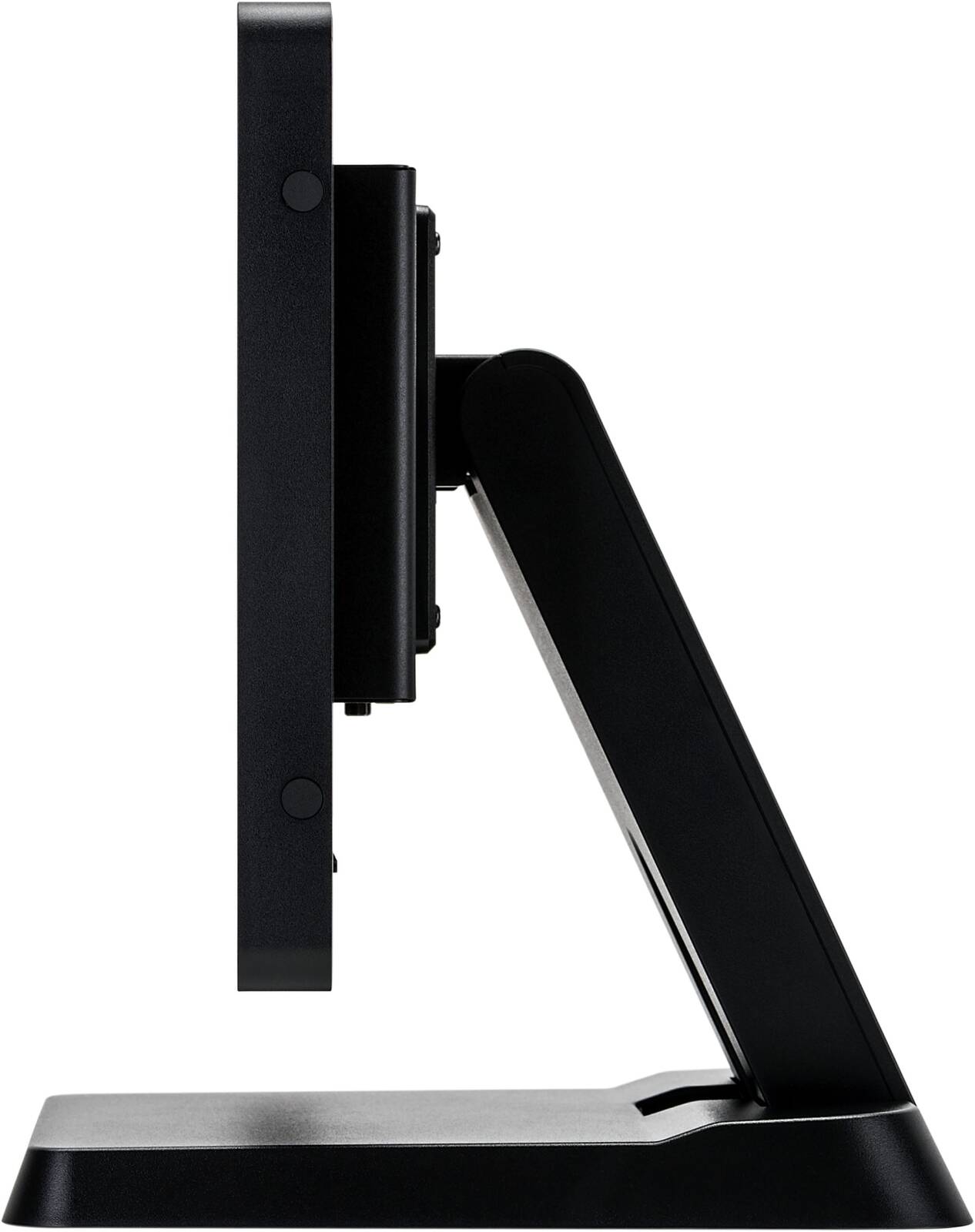

Tilt angle
90° up; 25° down
VESA mounting
100 x 100 mm

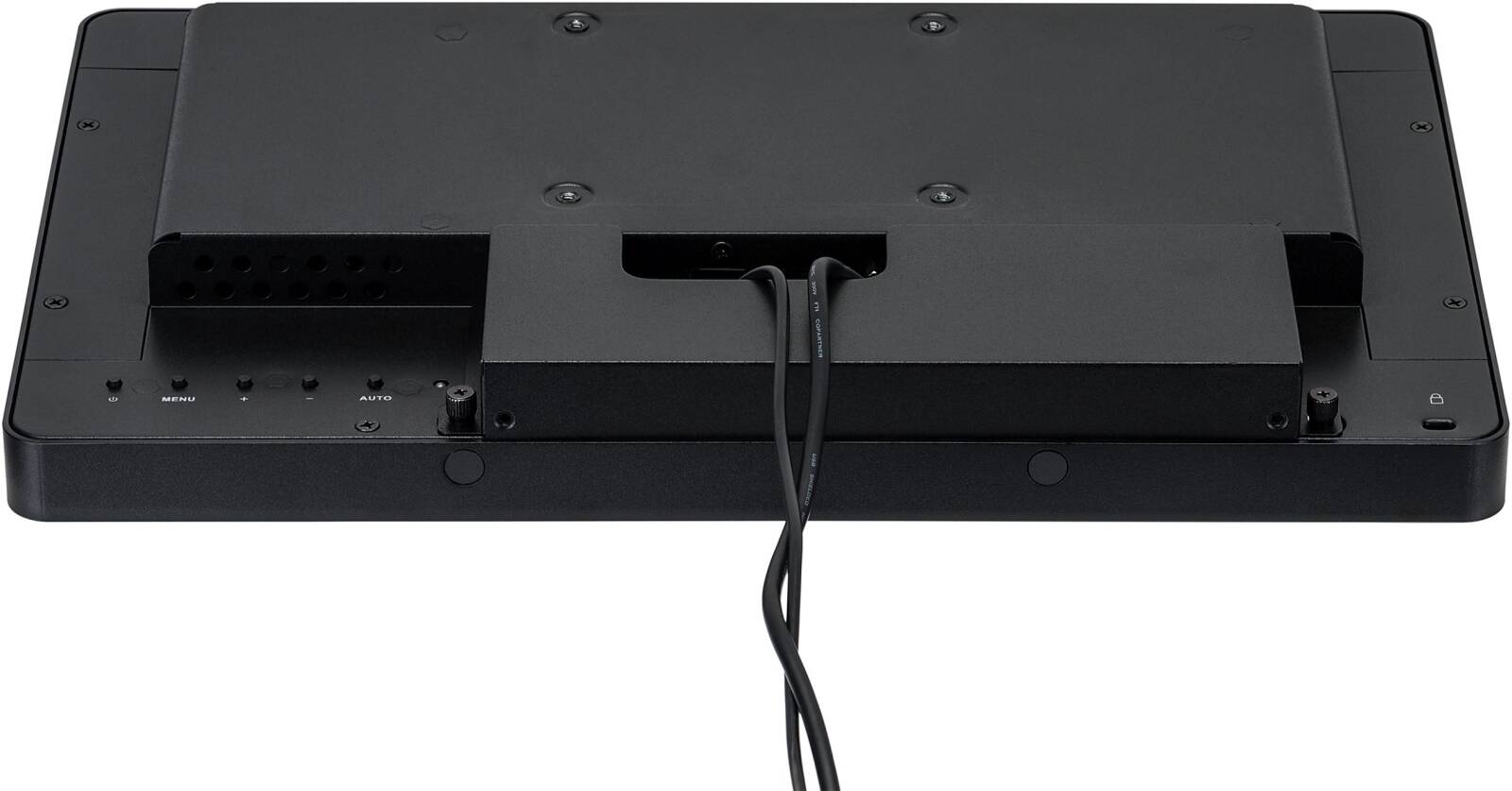

Cable management system
Yes
ACCESSORIES INCLUDED
Cables
Power (1.8m), USB (1.8m), HDMI (1.8m), DP (1.8m)
Guides
Quick start guide, safety guide
Other
AC adapter
Cable cover
Yes
POWER MANAGEMENT
Power supply unit
External
Power supply
DC 12 V
Power usage
13.5 W typical, 2W stand by, 2W off mode
SUSTAINABILITY
Regulations
CB, CE, TÜV-Bauart, EAC, RoHS support, ErP, WEEE, REACH, UKCA
Energy efficiency class
F
REACH SVHC
Above 0.1%: Lead
iiyama ProLite T1633MC-B1 Touch Monitor, 16″ TN LED Touch Display, 1366 x 768 Resolution, 60Hz Refresh Rate, 6ms (GtG) Response Time, 16.7m Color, Projective Capacitive Touch, Black | T1633MC-B1
$500.00
Touch technology – Capacitive
Scratch resistance
IP54 Rated Protection
LED-backlit
Description
Additional information
| Brand |
IIYAMA |
|---|---|
| Model |
ProLite T1633MC-B1 |
| Date first available |
04 December; 2024 |
| Shipping Weight |
4.50 Kg |
| Shipping Dimensions |
38.90 cm x 25.40 cm x 31.25 cm |
| Color |
Black |
| Screen Size |
16 " |
| Aspect Ratio |
16:9 |
| Refresh Rate |
60 Hz |
| Resolution |
1366 x 768 |
| Panel Type |
TN |
| Widescreen |
No |
| Curved |
No |
| Contrast Ratio |
500:1 |
| Response Time |
6 ms |
