iiyama ProLite TF2738MSC Monitor, 27″ FHD IPS Display, Projective Capacitive Touch, 10 Touch Points, 75Hz Refresh Rate, 5ms (GtG) Response Time, 2x 3W Speakers, Black | TF2738MSC-B2

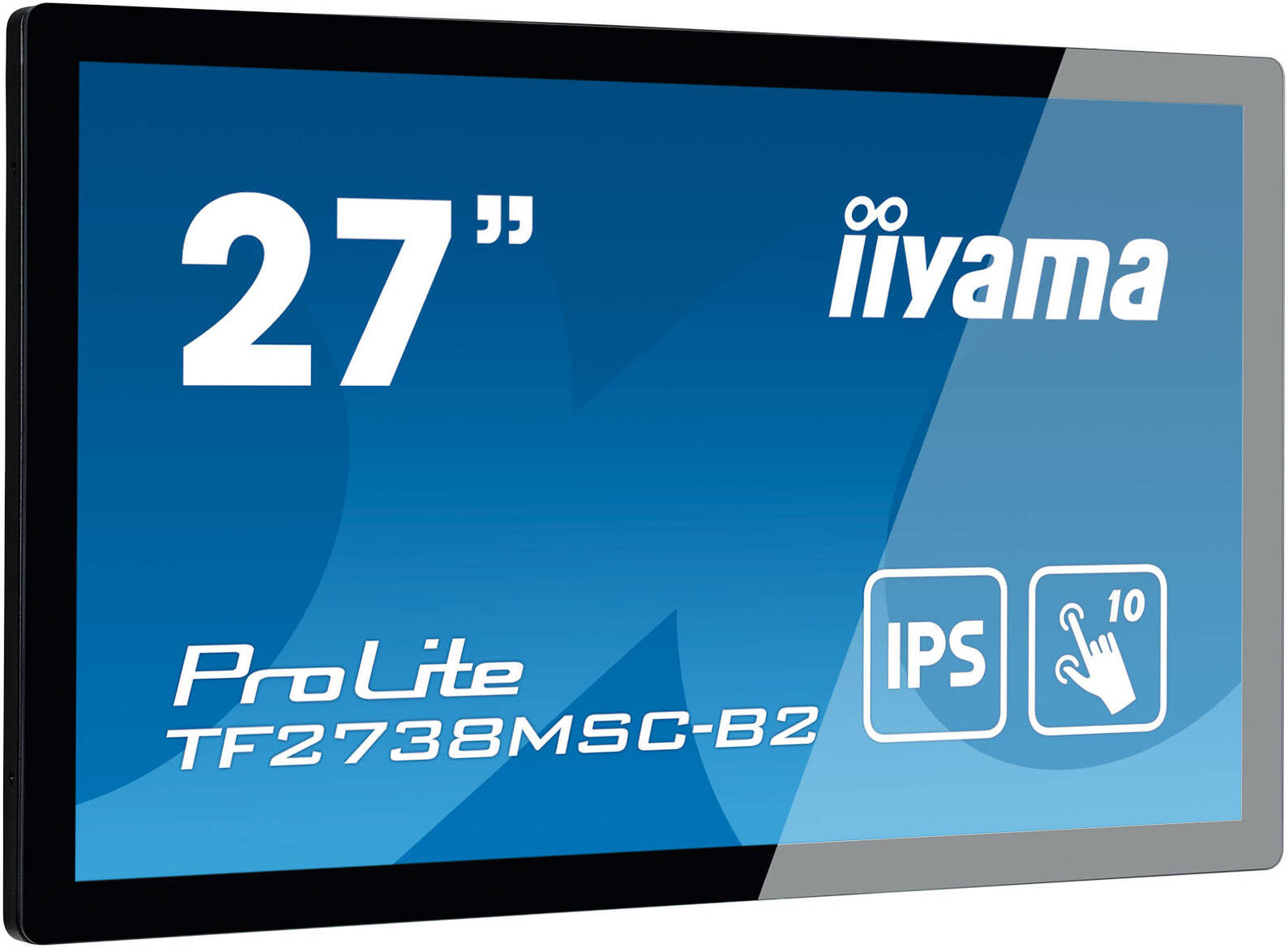

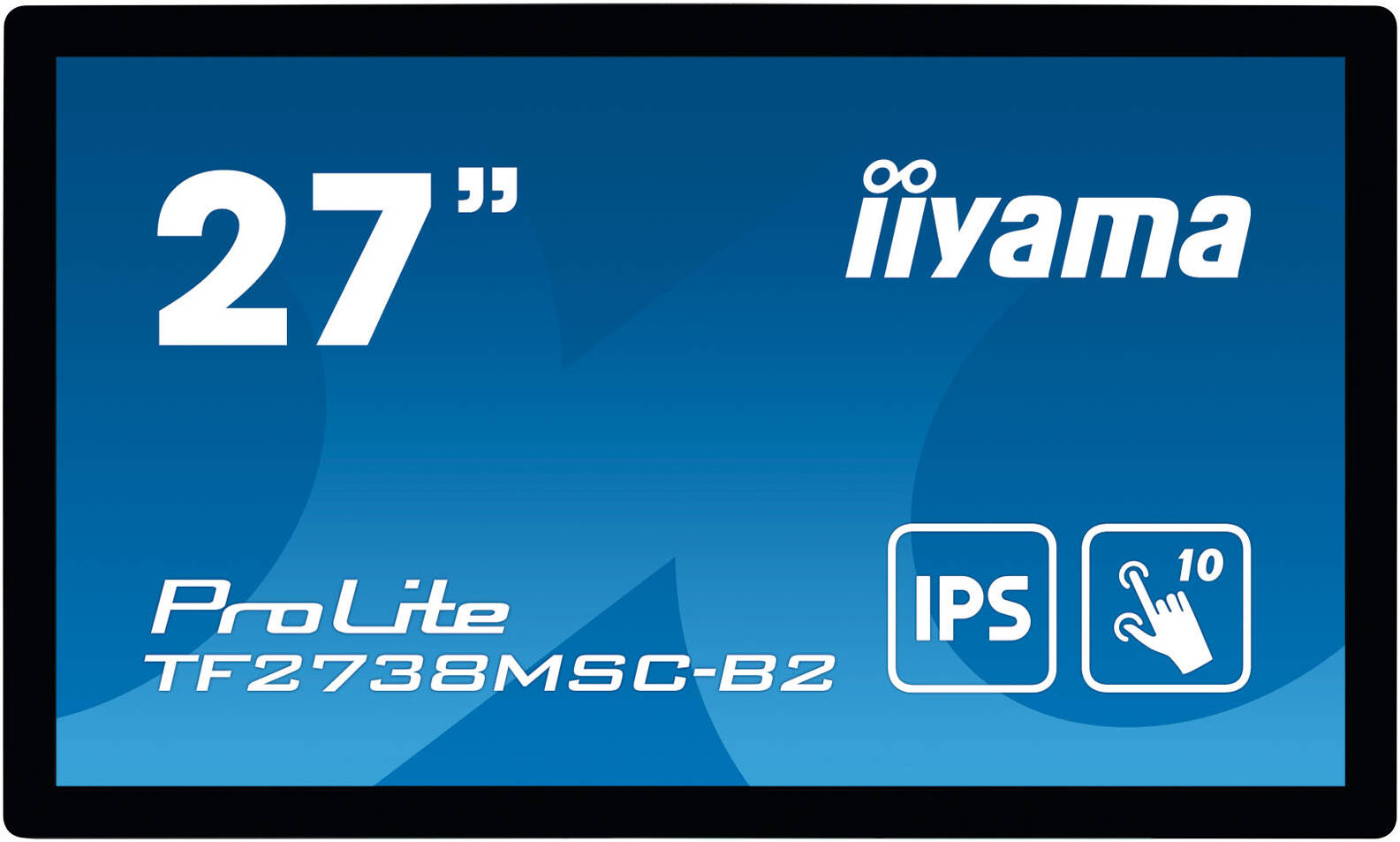

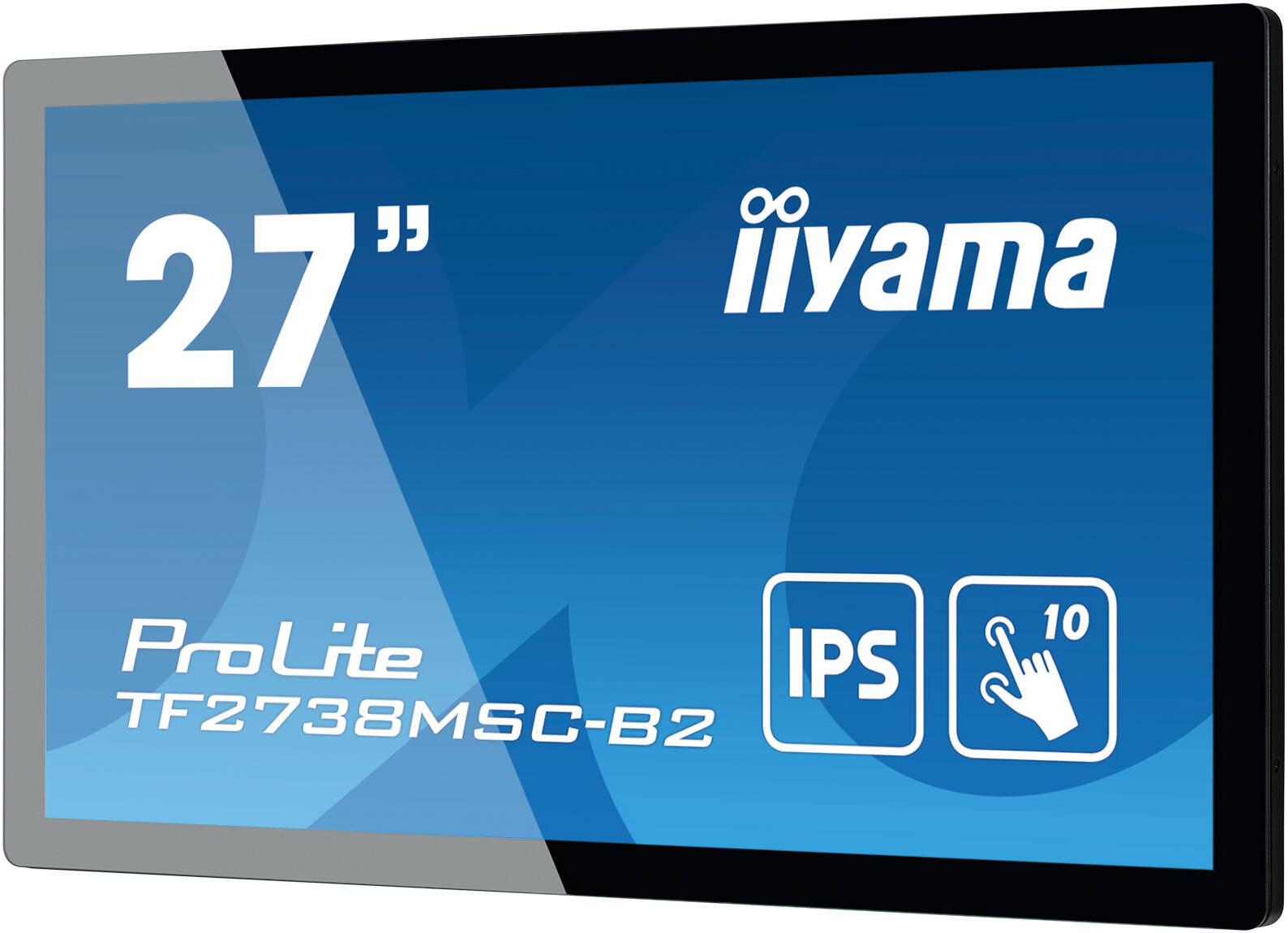

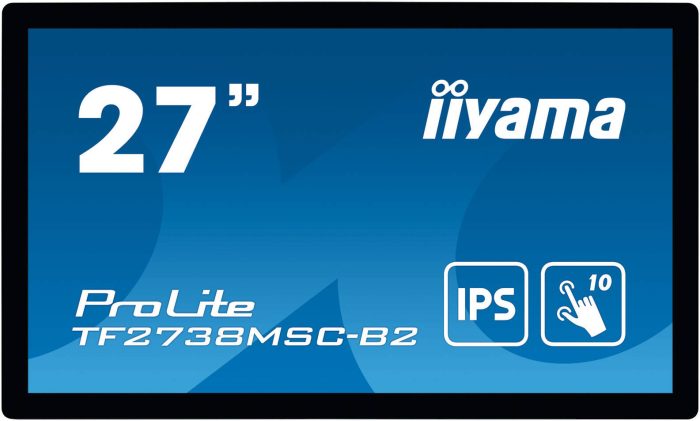

ProLite TF2738MSC-B2
With 1920×1080 Full HD resolution and Projective Capacitive 10 point touch technology, the ProLite TF2738MSC-B2 delivers seamless and accurate touch response. Featuring IPS LED LCD Screen technology, it offers exceptional colour performance and wide viewing angles. Its rugged bezel with edge-to-edge glass makes it very suitable for applications like table top integration. In addition, the screen comes with an IPX1 rating, making it water resistant from the front. Equipped with speakers and triple digital input (DVI, HDMI and DisplayPort). The ProLite TF2738MSC-B2 is an ideal screen for kiosk integrators and a perfect solution for Interactive Digital Signage, Instore Retail, Gaming and Interactive Presentations.
Key Features
Full HD resolution (1920×1080) ensures high-quality visuals.
Projective Capacitive 10 point touch technology for seamless and accurate touch response.
IPS LED LCD Screen technology delivers exceptional color performance and wide viewing angles.
Rugged bezel with edge-to-edge glass design, suitable for table top integration.
IPX1 rating provides water resistance from the front, enhancing durability.
Equipped with speakers for audio playback and triple digital input (DVI, HDMI, and DisplayPort) for versatile connectivity options.
Ideal for kiosk integrators and suitable for Interactive Digital Signage, In-store Retail, Gaming, and Interactive Presentations.
Specifications
Design
Open Frame
Diagonal
27″, 68.6cm
Panel
IPS LED
Native Resolution
1920 x 1080 (2.1 megapixel Full HD)
Aspect Ratio
16:9
Panel Brightness
500 cd/m²
Brightness (with touch)
425 cd/m²
Light Transmittance
85%
Static Contrast
1000:1
Advanced Contrast
12M:1
Response Time (GTG)
5ms
Viewing Zone
Horizontal/Vertical: 178°/178°, Right/Left: 89°/89°, Up/Down: 89°/89°
Colour Support
16.7 million
Horizontal Sync
30 – 80kHz
Viewable Area W x H
597.6 x 336.2mm, 23.5 x 13.2″
Bezel Width (Sides, Top, Bottom)
24.5mm, 24mm, 24mm
Pixel Pitch
0.311mm
Bezel Colour and Finish
Black, matte
Touch
Touch Technology
Projective capacitive
Touch Points
10 (HID, only with supported OS)
Touch Method
Stylus, finger, glove (latex)
Touch Interface
USB
Supported Operating Systems
Windows, Linux
Interfaces / Connectors / Controls
Digital Signal Input
DVI x1, HDMI x1, DisplayPort x1
Audio Output
Speakers 2 x 3W
HDCP
Yes
Features
Max. Non-stop Operating Time
16/7
Glass Thickness
3.6mm
Glass Hardness
6H
60950 Ball Drop Test
Yes
Water and Dust Protection
IP1X (front)
OSD Key Lock
Yes
General
OSD Languages
EN, DE, FR, CN, RU, JP, NL, PL
Control Buttons
Menu, Scroll up/Audio, Scroll down/i-Style colour, Select/Input select, Power
User Controls
Picture adjust (contrast, brightness, adv. contrast, ECO mode, OD), input select, audio adjust (volume, mute, audio input), color adjust (cool, normal, warm, user color, i-Style color), information, manual image adjust (sharpness, video mode adjust, blue light reducer, X-res technology), setup menu (language select, OSD position, OSD time out, OSD background, opening logo, LED), memory recall
Blue Light Reducer
Yes
Plug & Play
DDC2B
Mechanical
Orientation
Landscape, portrait, face-up
Fanless Design
Yes
VESA Mounting
100 x 100mm, 200 x 100mm
Accessories Included
Cables
Power, USB, HDMI, mDP – DP, DP
Guides
Quick start guide, safety guide
Cable Cover
Yes
Power Management
Power Supply Unit
Internal
Power Supply
AC – 100V, 240/V, 50Hz
Power Usage
25W typical, 1.5W standby, 0.3W off mode
