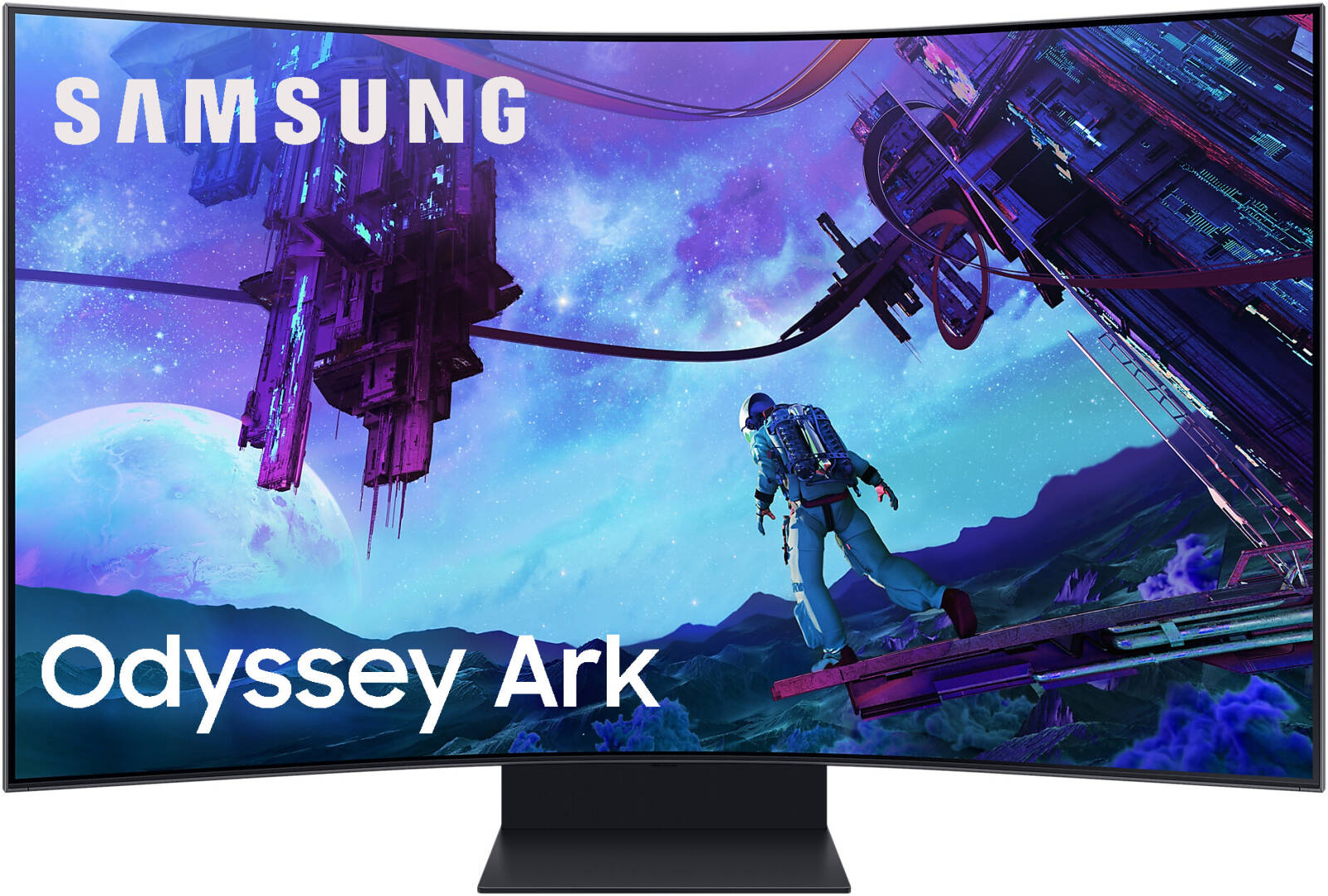

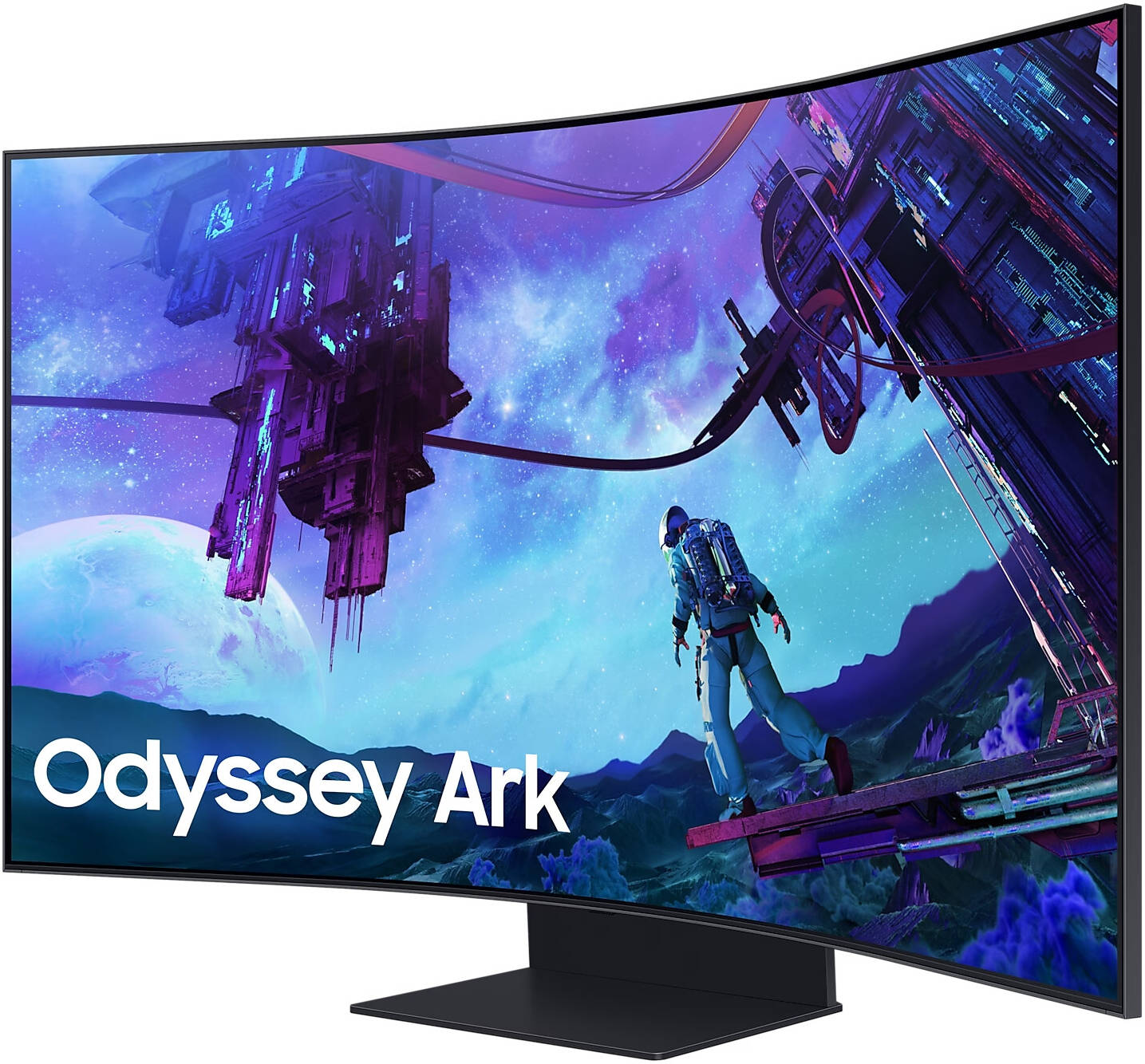

55″ Odyssey Ark
Curved UHD Gaming Monitor

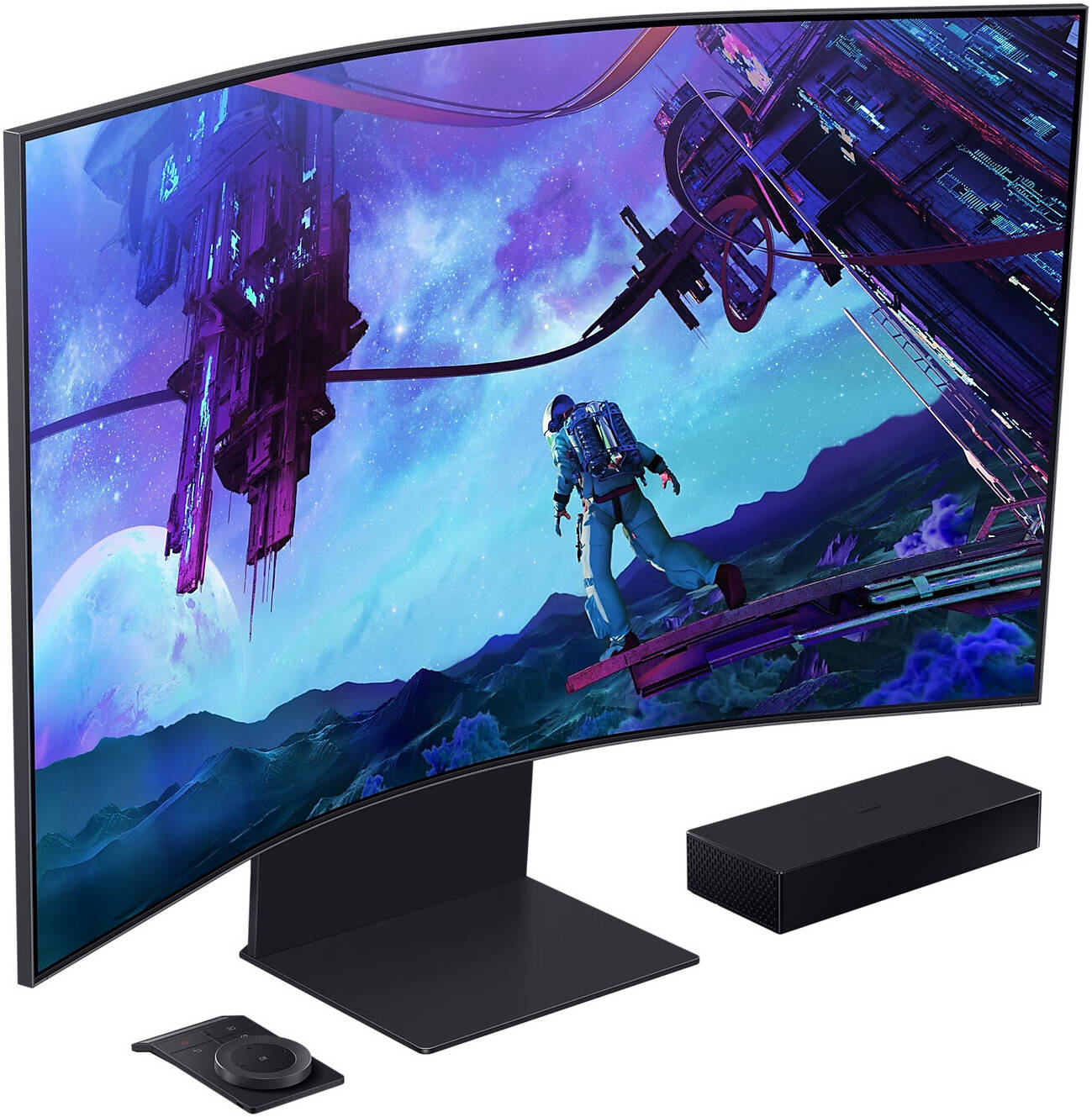

Become fully immersed in your entertainment experiences with the Samsung Odyssey Ark 55″ 4K HDR 165 Hz Curved Gaming Monitor. This large-screen 3840 x 2160 resolution 4K monitor encompasses your field of view with a 1000R curved design and 178° viewing angles while you watch movies and explore fantastical game worlds. At the same time, the 165 Hz refresh rate and 1 ms response time delivers smooth graphics by practically eliminating motion blur from fast action scenes while AMD FreeSync Premium Pro technology reduces screen tearing and stuttering with compatible graphics cards.
Key Features
55″ 16:9 Quantum Mini-LED Panel
4 x HDMI Inputs
4K UHD 3840 x 2160 at 165 Hz
FreeSync Premium Pro
1 ms GtG Response Time
1 Million:1 Static Contrast Ratio
1000 nit Peak Brightness
1.07 Billion Colors with HDR10+

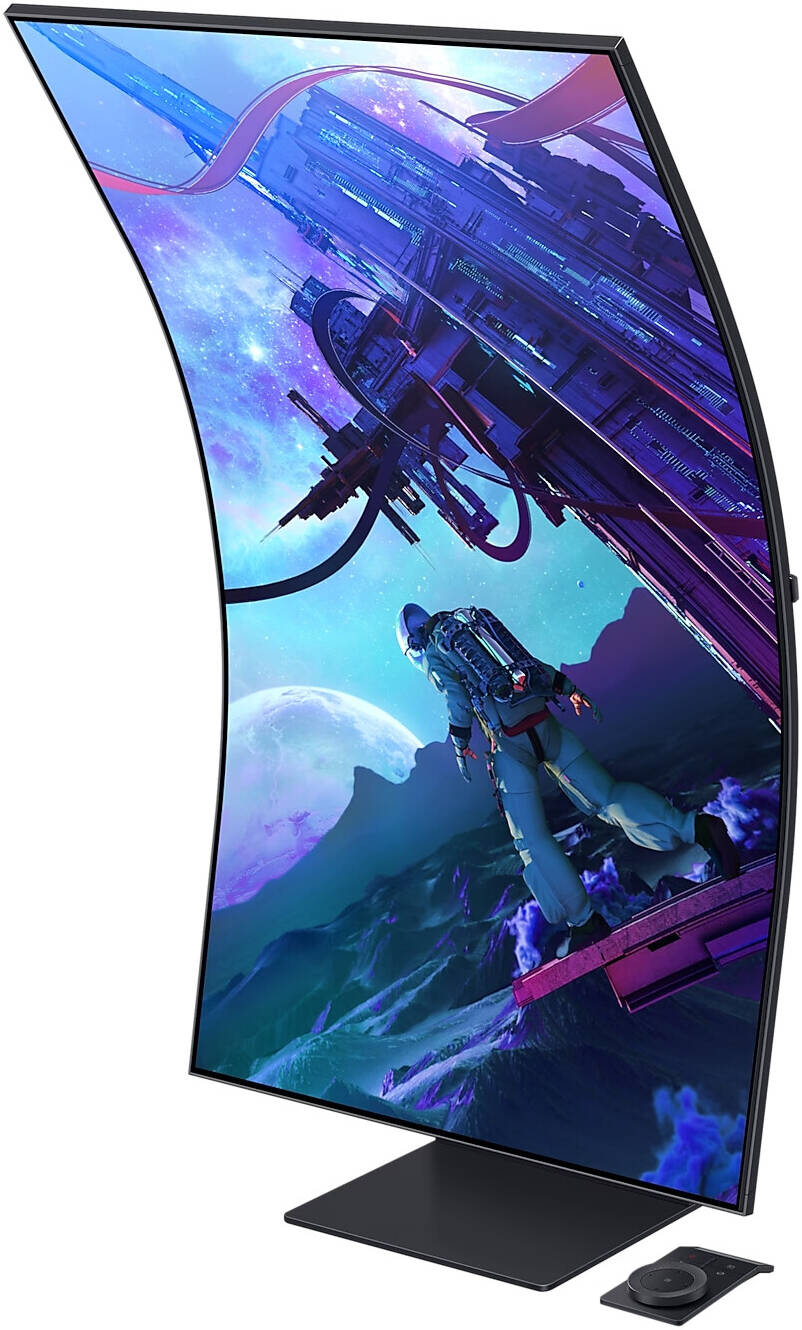

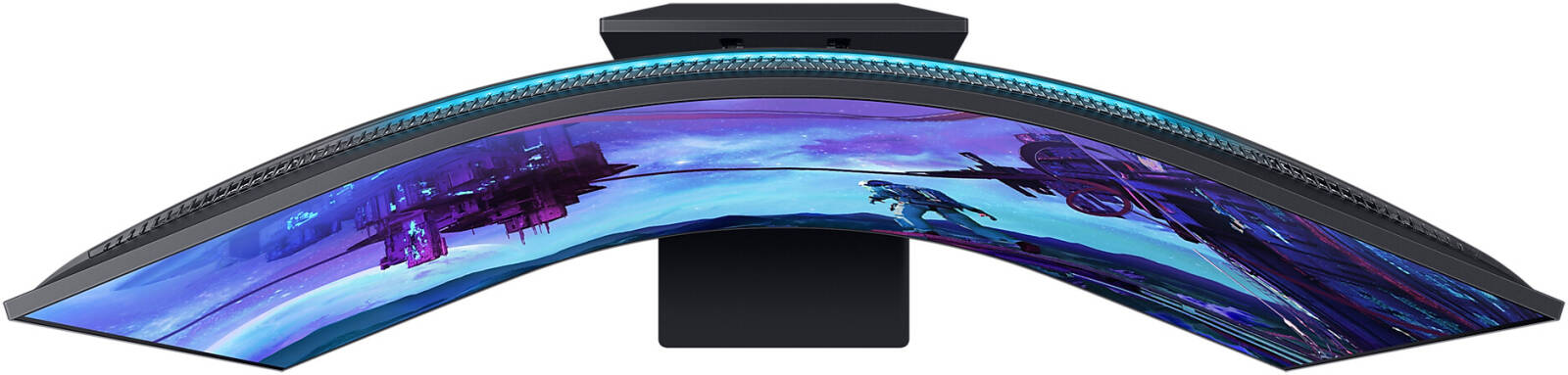

1000R Curve | 90° Rotation

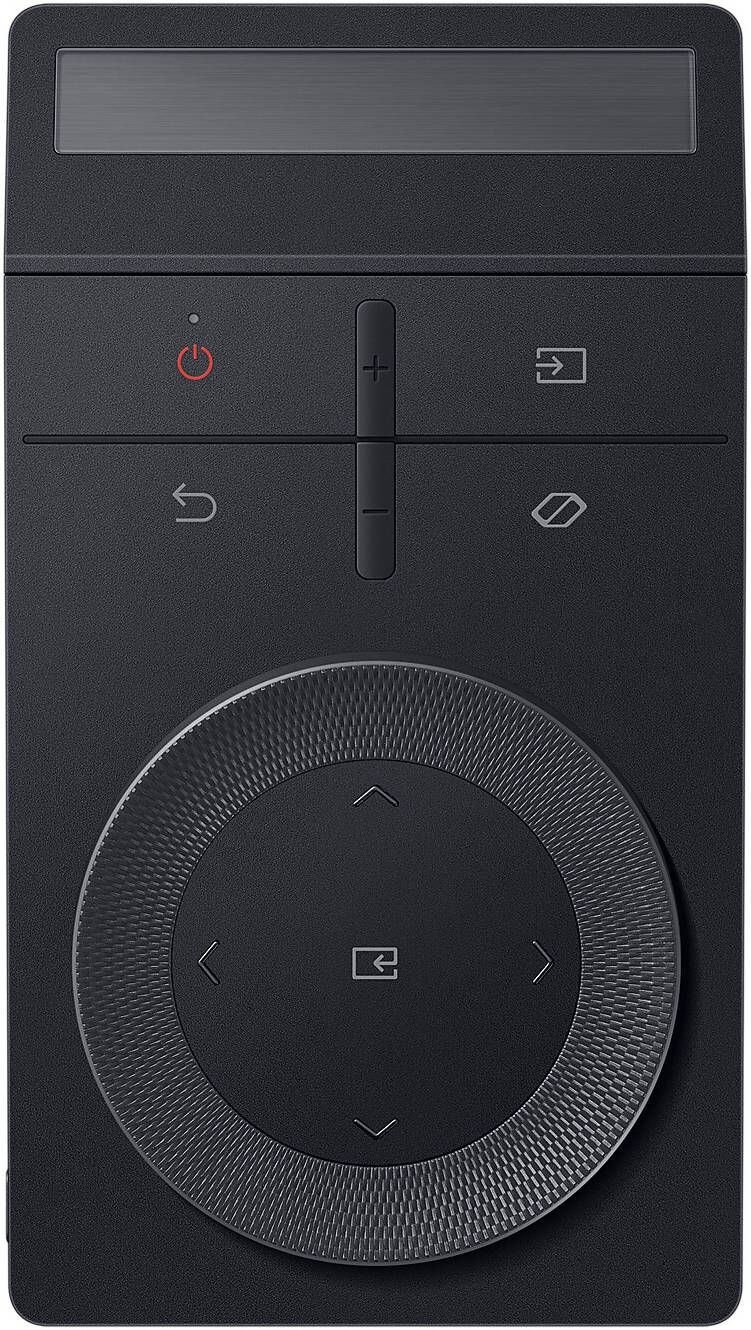

Quad Speakers | Remote | Control Dial
Specifications
Display
Screen size (class)
55
Flat / Curved
Curved
Active screen size (H/V) (mm)
1209.6(H) × 680.4(H)
Screen curvature
1000R
Aspect Ratio
16:9
Panel type
VA
Brightness (typical)
600 cd/㎡
Brightness (min.)
420 cd/㎡
Static contrast ratio
1,000,000:1 (Static)
Contrast Ratio (Dynamic)
Mega DCR
HDR (High Dynamic Range)
Quantum HDR 32x
HDR10+
HDR10+ Gaming
Mini LED Local Dimming
Yes (1056 zones)
Resolution
3840 x 2160
Response Time (ms)
1ms (GTG)
Viewing Angle (H/V)
178°(H)/178°(V)
Color support
Max 1B
Color gamut (DCI coverage)
95% (Typ.)
Refresh rate
Max 165 Hz
General function
Vision saving mode
Yes
Flicker-Free technology
Yes
Quantum Dot Color
Yes
Game mode
Yes
Image size
Yes
Certification for Windows
Windows 10
FreeSync
FreeSync Premium Pro
Sleep Timer Plus
Yes
Virtual AIM Point
Yes
Game Bar 2.0
Yes
Gaming Hub
Yes (KR, US, CA, BR, GB, FR, DE, IT, ES)
HDMI-CEC
Yes
Adaptive image
Yes
Ultrawide Game View
Yes
KVM Switch
Yes
Smart service
SmartType
Smart
Operating system
Tizen™
Bixby
US English, UK English, India English, Korean, French, German, Italian, Spanish, BR Portuguese
TV Plus
Yes (GB, FR, DE, IT, ES, CH, AT, NL, SE, NO, DK, FI, PT, IE, BE, LU)
Universal Guide
Yes (GB, FR, DE, IT, ES)
Built-in Amazon Alexa support
Alexa (GB, DE, FR, IT, ES, AT, IE)
Web Service
Microsoft 365
SmartThings Hub
Yes
Multi Device Experience
Mobile to Screen, Screen initiate mirroring, Screen Sound to Mobile, Sound Mirroring, Wireless On
Wireless DeX
Yes
My Contents
Yes
Multi View
Yes
Smart Calibration
Basic
NFT
Nifty Gateway
Tap View
Yes
Workspace
Yes

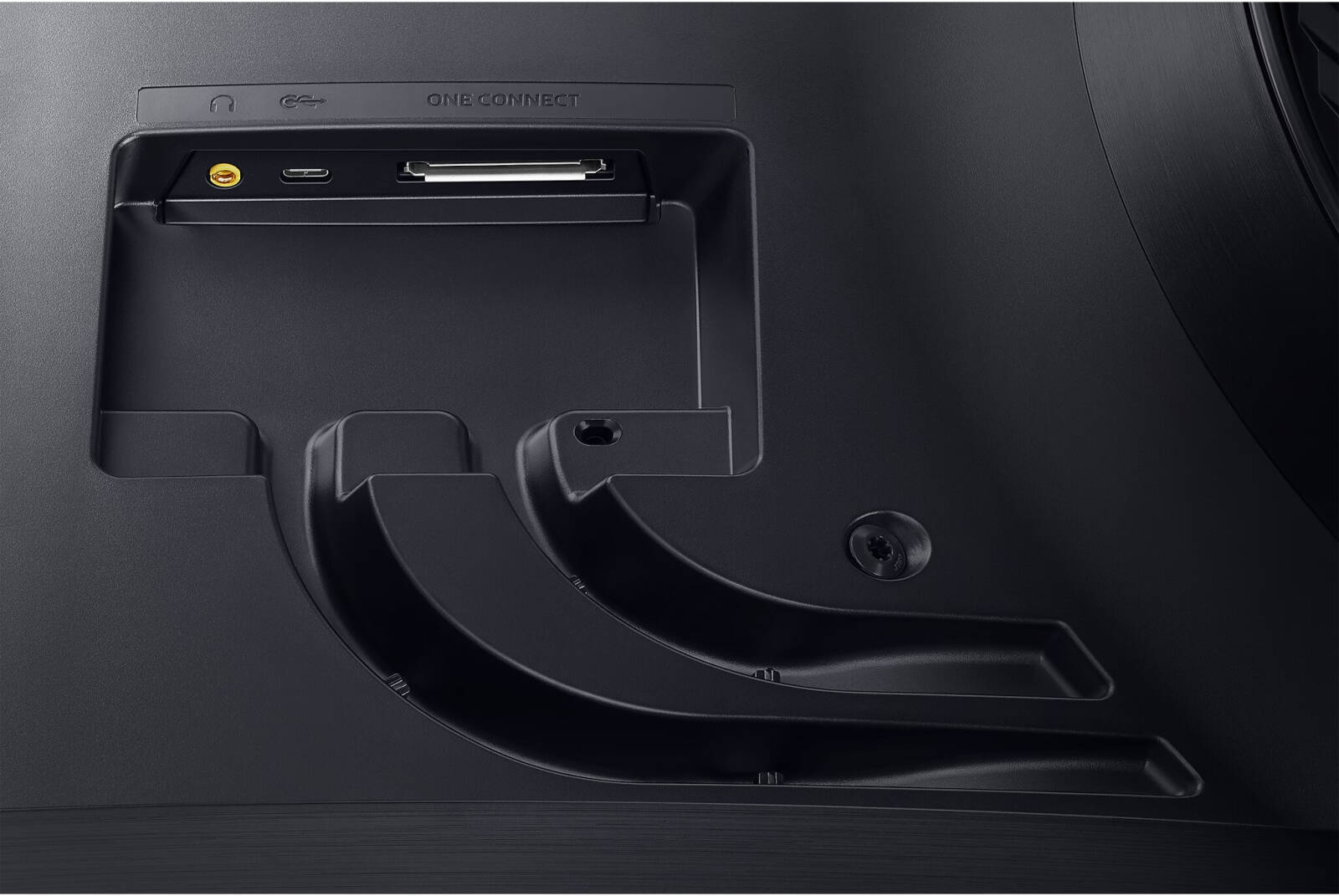

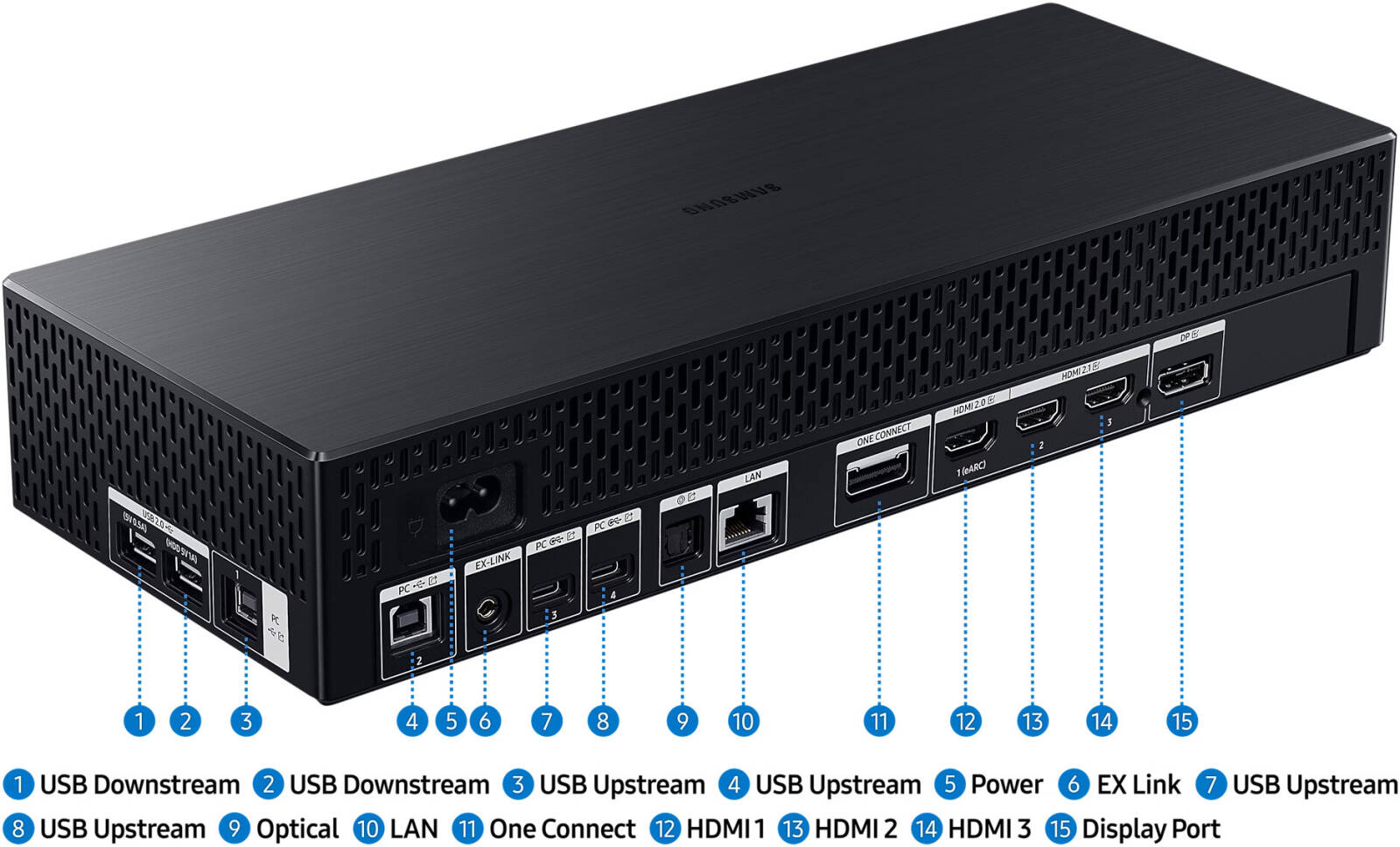

Interface
Wireless display
Yes
Display Port
1 EA
Display Port output
1.4
HDCP Version (DP)
2.2
HDMI
3 EA
HDMI version
2.12, 2.01
HDCP version (HDMI)
2.2
Headphones
Yes
USB ports
2
USB Hub version
2
Ethernet
1 EA
WiFi
Yes (WiFi5)
Bluetooth
Yes (5.2)
Built-in camera
No
Sound
Speaker
Yes
Speaker Output
60 W
Adaptive sound
Yes
Operating conditions
Temperature
0~40℃
Humidity
10 ~ 80 non-condensing
Calibration
Factory settings
Yes
Color mode
Eco/Standard/Dynamic/Movie/Graphic/Entertain/Filmmaker Mode
Confirmation of factory calibration
Yes
Design
Front color
TITAN BLACK
Back color
BLACK
Stand color
BLACK
Stand type
HAS PIVOT
HAS (Height Adjustable Stand)
Landscape : 0~270mm(±5mm), Portrait : 0~30mm(±5mm)
Leaning
Landscape : -10˚(±2˚)~10˚(±2˚), Portrait : -13˚(±2˚)~10˚(±2˚)
Pivot
-90˚(±2˚)~90˚(±2˚)
Wall mounting
200 x 200
Power supply
Power source
AC 100-240V 50/60 Hz
Maximum power consumption
140 W
Typical power consumption
80.0W
Power consumption (DPMS)
0.5W
Energy consumption (annual)
117 kWh/year
Type
Internal adapter
Dimensions
Assembly dimensions with stand (W x H x D)
1174.8 x 1102.0 x 379.0 mm
Assembly dimensions without stand (W x H x D)
1174.8 x 704.8 x 251.8 mm
Package dimensions (WxHxD)
1362.0 x 922.0 x 317.0 mm
Weight
Weight of assembly with stand
41.5 kg
Weight of set without stand
21.1 kg
Package weight
57.1 kg
Accessories
Power cord length
1.5 m
HDMI cable
Yes
Remote control
Yes
Certification and Compliance
UL Glare Free
Yes
