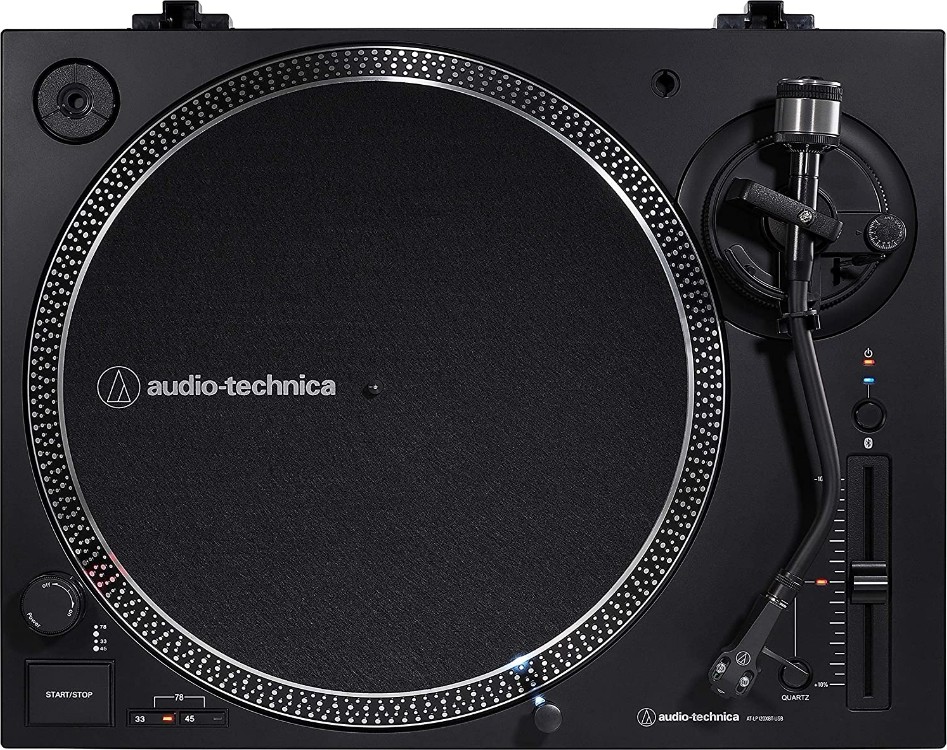

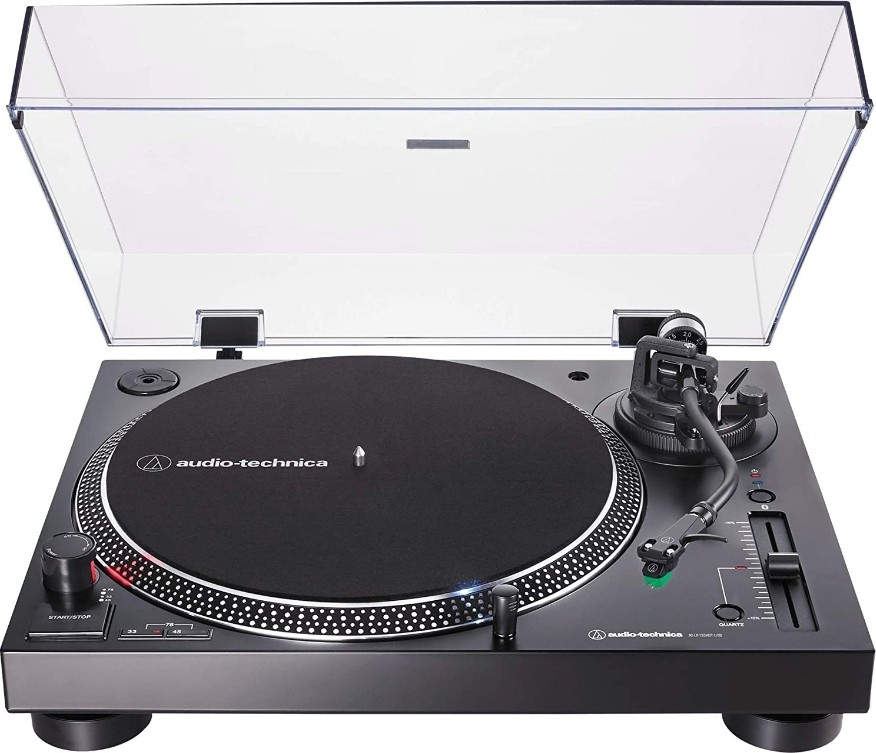

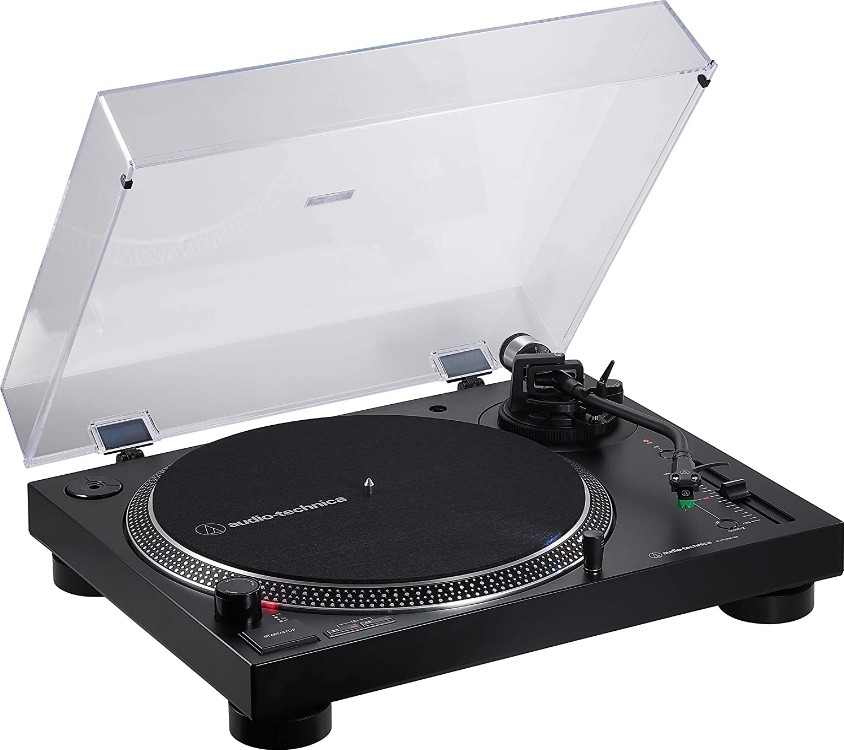

AT-LP120XUSB
This update of the AT-LP120-USB turntable features a new DC servo direct-drive motor, along with adjustable dynamic anti-skate control and selectable phono preamplifier. The fully manual turntable plays 33-1/3, 45, and 78 RPM records and is equipped with a USB output that allows direct connection to your computer. Just download the free Mac- and PC-compatible Audacity recording software (or software of your choice) and start converting your records to digital audio files. But in addition to the USB output, the turntable also comes with a detachable dual RCA output cable and is equipped with a built-in selectable phono preamp so you can connect directly to your home stereo, whether it has a dedicated phono input or not.
Key Features
High-fidelity audio with Bluetooth® wireless technology
Direct-drive, DC servo motor
Fully manual operation
Adjustable dynamic anti-skate control
Selectable 33/45/78 RPM speeds
Anti-resonance, die-cast aluminium platter with felt mat

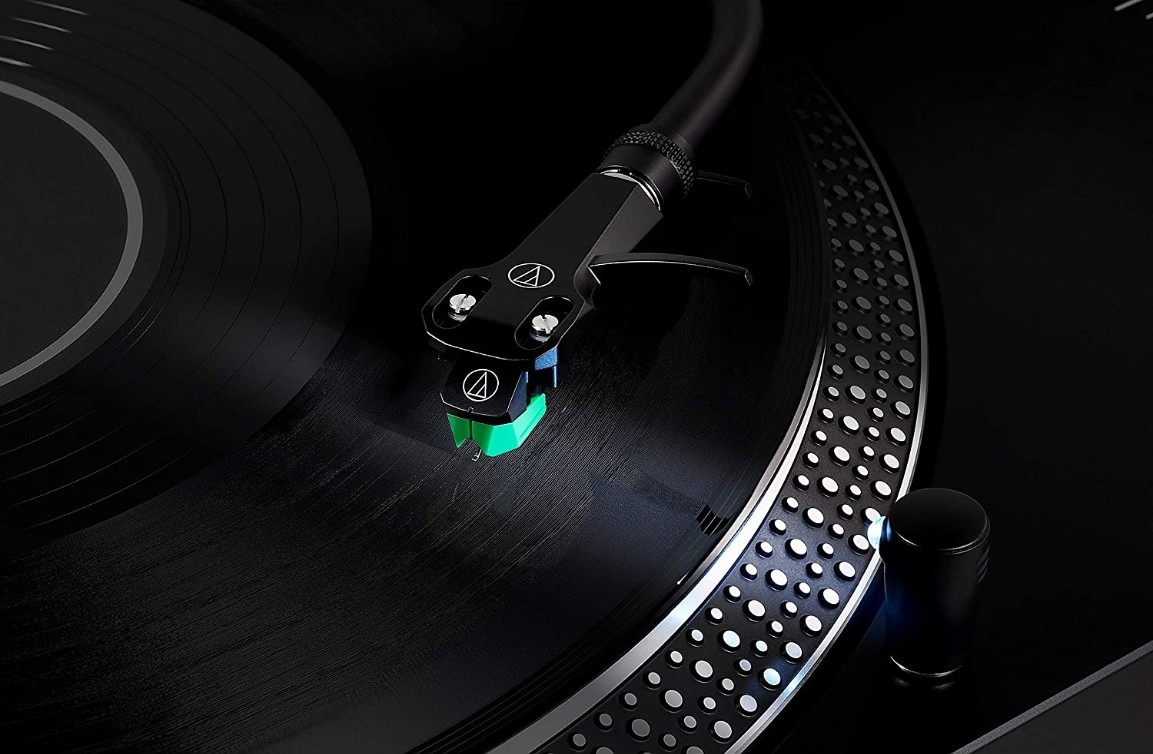

AT-HS6 universal ½”-mount headshell and AT-VM95E Dual Moving Magnet™ phono cartridge with 0.3 x 0.7 mil elliptical stylus
AT-VM95E cartridge is compatible with any VM95 Series replacement stylus, offering a wide choice of options for every budget and application

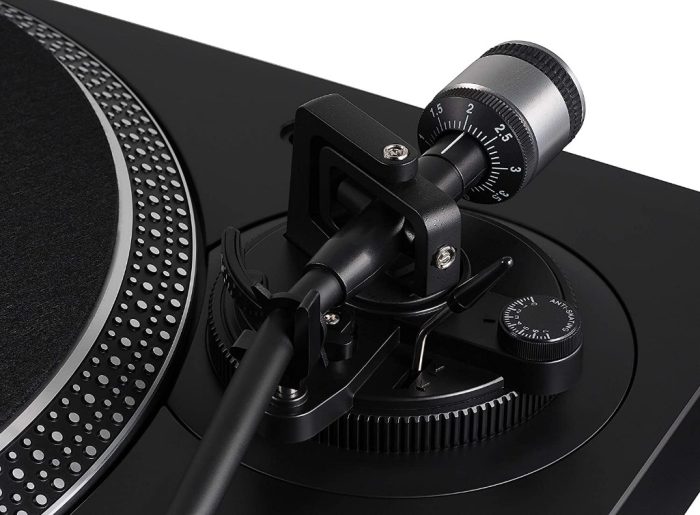

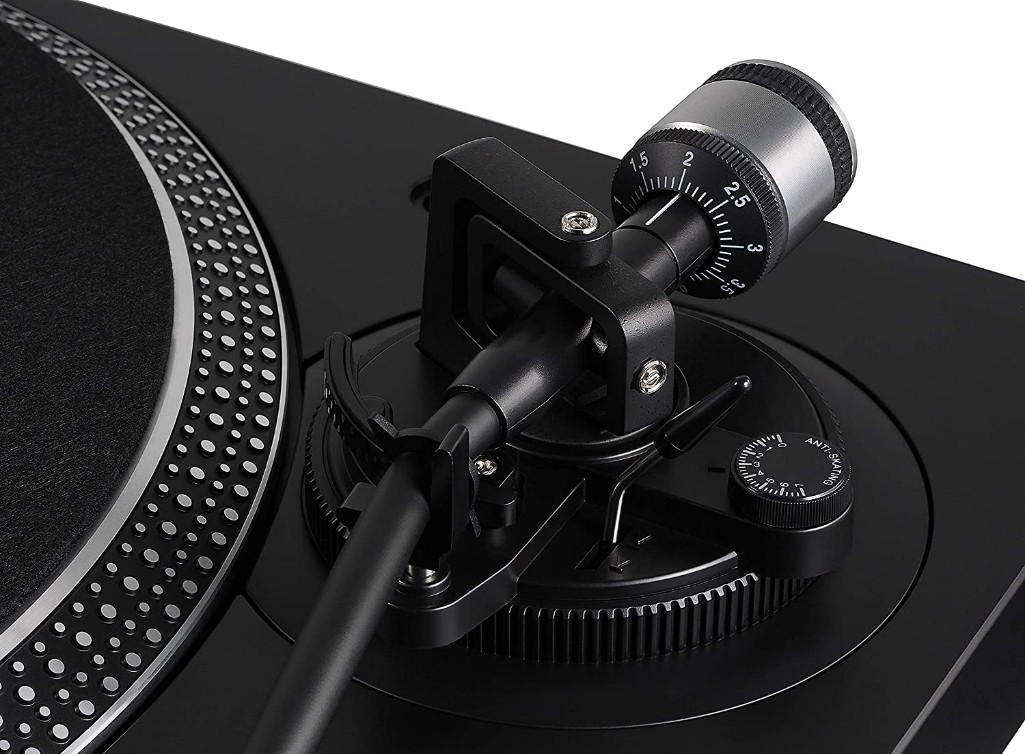

Balanced S-shaped tonearm with hydraulically damped lift control and lockable rest

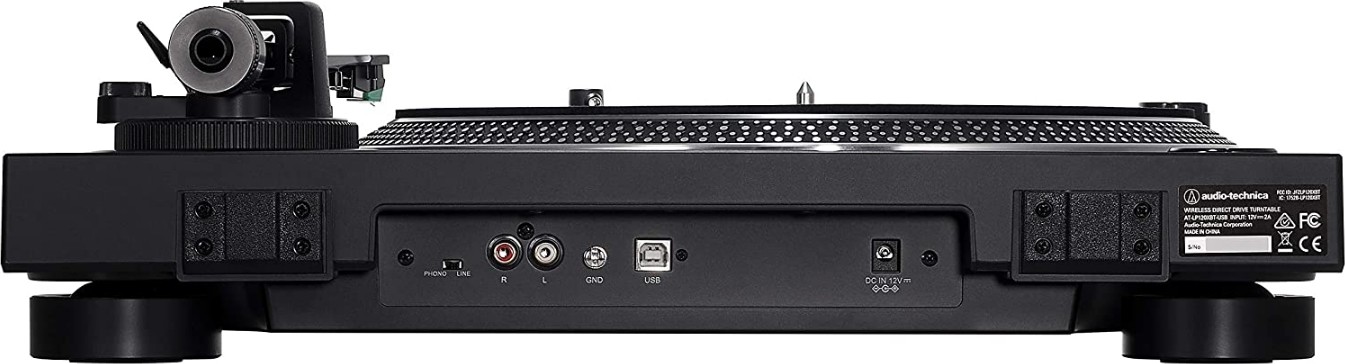

Connects wirelessly to speakers and other devices equipped with Bluetooth wireless technology, to wired audio systems and powered speakers via included dual RCA output cable, or to computers via included USB cable
Compatible with the high-quality Qualcomm® aptX™ audio codec
Built-in switchable phono preamplifier for phono- or line-level output
Stroboscopic platter with speed indicator
Variable pitch control with quartz speed lock
Removable plug-type target light for easier cueing in low light
Damped base construction for reduced low-frequency feedback coloration
AC adapter handles AC/DC conversion outside of the chassis, reducing noise in the signal chain
Convert your vinyl records to digital audio files by downloading and using the free Mac- and PC-compatible Audacity recording software (or software of your choice)
Includes: USB cable, detachable RCA output cable (dual RCA male to dual RCA male), AC adapter, 45 RPM adapter, counterweight, felt mat, and removable hinged dust cover
Specifications
Type
3-speed, fully manual operation
Motor
DC servo motor
Drive Method
Direct drive
Speeds
33-1/3 RPM, 45 RPM, 78 RPM
Turntable Platter
Die-cast aluminum
Starting Torque
>1.0 kgf.cm
Braking System
Electronic brake
Wow and Flutter
Signal-to-Noise Ratio
>50 dB
Output Level
Pre-amp “PHONO”: 4 mV nominal at 1 kHz, 5 cm/sec Pre-amp “LINE”: 240 mV nominal at 1 kHz, 5 cm/sec
Phono Pre-Amp Gain
36 dB nominal, RIAA equalized
USB Function
A/D, D/A – 16-bit/44.1 kHz or 48 kHz USB selectable; Computer interface – USB 2.0 Compliant Windows 7 or above, or MAC OS X or above
Power Supply Requirements
100 to 240 V, 50/60 Hz, 1.5A Max
Power Consumption
2.75 W
Dimensions
452.0 mm (17.80″) W x 352.0 mm (13.86″) D x 141.6 mm (5.57″) H
Weight
8 kg (17.6 lbs.), without dust cover
Accessories Included
AT-VM95E phono cartridge; AT-HS6 headshell; 1.9 m (6.2′) USB cable; dual RCA (male) to dual RCA (male) cable with ground wire; counterweight; felt mat; dust cover; 45 RPM adapter; plug-type stylus target light
Tonearm Type
Balanced S-shaped tonearm with detachable headshell
Effective Arm Length
230.5 mm
Overhang
16 mm
Tracking Error Angle
Less than 3 degrees
Applicable Cartridge Weight
3.5-8.5 g
Anti-skating Range
0-4 g
Replacement Stylus
AT-VMN95E
Communication System
Bluetooth Version 5.0
Maximum Communication Range
Line of sight – approx. 10 m (33′)
Compatible Bluetooth Profile
A2DP
Support Codec
Qualcomm® aptX™ Adaptive audio, Qualcomm® aptX™ audio, SBC
