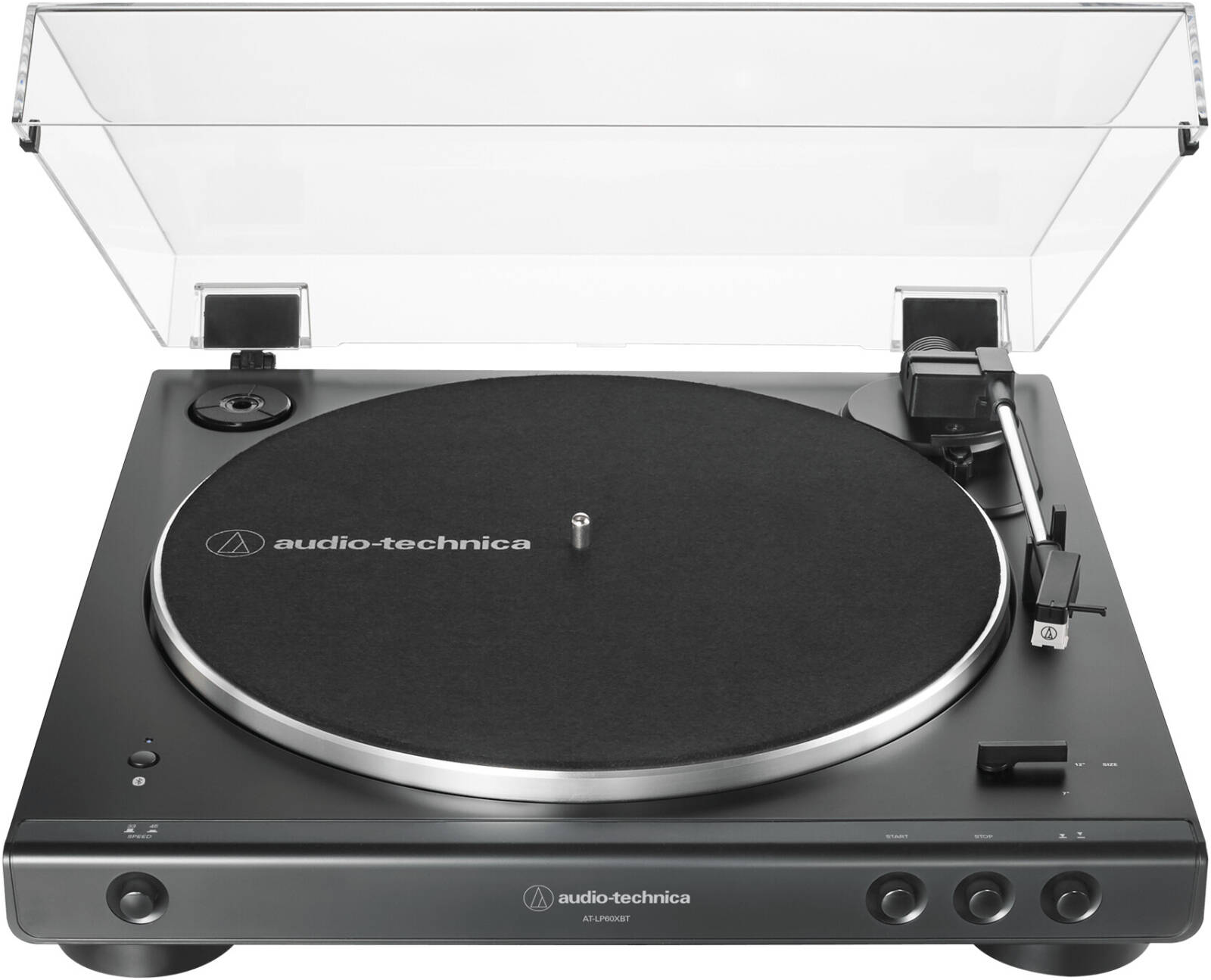

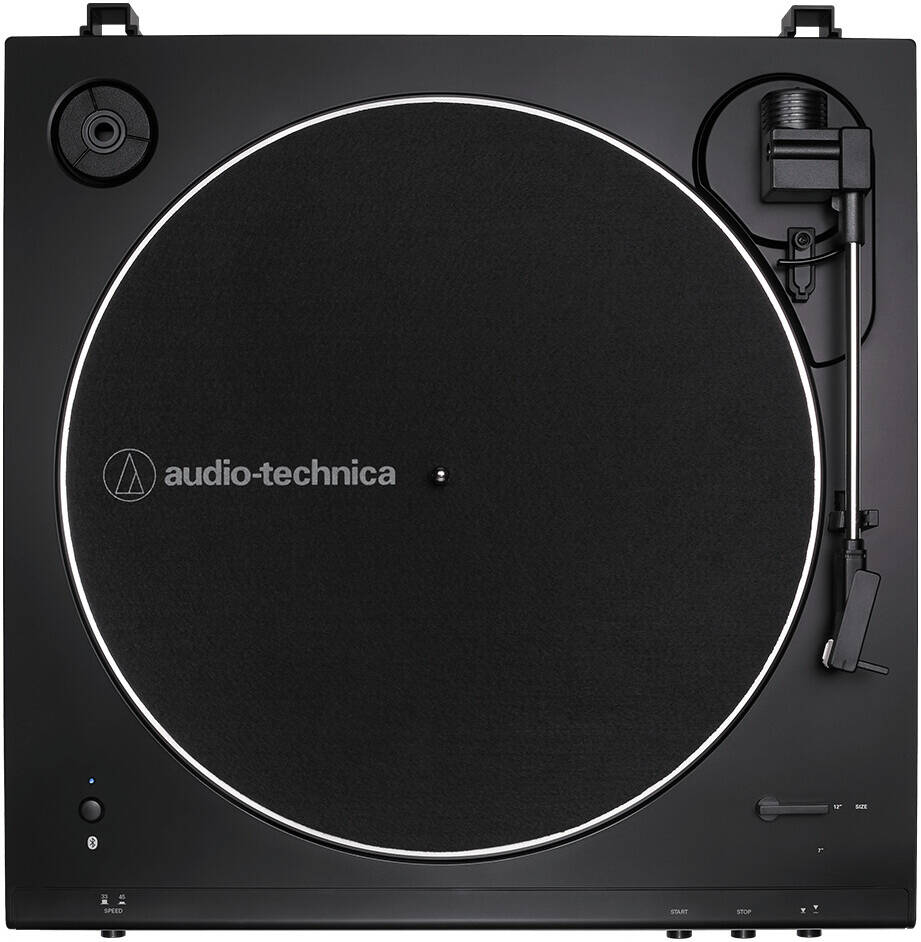

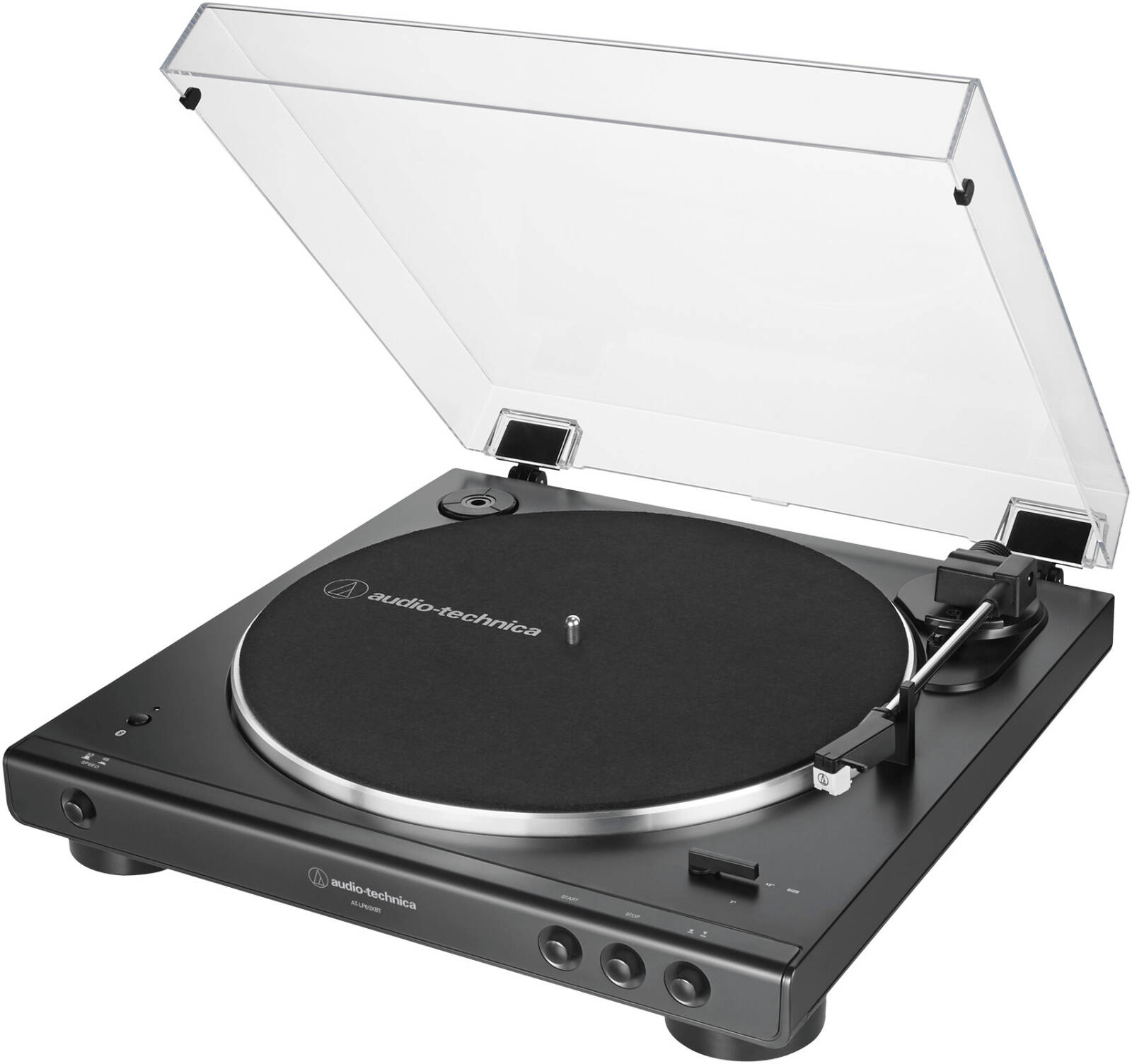

Cut the cord, keep the vinyl. The AT-LP60XBT gives you all the great features of the redesigned AT-LP60X fully automatic belt-drive stereo turntable with the added convenience of Bluetooth® wireless connectivity. So you can set up your turntable in one room and listen to it in another without having to run a bunch of cables.
The turntable pairs with speakers, headphones or other wireless devices. With its CSR BT chipset, the turntable is even able to connect to devices that support the aptX codec, which offers much-improved sound quality over the standard SBC codec.
Of course, the AT-LP60XBT can also be operated just like a regular turntable with a traditional wired connection. Either way – wired or wireless – you get outstanding audio with the ease of automatic operation controlled by front-panel start, stop and tonearm lift buttons.
Audio-Technica has been a leader in phono cartridge design for more than 50 years, and that expertise shows in the AT-LP60XBT’s Dual Magnet™ cartridge with replaceable stylus. The cartridge is integrated into the headshell for assured performance and ease of setup.
The AT-LP60XBT plays both 33-1/3 and 45 RPM records and comes with a 45 RPM adapter, a detachable dual RCA output cable (for wired connection) and a removable hinged dust cover. The turntable is available in black (AT-LP60XBT-BK), white/black (AT-LP60XBT-WH), and red/black (AT-LP60XBT-RD).
* The Bluetooth® word mark and logos are owned by Bluetooth SIG, Inc. and any use of such marks by Audio-Technica Corporation is under license. Other trademarks and trade names are those of their respective owners.
High-fidelity audio with Bluetooth wireless technology
Connects wirelessly to speakers and other devices equipped with Bluetooth wireless technology or to wired audio systems and powered speakers via included dual RCA output cable
Compatible with aptX codec
Fully automatic operation with two speeds: 33-1/3 and 45 RPM
Anti-resonance, die-cast aluminum platter
Redesigned tonearm base and headshell for improved tracking and reduced resonance
Integral Dual Moving Magnet™ phono cartridge with replaceable diamond stylus (ATN3600L)
AC adapter handles AC/DC conversion outside of the chassis, reducing noise in the signal chain

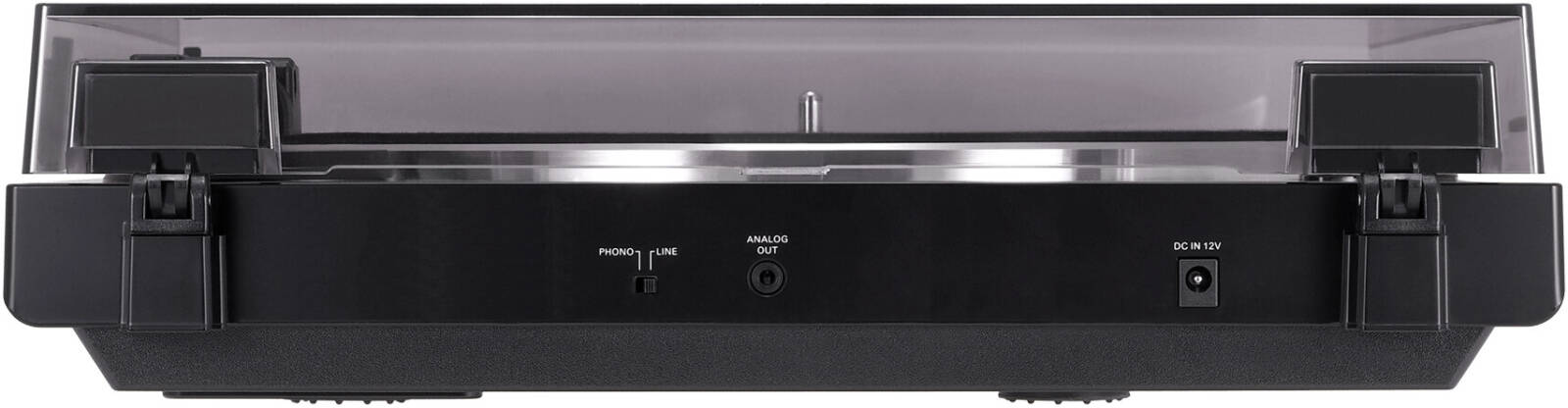

Built-in switchable phono pre-amplifier for phono- or line-level output
Includes: detachable RCA output cable (3.5 mm male to dual RCA male), 45 RPM adapter, and removable hinged dust cover
Available in black (AT-LP60XBT-BK), white/black (AT-LP60XBT-WH), and red/black (AT-LP60XBT-RD)
SPECIFICATIONS
Type
Belt drive turntable, fully automatic
Motor
DC servo-controlled
Speeds
33-1/3 RPM, 45 RPM
Turntable Platter
Aluminum
Wow and Flutter
Less than 0.25% (WTD) @ 3 kHz
Signal-to-Noise Ratio
>50 dB (DIN-B)
Output Level
Pre-amp “PHONO”: 2.5 mV nominal at 1 kHz, 5 cm/sec
Pre-amp “LINE” 150 mV nominal at 1 kHz, 5 cm/sec
Phono Pre-Amp Gain
36 dB nominal, RIAA equalized
Power Supply Requirements
100 to 240V, 50/60 Hz,0.6 A Max.
Power Consumption
1.5 W
Dimensions
359.5 mm (14.15″) W x 97.5 mm (3.84″) H x 373.3 mm (14.70″) D
Weight
2.6 kg (5.73 lbs.)
Accessories Included
Dust cover, felt mat, platter (with drive belt), 45 RPM adapter, RCA audio cable (approx. 1.2 m (3.9′)), AC adapter (approx. 1.5 m (4.9′))
AC adapter: 12 V, 2 A
Replacement Stylus: ATN3600L
Communication System: Bluetooth Version 5.0
Maximum Communication Range: Line of sight – approx. 10 m (33′)
Compatible Bluetooth Profile: A2DP
Support Codec: SBC, Qualcomm aptX

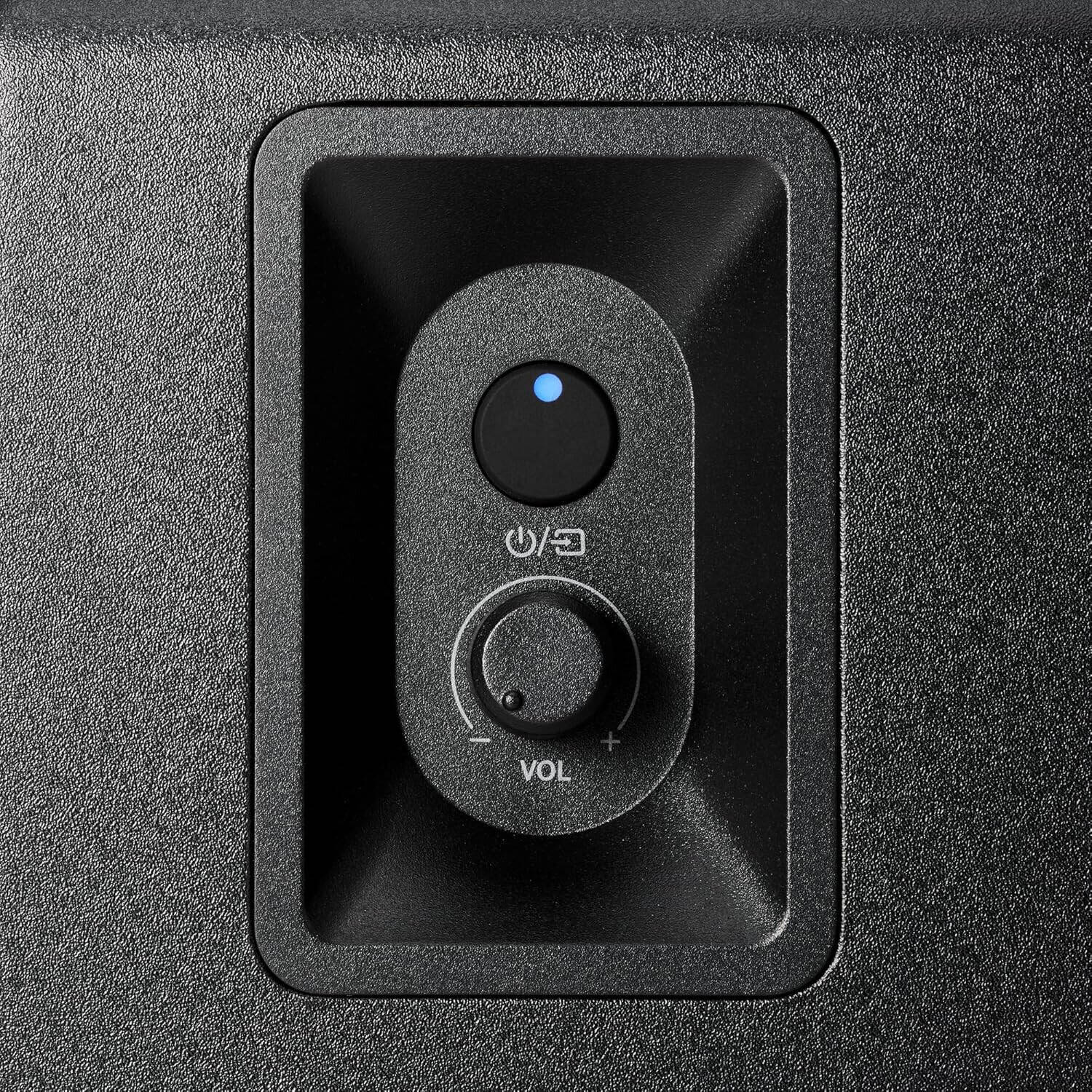

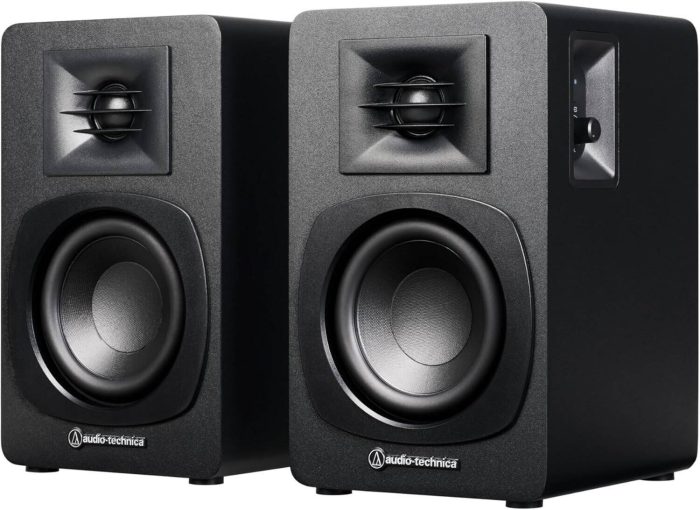

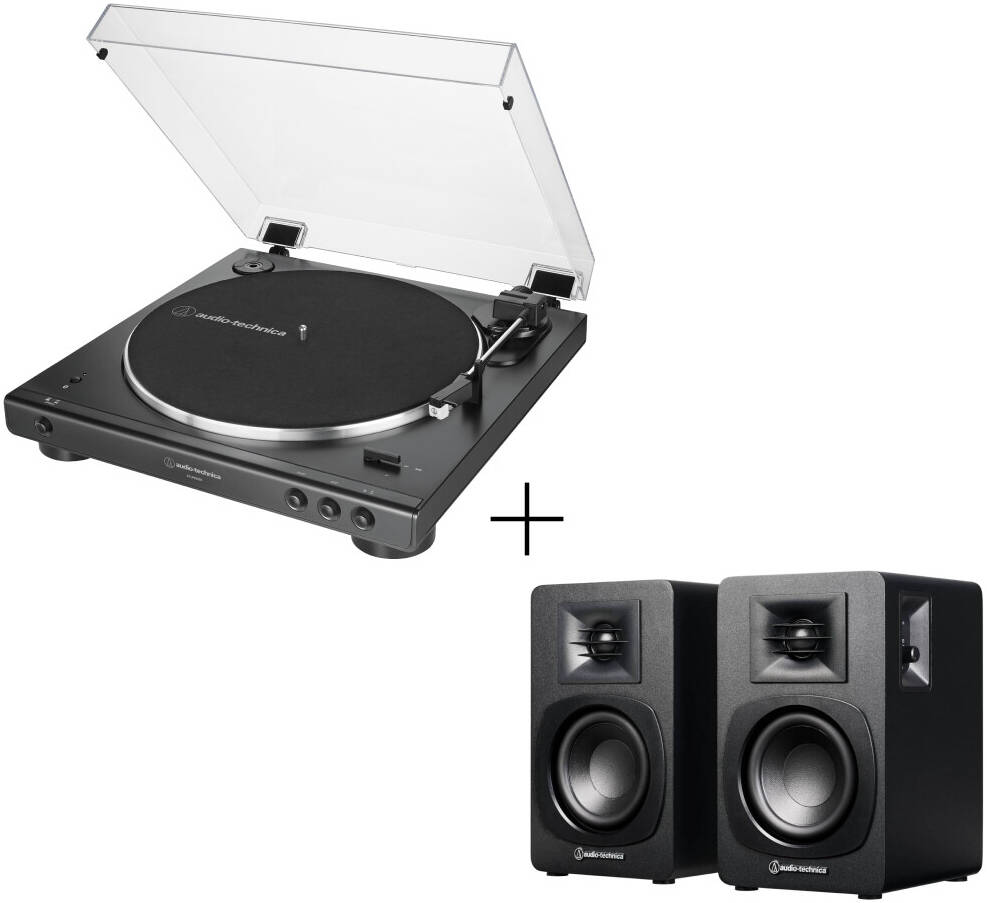

AT-SP3X
Specifications
Speaker Unit
76 mm (3.0″) dia. x 2
Tweeter Unit
27 mm (1.1″) dia. x 2
Maximum Output
30W
Frequency Response
55 to 20,000 Hz
Communication System
Bluetooth standard Ver. 5.3
Maximum RF Output
10 mW EIRP
Maximum Communication Range
Line of sight – approx. 10 m (33′)
Frequency Band
2.4 GHz band (2.402 GHz to 2.480 GHz)
Modulation Method
GFSK, Pi/4DQPSK, 8DPSK
Spread Spectrum Method
FHSS
Compatible Bluetooth Profiles
A2DP
Support Codec
SBC
Supported Content Protection Method
SCMS-T
Supported Sample Rates
44.1 kHz, 48 kHz
Supported Bit Rates
16 bit, 24 bit
Transmission Band
20 to 20,000 Hz
Power Supply
AC100-240V / DC18V (using supplied AC adapter)

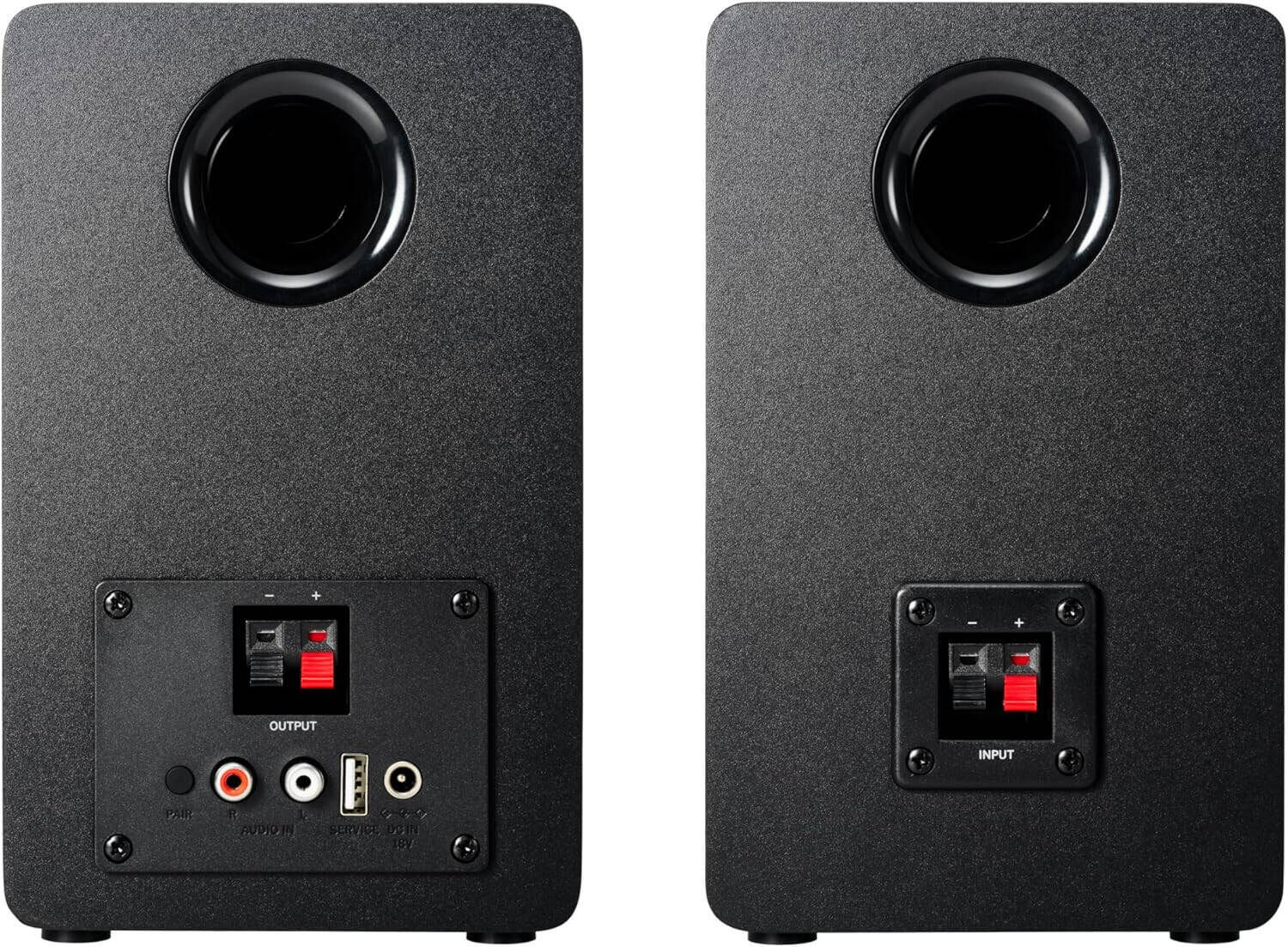

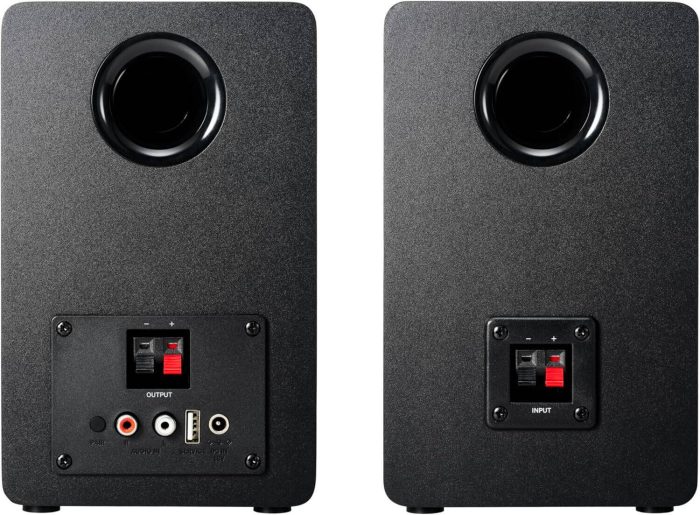

Input Jack
Analog audio input terminals (RCA pin plug x 2)
Speaker Cord Length
2.0 m (6.6′)
AC Adapter Cord Length
1.2 m (3.9′)
Dimensions
200 mm (7.9″) x 113 mm (4.9″) x 145 mm (5.4″) (H x W x D)
Weight
Left Side: Approx. 1.5 kg (3.3 lbs)
Right Side: Approx. 1.6 kg (3.5 lbs)
Operating Temperature
5°C to 40°C (41°F to 104°F)
