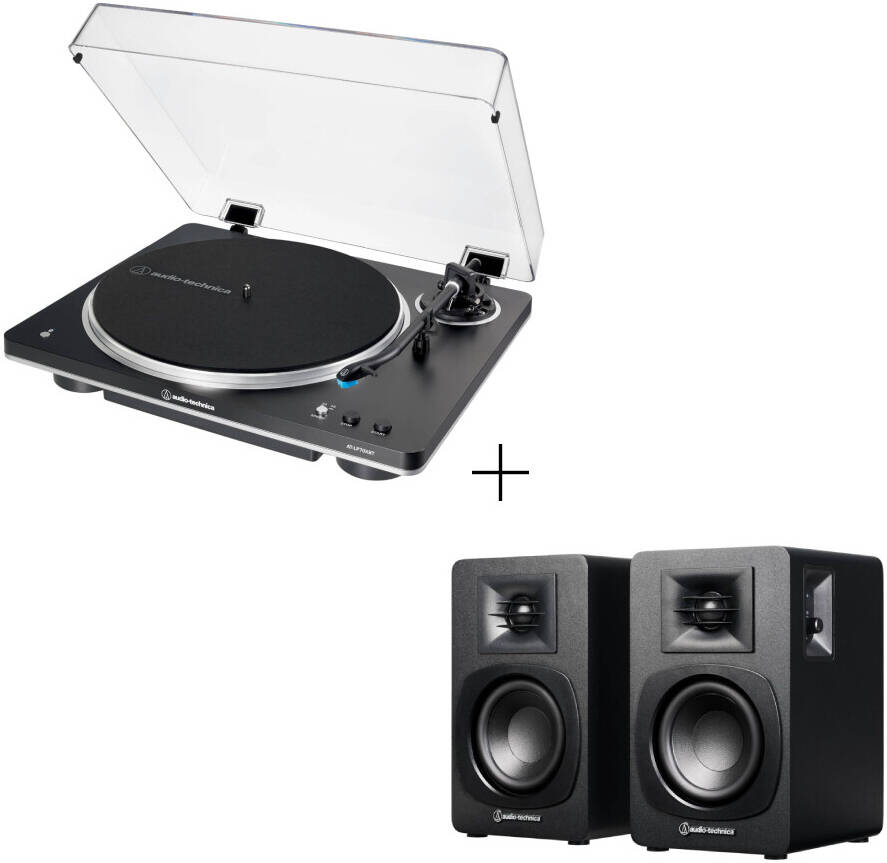

Audio Technica AT-LP70XBT BS Fully Automatic Wireless Belt-Drive Turntable with Audio Technica AT-SP3X Powered Bookshelf Speakers, 33-1/3 RPM, 45 RPM Speed, Black | ATLP70XBTBS / AT-SP3X

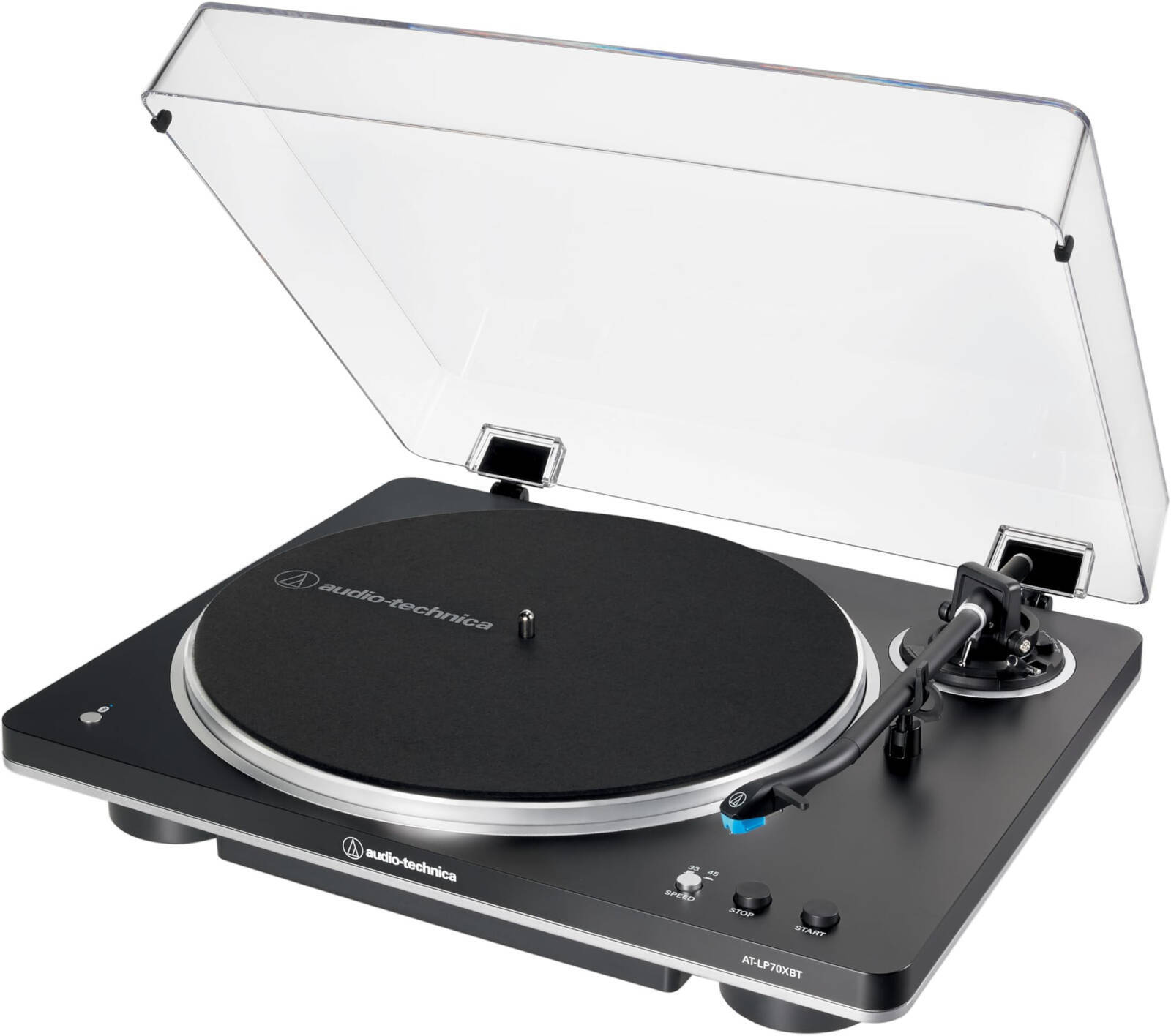

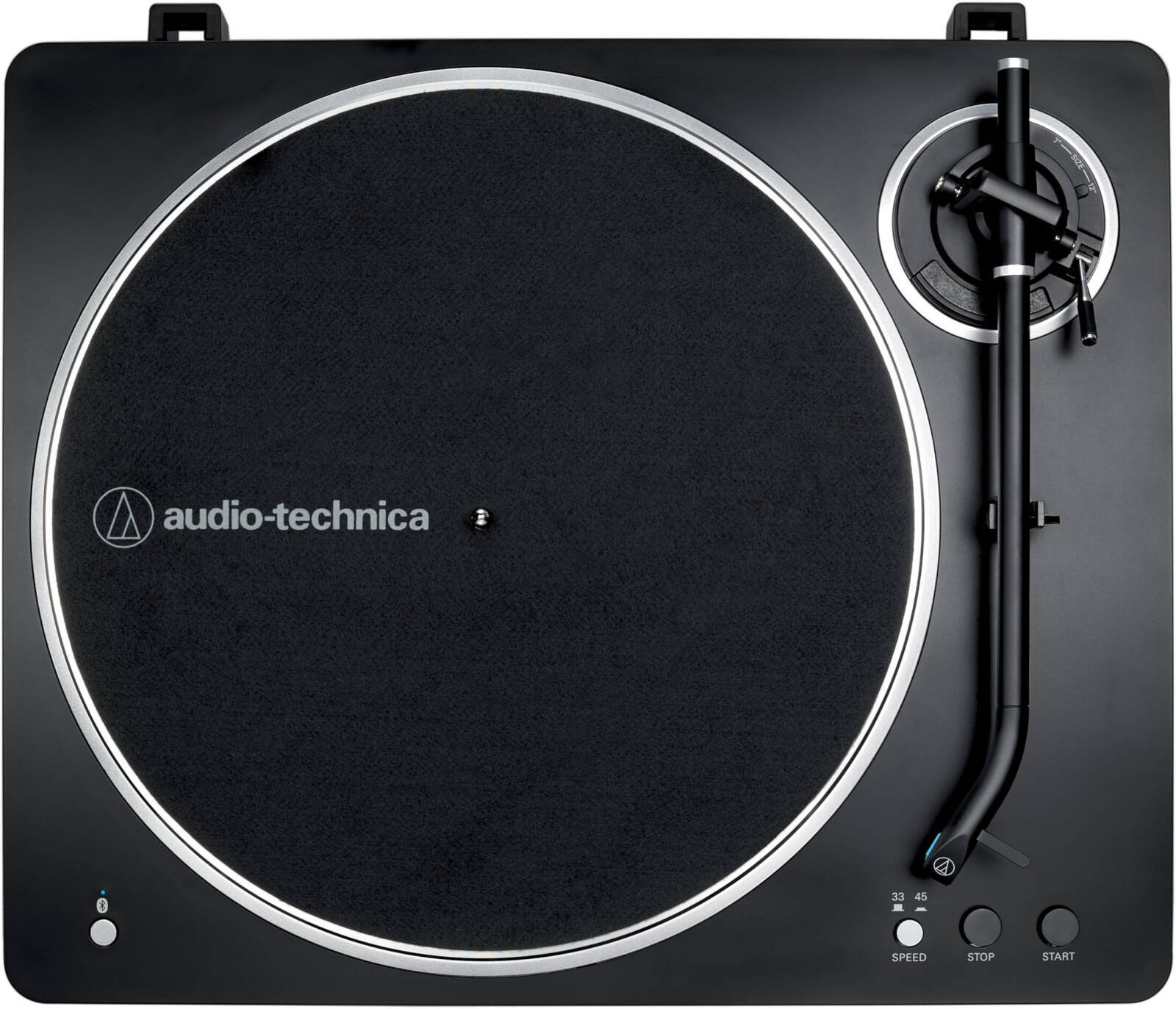

AT-LP70XBT BS

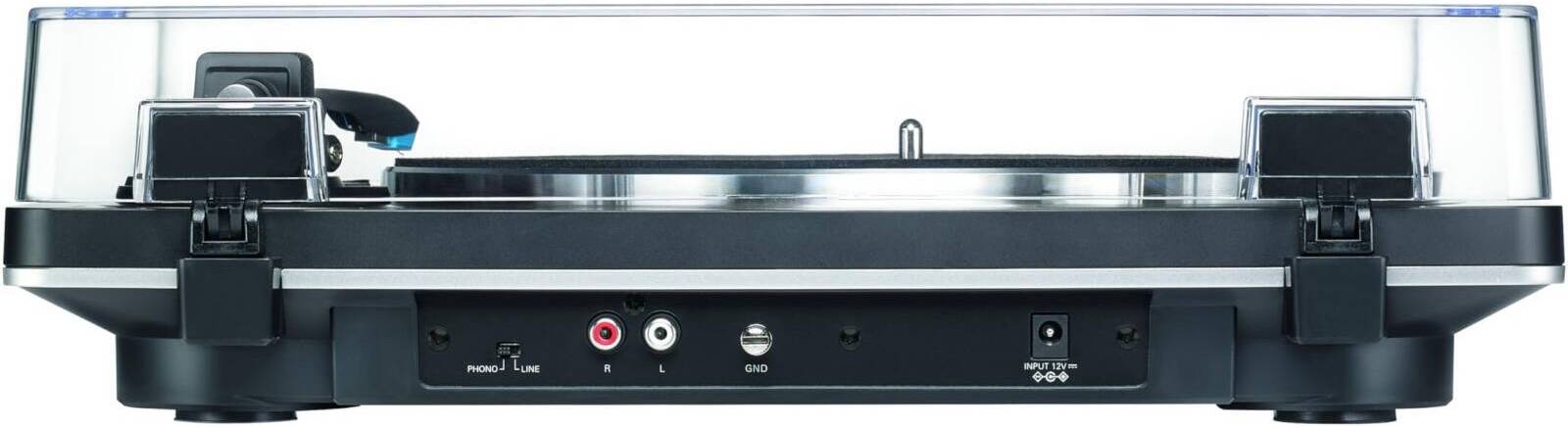

The AT-LP70XBT Automatic Wireless Turntable is the perfect beginner turntable for those beginning their audiophile journey. Combining the experience of warm, analog audio with the convenience of Bluetooth technology, you can listen to your vinyl over Bluetooth-enabled speakers, headphones, or other devices, including those that support the high-quality Qualcomm aptX Adaptive audio codec. This user-friendly turntable plays both 33-1/3 and 45 RPM records and, in addition to its Bluetooth wireless technology, has a built-in switchable phono preamp that allows the turntable to connect to a home stereo, powered speakers, or another component, with or without a dedicated phono input.
At the heart of the AT-LP70XBT is a top-notch phono cartridge for unmatched, high-fidelity audio. Built with Audio-Technica’s industry-leading phono cartridge expertise, the AT-VM95C is a versatile, superior-performance cartridge that other turntables in this class simply can’t match. Integrated into the J-shaped tonearm, the AT-VM95C cartridge with a 0.6 mil conical stylus offers excellent channel separation and low distortion for outstanding tonal quality. To further personalize vinyl listening, the stylus can also be easily upgraded with any other styli (elliptical, micro linear, or Shibata) in our VM95 Series, offering unprecedented customization for a turntable in this category.
To ensure peak sound performance, the AT-LP70XBT includes a three-piece, anti-resonance chassis that provides a solid foundation to dampen unwanted noise for improved sound quality. The included AC adapter further reduces noise as the AC/DC conversion is moved to the outside of the chassis to limit any unfavorable noise.
Specifications
Motor
DC motor
Drive Method
Belt-drive
Speeds
33-1/3 RPM, 45 RPM
Turntable Platter
Die-cast aluminium
Wow and Flutter
Signal-to-Noise Ratio
> 55 dB
Cartridge Type
AT-VM95C Dual Moving Magnet Stereo Cartridge (non-removable)
Output Level
PHONO: 4.0 mV nominal at 1 kHz, 5 cm/sec
LINE: 252 mV nominal at 1 kHz, 5 cm/sec
Phono Pre-Amp Gain
36 dB nominal, RIAA equalized
Power Consumption
1.6 W
Dimensions
400 mm (16″) × 330 mm (13″) × 110 mm (4.3″) (W × D × H)
Weight
Approx. 2.9 kg (6.4 lbs)
Accessories Included
Dust cover, Felt mat, Platter (with drive belt), Dust cover hinges, 45 RPM adapter, RCA audio cable (1.0 m / 3.3′), AC adapter (1.5 m / 4.9′)
AC Adapter
Type: FJ-SW1261200500DN
Rated Input Voltage: 100-240 V AC
Rated Input Current: 0.4 A max.
Rated Frequency: 50 Hz / 60 Hz
Rated Output Voltage: 12 V DC
Rated Secondary Current: 0.5 A
Cable Length: Approx. 1.5m (4.9′)
Effective Arm Length
220 mm (8.7″)
Overhang
18 mm (0.71″)
Tracking Error Angle
Replacement Stylus
AT-VMN95C (sold separately)
Replacement Belt
AT-LP70X exclusive belt (sold separately)
Communication System
Bluetooth version 5.2
Frequency Band
2.402 GHz to 2.480 GHz
Maximum RF Output
2.5 mW EIRP
Maximum Communication Range
Line of sight – approx. 10 m (33′)
Modulation Method
GFSK, Pi/4DQPSK, 8DPSK
Compatible Bluetooth Profile
A2DP
Supported Codecs
Qualcomm® aptX™ Adaptive, Qualcomm® aptX™, SBC
Notes
*AC adapter may vary by region; check the rating label for details.

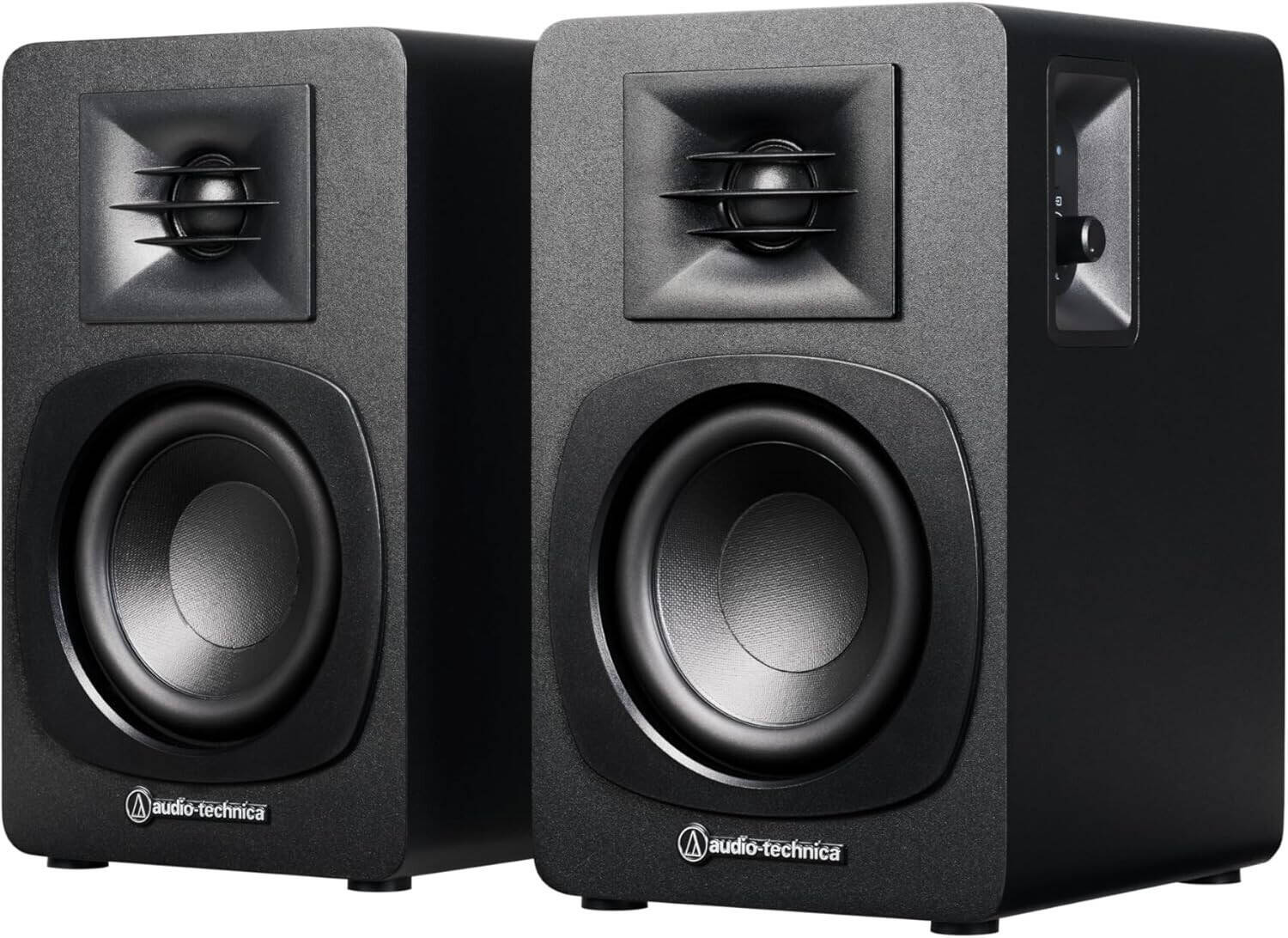

AT-SP3X
Specifications
Speaker Unit
76 mm (3.0″) dia. x 2
Tweeter Unit
27 mm (1.1″) dia. x 2
Maximum Output
30W
Frequency Response
55 to 20,000 Hz
Communication System
Bluetooth standard Ver. 5.3
Maximum RF Output
10 mW EIRP
Maximum Communication Range
Line of sight – approx. 10 m (33′)
Frequency Band
2.4 GHz band (2.402 GHz to 2.480 GHz)
Modulation Method
GFSK, Pi/4DQPSK, 8DPSK
Spread Spectrum Method
FHSS
Compatible Bluetooth Profiles
A2DP
Support Codec
SBC
Supported Content Protection Method
SCMS-T
Supported Sample Rates
44.1 kHz, 48 kHz
Supported Bit Rates
16 bit, 24 bit
Transmission Band
20 to 20,000 Hz
Power Supply
AC100-240V / DC18V (using supplied AC adapter)

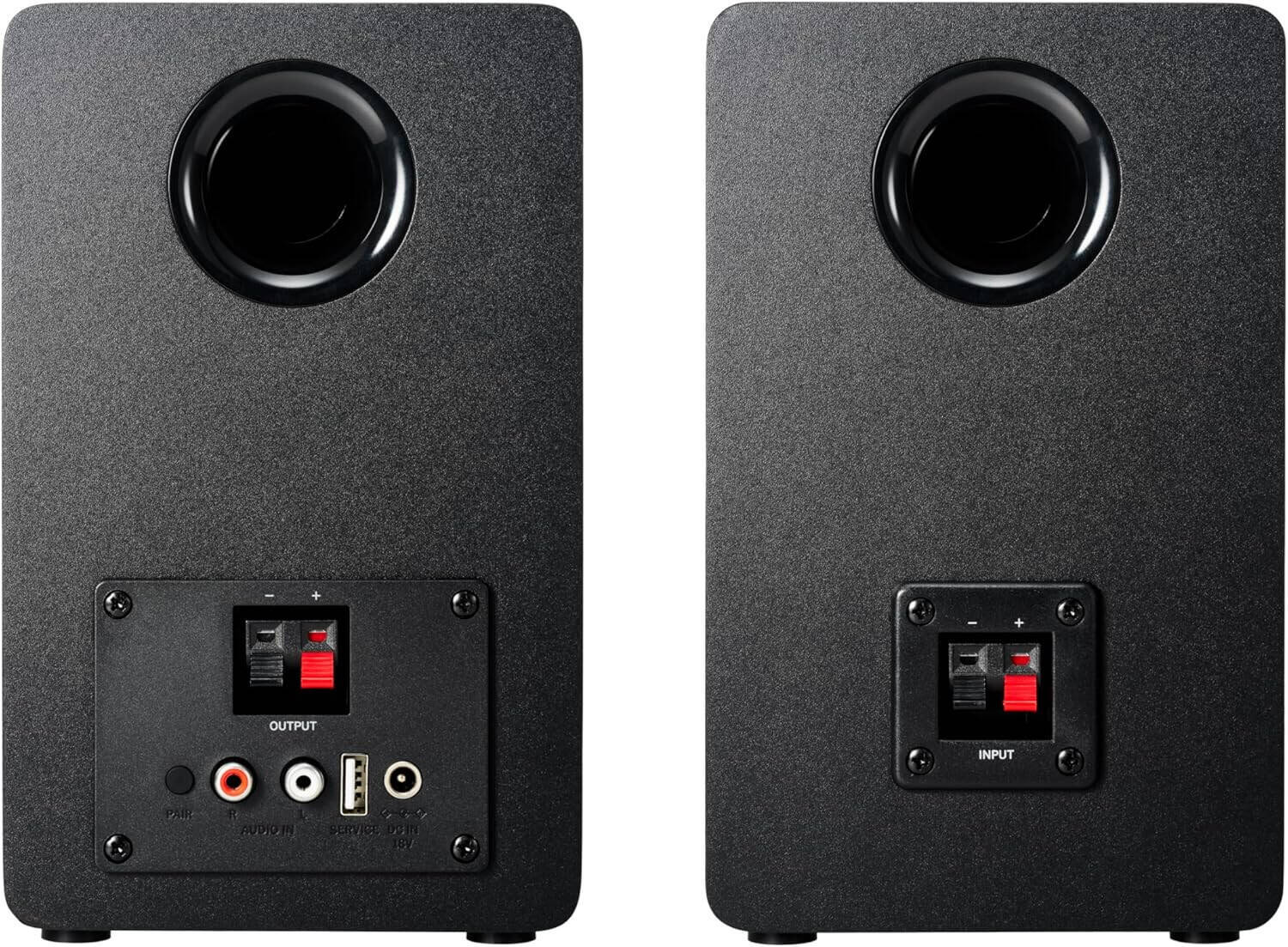

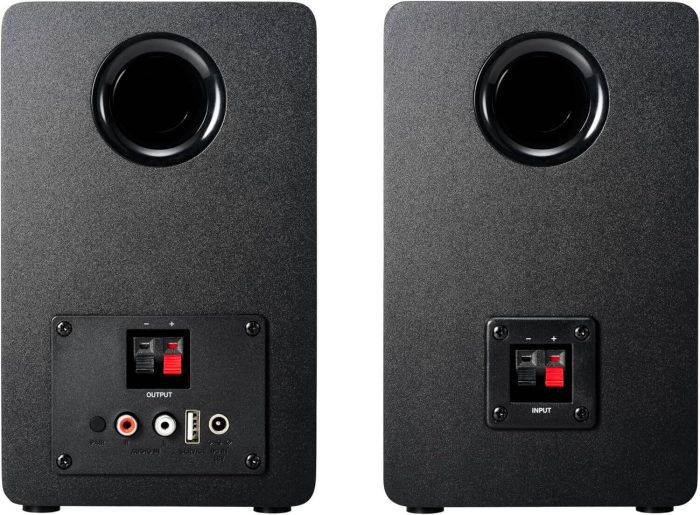

Input Jack
Analog audio input terminals (RCA pin plug x 2)
Speaker Cord Length
2.0 m (6.6′)
AC Adapter Cord Length
1.2 m (3.9′)
Dimensions
200 mm (7.9″) x 113 mm (4.9″) x 145 mm (5.4″) (H x W x D)
Weight
Left Side: Approx. 1.5 kg (3.3 lbs)
Right Side: Approx. 1.6 kg (3.5 lbs)
Operating Temperature
5°C to 40°C (41°F to 104°F)
