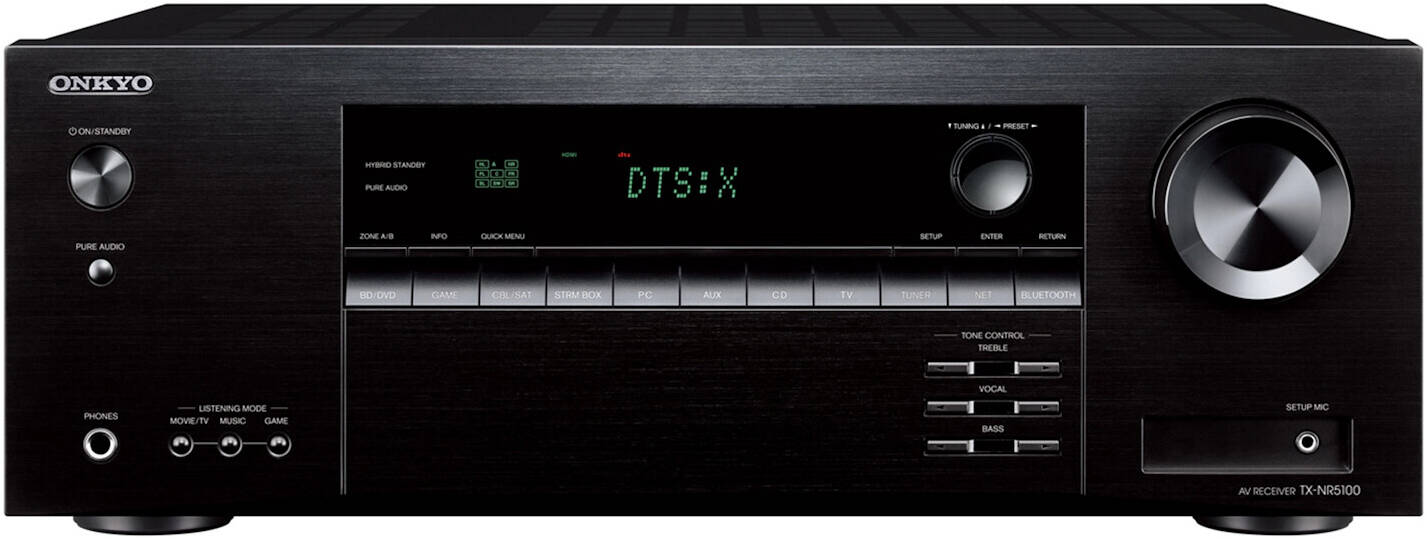

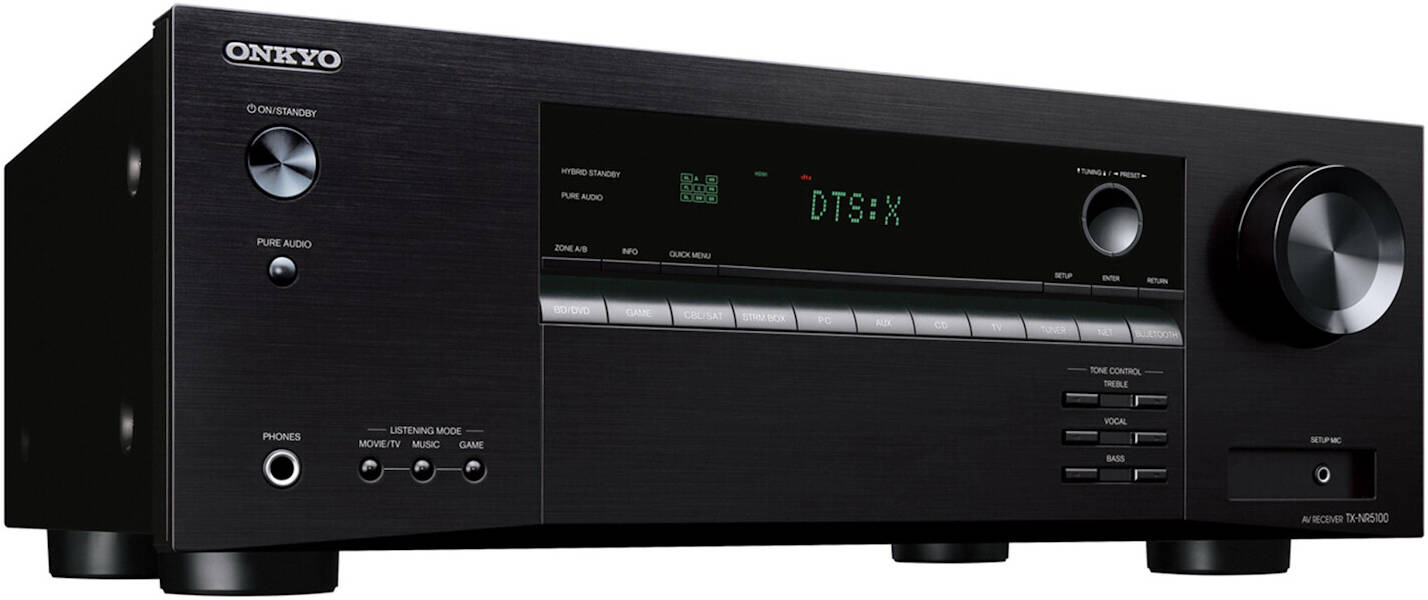

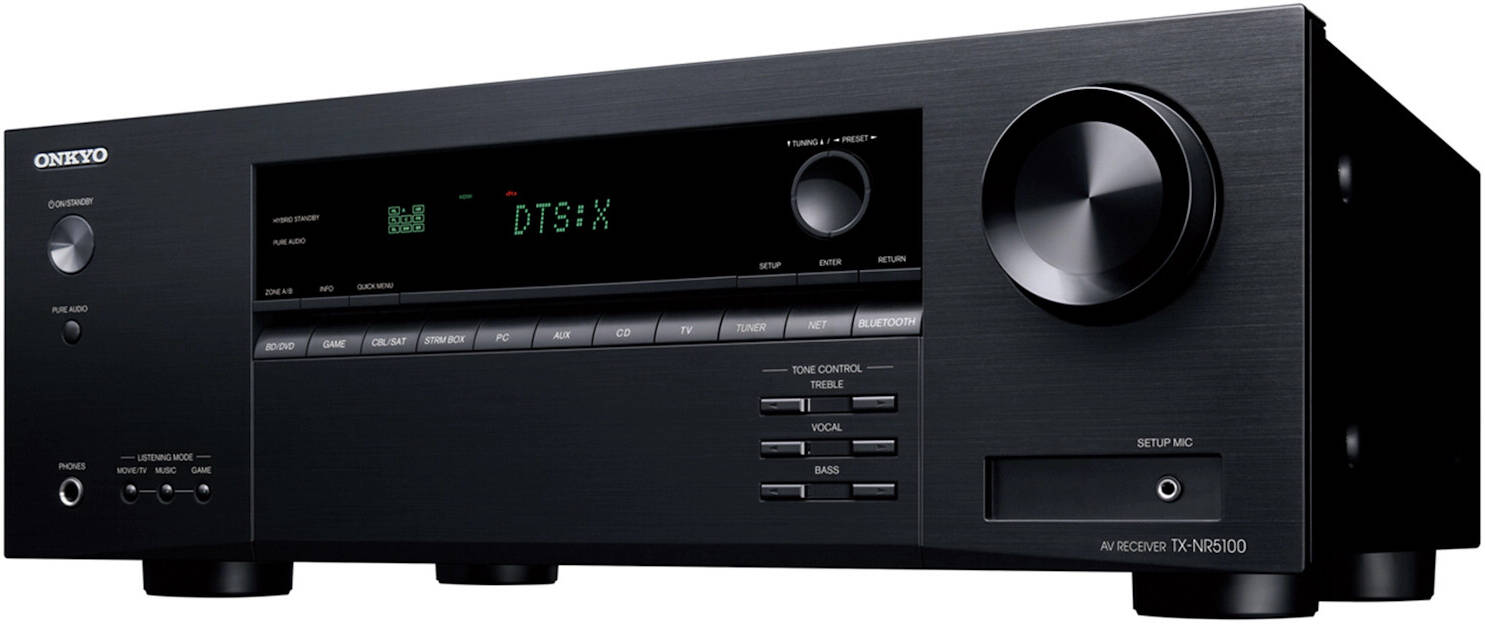

Onkyo TX-NR5100
7.2-Channel AV Receiver
Specification
Category
Specification
PRODUCT HIGHLIGHTS
165 watts x 7 channels
✓
5.2.2-ch Dolby Atmos® and DTS
® playback
✓
Dolby Atmos Height Virtualizer and DTS Virtual
™
3D sound virtualization technologies
SMART AV Receiver™
Works with Sonos (sold separately), Chromecast built-in™, AirPlay 2, and DTS Play-Fi®; includes Spotify®, Amazon Music HD, Alexa, Pandora®, TIDAL, Deezer, and TuneIn streaming services
Works with Hey Google or Alexa
Digital Voice Assistant Sold Separately
Stream Capability
5 GHz/2.4 GHz dual-band Wi-Fi® supporting the 802.11ac standard
HDMI® 2.1
Supports: 4K120AB and 8K60B, HDR10+, Dolby Vision and BT.2020 color; VRR, ALLM, and QFT; eARC (Main Out), and HDCP 2.3
HDMI Sub Out
For media transmission to a projector, gaming monitor, or TV
Bluetooth® Wireless Technology
Send or receive audio via Bluetooth® (RX mode: SBC/AAC, TX mode: SBC/Qualcomm® aptX™/ aptX HD)
Zone B Pre-/Line-Out
Plays MAIN Zone audio to a compatible headphone dock
Vocal Enhancer, Media Info, Playback Status Display, One-Touch Volume Memory-Preset Functions
✓
AccuEQ with AccuReflex™ and Subwoofer EQ
✓
AMPLIFIER
Power Output (All Channels)
165 W/Ch (6 ohms, 1 kHz, 10% THD, 1-ch driven)
80 W/Ch (8 ohms, 20 Hz–20 kHz, 0.08% THD, 2-ch driven, FTC)
Dynamic Power
160 W (3 ohms, Front)
125 W (4 ohms, Front)
85 W (8 ohms, Front)
THD+N (Total Harmonic Distortion + Noise)
0.08% (20 Hz–20 kHz)
Input Sensitivity and Impedance
200 mV rms/32k-ohms (Line)
Rated RCA Output Level and Impedance
1 V rms, 200 mV rms/2.2k-ohms (Zone B Pre-Line-out)
Frequency Response
10 Hz–100 kHz/+1 dB, -3 dB (Direct/Pure Audio)
Tone Control
±10 dB, 20 Hz (Bass)
±10 dB, 20 kHz (Treble)
Signal-to-Noise Ratio
106 dB (Line, IHF-A)
Speaker Impedance
4–16 ohms
TUNER
FM Range
87.5 MHz–107.9 MHz
AM Range
530 kHz–1,710 kHz
FM/AM Preset Memory
40 stations
GENERAL
Power Supply
AC 120 V~, 60 Hz
Power Consumption (Operating)
490 W
Power Consumption (Idle)
45 W
Power Consumption (Standby)
0.1 W
Dimensions (W x H x D)
17 1/8˝ x 6 5/16˝ x 12 15/16˝ (435 x 160 x 328 mm)
Weight
18.5 lbs. (8.4 kg)
Onkyo TX-NR5100, 7.2-Channel 8K AV Receiver, Klipsch Optimize Mode, Smart Home Compatible With Voice Control, Ultimate 4K Gaming Experience, Black | TX-NR5100
$690.00
BUILT-IN STREAMING SERVICES
DOLBY ATMOS HEIGHT VIRTUALIZER
WORKS WITH SONOS CERTIFIED
READY FOR DTS PLAY-FI DTS Play-Fi
ACCUEQ CALIBRATION READY
DYNAMIC AUDIO AMPLIFICATION
DOLBY ATMOS AND DTS:X Ready
| Brand |
Onkyo |
|---|---|
| Model |
TX-NR5100 |
| Date first available |
20 August; 2024 |
| Shipping Weight |
8.30 Kg |
| Shipping Dimensions |
43.50 cm x – cm x 16.00 cm |
