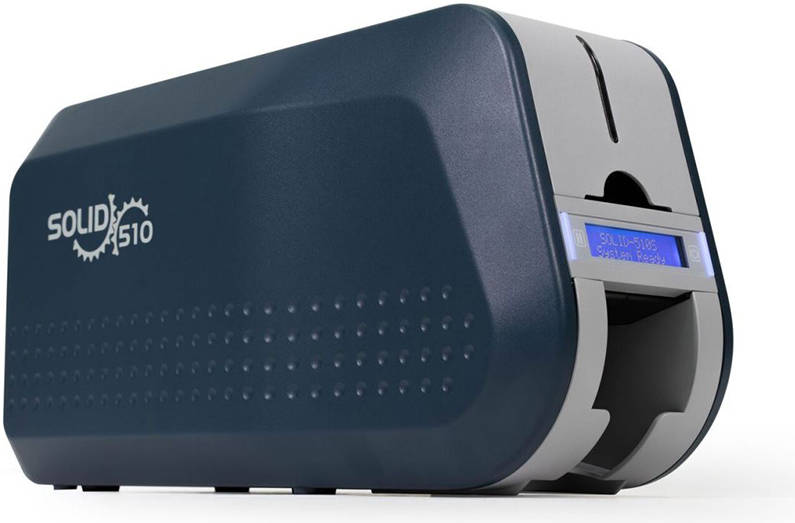

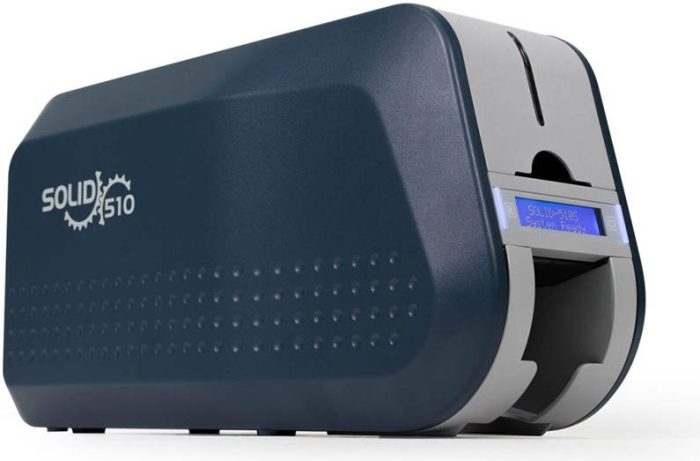

IDP Solid 510S ID Card Printer, Color & Mono Single Sided Printing, Max. 17 sec./card, Edge-to-Edge Printing, Low Cost UV Printing, Flipper & Laminator Upgradable, Blue | 653558 – S51S

IDP’s new SOLID-510 is the next generation of its mid-range ID Card Printer platform. The SOLID-510 inherits the most successful and proven elements of the SOLID-500 series. IDP’s longest running ID Card Printer. Enhancements to the SOLID-510 include careful selection of highly reliable parts, the application of a new state-of-the art CPU and application specific features for unique projects. The new SOLID-510 offers an upgrade path from single side printing (510S), to dual side printing (510D).
●Enhanced FINE™ Imaging Technology
● State-of-the-art CPU
● Reduced Printing Noise
● All-in-one Lock system (*Option)
● Easy to Handle Laminate Film Cartridge
● Rear-side Stacker (up to 100 cards, *Option)
● Removable – Output Hopper
● New Input Hopper – 200 cards with cover open | 100 cards in default
● Front-side Mag Encoding (*Option)
● Support of Transparent Card
● Support CR79 Type (Factory-installed, *Option)
Key Features:
• Color & Mono Single Sided Printing
• Print Speed: Max. 17 sec./card (YMCKO)
• 300, 600 & 1200dpi with Edge-to-Edge Printing
• 2 Lines LCD with 2 LED Buttons for Front Operation
• Support of Transparent Cards
• Low Cost Security with UV Printing
• Installable Encoders: MS, Contact & Contactless
• Upgradable Modules: Flipper, Laminator & Ethernet, WiFi
PRINTING
Print Type/Area – Dye-Sublimation / Edge to Edge
Resolution – 300,600 & 1200 dpi
Dual Sided Printing
CARD
Card Feeding – Automatic
Card Size – ISO CR80 or ISO CR79 (Option-Factory installed)
Card Thickness – 0.38 mm (15mil), 1.0 mm (40mil)
PRINT SPEED
Monochrome – 5 sec/card ( 720 cards/hour )
YMCKO – front-in & Front-out : Max 17 sec/card (212 cards/hour)
Front-in & Back-out : Max 16 sec/card (225 cards/hour )
YMCKOK Max 22 sec/card (164 cards/hour )
CAPACITY
Input Hopper – 100 cards /200 cards with cover open
Output Hopper – Front : 40 cards / Back : 100 cards (Optional Back-side Stacker )
SYSTEM
Memory – 64 MB RAM
Display & Button – 2 Line LCD / 2 LED Buttons
Supported Platforms – MS Windows 7/8/10 Mac OS,Linux
Communication – USB , Ethernet (Option)
Security – Physical Lock & Kensington Lock (Option )
DIMENSIONS /WEIGHT
WxLxH (millimeter/Inch) – 165 x 390 x210 / 6.5 x 15.4 x 8.3
Kg/lbs – 4.5 / 10
ENCODING OPTIONS
Magnetic ISO7811 ( Track I,II,III Read/Write Hico/Loco)JIS II
Contact – ISO 7816 (ID-1)
Contactless – Mifare ,ISO 14443 (Type A/B),ISO 15693,DESFIRE,iCLASS
