Description:

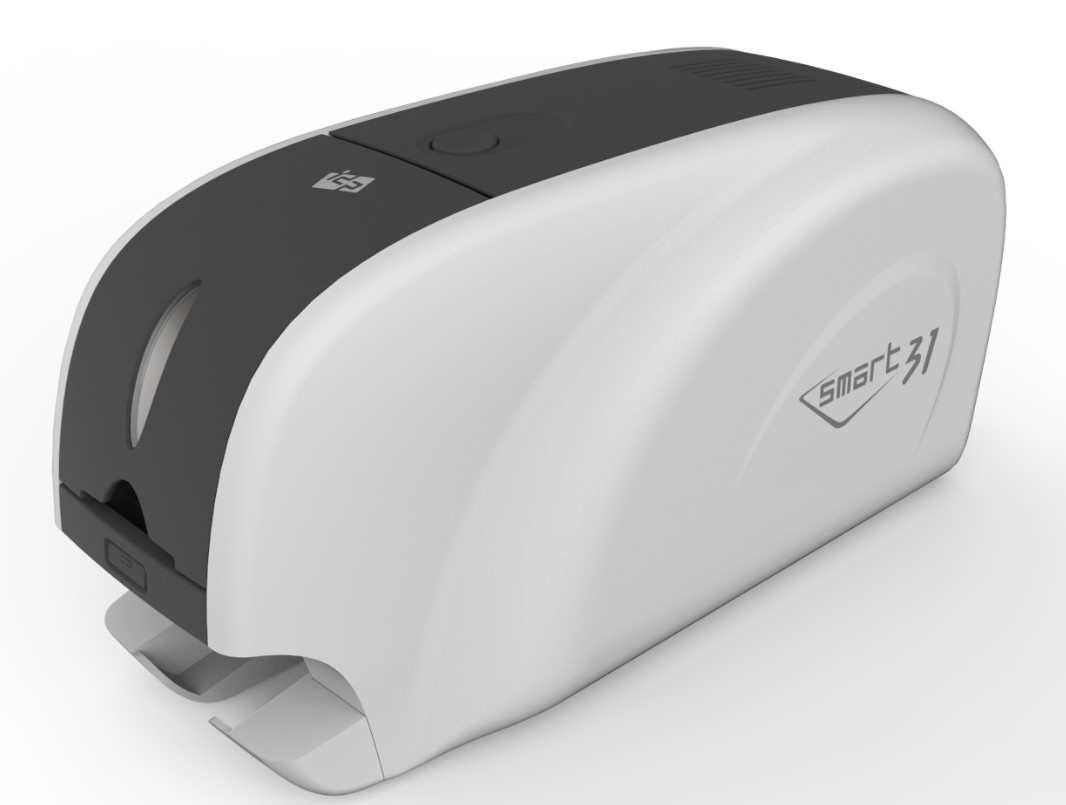

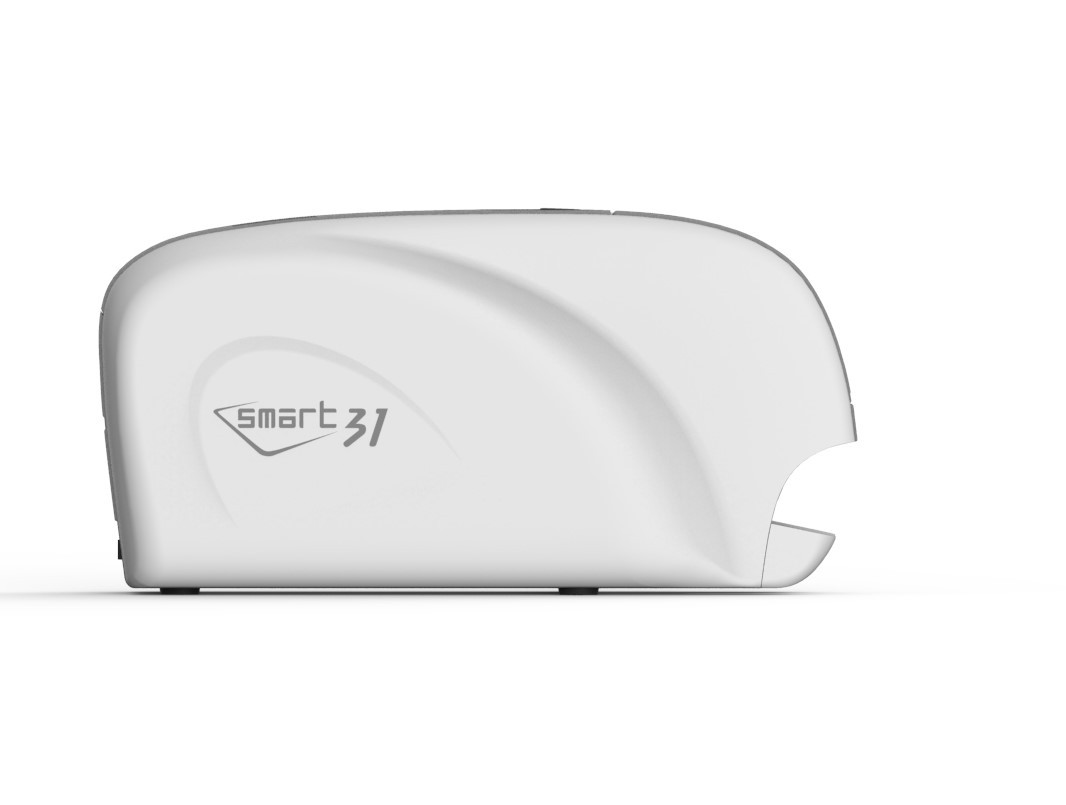

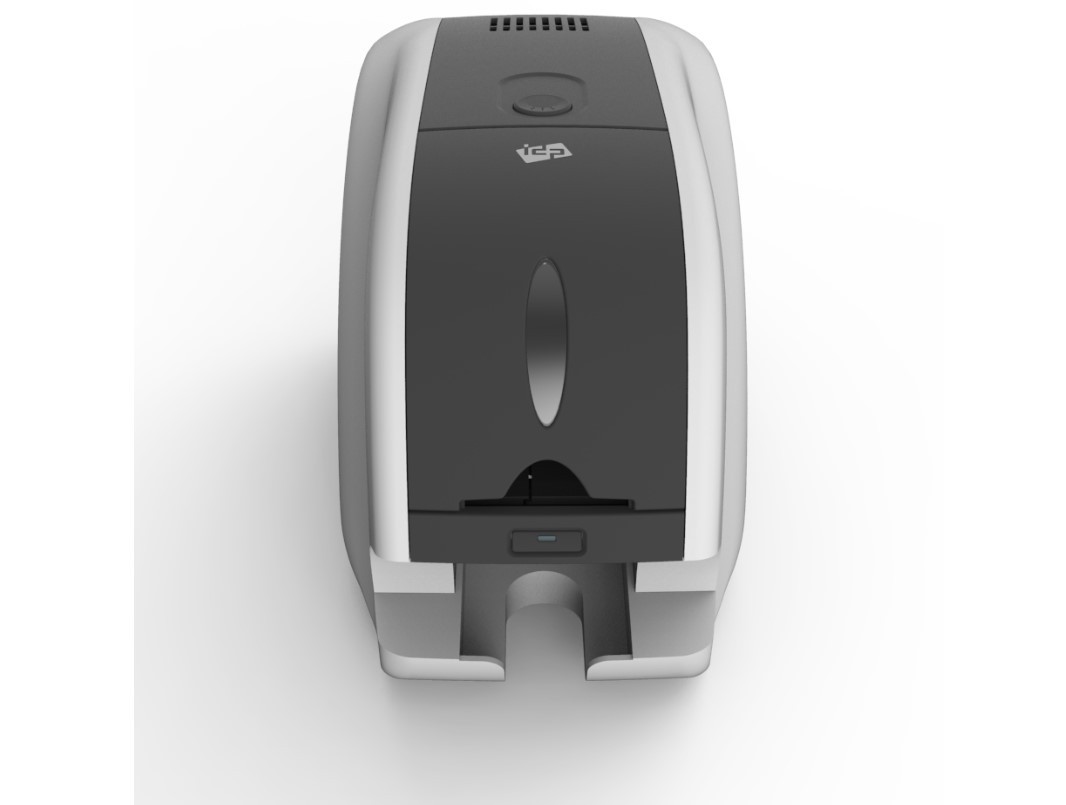

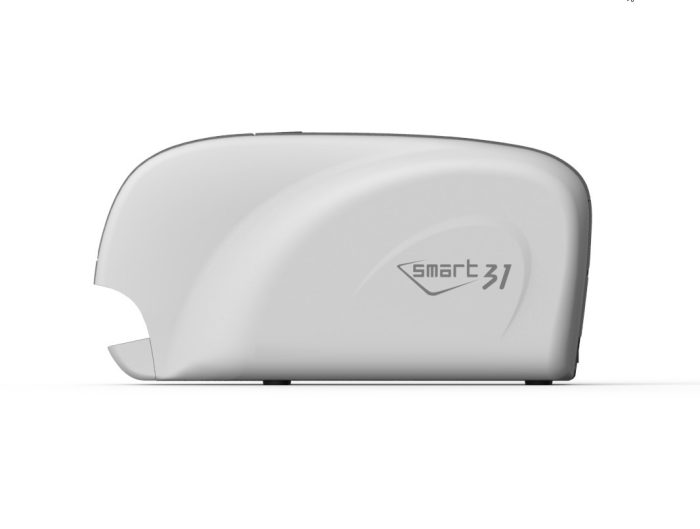

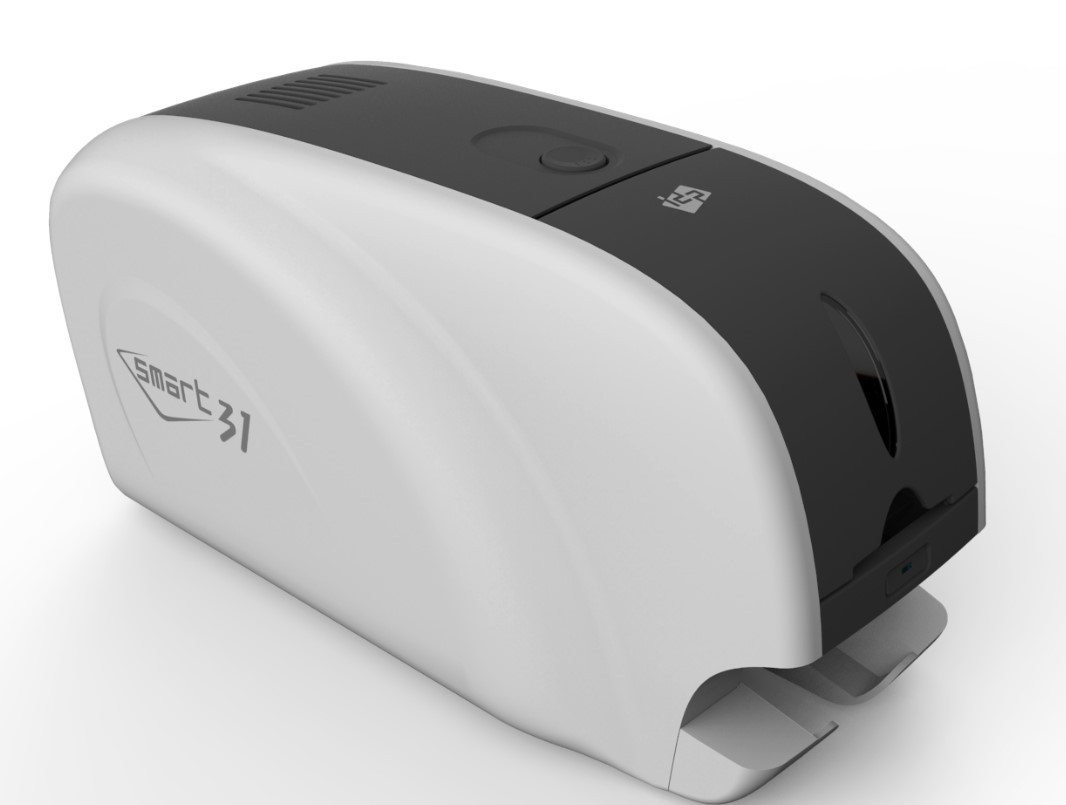

IDP Smart-31D Printer Details
If maximum efficiency and a great value are on the top of the “must haves” list for your ID card printer, the IDP 651528 Smart-31D Single-sided printer fits the bill. Rely on the Smart-31D card printer to create exceptional-quality credentials with vibrant colors and crisp images – all at an affordable price. Combining ease-of-use with today’s advanced ID security features, the Smart-31D is designed for dependable access control, mass transit, student ID cards, healthcare, and more.
Easy-to-use design
The Smart-31D badge maker will have you printing ID cards in no time with a sleek, user-friendly design and valuable advanced features:
Intuitive printer operation
Drop-in ribbon cartridges for fast ribbon changes
Small footprint accommodates almost desktop space
Front input and output hoppers for a single access source
Auto and manual card-feeding options
Advanced networking
The IDP 651528 offers hassle-free printing and encoding through the network printer server to save you significant production time:
Print cards with network printer server
Encode magstripe, contact, and contactless cards via the network
Monitor working statuses and adjust configurations easily
Data security
Protect the data of your business or organization from hackers with trusted data security features:
Password verification enables root and user authentications
Encrypt data transmitted on USB
SSL Protocol on Ethernet communications
User rights and device authentication option for encoding and printing cards
Specification:
Printing
Print Mode
Dual Sided
Print Type
Direct Dye-Sublimation
Print Area
Edge to Edge
Resolution
300 dpi
Dual Sided Printing
Option (with Flipper)
Card
Card Feeding
Automatic
Card Size
ISO CR80
Card Thickness
0.38mm (15mil), 0.76mm (30mil)
Card Type
PVC, PET, Composite PVC
Print Speed
Monochrome
5 sec/card (720 cards/hour)
YMCKO
Max. 23 sec/card (156 cards/hour)
Capacity
Input Card Hopper
80 Cards
Output Card Hopper
25 Cards
System
Memory
64MB RAM
Interface
1 LED Buttons
Supported Platforms
Microsoft Windows 7/8/10, Mac OS, Linux
Communication
USB, Ethernet (Option)
Power Supply
Free Voltage (AC100/220V, 50~60Hz)
Power Consumption
48W
Temperature
15~35℃
Humidity
35~70%
Dimensions
Milimeter
172 (W) x 377 (L) x 190 (H)
Inch
6.8 (W) x 14.8 (L) x 7.5 (H)
Weight
Kg / Lbs
3.4 / 7.5
Encoding Option
Magnetic
ISO 7811 (Track I, II, III Read/Write, HiCo/LoCo), JIS II
Contact
ISO 7816 A/B/C Card, ISO 7816 1/2/3/4 Microprocessor Card
Contactless
ISO 14443 (Type A/B), MIFARE, DESFIRE, iCLASS, ISO 18092(NFC), Felica
Certifications
Certifications
CB, CE, FCC, KC, CCC
