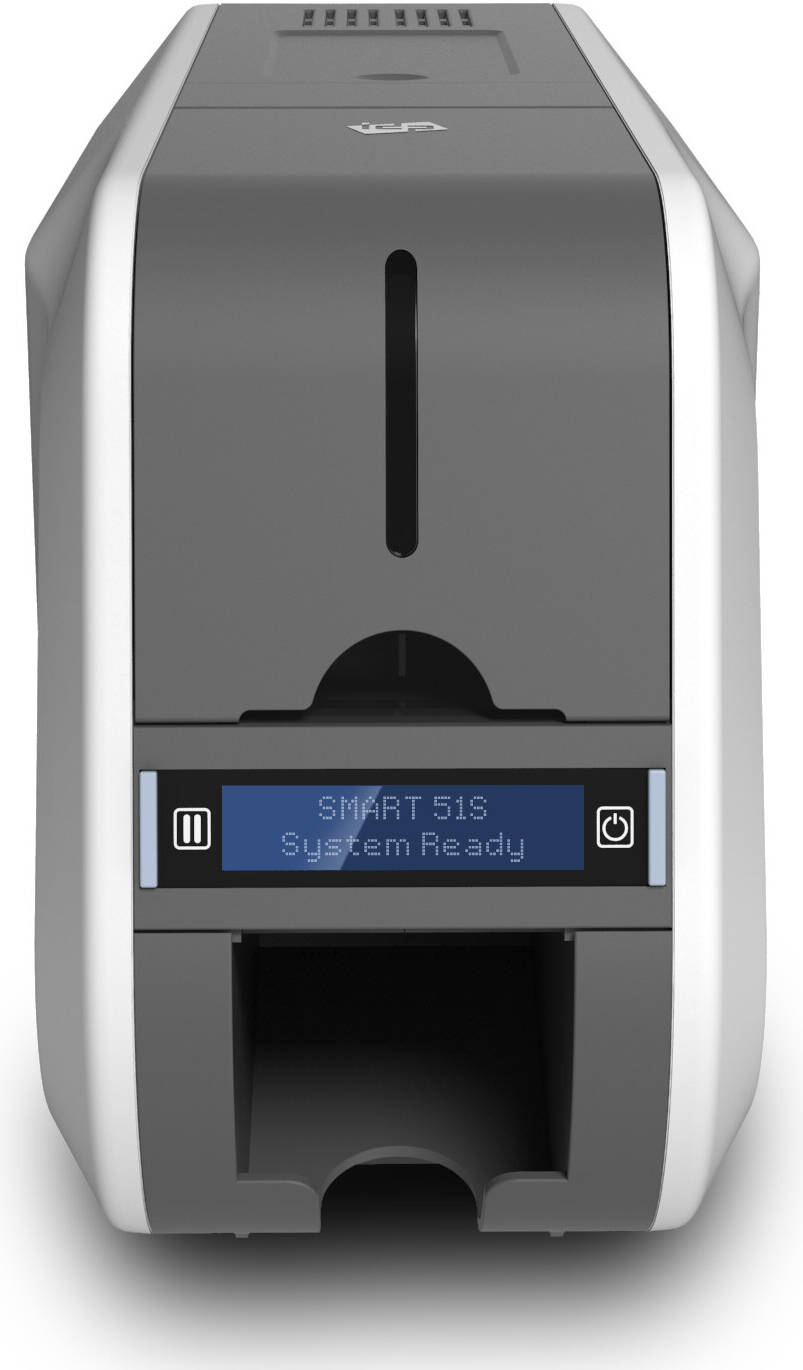

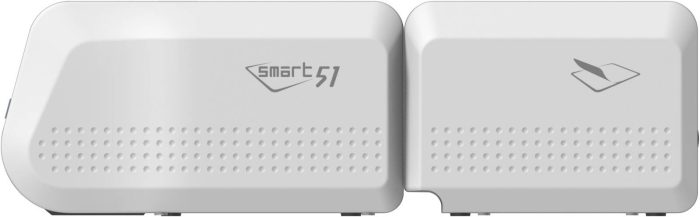

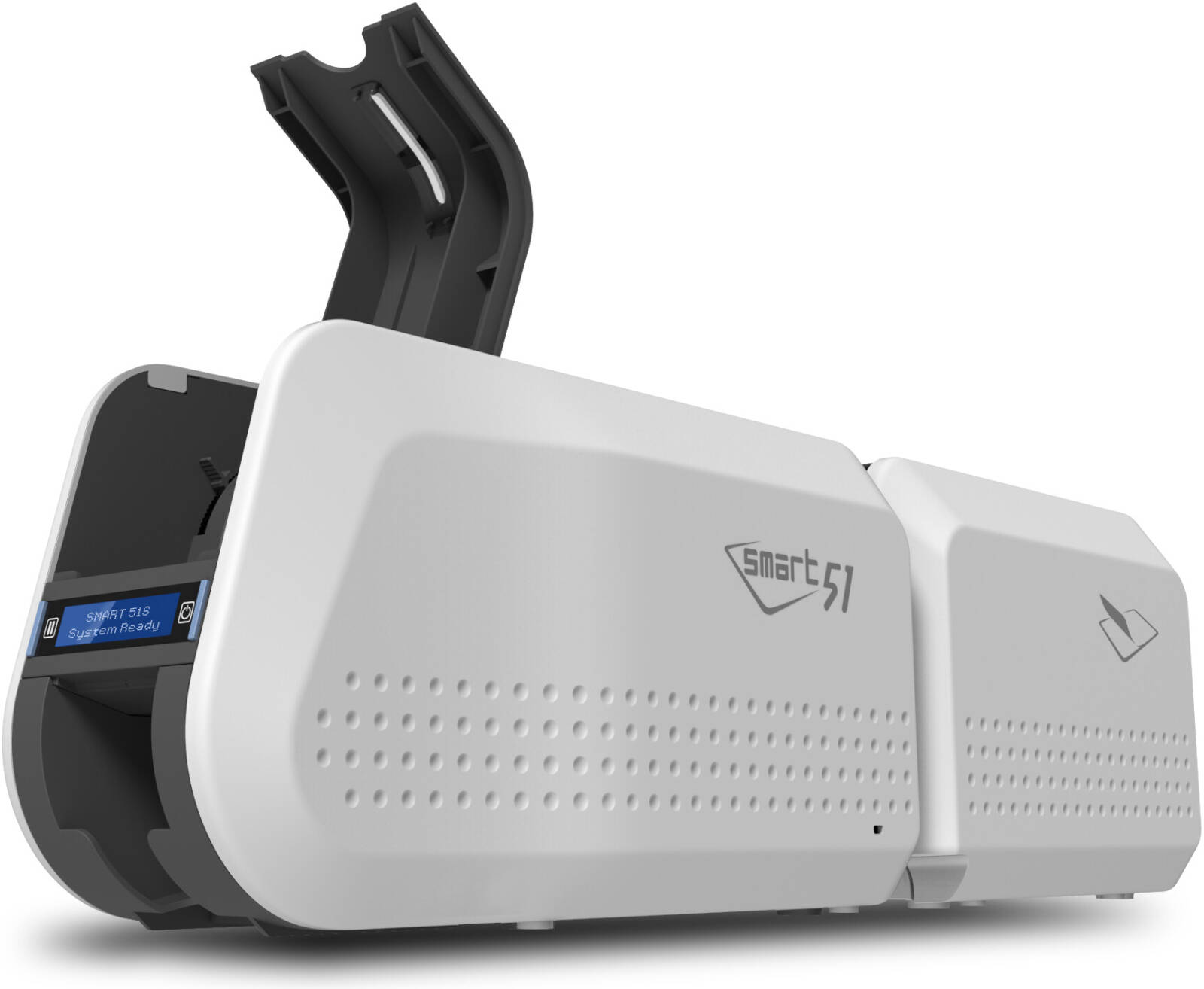

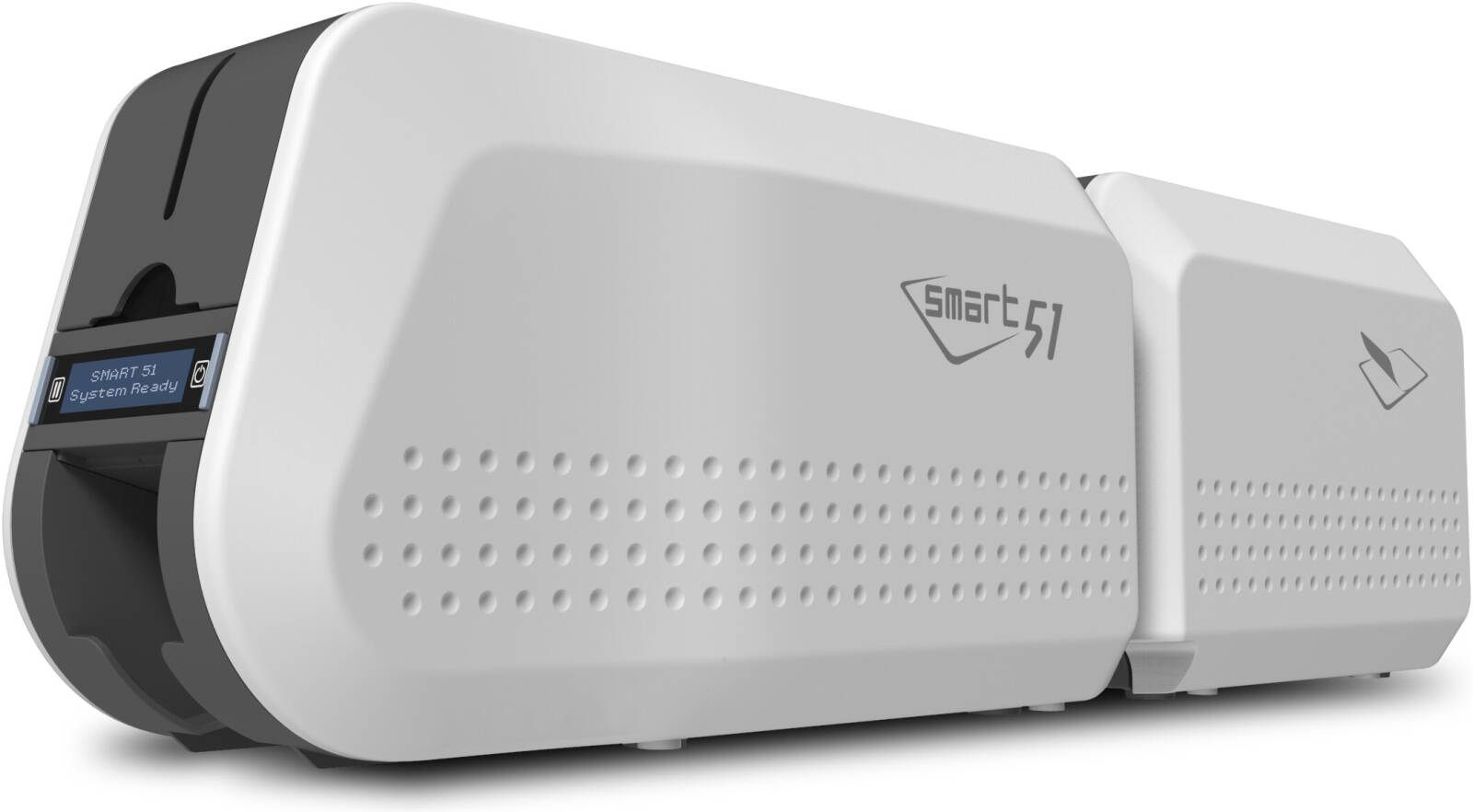

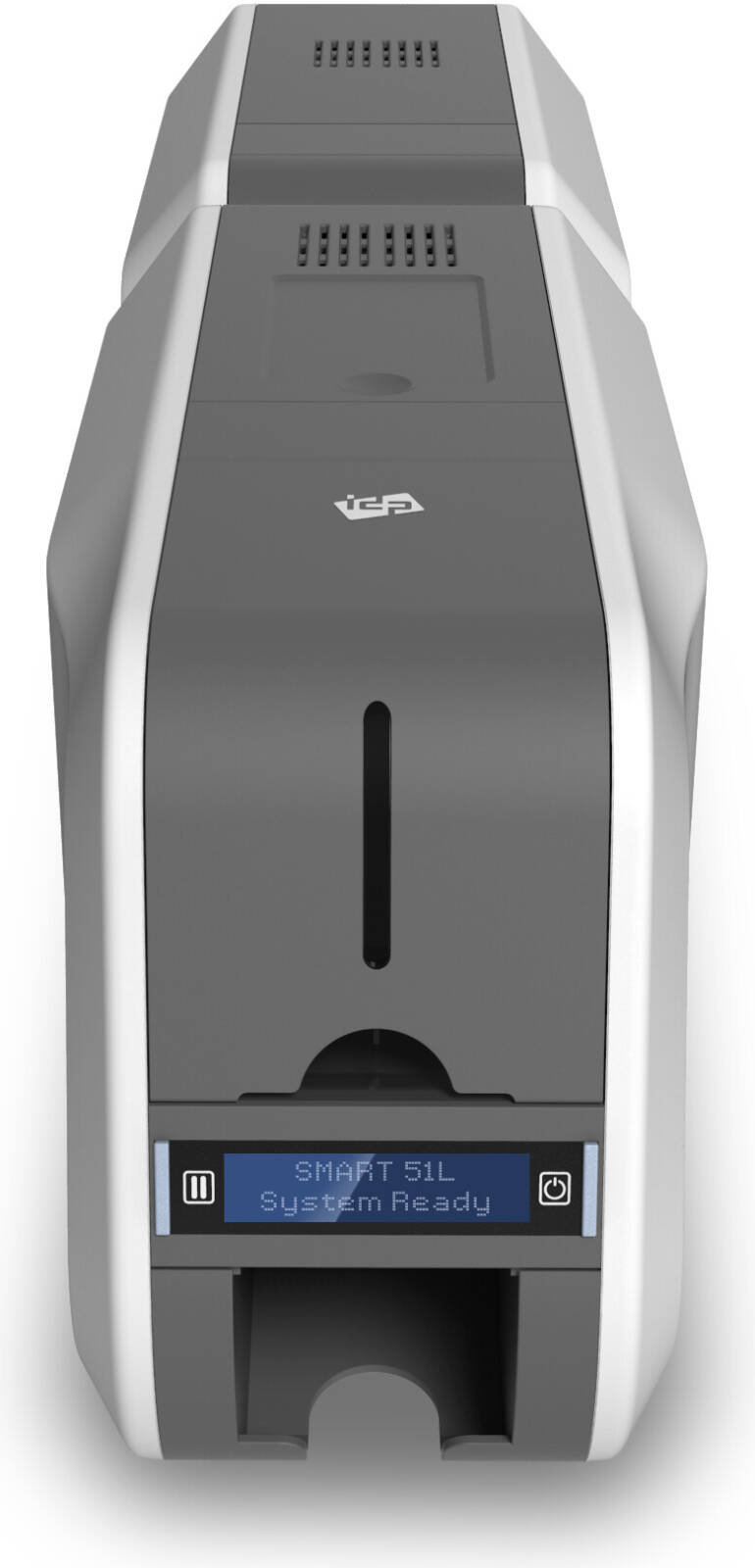

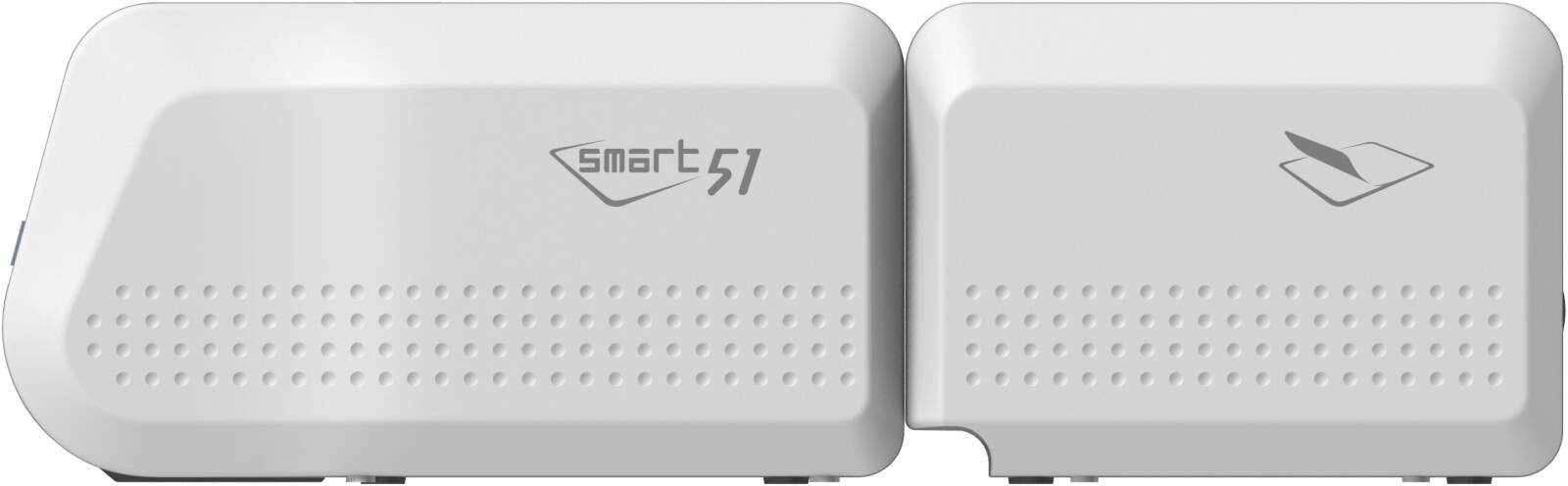

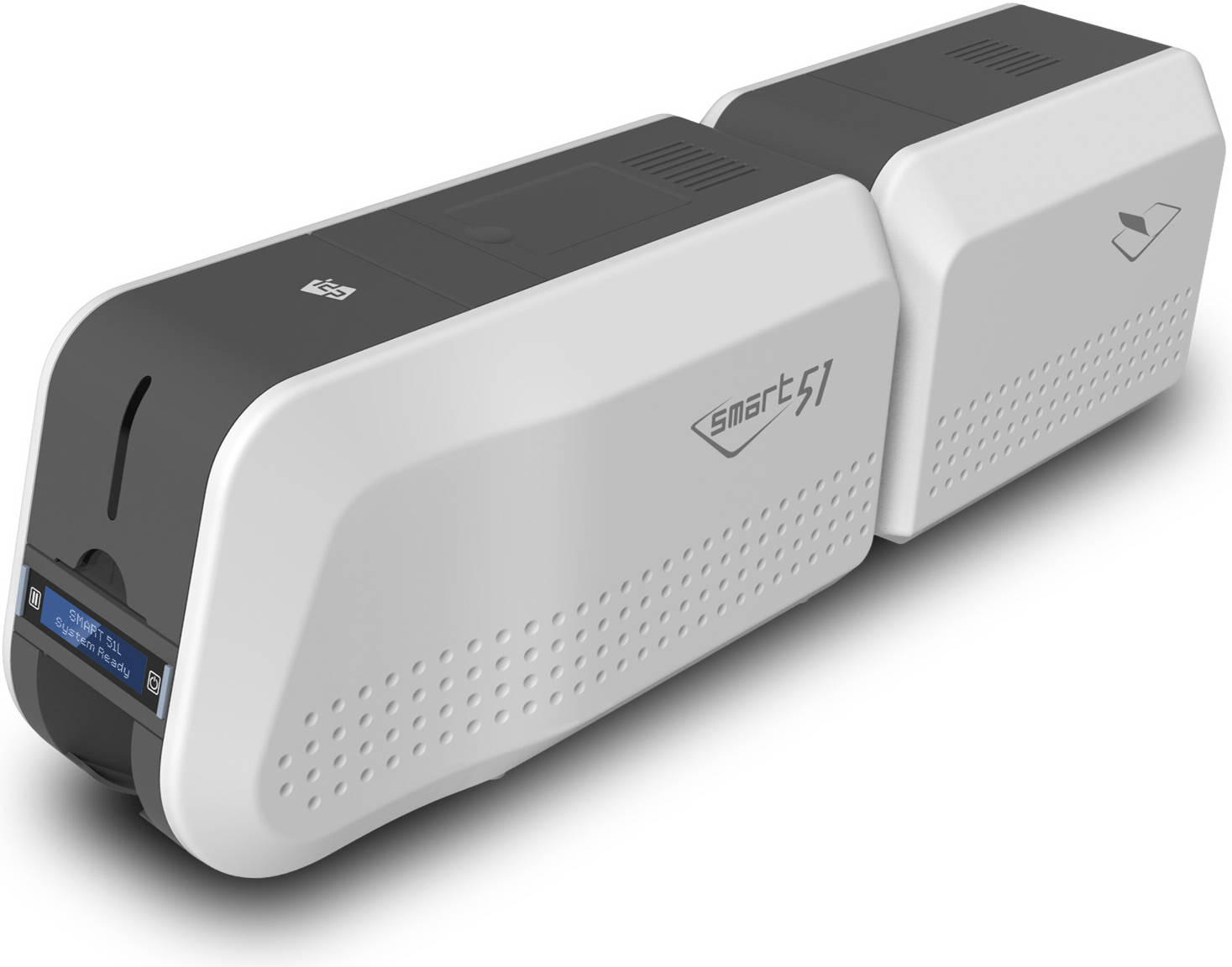

Smart-51L Dual-Sided Thermal ID Card Printer & Laminator, Dual Sided Print More, Direct Dye-Sublimation Print Type, Up to 1200 DPI Resolution, Automatic Feeding, White | Smart-51L

Specifications
Print Mode
Dual Sided
Print Type
Direct Dye-Sublimation
Print Area
Edge to Edge
Resolution
300 dpi (Colour & Mono); 600 dpi & 1200 dpi (Mono only)
Dual Sided Printing
Yes
Card Feeding
Automatic
Card Size
ISO CR80 or ISO CR79 (Option-Factory installed)
Card Thickness
0.38mm (15mil) ~ 1.0mm (40mil)
Card Type
PVC, PET, Composite PVC
Print Speed (Monochrome)
5 sec/card (720 cards/hour)
Print Speed (YMCKO)
Max. 17 sec/card (212 cards/hour)
Print Speed (YMCKOK)
Max. 22 sec/card (164 cards/hour)
Input Card Hopper
100 Cards / 200 Cards with cover open
Output Card Hopper
Front: 40 Cards / Rear: 100 Cards (Optional Rear-side Stacker)
Laminating Mode
Single & Dual
Film (Clear & Holographic)
0.6mil, 1.0mil
Speed (Simultaneous, YMCK)
22 sec/card (Single Laminating)
Speed (Simultaneous, YMCKK)
32 sec/card (Single Laminating)
Speed (One by One, YMCK)
43 sec/card (Single Laminating)
Speed (One by One, YMCKK)
53 sec/card (Single Laminating)
Memory
64MB RAM
Interface
2 Line LCD / 2 LED Buttons
Supported Platforms
Microsoft Windows 7/8/10, Mac OS, Linux
Communication
USB
Power Supply
Free Voltage (AC100/220V, 50~60Hz)
Power Consumption
96W
Temperature
15~35℃
Humidity
35~70%
Physical Lock
Input Hopper & Ribbon (Option), Kensington Lock (Option)
Dimensions (mm)
165 (W) x 675 (L) x 210 (H)
Dimensions (inch)
6.5 (W) x 26.6 (L) x 8.3 (H)
Weight (Kg / Lbs)
8.8 / 19.4
Encoding Option (Magnetic)
ISO 7811 (Track I, II, III Read/Write, HiCo/LoCo), JIS II
Encoding Option (Contact)
ISO 7816 A/B/C Card, ISO 7816 1/2/3/4 Microprocessor Card
Encoding Option (Contactless)
ISO 14443 (Type A/B), MIFARE, DESFIRE, iCLASS, ISO 18092 (NFC), Felica
Certifications
CB, CE, FCC, KC, CCC
