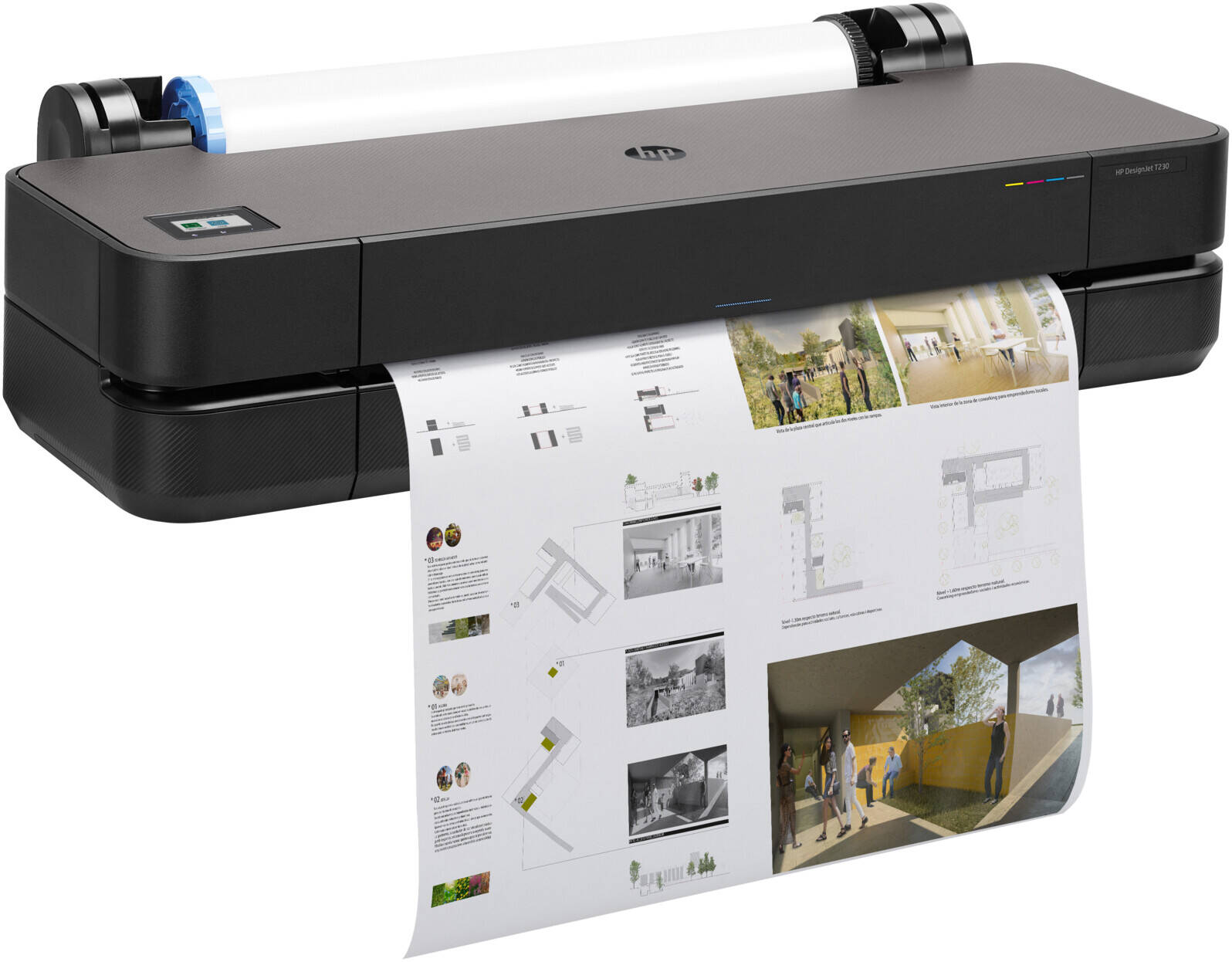

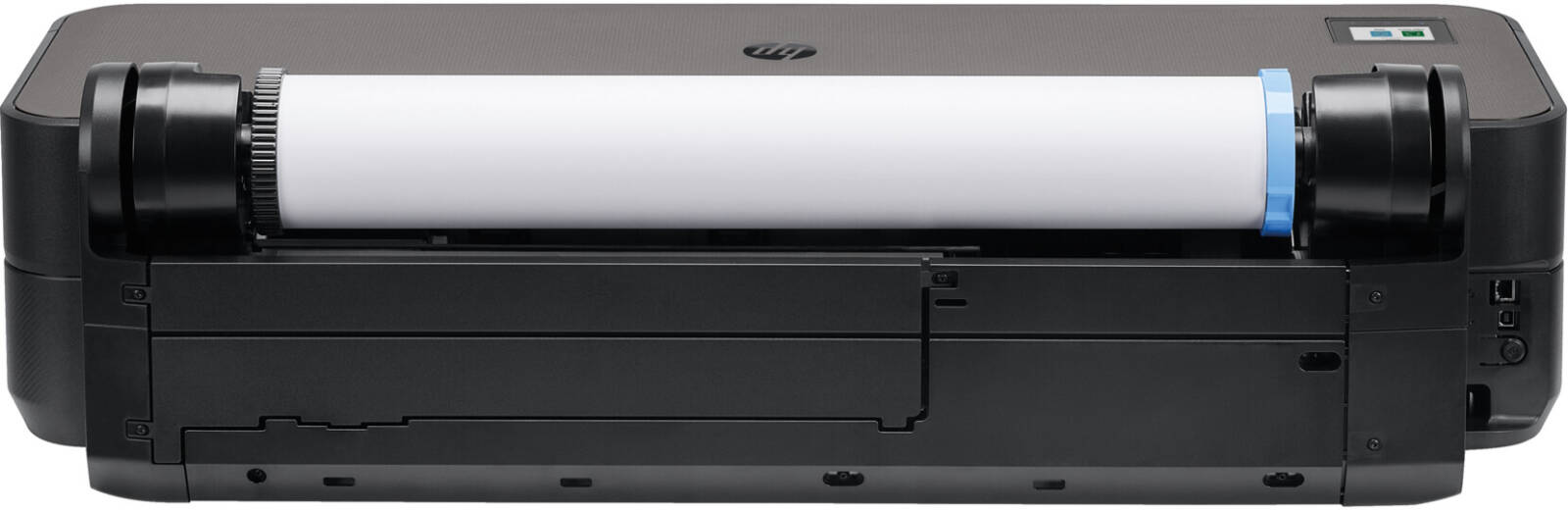

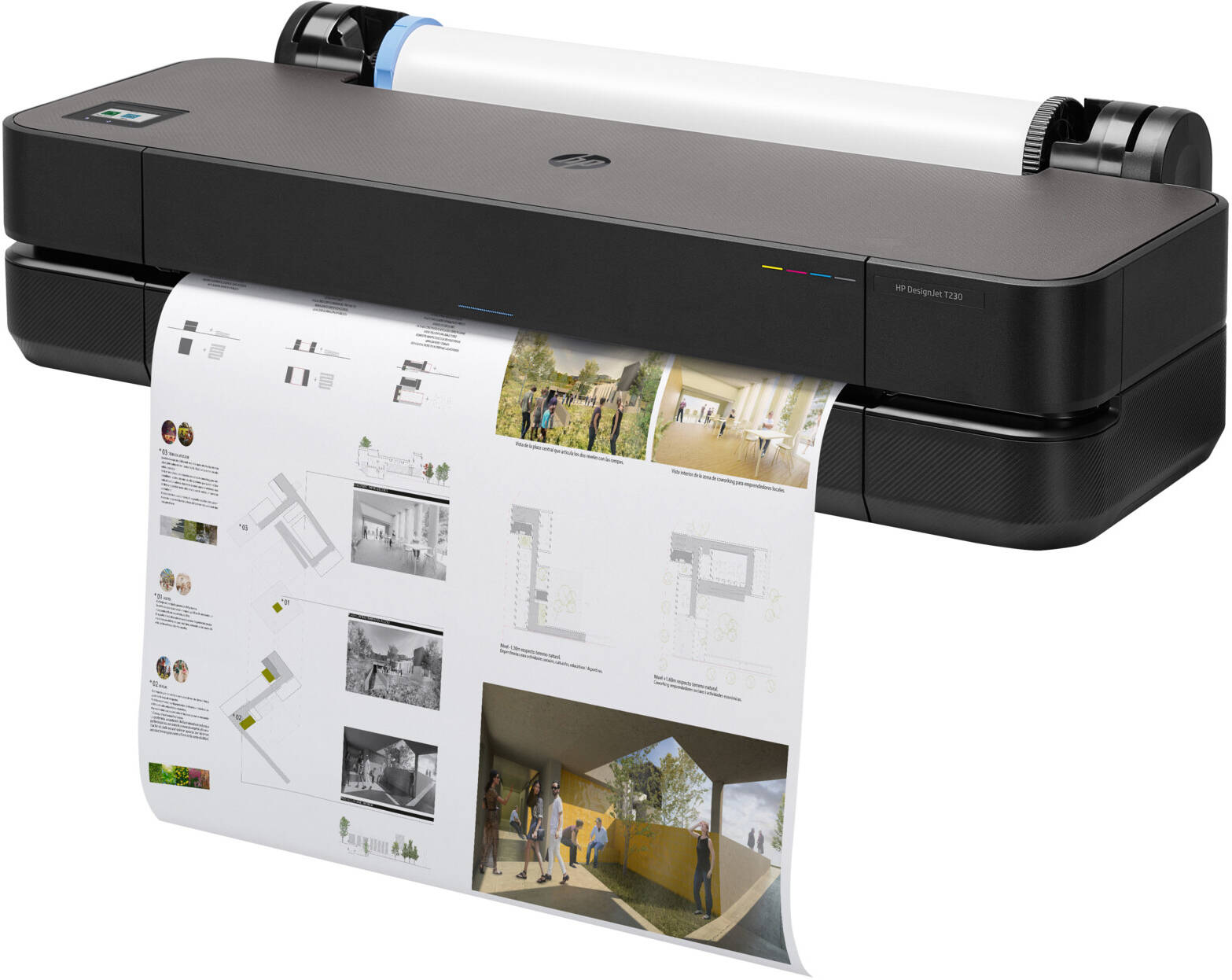

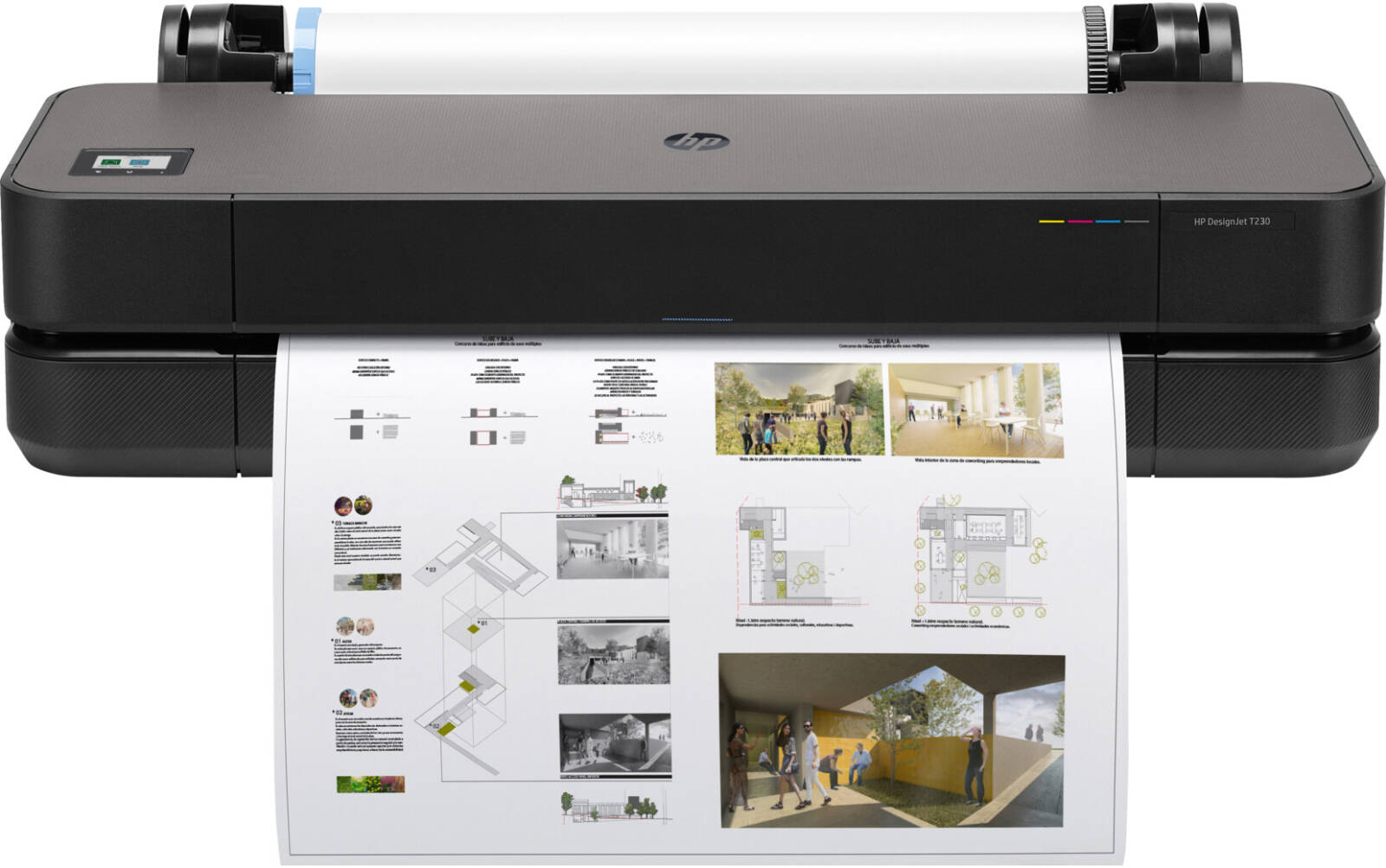

HP DesignJet T230 24″ Inkjet Printer, Up to 5.5pl Ink Drop, 35 SPP Printed Speed, Up to 2400 x 1200 DPI Resolution, Sheet Feed, Roll Feed, Automatic Horizontal Cutter Output Handling, Black | 5HB07A

DesignJet T230
Designed to fit your office, budget, and the way you work, the world’s smallest plotters provide outstanding simplicity. Send multiple files in just one click. Print your A1 plot as fast as 35 seconds. 500 MB memory.
Specifications
Functions
Print
Print Speed
35 sec/page on A1, 68 A1 prints per hour
Ink Drop
5.5 pl (C, M, Y); 12 pl (K)
Print Head Nozzles
1376
Print Cartridge Volume Delivered
80 ml (K); 38 ml (K); 29 ml (C, M, Y)
Ink Types
Dye-based (C, M, Y); pigment-based (K)
Number of Print Cartridges
4 (C, M, Y, K)
Print Heads
1 (cyan, magenta, yellow, black)
High Capacity of Page Yield (Colour)
20 ml of ink yields 101 A1 pages, considering maintenance routines
Color(s) of Printing Supplies
Cyan, magenta, yellow, black
Print Quality Color (Best)
Up to 2400 x 1200 optimized dpi
Maximum Optical Density (Black)
8 L* min/2.10 D
Finished Output Handling
Sheet feed, roll feed, automatic horizontal cutter
Media Sizes Standard (Metric Rolls)
279 to 610 mm
Roll External Diameter
100 mm
Roll Maximum Input
1
Roll Maximum Weight
4.1 kg
Recommended Media
HP Universal Bond Paper, HP Coated Paper, HP Heavyweight Coated Paper (all FSC® certified and recyclable)
Media Thickness
Up to 11.8 mil
Media Thickness (Metric)
Up to 0.3 mm
Media Width, Maximum
610 mm
Supported Primary Applications
Line drawings, Presentations, Renderings
Non-printable Area (Cut-sheet)
5 x 5 x 5 x 17 mm (manual feed); 5 x 5 x 5 x 5 mm (input tray)
Non-printable Area (Roll Media)
5 x 5 x 5 x 5 mm
Media Sizes, Custom
210 x 279 to 610 x 1897 mm
Media Sizes Supported
A4, A3, A2, A1
Media Types
Bond and coated paper, technical paper, film, photographic paper, self-adhesive
Media Weight, Recommended
60 to 280 g/m²
Model Size
610 mm
Internal Storage
None
Line Accuracy
±0.1%
Printer Drivers Included
Raster driver for Windows and macOS
Print Languages
JPEG, URF
Print Technology
HP Thermal Inkjet
Theoretical Minimum Line Width
0.02 mm
Printing Path
Print Anywhere with HP Smart app, HP Click, HP driver for macOS, HP driver for Windows, printing support for Chrome OS, email printing, HP Print Service Plugin for Android, Apple AirPrint
Connectivity, Standard
Gigabit Ethernet (1000Base-T), Hi-Speed USB 2.0, Wi-Fi 802.11a/b/g/n, Wi-Fi Direct
Remote Print Enabled
Yes
Print Multi-size Files in One Click
Yes
Minimum Dimensions (W x D x H)
1013 x 440 x 285 mm
Package Dimensions (W x D x H)
1155 x 575 x 405 mm
Weight
21.5 kg
Package Weight
28 kg
Memory
512 MB
Acoustic Power Emissions (Active, Printing)
5.8 B(A) (operating),
Acoustic Pressure Emissions
42 dB(A) (operating),
Operating Humidity Range
20 to 80% RH
Non-Operating Humidity Range
0 to 95% RH
Operating Temperature Range
5 to 40ºC (41 to 104ºF)
Storage Temperature Range
-25 to 55ºC (-13 to 131ºF)
Operating Altitude
Up to 3000 m
Post Consumer Recycled Plastic in Hardware
30%
Power Consumption
Power
Input voltage (auto-ranging): 100-240 V (±10%), 50/60 Hz (±3 Hz), 1200 mA max
Software Included
HP Click, HP Smart app, HP Print Preview for Windows, HP Easy Start, HP DesignJet Utility for Windows, HP Support Assistant
Electromagnetic Compatibility
Compliant with Class B requirements including: USA (FCC rules), Canada (ICES), EU (EMC/RED Directives), Australia (ACMA), New Zealand (RSM), China (CCC), Japan (VCCI); Certified as Class B product: Korea (KCC)
Energy Star Certified
Yes
Environmental Certification
ENERGY STAR, WEEE, EU RoHS, EAEU RoHS, REACH, ErP, EPEAT Gold
