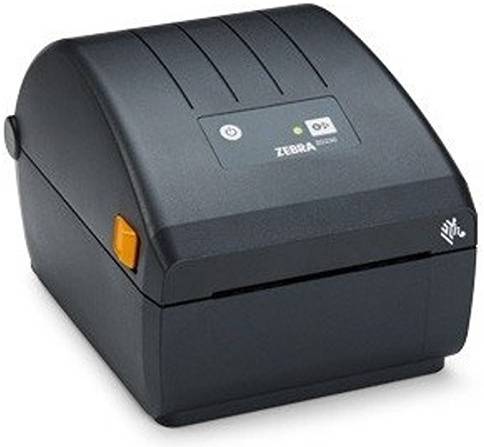

Zebra ZD230 4″ Direct Thermal Print, 203 DPI Resolution, 8 Dots per mm, 128mb SDRAM, 4.09″ Maximum Print Width, Movable Black Mark Sensor | ZD23042-30EG00EZ

SPECIFICATIONS
Standard Features
• Thermal Transfer or Direct Thermal print method
• ZPL and EPL programming languages
• Single LED status indicator
• Single button for feed/pause
• USB connectivity
• OpenACCESS™ for easy media loading
• Dual-wall frame construction
• ENERGY STAR qualified
• ZebraDesigner Essentials – easy label design tool free at
Physical Characteristics
Dimension
Thermal Transfer:
10.5 in. L x 7.75 in. W x 7.5 in. H
267 mm L x 197 mm W x 191 mm H
Direct Thermal
8.6 in. L x 6.9 in. W x 5.9 in. H
220 mm L x 176 mm W x 151 mm H
Weight
2.5 lbs/1.1 kg
Printer Specifications
Resolution
203 dpi/8 dots per mm
Memory
128 MB Flash; 128 MB SDRAM
Maximum Print Width
4.09 in./104 mm for 203 dpi
Programmable Print Speed
6 in./152 mm per second or 4 in./102 mm per second
Media Sensors
Movable black mark sensor, limited range from center to left side
Fixed off-center gap sensor
Firmware
ZPL II; EPL 2; XML
Media and Ribbon Characteristics
Maximum Label Length
39.0 in./991 mm
Media Width
1.00 in./25.4 mm to 4.4 in./112 mm
Media Roll Size
5.00 in./127 mm outer diameter Core inner diameter: 0.5 in. (12.7 mm) and 1.0 in. (25.4 mm) standard, 1.5 in. (38.1 mm)
Thickness
0.003 in. (0.08 mm) min.; 0.0075 in. (.1905 mm) max. (tear-off mode only)
Media Types
Roll-fed or fan-fold, die cut or continuous with or without black mark, tag stock, continuous receipt paper, and wristbands
Ribbon Outside Diameter
2.6 in./66 mm (300 m); 1.34 in./34 mm (74 m)
Maximum Ribbon Length
984 ft. (300 m)
Ribbon Ratio
1:4 media to ribbon (300 m)
1:1 media to ribbon (74 m)
Ribbon Width
1.33 in./33.8 mm ~ 4.3 in./109.2 mm
Ribbon Core I.D.
300 Meter ribbon 1 in./25.4 mm
74 Meter ribbon 0.5 in./12.7 mm
Operating Characteristics
Operating Temp.
40° to 105° F/4.4° to 41° C
Storage Temp.
-40° to 140° F/-40° to 60° C
Operating Humidity
10% to 90% non-condensing
Storage Humidity
5% to 95% non-condensing
Electrical
Auto-detectable (PFC Compliant) 100-240VAC, 50-60Hz; ENERGY STAR qualified
Operations and Accessories
Media Handling
Factory installed peeler or cutter
Communications
Factory-installed USB and Ethernet
Factory-installed USB and Bluetooth 4.1
Factory-installed USB 802.11ac Wi-Fi and Bluetooth 4.1
Real Time Clock
None
Keyboard Display Unit
No serial port, thus no KDU/ZKDU
Fonts/Graphics/Symbologies
Bar Code Ratios
2:1 and 3:1
1D Bar Codes
Code 11, Code 39, Code 93, Code 128, ISBT-128, UPC-A, UPC-E, EAN-8, EAN-13, UPC and EAN 2-or 5-digit extensions, Plessey, Postnet, Standard 2-of-5, Industrial 2-of-5, Interleaved 2-of-5, Logmars, MSI, Codabar and Planet Code
2D Bar Codes
Codablock, PDF417, Code 49, DataMatrix, MaxiCode, QR Code, MicroPDF, Aztec
Fonts and Graphics
16 resident expandable ZPL II bitmap fonts
Two resident scalable ZPL fonts
Five resident expandable EPL2 fonts
Native open-type font support
Unicode compliant for multi-language, on demand thermal printing
50 MB user available non-volatile memory, 8 MB user available SDRAM
Printer Supplies
Keep your Zebra printer up and running with genuine Zebra printer supplies, available directly from Zebra.
Regulatory
IEC 60950-1, EN55022 Class B, EN55024, EN61000-3-2, EN61000-3-3, FCC Class B, ICES-003, FCC 15.209; 15.247(d), IC RSS 247, EN 300 328, EN 301 893, EN 62311, cTUVus
CE Marking, VCCI, C-Tick, S-Mark, CCC, CU, BSMI, KCC, SABS, IN-Metro, BIS, NOM
Recommended Services
Zebra OneCare SV
Operating System
Link-OS Basic printer operating system
