Canon imageRUNNER 2224 Multifunctional Laser Printer, Print, Copy, Scan, Send, Fax, 3.5″ Monochrome Touch Panel, 24 ppm (A4) Print Speed, Up to 1200×1200 DPI, 250 Sheets Max Output, White | ir2224

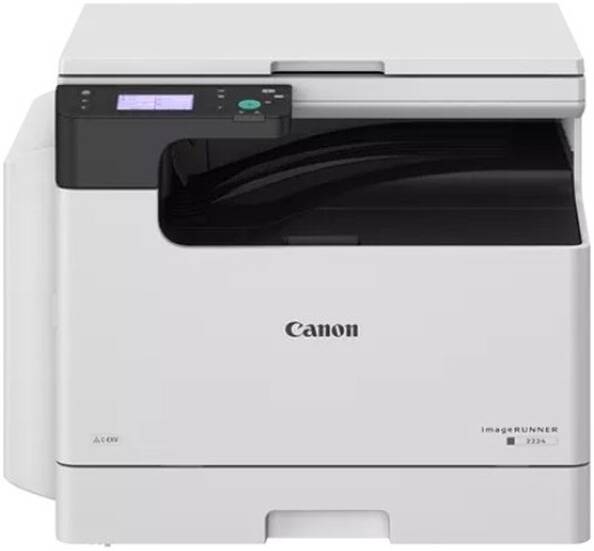

imageRUNNER 2224
Cost-effective, reliable and highly efficient A3 black and white multifunction printers.
Key Features
Machine Type : A3 Monochrome Laser Multifunctional
Core Functions : Print, Copy, Scan, Send and Fax
Processor Speed : 1.6GHz Dual Core Processor
Control Panel : 8.9 cm/3.5 inch monochrome Touch panel
Memory : Standard: 1.0GB RAM
Storage : Standard: 2GB eMMC
Interface Connection : Standard: USB 2.0 (Device) x1;
Paper Supply Capacity (A4, 80 gsm) : Standard: 350 sheets; Maximum: 600 sheets (with Cassette Feeding Module-AK1);
Paper Output Capacity (A4, 80 gsm) : Standard: 250 sheets; Maximum: 250 sheets
Finishing Capabilities : Collate, Group
Specifications
Main Unit
Machine Type
A3 Monochrome Laser Multifunctional
Core Functions
Print, Copy, Scan, Send, and Fax
Processor Speed
1.6GHz Dual Core Processor
Control Panel
8.9 cm/3.5 inch monochrome Touch panel
Memory
Standard: 1.0GB RAM
Storage
Standard: 2GB eMMC
Interface Connection
Standard: USB 2.0 (Device) x1
Paper Supply Capacity (A4, 80 gsm)
Standard: 350 sheets
Maximum: 600 sheets (with Cassette Feeding Module-AK1)
Paper Output Capacity (A4, 80 gsm)
Standard: 250 sheets
Maximum: 250 sheets
Finishing Capabilities
Collate, Group
Supported Media Types
Multi-purpose Tray: Thin, Plain, Recycled, Thick, Color, Bond, Transparency, Label, Pre-punched, Envelope
Paper Cassette: Plain, Recycled, Color, Pre-punched
Supported Media Sizes
Multi-purpose Tray: A3, A4, A4R, A5, A5R, B4, B5, B5R, Envelope (COM10, Monarch, DL, ISO-C5), Custom size Min. 95.0 x 148.0mm up to 297.0 x 431.8mm
Paper Cassette: Standard size – A3, A4, A4R, A5R, B4, B5, B5R
Supported Media Weights
Multi-purpose tray: 60 to 157 gsm
Paper Cassettes: 64 to 90 gsm
Warm-up Time
From Power On: 13 Seconds or Less*
Quick start mode: N/A
From Sleep Mode: 4.3 Seconds or Less
Dimensions (W x D x H)
627 x 589 x 502 mm
Installation Space (W x D)
1065 x 1285 mm
Weight
Approx. 32.3 kg including toner
Print Specifications
Print Speed
1-sided: Up to 24 ppm (A4), Up to 12 ppm (A3), Up to 11 ppm (A4R)
Print Resolution (dpi)
Up to 1,200 x 1,200
Page Description Languages
Standard: UFRII
Double-Sided Printing
Yes
Print Features
Watermark, Header/Footer, Page Layout, Mixed Paper Sizes/Orientations, Toner Reduction, Poster Printing, Print Date
Operating Systems
UFRII: Windows®8.1 / Windows®10 / Windows®11 / Windows®Server2012 / Windows®Server2012 R2 / Windows®Server2016 / Windows®Server2019 / Windows®Server2022 (As of Nov 2022)
Copy Specifications
Copy Speed
1-sided: Up to 24 ppm (A4), Up to 12 ppm (A3), Up to 11 ppm (A4R)
First-Copy-Out Time
Platen: Approx. 7.4 seconds or less
Copy Resolution (dpi)
600x 600
Multiple Copies
Up to 999 copies
Copy Density
Automatic or Manual (9 Levels)
Magnification
25% – 400% (1% Increments)
Preset Reductions
25%, 50%, 70%, 100%, 141%, 200%, 400%
Preset Enlargements
25%, 50%, 70%, 100%, 141%, 200%, 400%
Basic Copy Features
Preset R/E Ratios by Area, Two-Sided, Density Adjustment, Original Type Selection, Interrupt Mode, Book to Two Pages, Two-sided Original, Sort, Job Build, N on 1, Different Size Originals, Sharpness, Erase Frame, Copy ID Card, Skip Blank Pages, Free Size Original, Color Mode, Reserved copy, Copy Sample
Scan Specifications
Type
Standard Platen Cover
Pull Scan Specifications
ScanGear MF. For both TWAIN and WIA
Acceptable Originals/Weights
Platen: Sheet, Book
Supported Media Sizes
Platen max. scanning size: 297.0 x 432.0 mm
Scan Method
Push Scan, Pull Scan
Double-Sided Scanning
No
Fax Specifications
Modem Speed
Standard: USB Memory
Security Specifications
Authentication & Access Control
Department ID Authentication (Department ID and PIN Login, Function Level Login)
Document Security
Print Security (Secure Print)
Device Security
Standard Storage Initialize, Job Log Conceal Function, Protecting MFP Software Integrity, Verify System at Startup (NIST SP800-193)
Device Management & Auditing
Administrator Password
Environmental Specifications
Operating Environment
Temperature: 10 to 30 °C (50 to 86 °F) Humidity: 20 to 80 % RH (Relative Humidity)
Power Source
220-240V 50/60Hz (2.8)
Power Consumption
Maximum: Approx. 1,500 W
Standby: Approx. 15.5
Sleep mode: Approx. 0.9 W
Typical Electricity Consumption (TEC)
As per US Energy Star 3.0
Noise Levels
Sound Power Level (LWA,m): Active (1-sided): 6.7B*, Kv: 0.3B*
Sound Pressure Level (LpAm) Bystander’s position: Active (1-sided): 55 dB*
Software & Printer Management
Optimisation Tools
Canon Driver Configuration Tool
Consumables
Toner Cartridge/s
Toner C-EXV 42 Black
Toner Estimated Yield
10,200 pages (A4) (Estimated @ 5% coverage)
Paper Supply Options
Cassette Feeding Unit Name: Cassette Feeding Module-AK1 Paper Capacity: 250 sheets x 1 (80 gsm) Paper Type: Plain, Recycled, Colour, Pre-punched Paper Size: A3, A4, A4R, A5, B4, B5, B5R Paper Weight: 64 to 90 gsm Power Source: Main Unit Dimensions (W x D x H): 581 x 575 x 92 mm Weight: Approx. 5.8 kg
Hardware Accessories
Others
Plain Pedestal Type-J2 Optional pedestal to raise the device when free-standing
Other Options
Instant Stapler-B1
