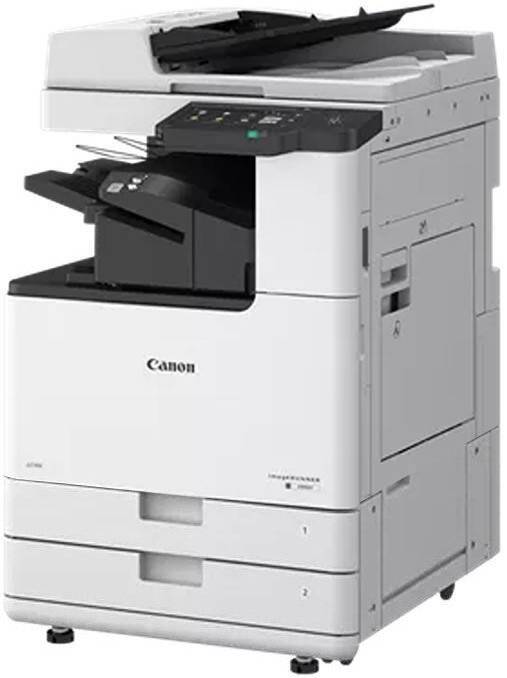

Canon imageRUNNER 2930i Laser Multifunctional Printer
Highly efficient A3 mono multifunction devices with enhanced security and optimised energy consumption
Specifications
Main Unit
Machine Type
A3 Monochrome Laser Multifunctional
Core Functions
Print, Copy, Scan, Send and Optional Fax
Processor Speed
1.6GHz Dual Core Processor
Control Panel

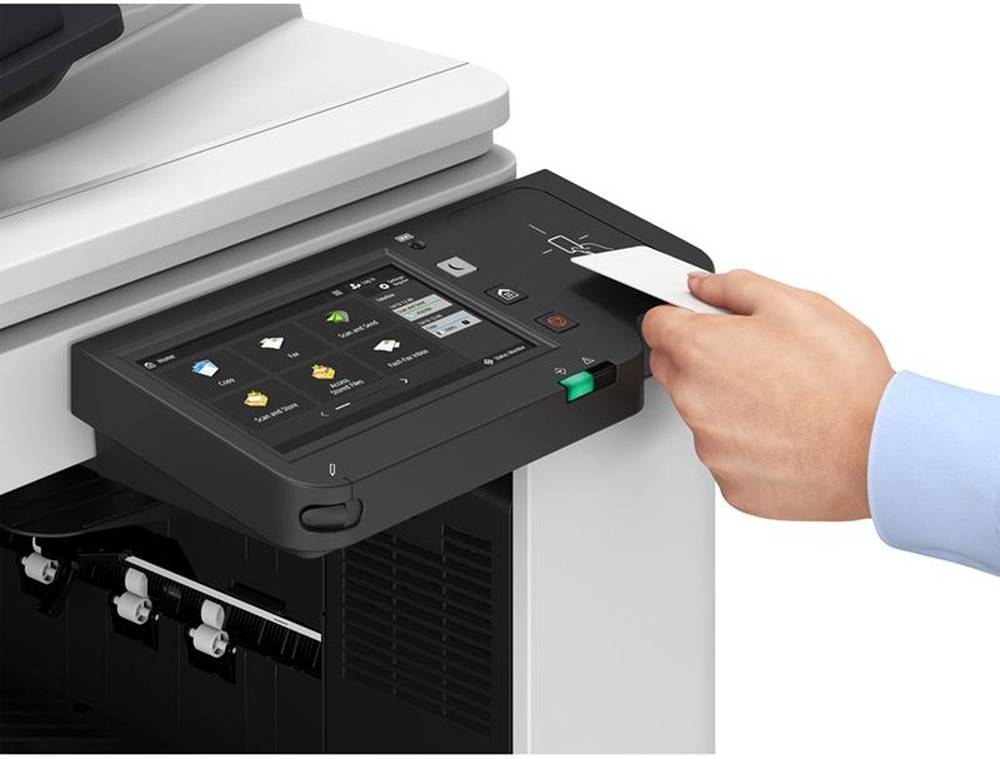

Standard: 7 inch TFT LCD WVGA Colour Touch panel
Memory
Standard: 2.0GB RAM
Storage
Standard: 64GB eMMC
Optional: 256GB SSD
Interface Connection
NETWORK Standard:
1000Base-T/100Base-TX/10-Base-T, Wireless LAN (IEEE 802.11 b/g/n), Wi-Fi Direct Connection
OTHERS Standard:
USB 2.0 (Host) x2, USB 2.0 (Device) x1
Paper Input (Standard)
Paper Input (Standard)
Paper Supply Capacity (A4, 80 gsm)
Standard: 1,200 sheets
Maximum: 2,300 sheets (with Cassette Feeding Unit-AW1)
Paper Output Capacity (A4, 80 gsm)
Standard: 250 sheets
Maximum: 645 sheets (with Inner Finisher-L1 and Copy Tray-T2)
Finishing Capabilities
Collate, Group, Offset, Staple, Hole Punch, Eco Staple, Staple On Demand
Supported Media Types
Main Body Cassette (Upper/Lower):
Thin, Plain, Recycled, Color, Heavy, Bond, Pre-Punched, Letterhead, PostCard
Multi-purpose Tray:
Thin, Plain, Recycled, Color, Heavy, Bond, Pre-Punched, Letterhead, PostCard, Labels, Coated, Tracing
Supported Media Sizes
Upper Cassette:
Standard size: A4, A5, A5R, A6R, B5
Custom Size: 105.0 x 148.0 mm to 297.0 x 215.9 mm
Lower Cassette:
Standard size: A3, A4, A4R, A5, A5R, A6R, B4, B5, B5R, COM 10 No. 10*, Monarch*, DL*
Custom Size: 105 x 148 mm to 304.8 x 457.2 mm
*Requires Envelope Attachment A (std)
Supported Media Weights
Main Body Cassette (Upper/Lower): 52 to 256 gsm
Multi-purpose tray: 52 to 300 gsm
Duplex: 52 to 220 gsm
Warm-up Time
4 Seconds or Less
From Sleep Mode: 10 seconds or less
From Power On: 10 Seconds or Less
Dimensions (W x D x H)
565 x 693 x 852 mm
Installation Space (W x D)
1,286 x 1,122 mm (with DADF-AZ2 + Inner Finisher tray max extended + Copy Tray-T2 max extended + paper cassette opened）
Weight
Approx. 65 kg
Print Specifications
Print Speed
Up to 30 ppm (A4, A5, A5R, A6R), Up to 15 ppm (A3), Up to 20 ppm (A4R)
Print Resolution (dpi)
Up to 1200 x 1200
Page Description Languages
Standard: UFRII, PCL6,
Optional: Adobe® PostScript®3TM
Double-Sided Printing
Yes
Direct Print
PDF, EPS, TIFF/JPEG, XPS
Mobile / Cloud Printing
AirPrint, Mopria, Canon PRINT Business, uniFLOW Online and Universal Print by Microsoft
Fonts
PS fonts: 136 Roman
PCL fonts: 93 Roman, 10 Bitmap fonts, 2 OCR fonts, Andalé Mono WT J/K/S/T (Japanese, Korean, Simplified and Traditional Chinese) , Barcode fonts
Print Features
Secure Print, Secure Watermark, Header/Footer, Page Layout, Duplex Printing, Mixed Paper Sizes/ Orientations, Toner Reduction, Poster Printing, Forced hold printing, Print Date, Scheduled Printing, Printing Using a Virtual Printer
Operating Systems
UFRII: Windows® 10/11/Server2012/Server2012 R2/Server2016/Server2019/Server2022, Mac OS X (10.13 or later)
PCL: Windows® 10/11/Server2012/Server2012 R2/Server2016/Server2019/Server2022
PS: Windows® 10/11/Server2012/Server2012 R2/Server2016/Server2019/Server2022, Mac OS X (10.13 or later)
PPD: Windows® 10/11, Mac OS X (10.13 or later)
Copy Specifications
Copy Speed
Up to 30 ppm (A4, A5, A5R, A6R), Up to 15 ppm (A3), Up to 20 ppm (A4R)
First-Copy-Out Time
7 seconds
Copy Resolution (dpi)
600 x 600
Multiple Copies
up to 999 copies
Copy Density
Automatic or Manual (9 Levels)
Magnification
25% – 400% (1% Increments)
Preset Reductions
25%, 50%, 70%, 100% (1:1), 141%, 200%, 400%
Preset Enlargements
25%, 50%, 70%, 100% (1:1), 141%, 200%, 400%
Basic Copy Features
Preset R/E Ratios by Area, Two-Sided, Density Adjustment, Original Type Selection, Interrupt Mode, Book to Two Pages, Two-sided Original, Sort, Job Build, N on 1, Different Size Originals, Sharpness, Erase Frame, Copy ID Card, Skip Blank Pages, Free Size Original, Color Mode, Reserved copy, Copy Sample
Scan Specifications
Type
Color Scanner
Pull Scan Specifications
Colour Network ScanGear2. For both TWAIN and WIA Supported OS:
Windows® 10/11/Server2012/Server2012 R2/Server 2016/Server 2019/Server202
Scan Resolution (dpi)
Scan for Copy: 600 x 600
Scan for Send: (Push) 600 x 600 (SMB/FTP/WebDAV/IFAX), (Pull) 600 x 600
Scan for Fax: 600 x 600
Document Feeder Paper Capacity (80 gsm)
up to 100 sheets
Acceptable Originals/Weights
Platen: Sheet, Book, 3-Dimensional Objects
Document Feeder sheet media weight:
1-sided scanning: 38 to 128 gsm (BW/CL)
2-sided scanning: 52 to 128 gsm (BW/CL)
Supported Media Sizes
Platen: max. scanning size: 297.0 x 431.8 mm
DADF: A3, A4, A4R, A5, A5R, B4, B5, B5R,
Custom size: 148.0 x 128.0 mm to 297.0 x 431.8 mm
Scan Method
Push Scan, Pull Scan, Scan to Network, Scan to USB Memory Key, Scan to Mobile device, Scan to cloud-based services (uniFLOW Online/Online Express)
Scan Speed
1-sided Scanning: 35/25 (300 x 300 dpi, send), 25/- (600 x 600 dpi, copy) 2-sided Scanning: 12/8 (300 x 300 dpi, send), 8/- (600 x 600 dpi, copy)
Double-Sided Scanning
Yes
Send Specifications
Optional / Standard
Standard
Destination
Standard: E-mail/Internet FAX (SMTP), SMB3.0, FTP, WebDAV,
Optional: Super G3 FAX
Address Book / Speed Dials
LDAP (2,000)/ Local (1,600) /Speed dial (200)
Send Resolution (dpi)
Push: up to 600 x 600
Pull: up to 600 x 600
Communication Protocol
FTP (TCP/IP), SMB3.0 (TCP/IP), WebDAV
Email/iFax: SMTP(send), POP3(receive)
File Format
Standard: TIFF (MMR), JPEG {foot}, PDF (Compact, Searchable, PDF/A-1b, Encrypted), XPS (Compact, Searchable), PDF/XPS (Device Signature, Office Open XML (PowerPoint, Word)
Optional: PDF (Trace & Smooth), PDF/XPS (User Signature)
Universal Send Features
Original Type Selection, Two-sided Original, Book to Two Pages, Different-size Originals, Density Adjustment, Sharpness, Erase Frame, Job Build, Delayed Send, Preview, Job Done Notice, File Name, Subject/Message, Reply-to, E-mail Priority, TX Report, Original Content Orientation
Fax Specifications
Optional / Standard
Optional
Maximum Number of Connection Lines
1
Modem Speed
Super G3: 33.6 kbps
G3： 14.4 kbps
Compression Method
MH, MR, MMR, JBIG
Resolution (dpi)
200x100dpi (Standard), 200x200dpi (Fine), 200×400 dpi (Super Fine), 400×400 dpi (Ultra Fine)
Sending/Receiving Size
Sending: A3, A4, A4R, A5*1, A5R*1, B4, B5*2, B5R*1
Receiving: A3, A4, A4R, A5R, B4, B5, B5R
*1 Sent as A4.
*2 Sent as B4 short.
FAX Memory
Up to 30,000 pages (2,000 jobs)
Speed Dials
Max. 200
Group Dials/Destinations
Max. 199 dials
Sequential Broadcast
Max. 256 addresses
Memory Backup
Yes
Fax Features
Sender’s Name (TTI), Selecting the Telephone Line (when sending fax), Direct Send, Delayed Send, Preview, Finished Stamp, Job Done Notice, TX Report, Interrupt Transmission,
Sequential Broadcasting, Password/Sub-address Sending, Confidential Mailbox
Output Options
Copy Tray
Check for impacted products.
Inner 2way Tray-M1:
Tray Capacity (with 80 gsm paper):
Upper tray: SRA3, A3, A4, A4R, A5, A5R, A6R, B4, B5, B5R: 100 sheets
Lower tray (standard tray): A4, A5, A5R, A6R, B5, B5R: up to 250 sheets
SRA3, A3, A4R, B4: up to 100 sheets
Paper Weight: 52 to 300 gsm
Dimensions (W x D x H): 428 x 405 x 88 mm
Weight: Approx. 0.7 kg
Copy Tray-T2:
Capacity (80gsm paper):
A4, A5R, B5, B5R: 100 sheets
A3, A4R, B4: 65 sheets
Dimensions (W x D x H): 444 × 373 × 176 mm (attached to the main unit, when the extension tray is extended)
Weight: 0.5 kg
Inner Finisher
Inner Finisher-L1:
Upper Tray: SRA3, A3, A4, A4R, A5, A5R, A6R, B4, B5, B5R: approx. 45 sheets
Lower Tray: A4, A5, A5R, B5: approx. 500 sheets
SRA3, A3, A4R, B4, B5R: 250 sheets
A6R: 30 sheets
Envelope: 10 sheets
Paper Weight: 52 to 300 gsm
Staple Position: Corner, Double
Staple Capacity: A4, B5: 50 sheets (52 to 90 gsm)
A4R: 40 sheets (52 to 90 gsm)
A3, B4: 30 sheets (52 to 90 gsm
) Eco Staple: A3, A4, B4, B5: 10 sheets (52 to 64 gsm)/8 sheets (65 to 81.4 gsm)/6 sheets (82 to 105 gsm)
Staple On Demand: approx. 40 sheets (80 gsm)
Dimensions (W x D x H): 727 × 525 × 225 mm (attached to the main unit, when the extension tray is extended)
Weight: Approx. 9.1 kg
Hole Puncher
1 product to be migrated.
Inner 2/4 Hole Puncher
Inner 2/4 Hole Puncher-D1:
(Requires Inner Finisher-L1)
Two or Four Holes
Acceptable Punch Paper Weight: 52 to 300 gsm
Acceptable Punch Paper Size:
Two holes: A3, A4, A4R, A5, B4, B5, B5R,
Four holes: A3, A4
Inner 4 Hole Puncher-D1:
(Requires Inner Finisher-L1)
Acceptable Punch Paper Weight: 52 to 300 gsm
Acceptable Punch Paper Size:
A3, A4, A4R, A5, B4, B5, B5R
