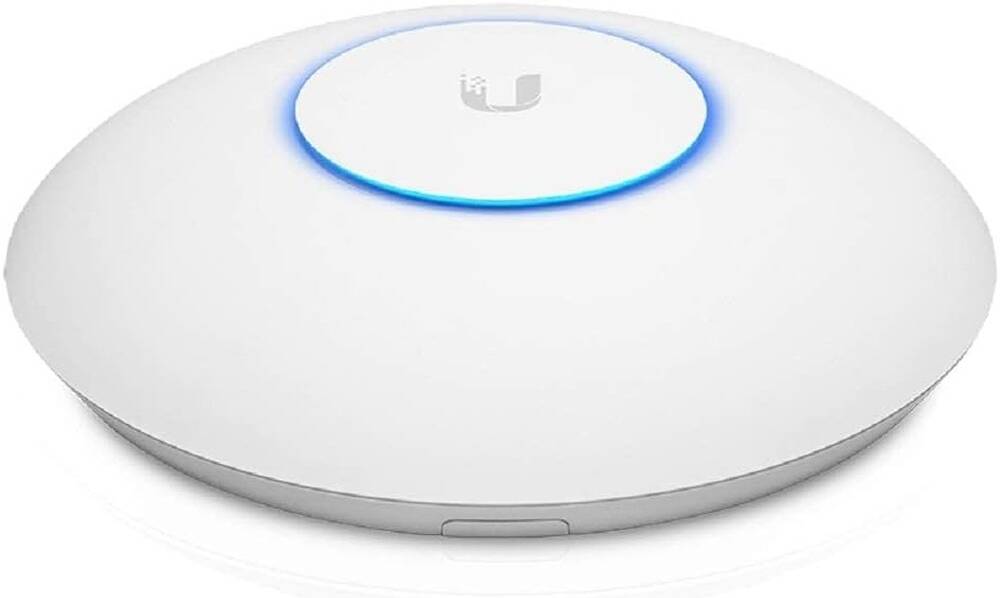

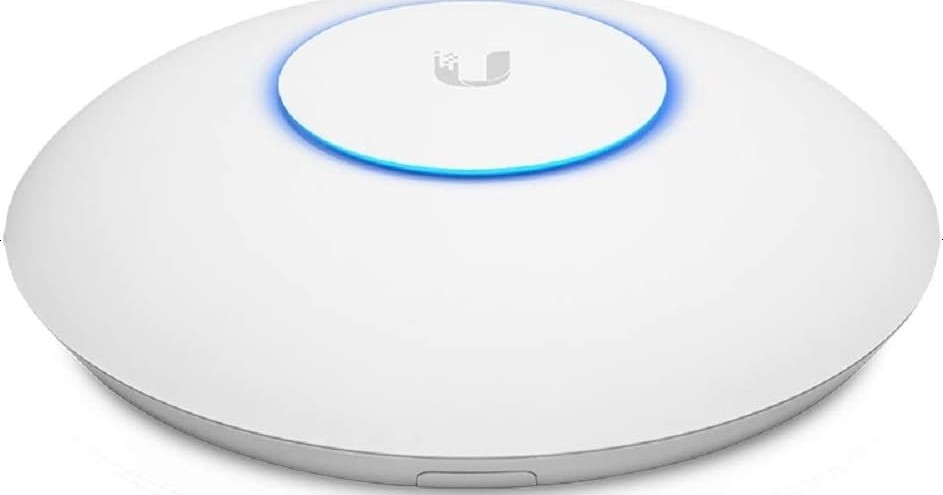

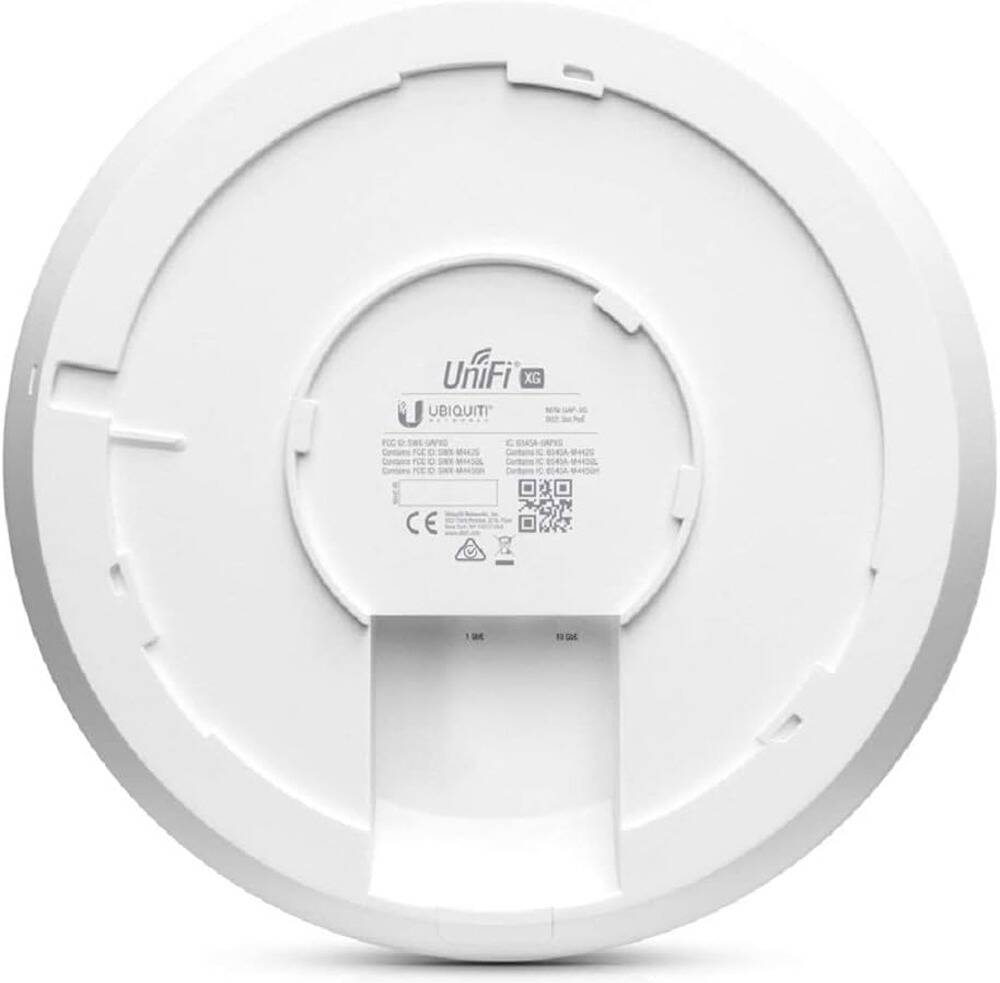

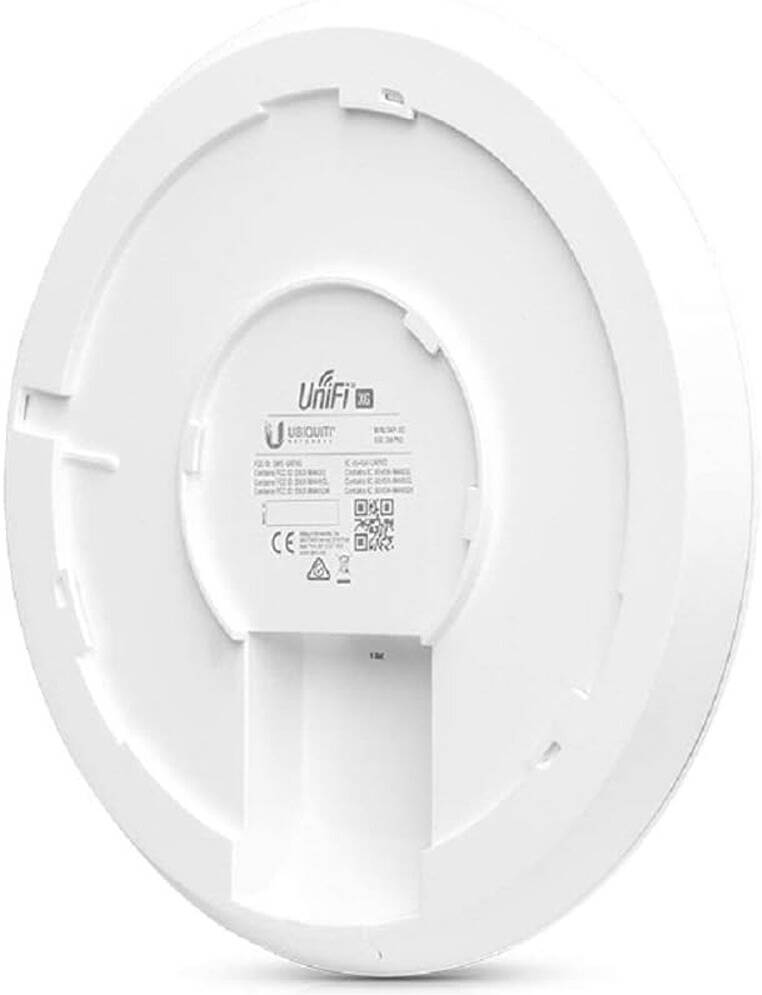

Access Point XG

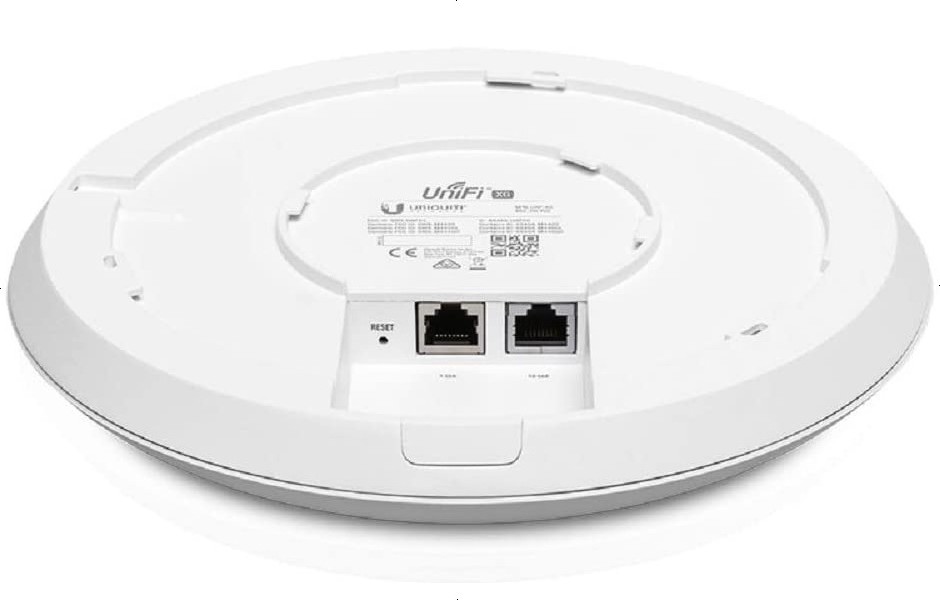

With four built-in radios, three of which are dedicated to client connections and one to security, the UAP-XG-US Wave 2 Quad-Radio 802.11ac Access Point with Dedicated Security Radio from Ubiquiti Networks offers enhanced wireless connectivity. Setup is simple as this 802.3bt PoE compliant access point comes equipped with a single 1 GbE port and a single 10 GbE port. Furthermore, this access point can be installed in a variety of locations such as the ceiling, the wall, a junction box, and more all without the need to run a dedicated power supply to the unit.
Key Features
802.11ac Wave 2 Wi-Fi Standards
1 x 10/100/1000 Ethernet Ports
1 x 1/10 Gb/s ICM Ethernet Port
4×4 Spatial Streams
UniFi Controller Software
Integrated Dual Polarity Antennas
Guest Portal/Hotspot Support
802.3bt PoE Compliant
Up to 1500 Concurrent Clients
Dedicated Reset Button
Specifications
Mechanical
Dimensions
Ø228 x 50 mm (Ø9 x 2″)
Weight
Without mount: 1.2 kg (2.7 lb) With mount: 1.4 kg (3 lb)
Hardware
Networking interface
(1) GbE RJ45 port
(1) 1/10 GbE ICM Ethernet port
Power method
PoE++
Power supply
Gigabit PoE++ adapter 50V DC, 1.2A
Max. power consumption
31W
Supported voltage range
44—57V DC
Max. TX power
2.4 GHz
5 GHz
25 dBm
25 dBm
MIMO
2.4 GHz
5 GHz
4 x 4
4 x 4
Throughput rate
2.4 GHz
5 GHz
800 Mbps
1733 Mbps
Antenna gain
2.4 GHz
5 GHz
6 dBi
8 dBi
LEDs
R/G/B
Button
Factory reset
Mounting
Wall/ceiling/junction box (Included)
Operating temperature
-10 to 60° C (14 to 140° F)
Operating humidity
5 to 95% noncondensing
Certifications
CE, FCC, IC
Software
WiFi standards
802.11 a/b/g/n/r/k/v/ac/ac-wave2
Wireless security
WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES), 802.11 w/PMF
BSSID
Up to 8 per radio
VLAN
802.1Q
Advanced QoS
Per-user rate limiting
Guest traffic isolation
Supported
Power save
Supported
Beamforming
Supported
WMM
Voice, video, best effort, and background
Concurrent clients
1500+
Supported Data Rates (Mbps)
Supported Data Rates (Mbps)
802.11a
6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b
1, 2, 5.5, 11 Mbps
802.11g
6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n
6.5 Mbps to 450 Mbps (MCS0 – MCS23, HT 20/40)
802.11ac
6.5 Mbps to 1.7 Gbps (MCS0 – MCS9 NSS1/2/3/4, VHT 20/40/80)
58 Mbps to 1.7 Gbps (MCS0 – MCS9 NSS1/2, VHT 160)
