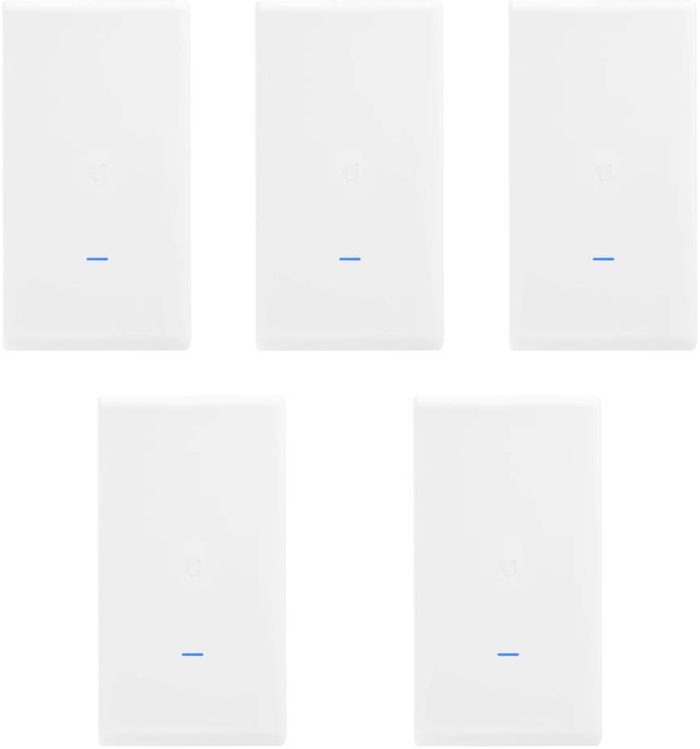

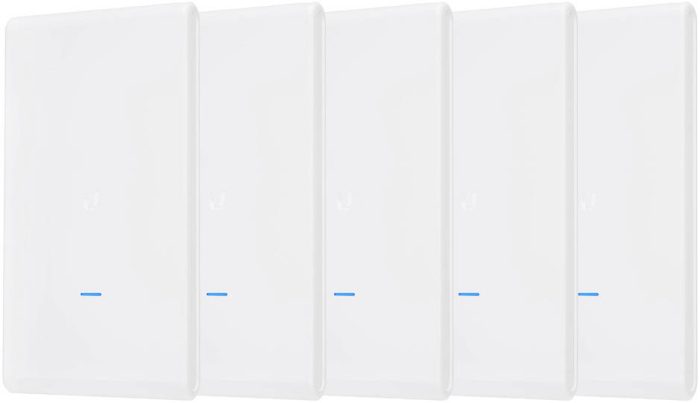

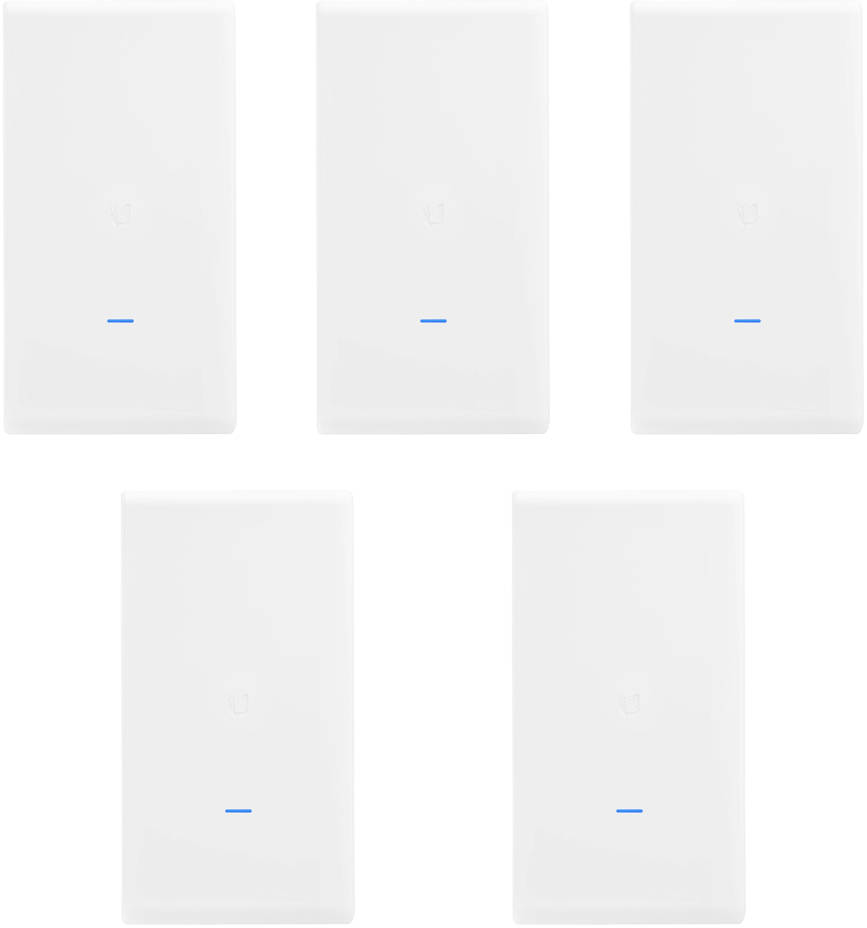

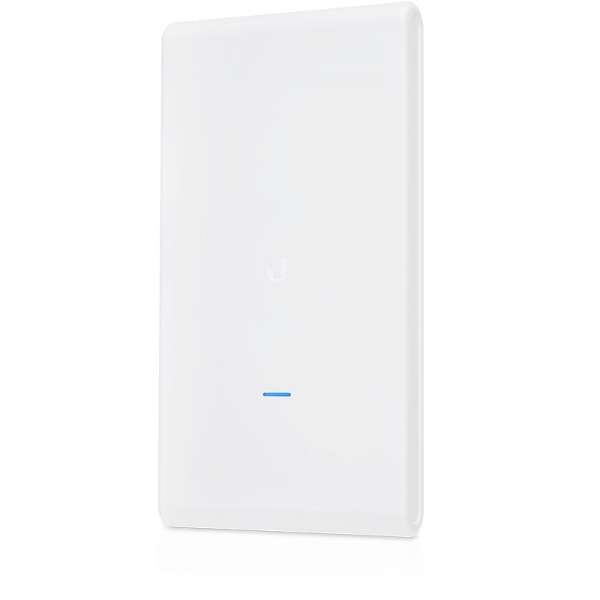

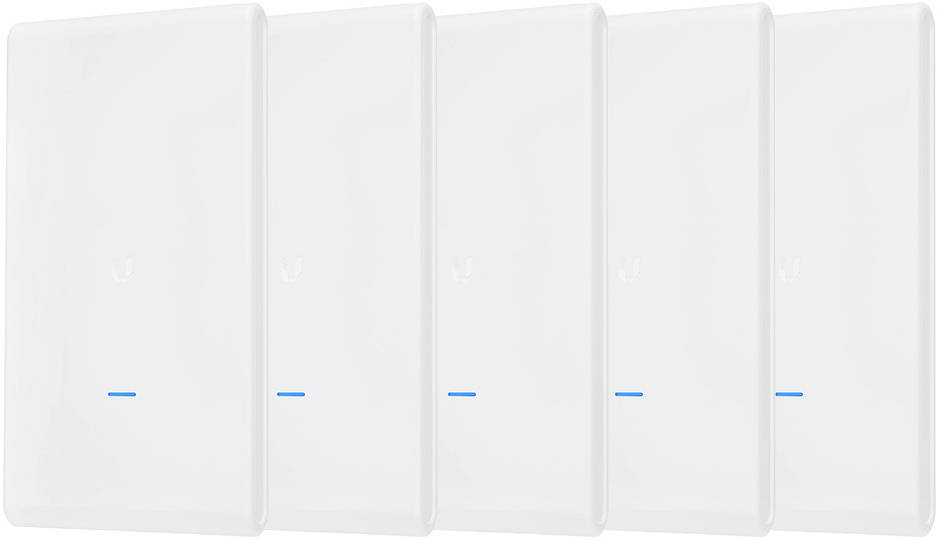

Ubiquiti UniFi UAP-AC-M-PRO AC Mesh Pro AP Dual-Band Access Point, Up to 182m Range, 2 x 10/100/1000 Ethernet Ports, Integrated Omni Antennas, Reset Button, 5-Pcs | UAP-AC-Mesh-PRO-5

AC Mesh Professional
Same mesh compatibility, for more devices and range.
With the outdoor UAP-AC-M-PRO5 UniFi AC Mesh Wide-Area Dual-Band Access Point from Ubiquiti Networks users benefit from a wide coverage area reaching up to 600′ along with enhanced data transfer rates of up to 1300 Mbps on the 5 GHz frequency. These enhanced data rates and coverage capabilities are supported by a 3×3 MIMO internal antenna configuration supporting multiple data paths for a more efficient end-user network connection. Installation of the UAP-AC-M-PRO5US is simple as it comes 802.3af PoE compliant and includes a pole mounting kit. Once installed users can take advantage of 802.11ac Wi-Fi access with speeds of up to 1300 Mb/s in the 5 GHz radio band, and up to 450 Mb/s in the 2.4 GHz radio band.
Key Features
802.11 a/b/g/n/ac Wi-Fi Standards
Range of up to 600′

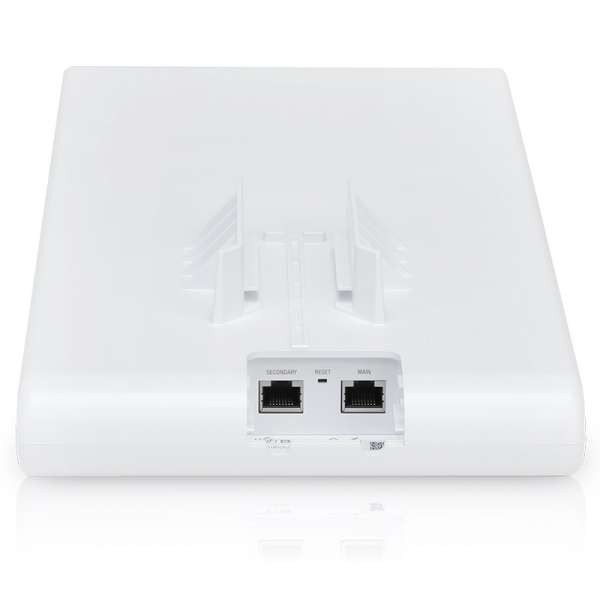

2 x 10/100/1000 Ethernet Ports
UniFi Controller Software
Integrated Omni Antennas
Guest Portal/Hotspot Support
Passive Power over Ethernet
100+ Concurrent Clients
Reset Button
CE, FCC, IC Certified
Deployment
Build Features
Specifications
Mechanical
Dimensions
343.2 x 181.2 x 60.2 mm (13.5 x 7.1 x 2.4″)
Weight
633 g (1.4 lb)
Hardware
Networking interface
(2) GbE ports
Management interface
Ethernet
Power method
PoE
Power supply
Gigabit PoE adapter 48V DC, 0.5A* (*5-packs do not come with PoE adapters)
Max. power consumption
9W
Max. TX power
2.4 GHz: 22 dBm
5 GHz: 22 dBm
MIMO
2.4 GHz: 3 x 3
5 GHz: 3 x 3
Throughput rate
2.4 GHz: 450 Mbps
5 GHz: 1300 Mbps
Antenna gain
8 dBi
Button
Factory reset
Mounting
Wall/pole (Pole kit included)
Operating temperature
-40 to 70°C (-40 to 158°F)
Operating humidity
5 to 95% non-condensing
Certifications
CE, FCC, IC
Software
WiFi standards
802.11a/b/g/n/ac
Wireless security
WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES)
VLAN
802.1Q
BSSID
Up to 4 per radio
Advanced QoS
Per-user rate limiting
Guest traffic isolation
Supported
Power save
Supported
WMM
Voice, video, best effort, and background
Concurrent clients
250+
Supported Data Rates (Mbps)
802.11a
6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b
1, 2, 5.5, 11 Mbps
802.11g
6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n
6.5 Mbps to 450 Mbps (MCS0 – MCS23, HT 20/40)
802.11ac
6.5 Mbps to 1300 Mbps (MCS0 – MCS9 NSS1/2/3, VHT 20/40/80)
