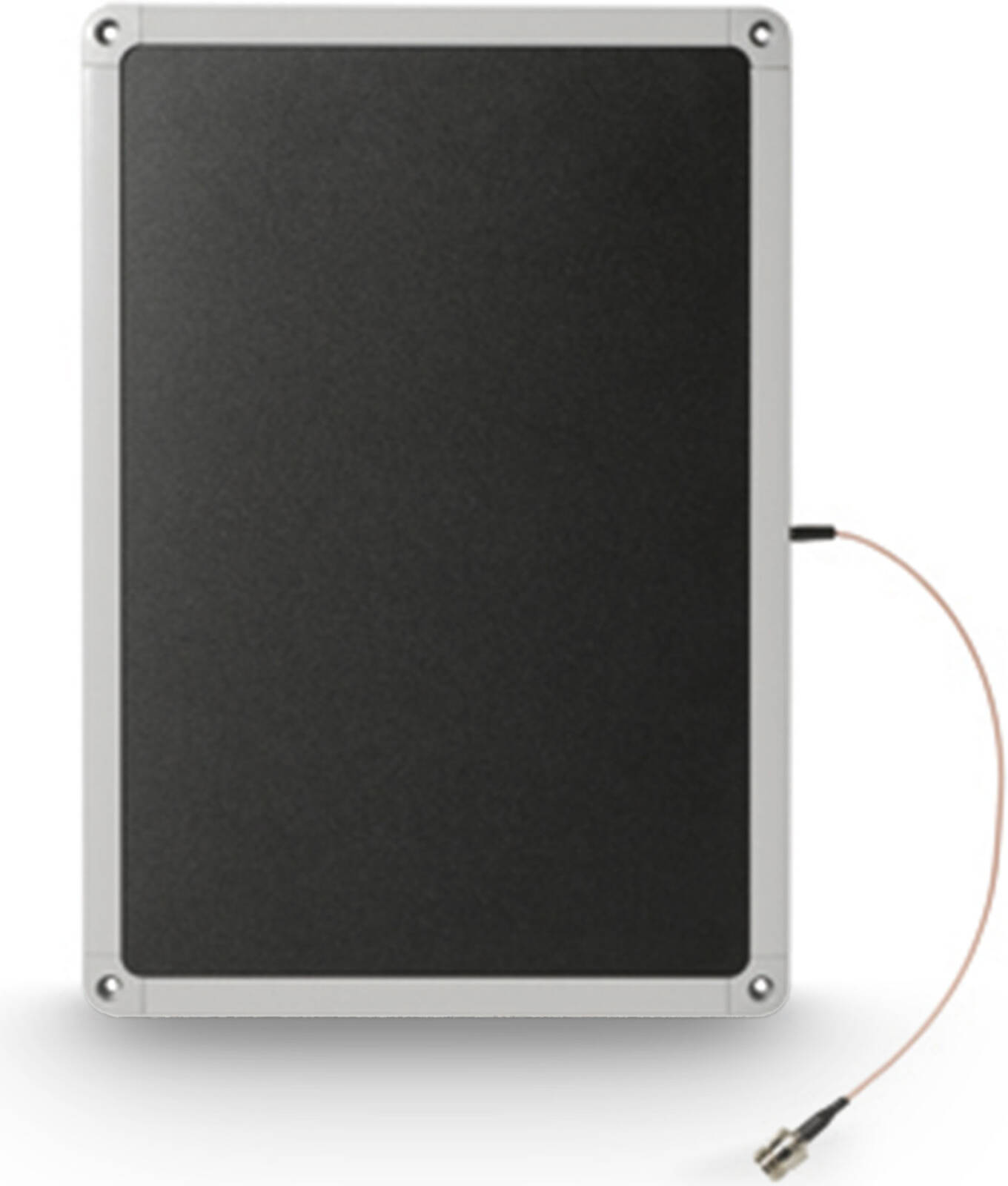

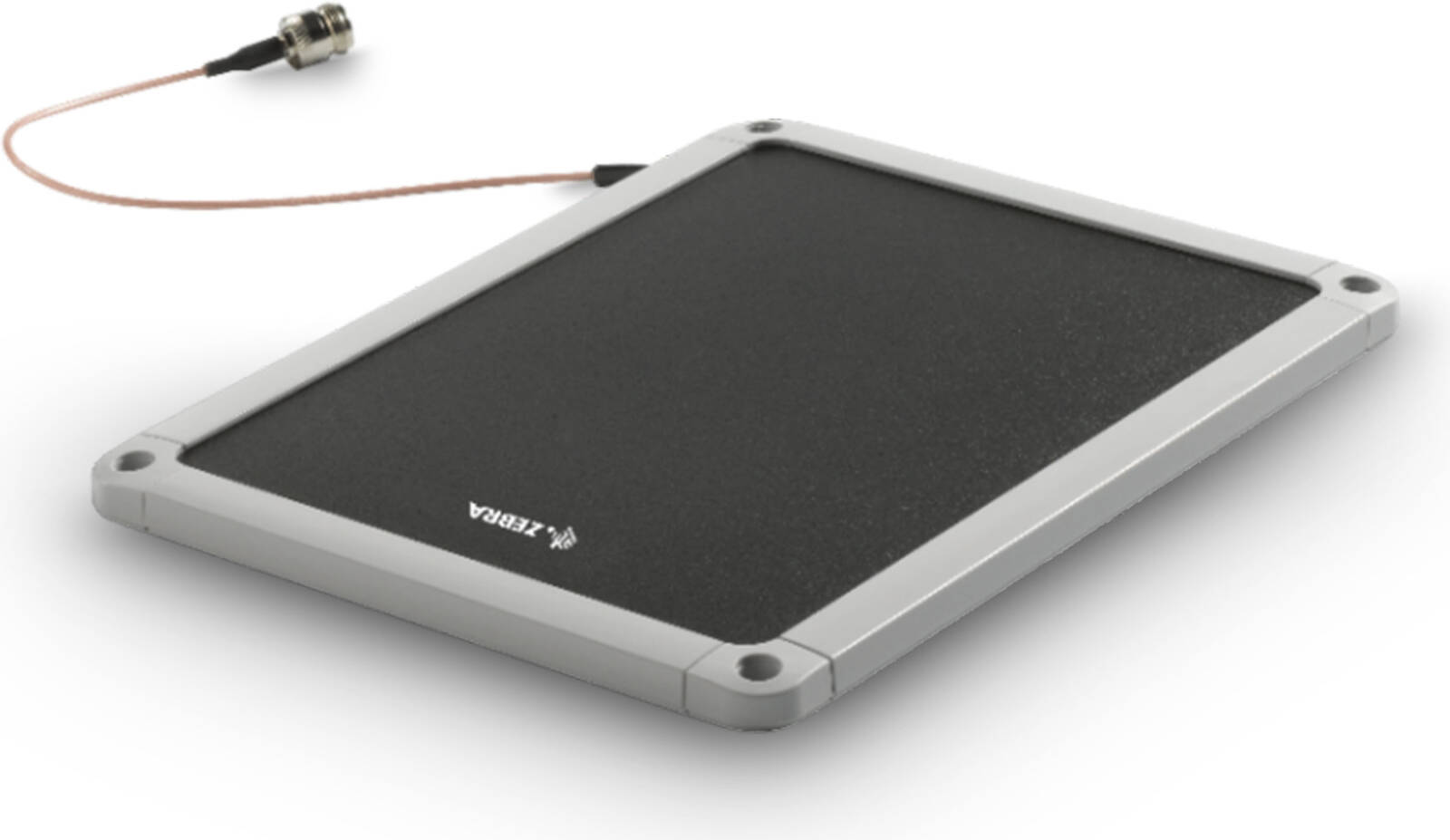

AN620
Space-Saving and Stylish
The AN620 is a larger slim line, ultra-low profile antenna that is suitable for use in indoor environments.
Specifications
Polarization
Left-hand circular
Dimensions
391 mm x 275 mm x 12 mm / 15.39 in. x 10.82 in. x 0.47 in.
Connector
N-Type Female
Connector Location
Pigtail-Side
Mounting Options
Flush mount
Weight
1.0 kg / 2.2 lbs
Casing/Materials
Aluminum with Kydex Casing
Frequency Ranges
EU: 865-868 MHz
US: 902-928 MHz
VSWR (Return Loss)
1.4:1
Gain
7.0 dBic
Front to Back Ratio
22 dB
3 dB Beam Width
75° in horizontal plane
48° in vertical plane
Maximum Power
6 Watts
Axial Ratio
Less than 2 dB
Operating Temperature
-20° to +55°C / -4° to +131°F
Storage Temperature
-30° to +65°C / -22° to +149°F
IP Sealing
IP54
Vibration
IEC-68-2-6 (10 to 150 Hz, 0.5 g, one hour in each of two axes) (Random Vibration)
Humidity
IEC-68-2-30 (-25°C to 40°C / -13°F to 104°F), 24-hour cycles of 90% relative humidity
Zebra AN620 RFID Antenna, Left-Hand Circular Polarization, N-Type Female Connector, IP54 Rated Protection, Aluminum with Kydex Casing Protection, Black | AN620-SCL71130EU
$350.00
Larger slim with integrated mounting holes for a space-saving, simple solution
Receiving
Point of Sale Checkout
Ceilings and Walls to Create Superior Read Zones around Shelves
Doorways and Chokepoints
| Brand |
Zebra |
|---|---|
| Model |
AN620 |
| Date first available |
08 August; 2024 |
| Shipping Weight |
1.00 Kg |
| Shipping Dimensions |
27.50 cm x 39.10 cm x 1.20 cm |
