Cisco ASA5525-K9 Cisco ASA 5500 Series 1-RU Firewall Edition, 8x Copper GE Ports, 1x Copper GE Management Port, 1x Expansion Slot, 750 IPsec VPN Throughput, Open Box | ASA5525-K9

ASA5525-K9
Cisco ASA 5525-K9 delivers superior performance with up to 2 Gbps stateful inspection throughput, 750 IPsec VPN peers, 500,000 concurrent connections and 1 expansion slot makes it ideally suited for the small, mid-size enterprises, branch offices or internet edge deployments while delivering enterprise-strength security.
Key Features

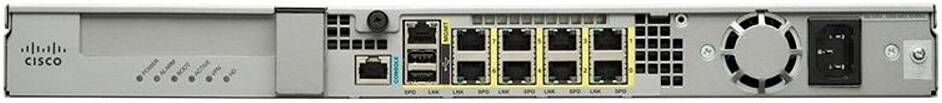

Interfaces
8 copper GE ports,
1 copper GE management port,
1 expansion slot
Stateful inspection throughput (maximum)
2 Gbps
3DES/AES VPN throughput
300 Mbps
IPsec VPN peers
750
Virtual interfaces (VLANs)
200
Memory
8 GB
Flash
8 GB
Height (rack units)
1 RU
Dimensions (D x H x W)
4.45 x 20.04 x 36.2 cm
Package Weight
13.1 Kg
Specifications
Feature
ASA5525-K9
Stateful Inspection Throughput (Maximum)
2 Gbps
Stateful Inspection Throughput (Multiprotocol)
1 Gbps
IPS Throughput
600 Mpbs
Next-Generation Throughput(Multiprotocol)
650 Mbps
3DES/AES VPN Throughput
300 Mbps
Users/Nodes
Unlimited
IPsec VPN Peers
750
Cisco Cloud Web Security Users
4,000
Premium AnyConnect VPN Peers(Included/Maximum)
2/750
Concurrent Connections
500,000
New Connections/Second
20,000
Virtual Interfaces (VLANs)
200
Security Contexts (Included/Maximum)6
2; 20
High Availability
Active/Active and Active/Standby
Expansion Slot
1 interface card
User-Accessible Flash Slot
0
USB 2.0 Ports
2
Integrated I/O
8 GE Copper
Expansion I/O
6 GE Copper or 6 GE SFP
Serial Ports
1 RJ-45 console
Solid State Drive
1 slot, 120 GB MLC SED
Memory
8 GB
Minimum System Flash
8 GB
System Bus
Multibus architecture
Temperature
23 to 104°F (-5 to 40°C)
Relative Humidity
90 percent noncondensing
Altitude
Designed and tested for 0 to 10,000 ft (3050m)
Shock
50G, 2 m/sec
Vibration
0.41 Grms2 (3 to 500 Hz) random input
Acoustic Noise
64.2 dBa max
Temperature
-13 to 158ºF (-25 to 70ºC)
Relative Humidity
10 to 90 percent noncondensing
Altitude
Designed and tested for 0 to 15,000 ft (4570m)
Shock
70G, 4.22 m/sec
Vibration
1.12 Grms2 (3 to 500 Hz) random input
AC Range Line Voltage
100 to 240 VAC
AC Normal Line Voltage
100 to 240 VAC
AC Current
4.85A
AC Frequency
50/60 Hz
Dual-Power Supplies
None
DC Domestic Line Voltage
-40.5 to 56 VDC (-48 VDC nominal)
DC International Line Voltage
-55 to -72 VDC (-60 VDC nominal)
DC Current
15A (maximum input)
Steady State
75W
Maximum Peak
108W
Maximum Heat Dissipation
369 BTU/hr
Form Factor
1 RU, 19-in. rack-mountable
Dimensions (H x W x D)
1.75 x 17.5 x 14.25 In (4.45 x 20.04 x 36.2 cm)
Weight (with AC Power Supply)
22.0 lb (10 kg)
Safety
IEC 60950-1: 2005, 2nd Edition EN 60950-1:2006+A11: 2009 UL 60950-1:2007, 2nd Edition; CSA C22.2 No. 60950-1-07, 2nd Edition
Electromagnetic Compatibility (EMC)
CE: EN55022 2006+A1: 2007 Class A; EN55024 1998+A1:2001+A2:2003; EN61000-3-2 2009; EN61000-3-3 2008;
FCC: CFR 47, Part 15 Subpart B Class A 2010, ANSI C63.4 2009; ICES-003 ISSUE 4 FEBRUARY.2004; VCCI: V-3/2011.04; C-TICK: AS/NZS CISPR 22,2009 KC: KN22 & KN24
