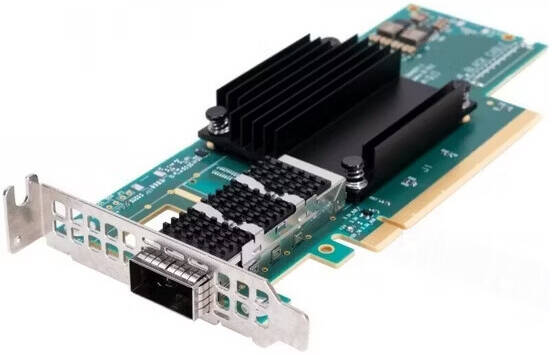

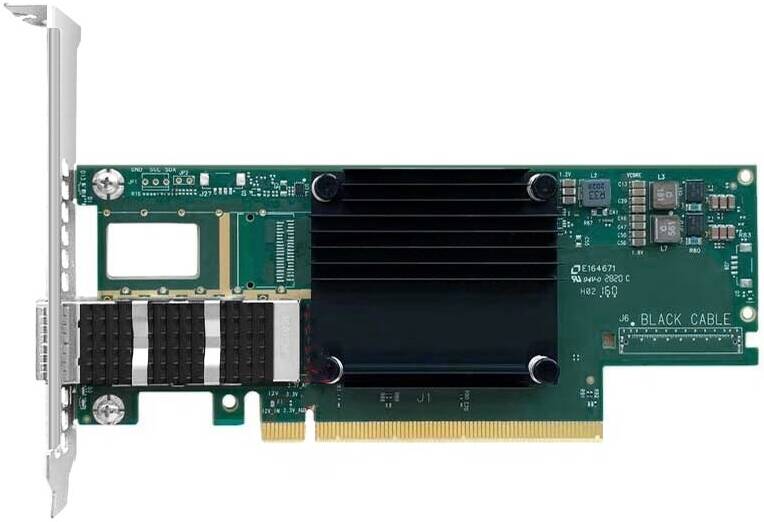

Mellanox MCX653105A-ECAT ConnectX-6 InfiniBand/Ethernet Adapter Card, 100Gb/s (HDR100, EDR IB and 100GbE), Single-Port QSFP56, PCIe3.0/4.0 x16, Tall Bracket | MCX653105A-ECAT

MCX653105A-ECAT
A high-performance network adapter card designed for demanding workloads in data centers and enterprise environments. It offers a combination of InfiniBand and Ethernet connectivity, providing flexibility and adaptability for various applications.
Specifications
Physical
Adapter Card Size
6.6 in. x 2.71 in. (167.65mm x 68.90mm)
Connector
Single QSFP56 InfiniBand and Ethernet (copper and optical)
Protocol Support
InfiniBand
IBTA v1.4a
Auto-Negotiation
1X/2X/4X SDR, DDR, QDR, FDR10, FDR, EDR, HDR100
Ethernet
100GBASE-CR4, 100GBASE-CR2, 100GBASE-KR4, 100GBASE-SR4, etc.
Data Rate
InfiniBand
SDR/DDR/QDR/FDR/EDR/HDR100
Ethernet
1/10/25/40/50/100 Gb/s
PCIe Gen3/4
SERDES @ 8.0GT/s/16GT/s, x16 lanes (2.0 and 1.1 compatible)
Power and Airflow
Voltage
3.3V AUX
Maximum Current
100mA
Power
Typical Power (Passive Cables)
15.6W
Maximum Power
Refer to ConnectX-6 VPI Power Specifications
Power via QSFP56 Port
5W
Airflow (LFM) / Temperature
Passive Cables (Heatsink to Port)
300 LFM / 55°C
Passive Cables (Port to Heatsink)
200 LFM / 35°C
NVIDIA Active 2.7W Cables (Heatsink to Port)
300 LFM / 55°C
NVIDIA Active 2.7W Cables (Port to Heatsink)
200 LFM / 35°C
Environmental
Temperature (Operational)
0°C to 55°C
Temperature (Non-operational)
-40°C to 70°C
Humidity (Operational)
10% to 85% relative humidity
Humidity (Non-operational)
10% to 90% relative humidity
Altitude (Operational)
3050m
Regulatory
Safety
CB / cTUVus / CE
EMC
CE / FCC / VCCI / ICES / RCM / KC
RoHS
RoHS Compliant
