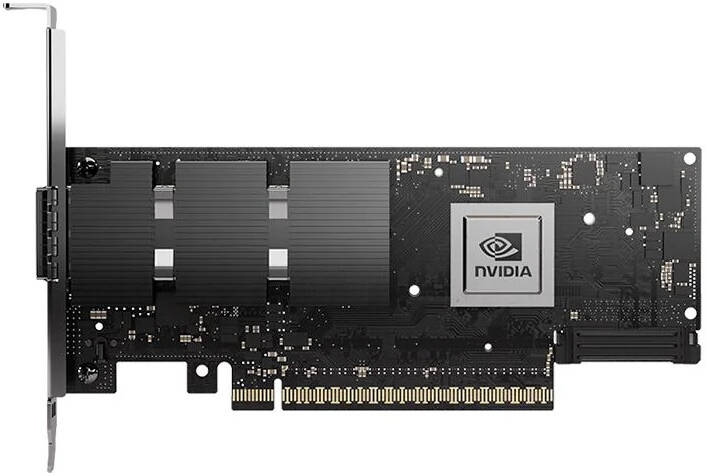

Mellanox MCX755106AS-HEAT ConnectX-7 InfiniBand/Ethernet Adapter Card, NDR200 200Gb/s, Dual-port QSFP112, PCIe x16 Gen 4.0/5.0, Tall Bracket | MCX755106AS-HEAT

MCX755106AS-HEAT
A high-performance network adapter card designed for demanding workloads in data centers and enterprise environments. It offers a combination of InfiniBand and Ethernet connectivity, providing flexibility and adaptability for various applications.
Specifications
Physical
Adapter Card Size
PCIe Half Height, Half Length 2.71 in. x 6.6 in. (68.90mm x 167.65 mm)
Auxiliary PCIe Connection
5.09 in. x 2.32 in. (129.30mm x 59.00mm)
Harnesses
Two Cabline CA-II Plus harnesses (white and black)
Interfaces
PCI Express Interface
Gen 5.0/4.0: SERDES @ 16/32GT/s, x16 lanes (4.0 and 3.0 compatible)
Optional PCIe Interface
Additional PCIe x16 Gen 4.0 @ SERDES 18GT/s via auxiliary card and harnesses
Networking Ports
Dual QSFP112 InfiniBand and Ethernet
Data Rate
InfiniBand
NDR200/HDR/HDR100/EDR/FDR/SDR
Ethernet
200/100/50/25/10 Gb/s
Protocol Support
InfiniBand
IBTA v1.5a
Auto-Negotiation
NDR200, HDR, HDR100, EDR, FDR, SDR
Ethernet Protocols
200GAUI-2, 200GAUI-4, 200GBASE-CR4, 100GAUI-2, 100GAUI-1, 100GBASE-CR4, etc.
Capabilities
MCX755106AS-HEAT
Secure Boot Enabled, Crypto Disabled
Electrical and Thermal
Voltage
12V, 3.3VAUX
Maximum Current
100mA
Typical Power (Passive Cables)
24.9W
Additional Specs
Refer to “NVIDIA ConnectX-7 Adapter Card Product Specifications” document
Environmental
Temperature (Operational)
0°C to 55°C
Temperature (Non-operational)
-40°C to 70°C
Humidity (Operational)
10% to 85% relative humidity
Humidity (Non-operational)
10% to 90% relative humidity
Altitude (Operational)
3050m
Regulatory
Safety
CB / cTUVus / CE
EMC
CE / FCC / VCCI / ICES / RCM / KC
RoHS
RoHS Compliant
