AOpen WB5500 OPS Module, 7th Gen Intel Core i7, 16GB RAM, 256GB Storage, Intel UHD Graphics, HDMI, USB2.0 *2, USB3.0 *4, LAN Port, Win10 | WB5500

AOpen WB5500 Open Pluggable Solution Specification computer
The WB5500 is an Open Pluggable Solution Specification computer. The device is built to be slid into the display and play the content. OPS modules allow you to add extra capabilities.
Specifications
Dimensions (W x H x D)
173 x 30 x 180 mm (6.81 x 1.18 x 7.09 inches)
Volume
0.93L
Weight
0.85 kgs
CPU
i7 – 7th Generation Intel® Core™
Chipset
–
AiCU
–
Memory
16GB (2x 8GB) Dual Channel
DDR4 SO-DIMM x 2
2133 MHz
Graphics
Integrated Intel® UHD Graphics
Expansion
Mini Card x 1
Audio
Realtek HD Audio ALX283-CGT
LAN
Intel® Giga LAN
10 / 100 / 1000 Mbps
Storage
256GB

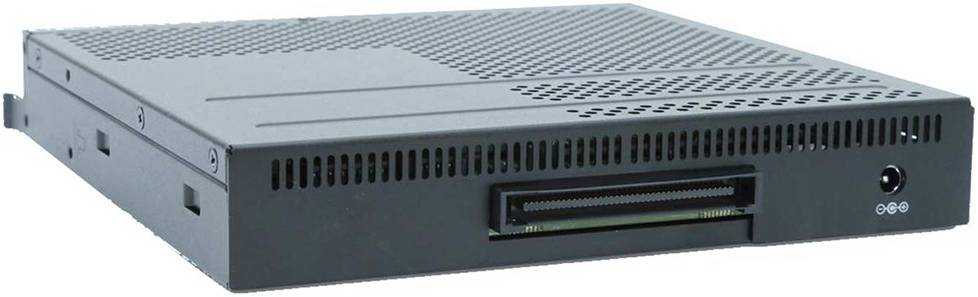

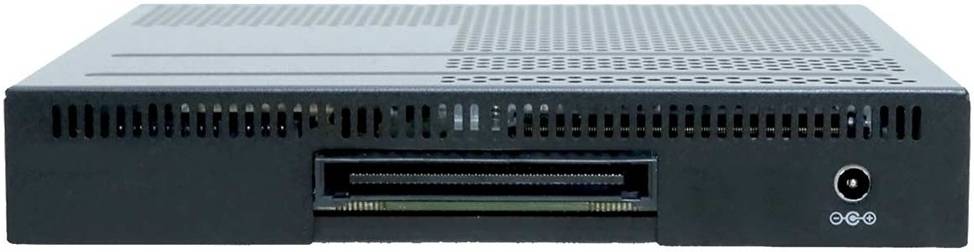

Front Panel I/O
80 pin JAE TX25A Connector x 1
DC Jack x 1 (19V)

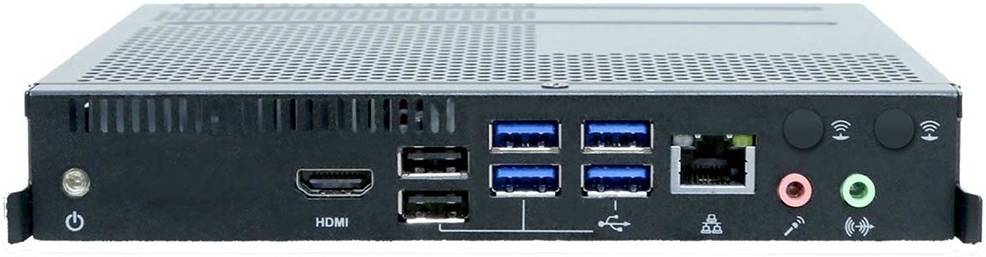

Rear Panel I/O
HDMI 1.4 x 1
USB 2.0 x 2
USB 3.0 x 4
RJ45 LAN x 1
Audio Line-out x 1
Audio Mix-in x 1
Antenna Holes x 2
CPU Thermal Module
AOPEN Thermal Module
WatchDog Timer
1 ~ 255 SEC./min
Adapter
65W / 19V Adapter
Input Voltage
Via TX25A DC 12 ~ 19V
Via DC Jack 19V
MTBF
50,000 hrs
Operating Temperature
0 ~ 50 °C (32 ~ 122 °F)
Storage Temperature
-20 ~ 60 °C (-4 ~ 140 °F)
Relative Humidity
90% RH (50º non-condensing)
