iiyama SPC5801BB Slot PC, Intel Core i5-8400 Processor, 8GB RAM, 128GB SSD, Intel HD Graphics 630, Windows 10 IoT Enterprise, Wi-Fi & Bluetooth Connectivity, Black | SPC5801BB

SPC5801BB

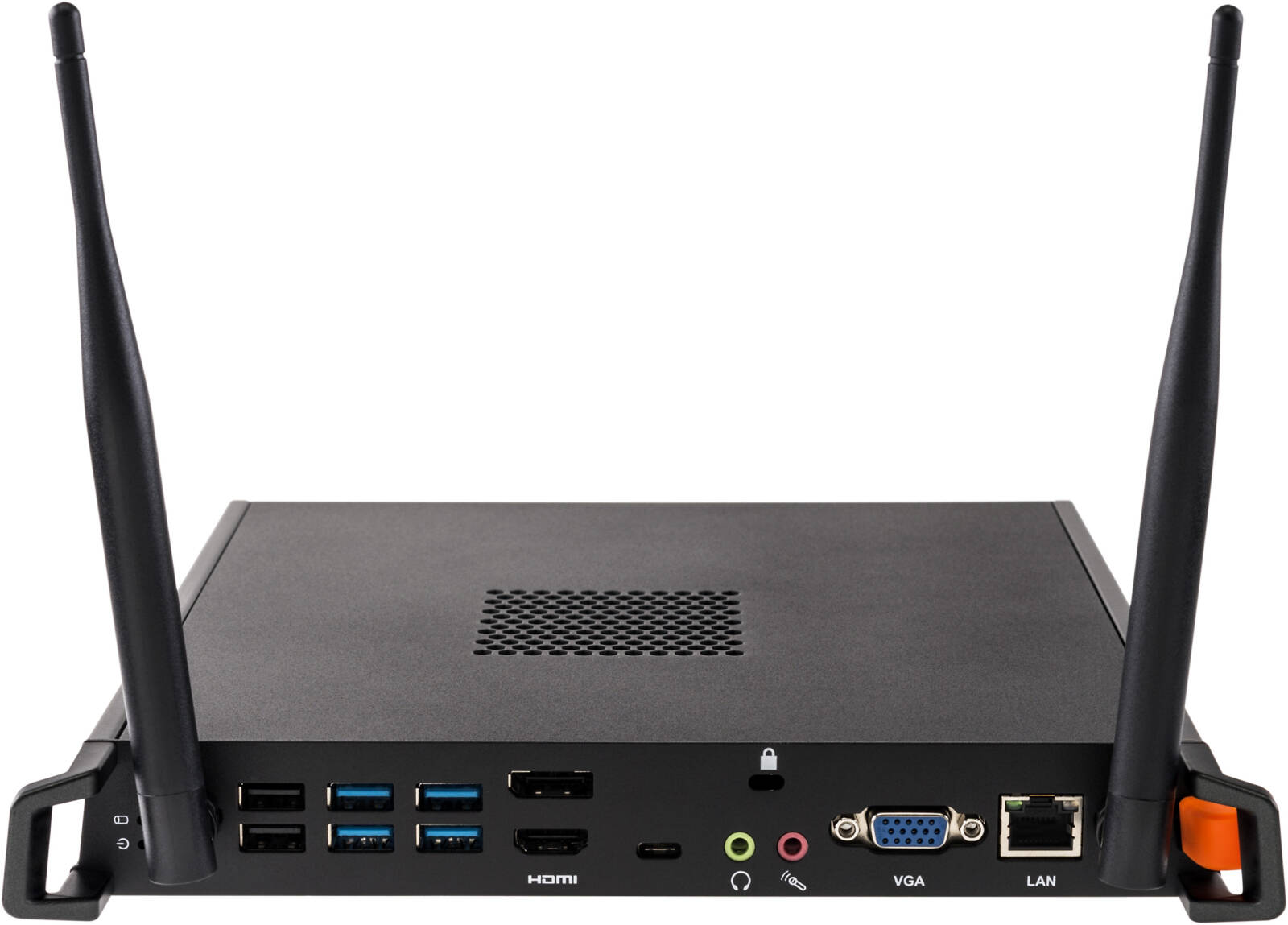

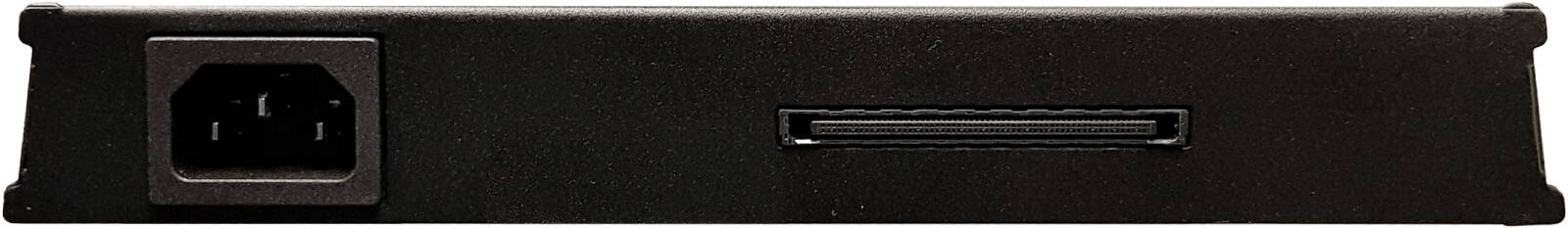

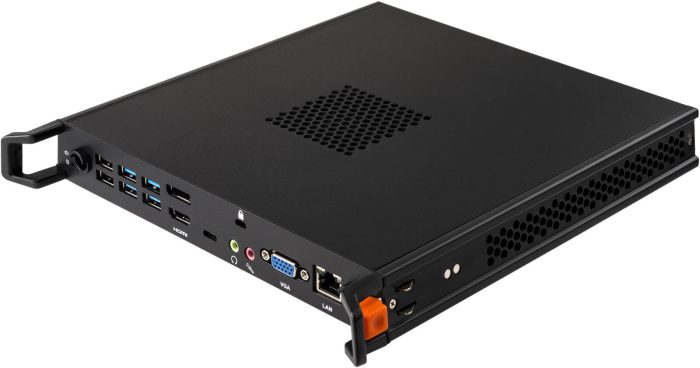

An Intel® i5 slot PC with Windows® 10 IoT Enterprise
This mini PC with Intel® Core™ i5 inside turns your iiyama interactive large format display into a stand-alone solution. It comes equipped with a powerful Intel® processor with integrated Ultra HD graphics and a fast SSD drive. No hassle with cables and having to mount a PC at the back of the monitor or on a floor lift. Simply slide in the iiyama slot PC and get started right away.The module is only compatible with iiyama TExx03MIS series: 55”: TE5503MIS-B1AG, 65”: TE6503MIS-B1AG, 75″: TE7503MIS-B1AG, 86”: TE8603MIS-B1AG, 98”: TE9803MIS-B1AG
Specifications
Device
Type
Slot PC
CPU
Intel® Core™ i5-8400
RAM
8GB DDR4
SSD
128GB M.2
Graphics
Intel® HD Graphics 630
Chipset
Intel® H310
Sound card
Integrated High Definition Audio Stereo
Network
10/100/1000M Adapter
WiFi
802.11ac (2.4GHz/5GHz)
Bluetooth
4.2
Operating system
Win 10 IoT Enterprise 64-bit
LAN (RJ45)
x1
USB
3.0 x4, 2.0 x2, 3.1 Type C x1
VGA Out
x1
DisplayPort Out
x1
HDMI Out
x1
Headphone connector
Yes
Microphone In
x1
POWER MANAGEMENT
Power supply unit
Internal
Power supply
AC 100 – 240V, 50/60Hz
Power usage
95W typical, 1.35W standby
DIMENSIONS / WEIGHT
Product dimensions W x H x D
263.4 x 32.2 x 246.1mm
Box dimensions W x H x D
312 x 91 x 353mm
Weight (without box)
1.9kg
EAN code
4948570032358
Environmental conditions
Operation temperature range
0°C – 45°C
Operation humidity
10% – 90%
Storage temperature range
-20°C – 60°C
Storage humidity
10% – 90%
