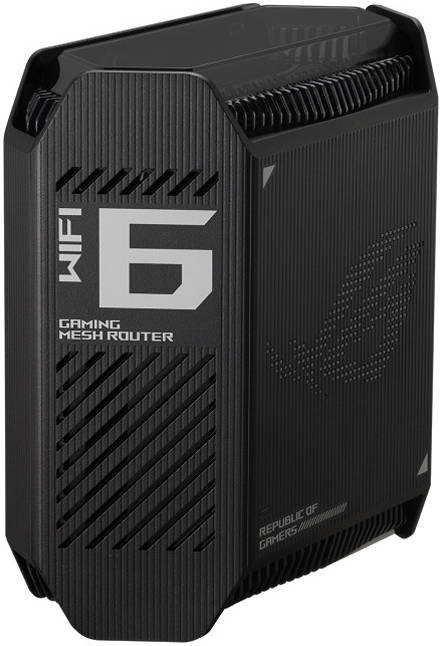

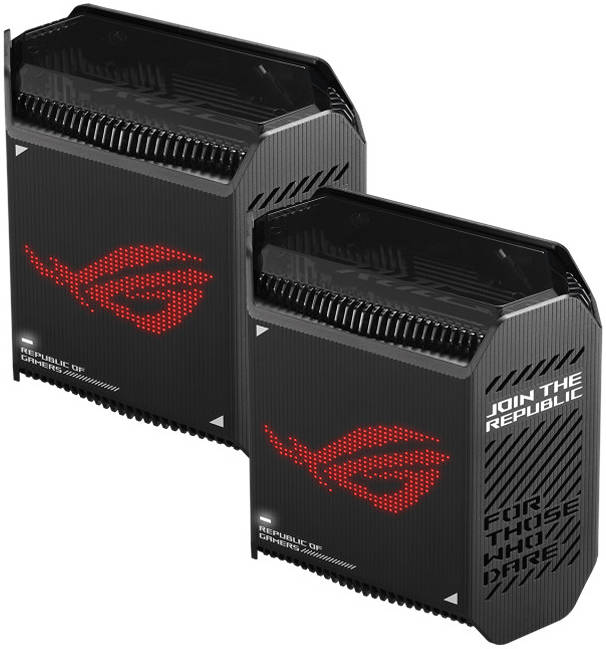

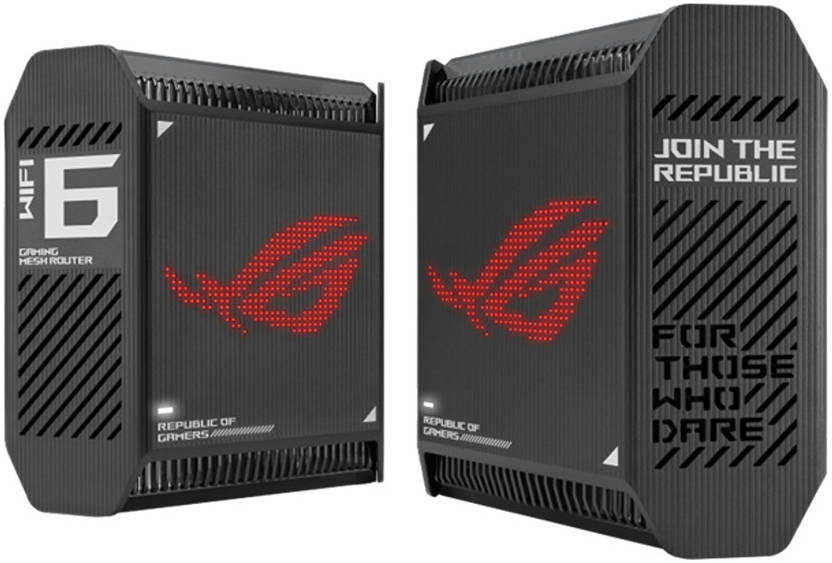

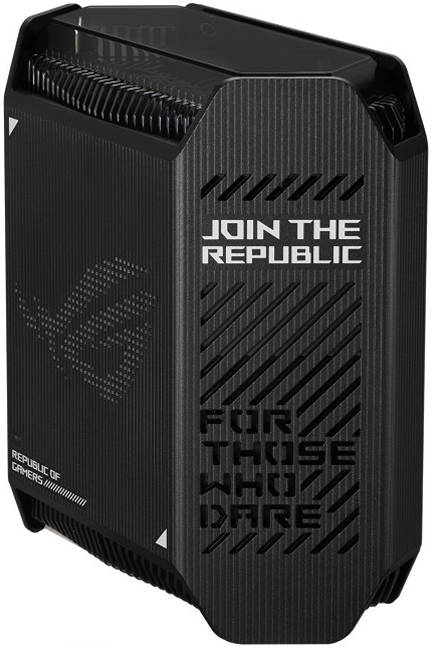

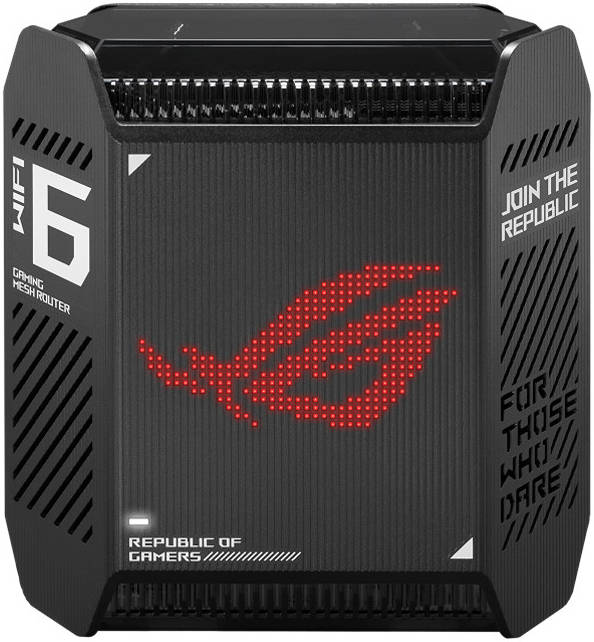

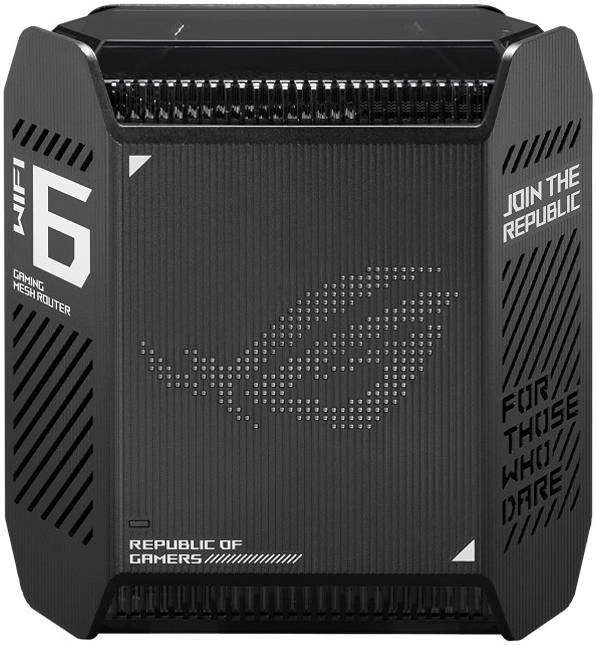

ASUS ROG Rapture GT6 Tri-Band WiFi 6 Gaming Mesh WiFi System, Covers up to 5,800 sq ft, Up to 4804Mbps Speed, 2.5 Gbps Port, Triple-Level Game Acceleration, UNII 4, 2PK, Black | 90IG07F0-MU9A20

Specifications
Model Name
GT6
Design
Black
Network Standard
WiFi 6 (802.11ax)
IPv4
IPv6
Backwards compatible with 802.11a/b/g/n/ac Wi-Fi
Product Segment
AX10000 ultimate AX performance
AX technology
Yes
Data Rate
2.4GHz AX: 2×2 (Tx/Rx) 1024 QAM 20/40MHz, up to 574Mbps
5G-1Hz AX: 4×4 (Tx/Rx) 1024 QAM 20/40/80/160MHz, up to 4804Mbps
5G-2Hz AX: 4×4 (Tx/Rx) 1024 QAM 20/40/80/160MHz, up to 4804Mbps
Antenna
Internal antenna x 9
Transmit/Receive
2.4GHz 2×2
5GHz-1 4×4
5GHz-2 4×4
Processor
1.7GHz tri-core processor
Memory
256MB Flash 512MB DDR4 RAM
Boosts speed
OFDMA (Orthogonal Frequency Division Multiple Access) Beamforming: standard-based and universal 1024-QAM high data rate 20/40/80/160 MHz bandwidth * The 160MHz bandwidth may be unavailable in the 5GHz band in some regions / countries due to regulatory restrictions.
Operating Frequency
2.4G Hz, 5 GHz-1, 5 GHz-2

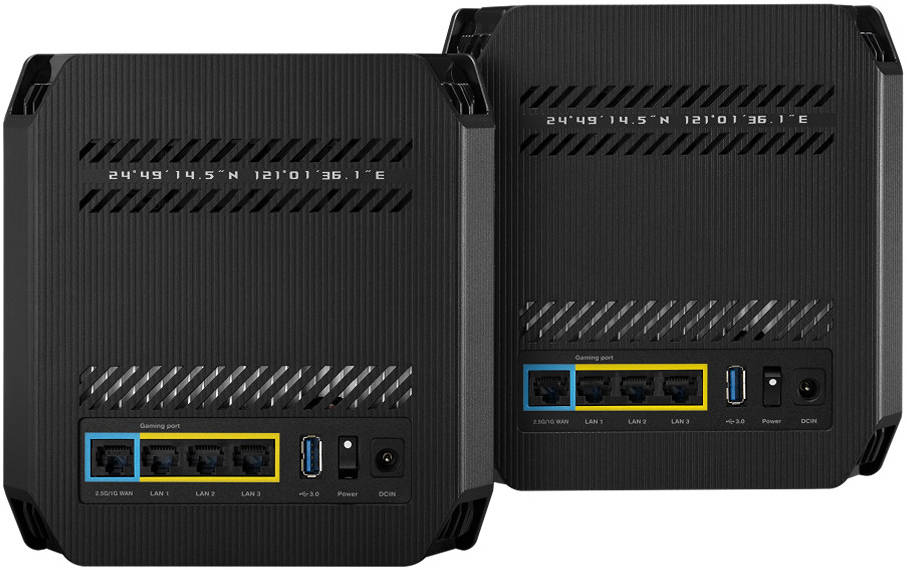

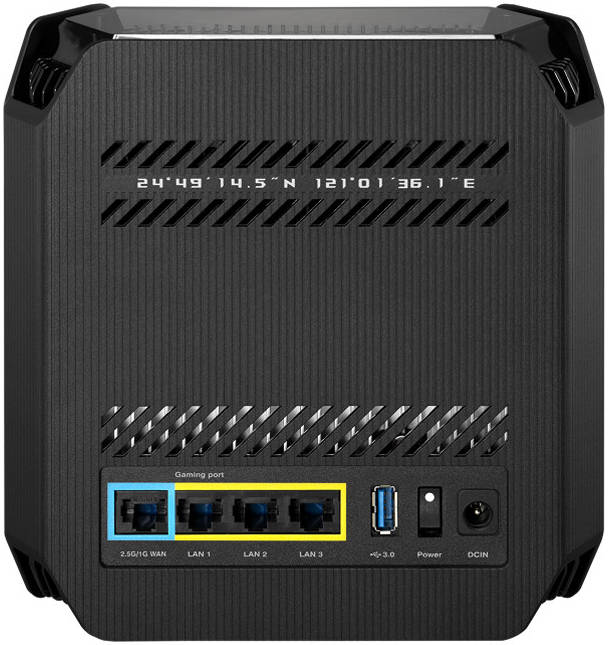

Ports
1 x 2.5 Gigabit WAN Port 3 x Gigabit LAN Ports 1 x USB 3.2 Gen 1×1 Port
Button
WPS Button, Reset Button, Power Switch
LED Indicator
Power x 1
Power Supply
AC Input : 110V~240V(50~60Hz) DC Output : 19 V with max. 2.37 A current / 19.5 V with max. 2.31 A current
Package content
ROG Rapture GT6 RJ-45 Cable Power Adapter Quick Start Guide
Product Weight (g)
880 g
AiMesh
AiMesh
Primary AiMesh router
AiMesh node
Router APP
ASUS Router APP
Game
Game Boost/acceleration
Game Radar
WTFast
ROG_First
OpenNAT (Game Profile)
Gaming port
Alexa
Support Alexa skill
AiProtection
AiProtection Pro
Router Security Assessment
Malicious site blocking
Two-Way IPS
Infected Device Prevention and Blocking
Parental Control
Parental Control
Parental Control Customized Internet schedule
Traffic Control
Adaptive QoS
Bandwidth Monitor
Bandwidth limiter
Traditional QoS
Traffic Monitor
Real-time traffic monitor
Wired Traffic Monitor
Wireless Traffic Monitor
Traffic Analyzer
Traffic analysis period : Daily, Weekly, Monthly
Website history
Wireless
IPv6
MU-MIMO
WiFi Encryption : WPA3 Personal, WPA2 Personal, WPA Personal, WPA Enterprise, WPA2 Enterprise, Open System
UTF-8 SSID
Guest Network
Guest Network Connection time limit
WPS
Wi-Fi MAC address filter
Maximum MAC filters : 64
Wireless scheduler
Wi-Fi Radar
Airtime fairness
RADIUS Client
Universal beamforming
WAN
Explicit beamforming
Dual WAN
3G/4G LTE dongle
Android tethering
Port forwarding
Maximum port forwarding rule : 64
Port triggering
Maximum port triggering rule : 32
DMZ
DDNS
NAT Passthrough : PPTP, L2TP, IPSec, RTSP, H.323, SIP Passthrough, PPPoE relay
Let’s Encrypt
Safe browsing
DNS-over-TLS
LAN
DHCP Server
IGMP snooping
IPTV
LAN Link Aggregation
Manually assign IP address
VPN
VPN Client L2TP
VPN Client OVPN
VPN Client PPTP
VPN Client WireGuard
VPN Server IPSec
VPN Server OVPN
VPN Server PPTP
VPN Server WireGuard
VPN Fusion
USB application
File System : HFS+, NTFS, vFAT, ext2, ext3, ext4
Safely Remove disk
AiCloud
Download master
AiDisk
Media Server
Time Machine
Samba Server
FTP Server
Shared Folder privileges
Administration
Operating mode : Wireless router mode Access point mode
Free OS upgrade
Firewall
Maximum Firewall keyword filter : Max 64 rules
Maximum Firewall network service filter : Max 32 rules
Maximum Firewall URL filter : Max 64 rules
Wake on LAN (WOL)
SSH
Configuration backup and restore
Diagnosis tools
Feedback system
System log
New Device Connect Notification
Login Captcha
Connection Diagnosis
Security Scan
Auto Firmware Update
