Dream Router 7
Desktop 10G Cloud Gateway with integrated WiFi 7, PoE switch, microSD storage, and full UniFi application support.
Specifications

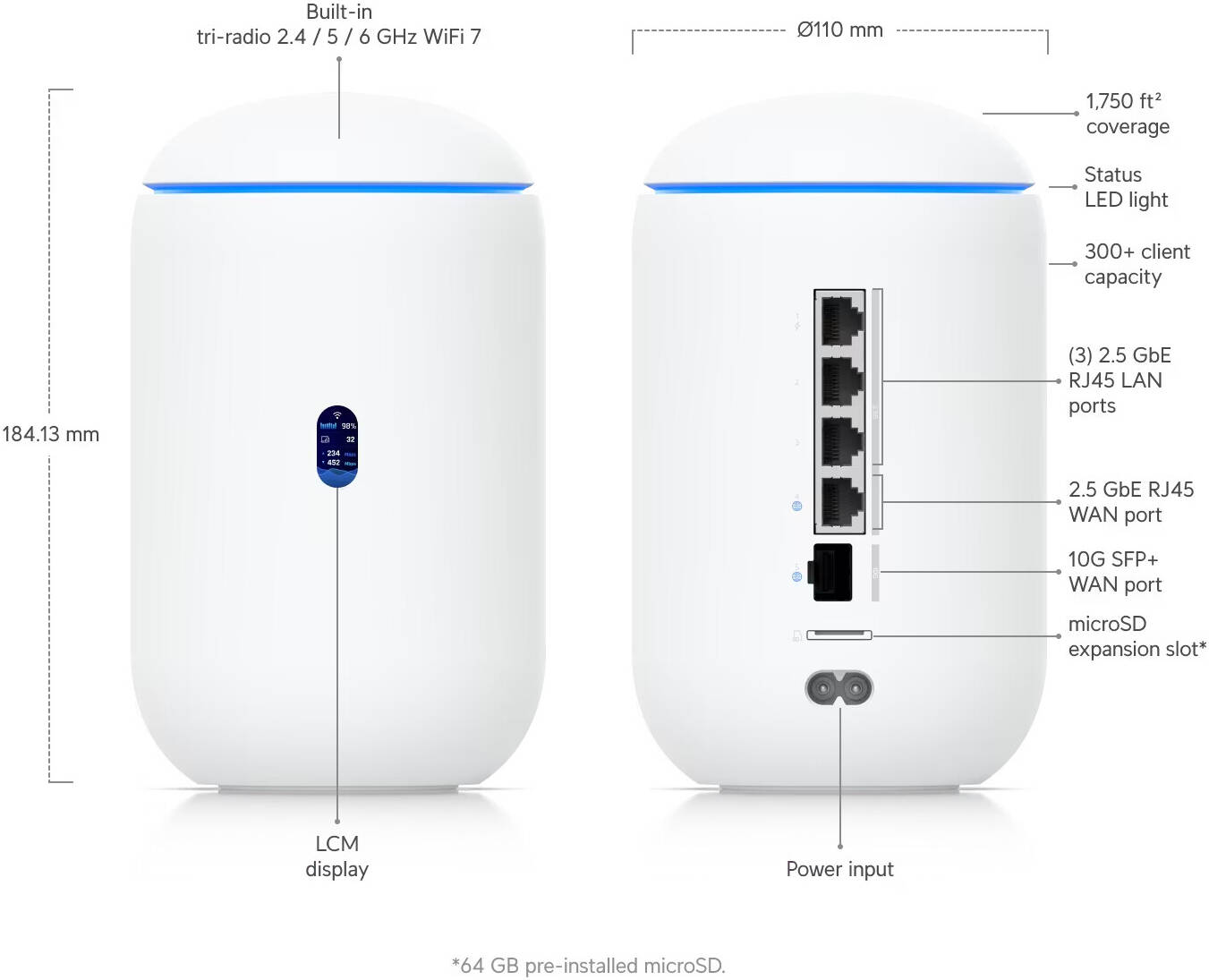

Dimensions
Ø110 x 184.1 mm (Ø4.3 x 7.3″)
UniFi Application Suite
Network: Yes
Protect: Yes
Access: Yes
Talk: Yes
Connect: Yes
Managed UniFi Devices
30+
Managed Cameras
(5) HD, (2) 2K, (1) 4K
Simultaneous Users Connected
300+
Default WAN Ports
(1) 10G SFP+, (1) 2.5 GbE RJ45
LAN Ports
(3) 2.5 GbE RJ45 (including 1 PoE)
IDS/IPS Throughput
2.3 Gbps
Form Factor
Compact desktop
Coverage Area
160 m² (1,750 ft²)
Security
Stateful Firewall: Yes
Application-Aware Layer 7 Firewall: Yes
DPI & Traffic Identification: Yes
Zone-Based Firewall Filtering: Yes
Content Filtering: Yes
Intrusion Prevention (IPS/IDS): Yes
Ad Blocking: Yes
IDS/IPS Signatures: 20,000+ with CyberSecure
VLAN/Subnet-based Traffic Segmentation: Yes
VPN & SD-WAN
License-Free SD-WAN: Yes
Site-to-Site VPN (Site Magic): Yes
IPsec: Yes
OpenVPN: Yes
VPN Server (Identity Endpoint): Yes
Teleport Zero-Configuration VPN: Yes
WireGuard: Yes
L2TP: Yes
VPN Client (OpenVPN, WireGuard): Yes
Networking
Multi-WAN Load Balancing: Yes
Dynamic Routing (OSPF): Yes
Advanced QoS: Yes
Multicast DNS (mDNS): Yes
Advanced NAT (SNAT / DNAT / NAT Pooling / etc.): Yes
Integrated RADIUS Server: Yes
RADIUS over TLS (RadSec): Yes
LTE Backup Support: Yes
Internet Quality/Outage Reporting: Yes
MAC Address Table Size: 2,000
Policy-based WAN and VPN Routing: Yes
Customizable DHCP Server: Yes
IPv6 ISP Support: Yes
IGMP Proxy: Yes
Integrated WiFi
WiFi Standard: 802.11a/b/g/n/ac/ax/be (WiFi 6/6E/7)
6 GHz Throughput: 5.7 Gbps
5 GHz Throughput: 4.3 Gbps
2.4 GHz Throughput: 688 Mbps
MIMO
2×2 DL/UL MU-MIMO on 6 GHz, 5 GHz, 2.4 GHz
Antenna Gain
6 GHz: 6 dBi
5 GHz: 7 dBi
2.4 GHz: 5 dBi
Max. TX Power
6 GHz: 24 dBm
5 GHz: 26 dBm
2.4 GHz: 23 dBm
Wireless Security
WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK)
Max. BSSIDs
4 per Radio
Supported Data Rates
802.11a: 6-54 Mbps
802.11b: 1-11 Mbps
802.11g: 6-54 Mbps
802.11n: 6.5 Mbps to 600 Mbps
802.11ac: 6.5 Mbps to 1.7 Gbps
802.11ax: 7.3 Mbps to 2.4 Gbps
802.11be: 7.3 Mbps to 5.7 Gbps
Hardware
NVR Storage: 64GB pre-installed microSD
Expansion Slot: MicroSD Card
PoE Budget: 15.4W
Max. PoE Wattage per Port: 15.4W
Voltage Range (PoE Mode): 44-57V
Max Power Consumption: 26W (excluding PoE output)
Power Method: Universal AC input 100–240V AC
Power Supply: Internal 50W AC/DC
Supported Voltage Range: 100–240V AC
Processor
Quad-core ARM Cortex-A53 at 1.5 GHz
System Memory
3 GB
Weight
1.1 kg (2.4 lb)
Enclosure Material
Polycarbonate

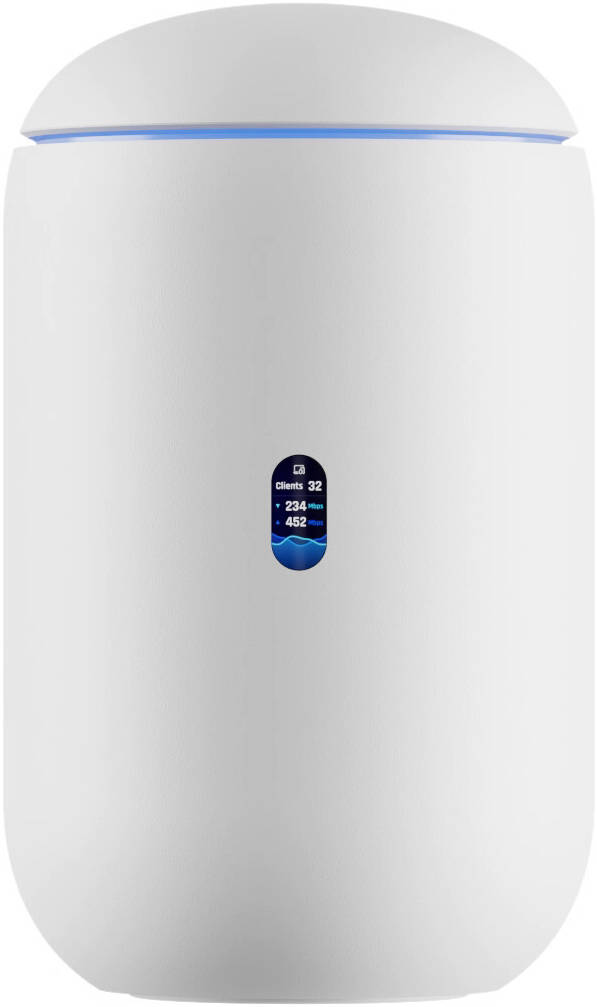

LCM Display
0.96″ Status Display
Management
Ethernet, Bluetooth
LEDs
System
Button
(1) Factory-reset
ESD/EMP Protection
Air: ±8kV, Contact: ±4kV
Operating Temperature
-10 to 40°C (14 to 104°F)
Operating Humidity
5 to 95% noncondensing
Certifications
CE, FCC, IC
NDAA Compliant
Yes
Software
VLAN 802.1Q, Guest Traffic Isolation
Application Requirements
UniFi Network version 9.0.108 and later
Ubiquiti Dream Router 7, Desktop 10G Cloud Gateway, Wi-Fi 7, Quad-core ARM® Cortex®-A53 at 1.5 GHz Processor, 1x 10G SFP+ & 1x 2.5 GbE RJ45 Ports, PoE Switch, White | UDR7
$500.00
Router and 5-port switch (2× 2.5GbE RJ-45 LAN 1× 2.5GbE RJ-45 LAN with PoE support, 1× 2.5GbE RJ-45 WAN, 1× 10G SFP+
Integrated access point with support for the 802.11be standard (Wi-Fi 7)
Security gateway – advanced security features (IDS/IPS, DPI and other functions)
Support for all UniFi applications for managing UniFi devices (UniFi Network, UniFi Protect, UniFi Access, UniFi Talk and UniFi Connect)
300+ connected Wi-Fi devices
MicroSD slot for NVR storage (64GB microSD card included)
0.96″ Display
| Brand |
UBIQUITI |
|---|---|
| Model |
Dream Router 7 |
| Date first available |
26 April; 2025 |
| Best Sellers Rank |
#5 in Routers |
| Shipping Weight |
1.70 Kg |
| Shipping Dimensions |
16.00 cm x 15.50 cm x 28.51 cm |
