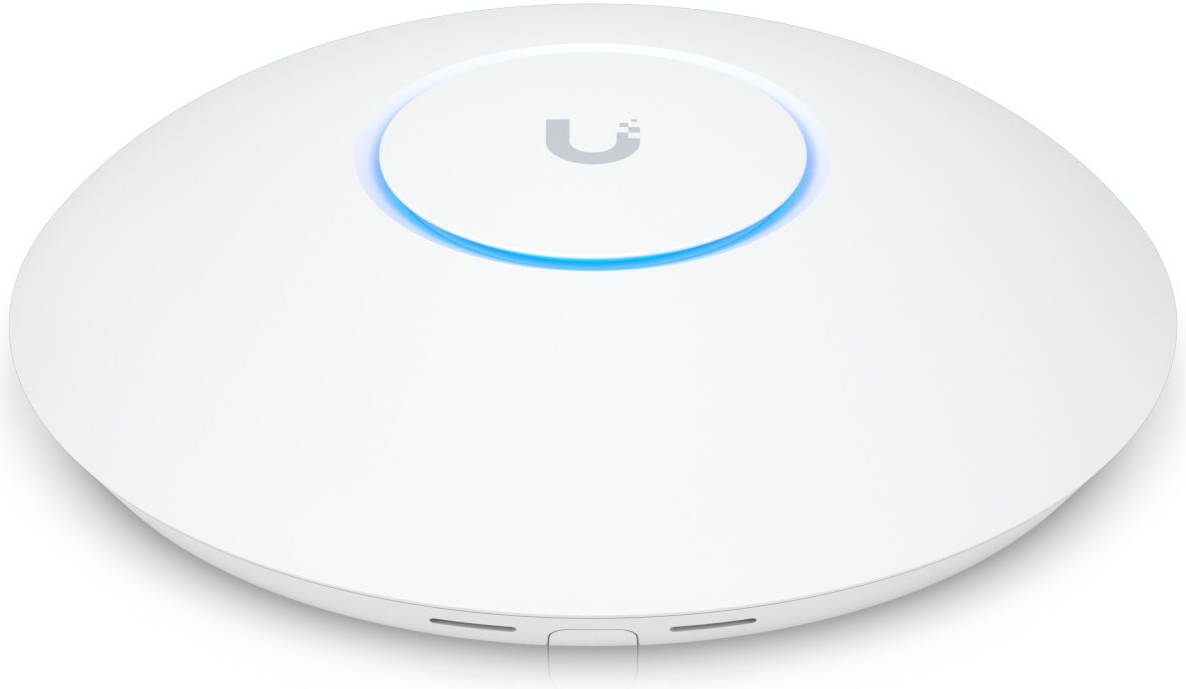

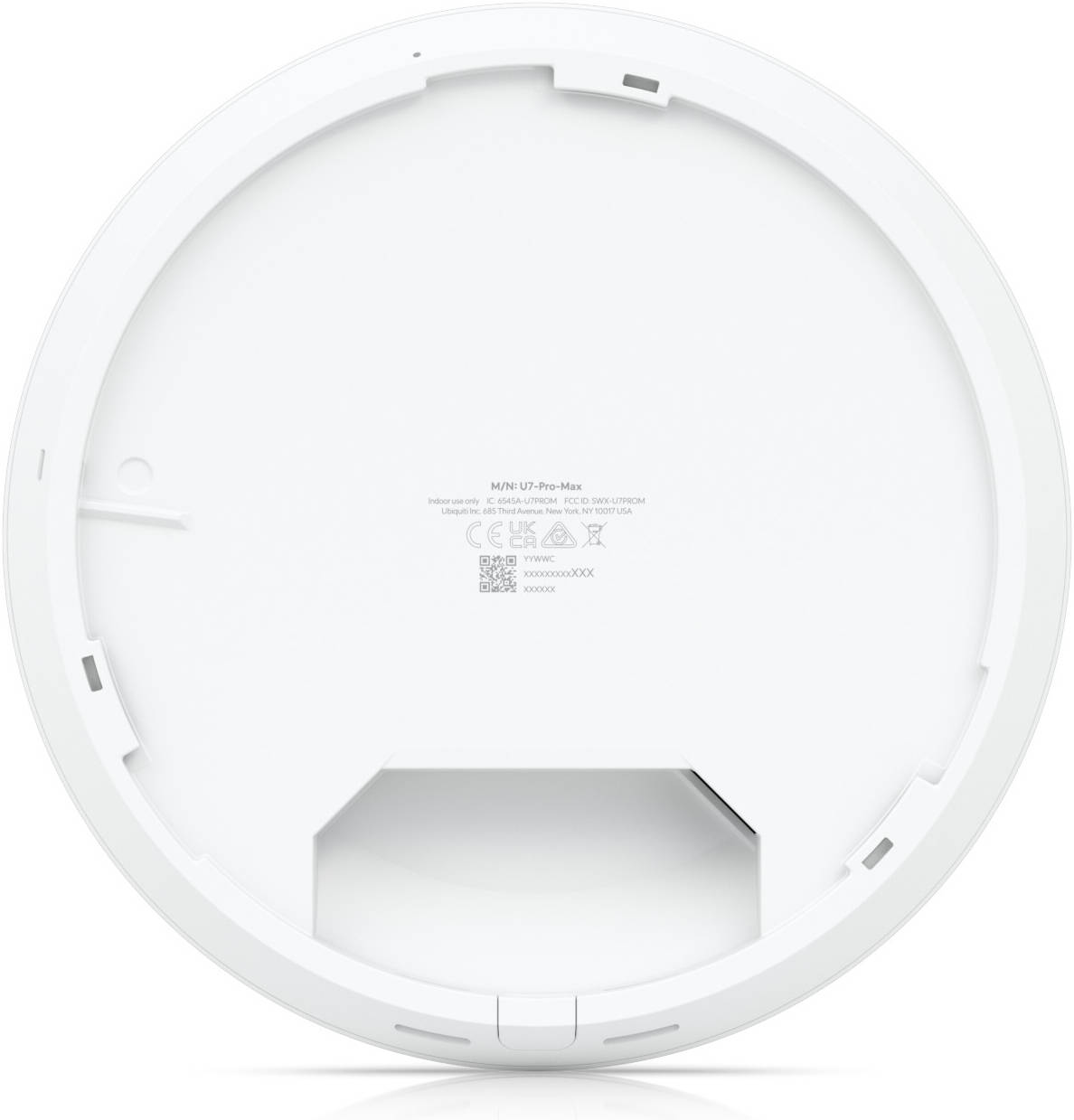

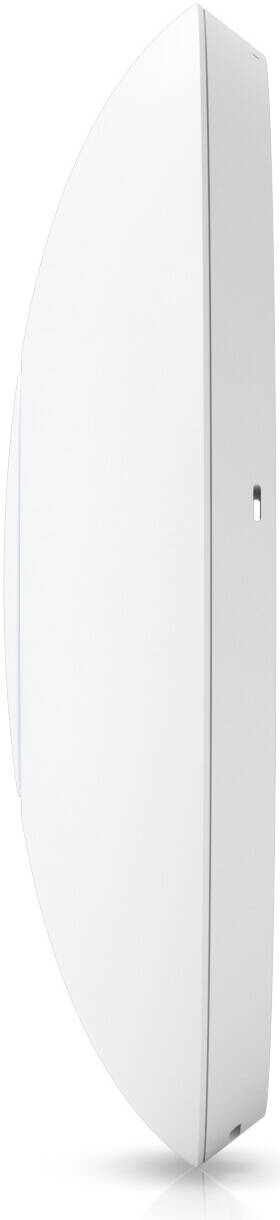

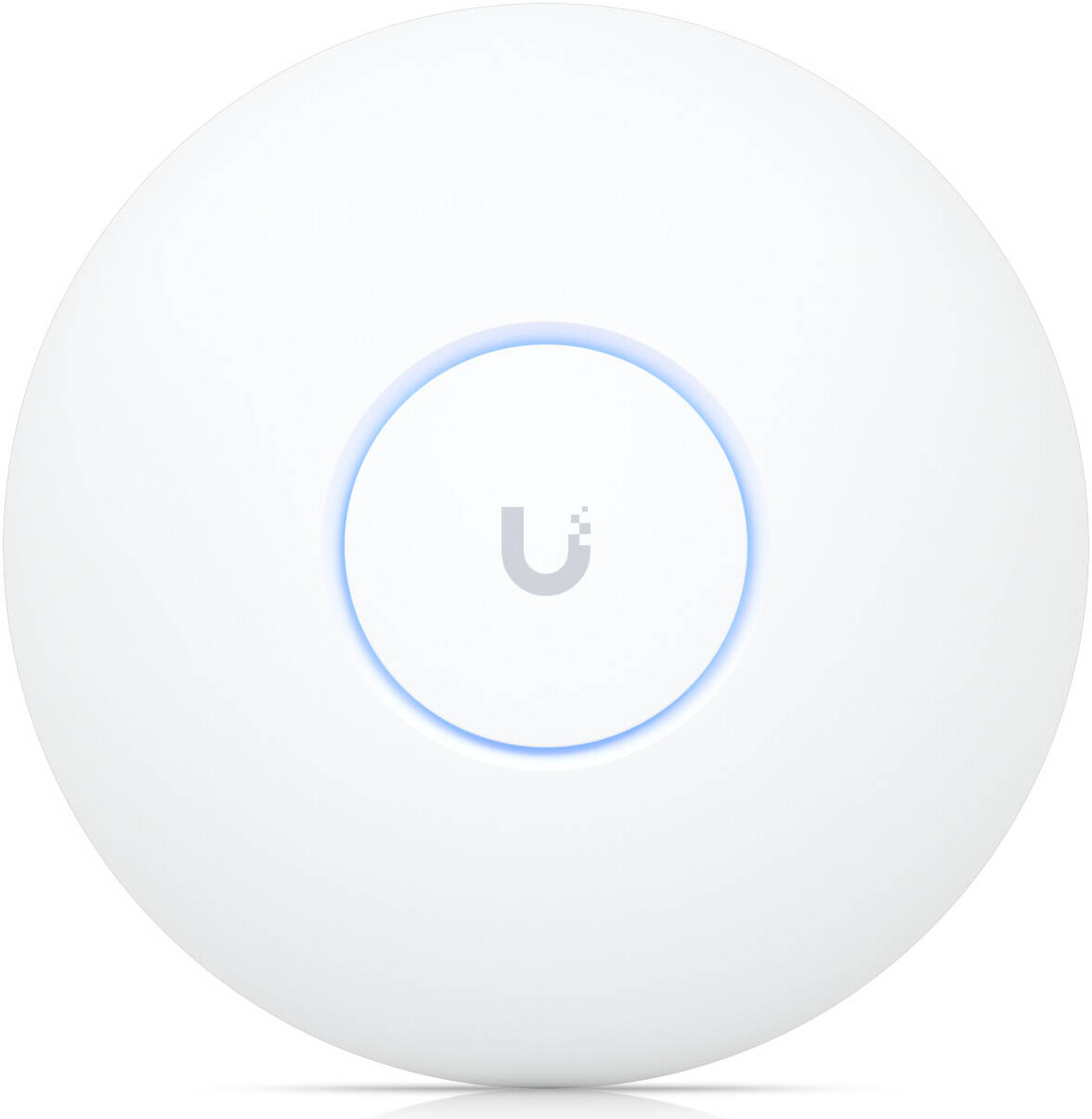

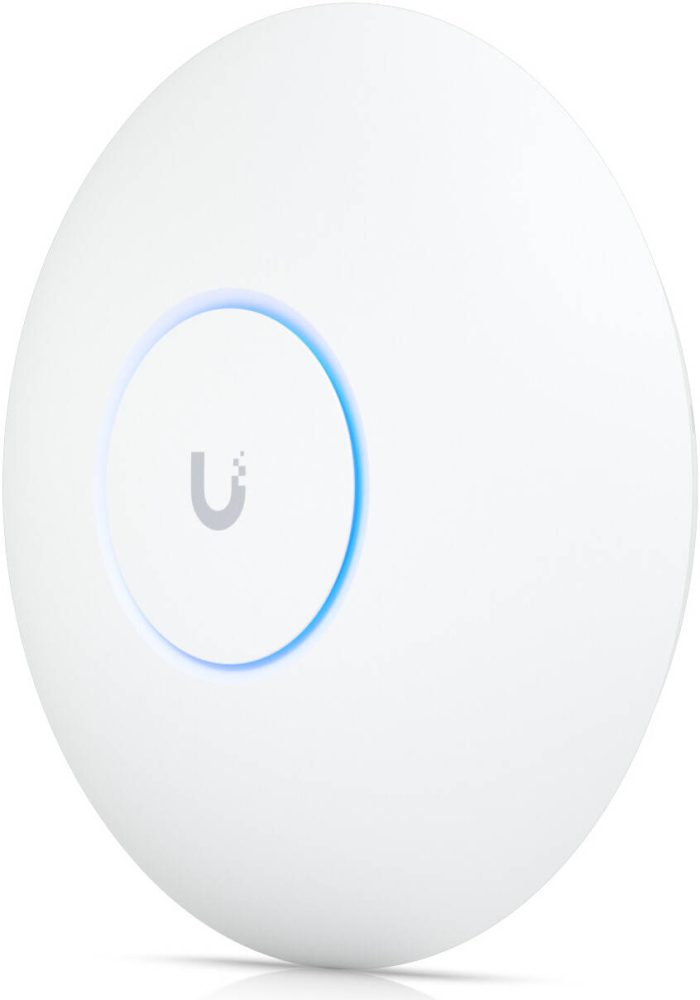

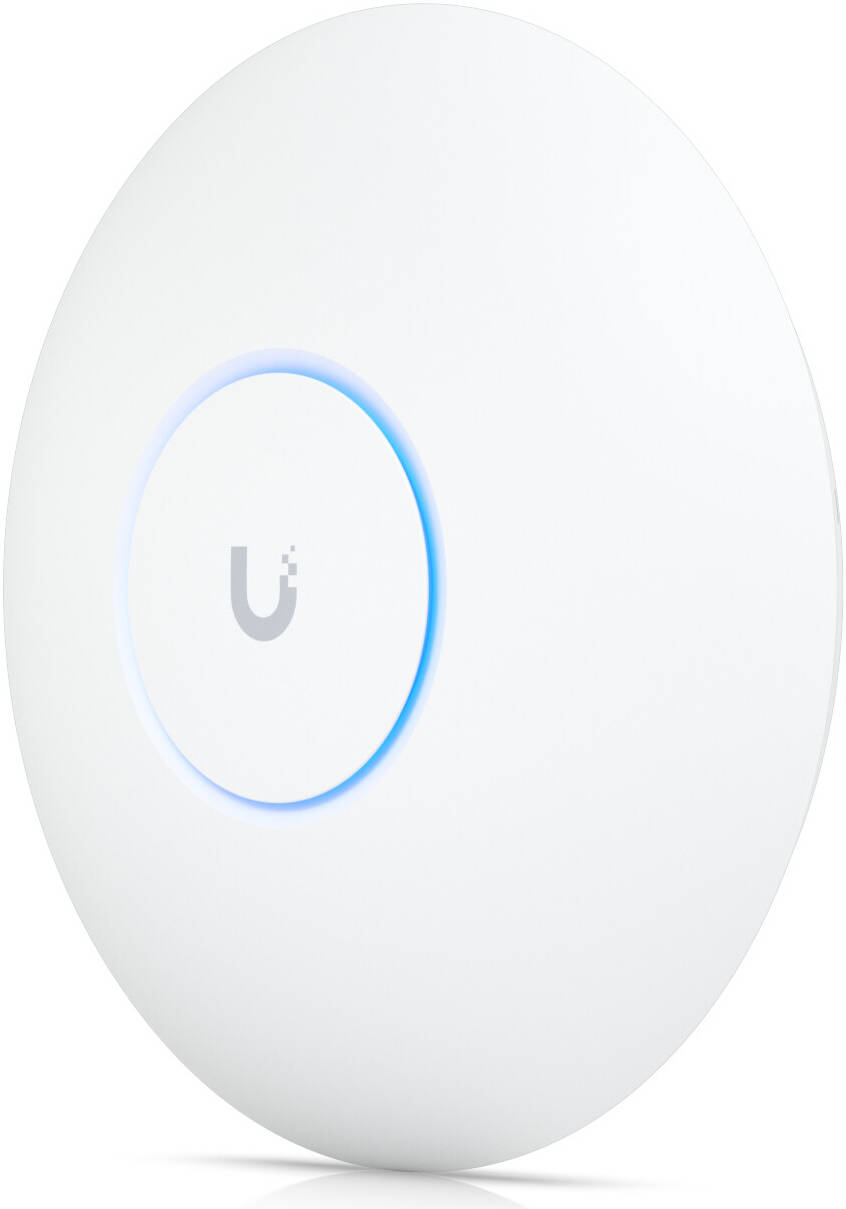

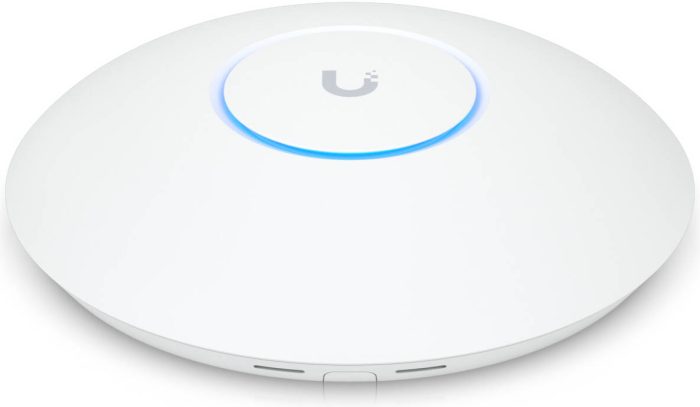

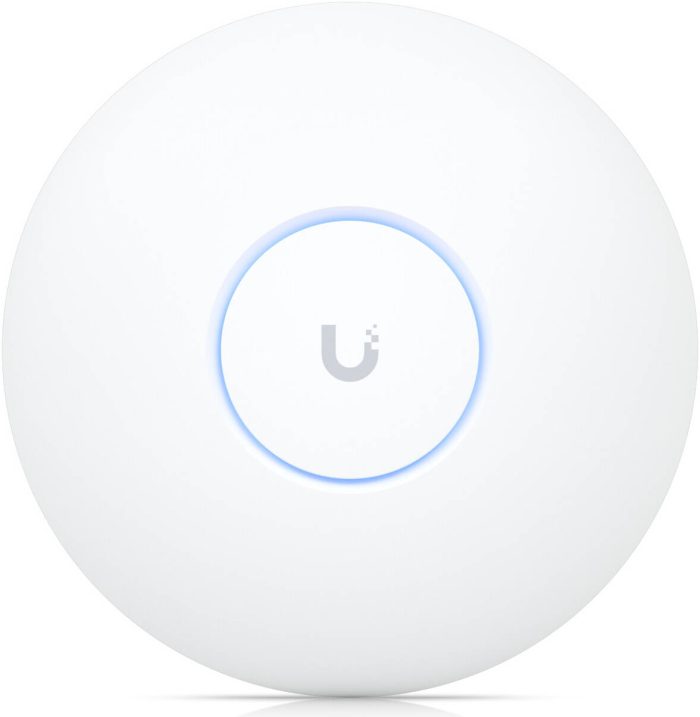

U7 Pro Max
Ceiling-mounted WiFi 7 AP with 8 spatial streams, 6 GHz support, and a dedicated spectral scanning engine for interference-free WiFi in demanding, large-scale environments.
Specifications
Mechanical
Dimensions
Ø206 x 46 mm (Ø8.1 x 1.8″)
Weight
680 g (1.5 lb)
Enclosure Material
Polycarbonate, aluminum
Mount Material
Stainless steel (SUS304), galvanized steel (SGCC)
Hardware
Networking Interface

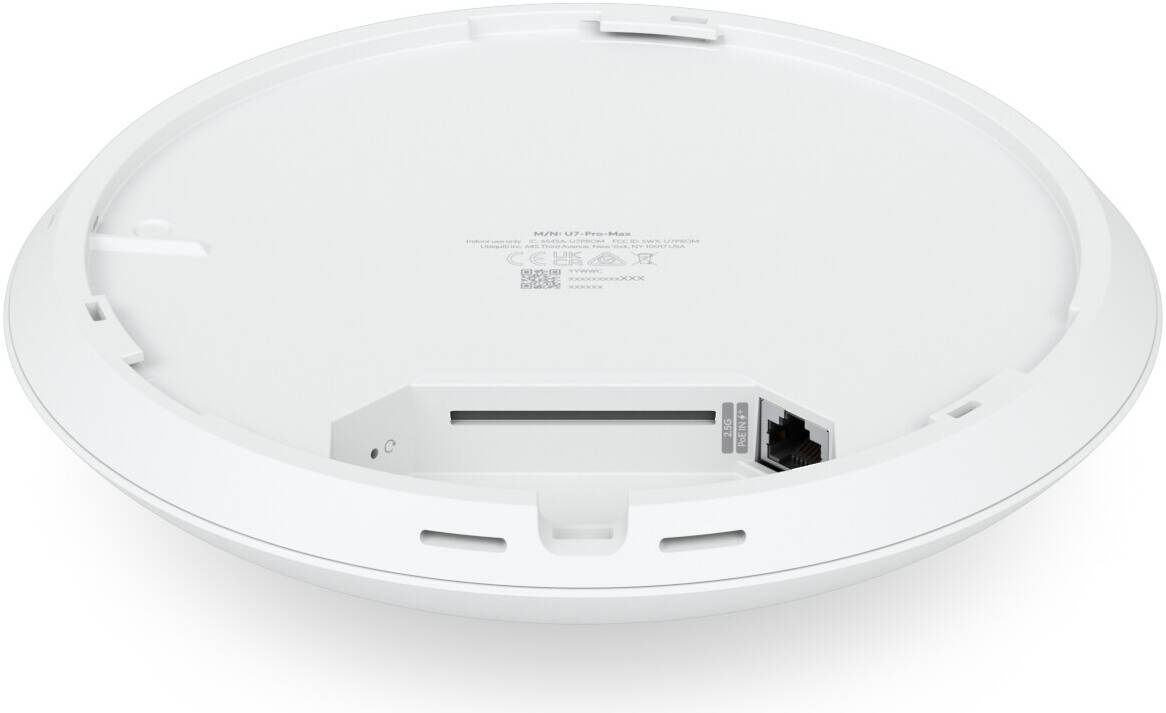

(1) 1/2.5 GbE RJ45 port
Management Interface
Ethernet
Power Method
PoE+
Power Supply
UniFi PoE switch
Supported Voltage Range
44—57V DC
Max. Power Consumption
25W
Max. TX Power (2.4 GHz)
23 dBm
Max. TX Power (5 GHz)
29 dBm
Max. TX Power (6 GHz)
23 dBm
MIMO (2.4 GHz)
2 x 2 (DL/UL MU-MIMO)
MIMO (5 GHz)
4 x 4 (DL/UL MU-MIMO)
MIMO (6 GHz)
2 x 2 (DL/UL MU-MIMO)
Max. Data Rate (2.4 GHz)
688 Mbps (BW40)
Max. Data Rate (5 GHz)
8.6 Gbps (BW240)
Max. Data Rate (6 GHz)
5.7 Gbps (BW320)
Antenna Gain (2.4 GHz)
4 dBi
Antenna Gain (5 GHz)
6 dBi
Antenna Gain (6 GHz)
5.9 dBi
LEDs
White/blue
Button
Factory reset
Mounting
Wall, ceiling (Included)
Operating Temperature
-30 to 50° C (-22 to 122° F)
Operating Humidity
5 to 95% noncondensing
Certifications
CE, FCC, IC
Software
WiFi Standards
802.11a/b/g/n/ac/ax/be (WiFi 6/6E, WiFi 7)
Wireless Security
WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK)
BSSID
8 per radio
VLAN
802.1Q
Advanced QoS
Per-user rate limiting
Guest Traffic Isolation
Supported
Concurrent Clients
500+
Supported Data Rates
802.11a
6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b
1, 2, 5.5, 11 Mbps
802.11g
6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n
6.5 Mbps to 300 Mbps (MCS0 – MCS15, HT 20/40)
802.11ac
6.5 Mbps to 1.7 Gbps (MCS0 – MCS9 NSS1/2, VHT 20/40/80/160)
802.11ax (WiFi 6/6E)
7.3 Mbps to 4.8 Gbps (MCS0 – MCS11 NSS1/2/3/4, HE 20/40/80/160)
802.11be (WiFi 7)
5 GHz
6 GHz
7.3 Mbps to 8.6 Gbps (MCS0 – MCS13 NSS1/2/3/4, EHT 20/40/80/160/240)
7.3 Mbps to 5.7 Gbps (MCS0 – MCS13 NSS1/2, EHT 20/40/80/160/240/320)
Application Requirements
UniFi Network Version 8.2.93 and later
Ubiquiti U7 Pro Max Ceiling-mounted WiFi 7 Access Point, WiFi 7 with 6 GHz Support, 8 Spatial Streams, 500+ Connected Devices, 2.5 GbE Uplink, Whtie | U7-Pro-max
$300.00
WiFi 7 with 6 GHz support
8 spatial streams
Real-time spectral analysis for enhanced channel selection*
160 m² (1,750 ft²) coverage
500+ connected devices
Powered using PoE+
2.5 GbE uplink
| Brand |
UBIQUITI |
|---|---|
| Model |
U7 Pro Max |
| Date first available |
13 September; 2024 |
| Best Sellers Rank |
#5 in Access Points |
| Shipping Weight |
1.30 Kg |
| Shipping Dimensions |
10.00 cm x 25.00 cm x 25.01 cm |
