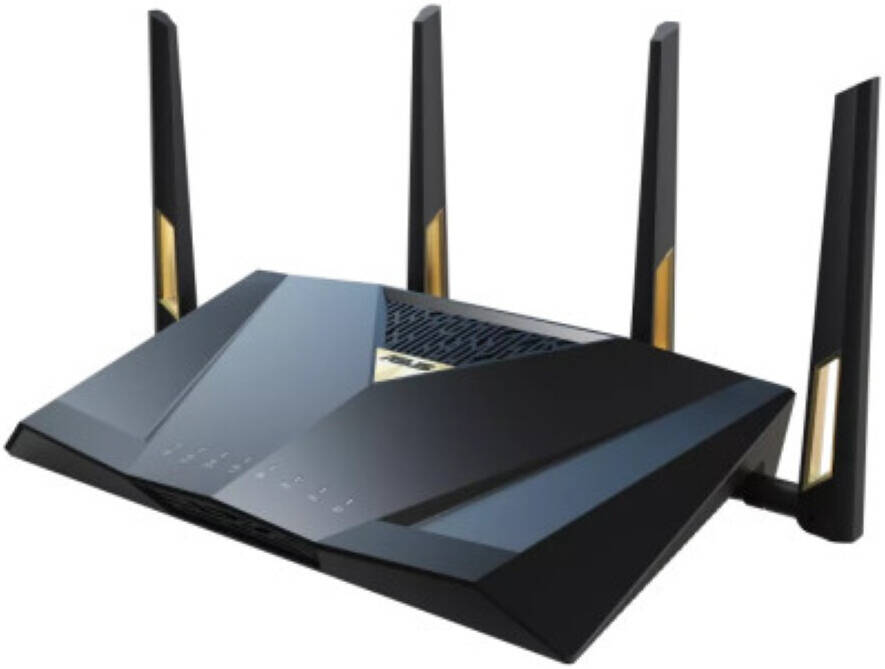

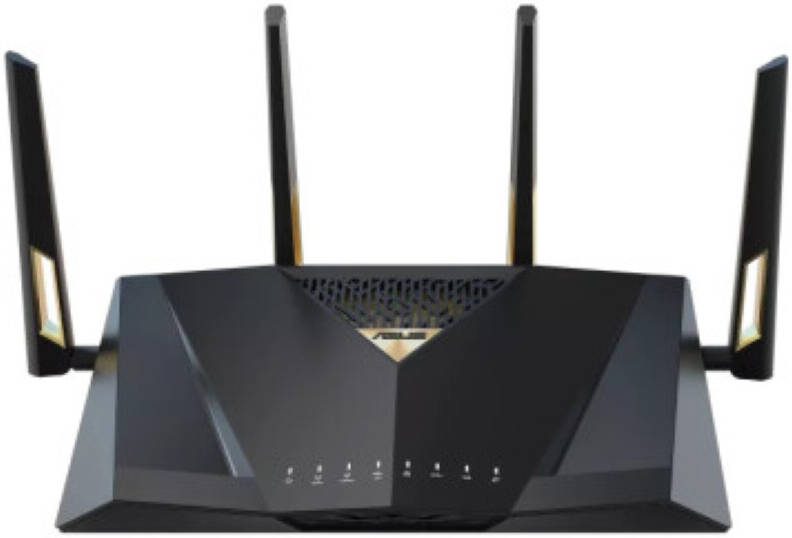

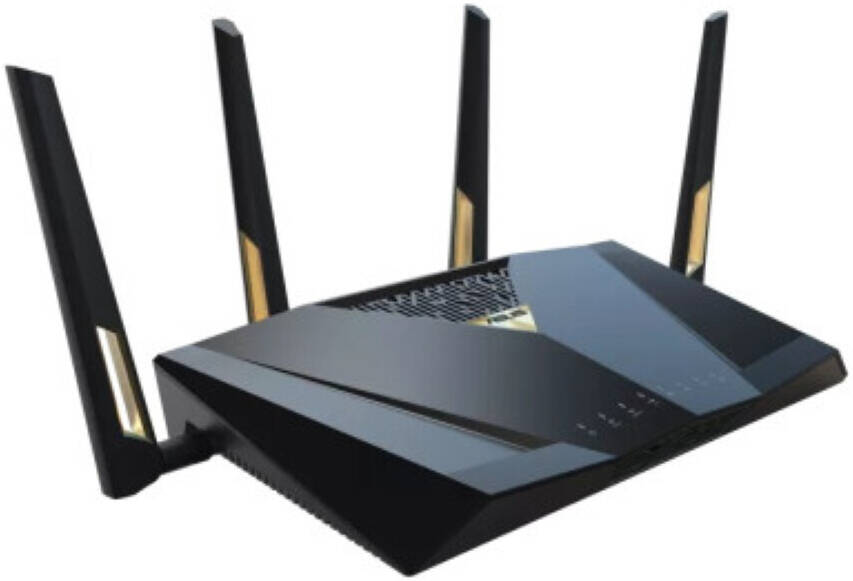

ASUS RT-BE88U Dual-band WiFi 7 AiMesh Extendable Performance Router, 4K-QAM, MLO, Dual 10G ports, SFP+, Four 2.5G ports, Four 1G ports, 34G WAN/LAN capacity | 90IG08V0-MO3N0V

ASUS
Dual-band WiFi
The ASUS RT-BE88U Dual-band WiFi 7 router delivers powerful and ultra-fast wireless connectivity, featuring the latest WiFi 7 technology with combined speeds of up to 1148 Mbps on the 2.4GHz band and 4804 Mbps on the 5GHz band. Designed for seamless streaming, gaming, and multitasking, it is equipped with a 2.0 GHz quad-core processor and 1 GB RAM to ensure top-tier performance. The router offers advanced features like OFDMA, Beamforming, and robust security through AiProtection, making it an ideal choice for users who demand high-speed, reliable, and secure network solutions. With multiple antennas, extensive I/O ports, and support for AiMesh and VPN protocols, the RT-BE88U is built to handle the most demanding home or office network environments.
Specification
Specification
Details
Model
RT-BE88U
Network Standard
IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, WiFi 4 (802.11n), WiFi 5 (802.11ac), WiFi 6 (802.11ax), WiFi 7 (802.11be), IPv4, IPv6
Product Segment
BE7200 ultimate BE performance: 1376+5764 Mbps
WiFi Data Rate
WiFi 7 (802.11be) (2.4GHz): up to 1376 Mbps, WiFi 7 (802.11be) (5GHz): up to 5764 Mbps
Antenna
External antenna x 4
Transmit / Receive
2.4GHz 4×4, 5GHz 4×4
Processor
2.6GHz quad-core processor
Memory
256 MB Flash, 2 GB RAM
Boosts Speed
OFDMA, Beamforming (standard-based and universal), 4096-QAM high data rate, 20/40/80/160 MHz bandwidth
Operating Frequency
2.4 GHz, 5 GHz
Operating Mode
Wireless Router Mode, AiMesh Node Mode, Access Point Mode, Media Bridge Mode, Repeater Mode

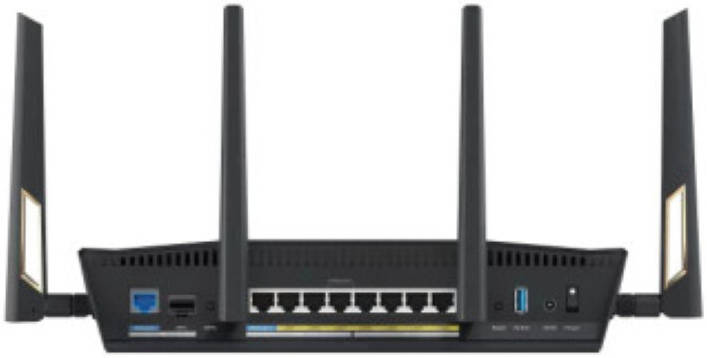

I/O Ports
1 x 10Gbps WAN/LAN, 1 x 10Gbps SFP+ WAN, 1 x 2.5Gbps WAN/LAN, 3 x 2.5 Gbps LAN, 4 x RJ45 10/100/1000Mbps WAN/LAN, USB 3.2 Gen1 x1
Buttons
WPS Button, Reset Button, Power Switch
LED Indicator
WAN x1, 10G WAN x1, 10G SFP+ x1, LAN x1, USB 3.2 Gen 1 x1, 2.4GHz x1, 5GHz x1, Power x1
Power Supply
AC Input: 110V240V (5060Hz), DC Output: 19 V with max. 2.37 A current; 19.5 V with max. 2.31 A current
Package Content
RT-BE88U WiFi router, RJ-45 cable, Power adapter, Quick Start Guide, Warranty card
Product Weight (g)
1060 g
Product Dimensions (mm)
300 x 188 x 60.5
AiMesh
AiMesh (Primary AiMesh Router, AiMesh Node)
Game Features
WTFast, Mobile Game Mode, Gear Accelerator, OpenNAT (Game Profile), Gaming Port
Parental Control
Web & Apps Filters, Time Scheduling, Safe Browsing, Customized Internet Schedule, Maximum Parental Control Profile: 64, Maximum Parental Control Content Filter Rule: 64
Guest Network
Supports Guest Network Pro, Maximum Guest Network Rule: 2.4 GHz + 5 GHz : 5, Guest Network Pro Encryption: Open system, WPA/WPA2-Personal/WPA3-Personal
Security
AiProtection Pro, WPA3 Personal, WPA2 Personal, WPA Personal, WPA Enterprise, WPA2 Enterprise, WPA3 Enterprise, Open System & OWE, WPS, Let’s Encrypt, DNS-over-TLS, SSH, Security Scan, Firewall, Router Security Assessment
VPN Support
Instant Guard, VPN Client (L2TP, Open VPN, PPTP, WireGuard), VPN Server (IPSec, Open VPN, PPTP, WireGuard), VPN Fusion, Support Surfshark
Traffic Control
Adaptive QoS, Bandwidth Monitor, Bandwidth Limiter, Maximum Bandwidth Limiter Rule: 32, Traditional QoS, Real-time Traffic Monitor, Wired Traffic Monitor, Wireless Traffic Monitor, Traffic Analyzer
WAN
Internet Connection Type: PPPoE, PPTP, L2TP, Automatic IP, Static IP, IPSec, Dual WAN, WAN Aggregation, 3G/4G LTE dongle, Port forwarding, Port triggering, DMZ, DDNS, NAT Passthrough
LAN
DHCP Server, IGMP Snooping, IPTV, LAN Link Aggregation, Manually Assign IP Address, Maximum Manually Assign IP Address Rule: 128, Wake on LAN (WOL)
Wireless Features
MU-MIMO, UTF-8 SSID, WiFi MAC Address Filter, Maximum MAC Filters: 64, Wireless Scheduler, Airtime Fairness, RADIUS Client, Universal Beamforming, Explicit Beamforming
USB Applications
File System: HFS+, NTFS, vFAT, ext2, ext3, ext4, Safely Remove Disk, AiCloud, Download Master, AiDisk, Media Server, Time Machine, Samba Server, FTP Server, Shared Folder Privileges
User Interface
WEB: ASUSWRT, APP: ASUS Router APP
Administration
Configuration Backup and Restore, Diagnosis tools, Feedback System, System Log, New Device Connect Notification, Login Captcha, Connection Diagnosis, Auto Firmware Update
