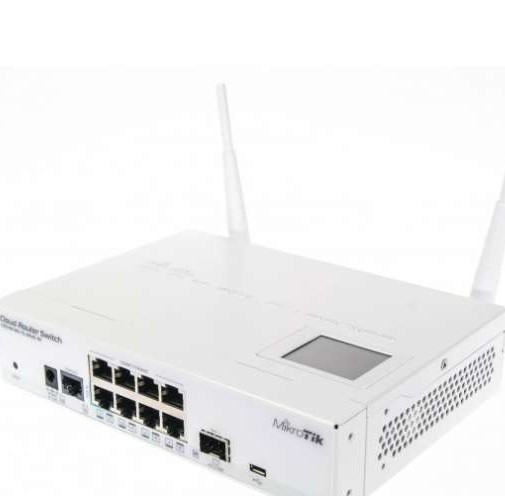

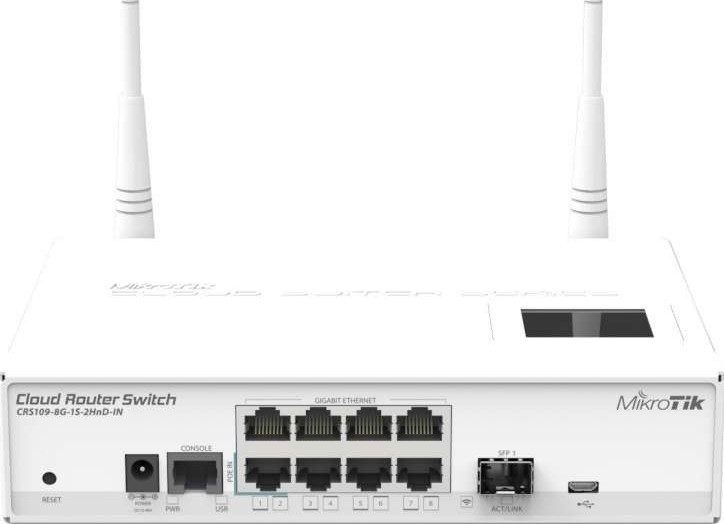

MikroTik Cloud Router Switch | CRS109-8G-1S-2HnD-IN

Cloud Router Switch 109-8G-1S-2HnD-IN is new “small size low cost” member of our CRS series. It comes with eight Gigabit Ethernet ports and high power 2.4GHz wireless. Product supports 10-57V and is 802.3af/at compliant!
Our CRS series combines the best features of a fully functional router and a Layer 3 switch, is powered by the familiar RouterOS. All the specific Switch configuration options are available in a special Switch menu, but if you want, ports can be removed from the switch configuration, and used for routing purposes.
Specifications
Details
Product code
CRS109-8G-1S-2HnD-IN
Architecture
MIPS-BE
CPU
AR9344
CPU core count
1
CPU nominal frequency
600 MHz
Dimensions
200x145x45mm
License level
5
Operating System
RouterOS
Size of RAM
128 MB
Storage size
128 MB
Storage type
NAND
Tested ambient temperature
-35C to +65C tested
Suggested price
$149.00
Powering
Details
Max Power consumption
13W
802.3af support
yes
Number of DC inputs
2 (DC jack, PoE-IN)
PoE in
Passive PoE
DC jack input Voltage
10-57 V
PoE in input Voltage
10-57 V
Wireless
Details
Wireless 2.4 GHz number of chains
2
Wireless 2.4 GHz standards
802.11b/g/n
Antenna gain dBi for 2.4 GHz
4
Wireless 2.4 GHz chip model
AR9344
Ethernet
Details
10/100/1000 Ethernet ports
8
Fiber
Details
SFP DDMI
yes
SFP ports
1
Peripherals
Details
Number of USB ports
1
Serial port
RJ45
USB Power Reset
Yes
USB slot type
microUSB type AB
Other
Details
PCB temperature monitor
Yes
Voltage Monitor
Yes
Wireless specifications
2.4 GHz
Transmit (dBm)
Receive Sensitivity
1MBit/s
29
-97
11MBit/s
28
-90
6MBit/s
30
-96
54MBit/s
25
-76
MCS0
30
-96
MCS7
23
-73
Switching results
CRS109-8G-1S-2HnD-IN
Mode
Configuration
64 byte
512 byte
1518 byte
kpps
Mbps
kpps
Mbps
kpps
Mbps
Switching
Non blocking Layer 2 throughput
13,392.9
6,857.1
2,114.7
8,661.7
731.5
8,883.0
Switching
Non blocking Layer 2 capacity
13,392.9
13,714.3
2,114.7
17,323.3
731.5
17,765.9
Switching
Non blocking Layer 1 throughput
13,392.9
9,000.0
2,114.7
9,000.0
731.5
9,000.0
Switching
Non blocking Layer 1 capacity
13,392.9
18,000.0
2,114.7
18,000.0
731.5
18,000.0
Ethernet test results
CRS109-8G-1S-2HnD-IN
AR9344 1G all port test
Mode
Configuration
1518 byte
512 byte
64 byte
kpps
Mbps
kpps
Mbps
kpps
Mbps
Bridging
none (fast path)
81.0
983.7
232.0
950.3
269.6
138.0
Bridging
25 bridge filter rules
81.0
983.7
86.0
352.3
87.6
44.9
Routing
none (fast path)
81.0
983.7
210.0
860.2
226.9
116.2
Routing
25 simple queues
81.0
983.7
103.9
425.6
106.6
54.6
Routing
25 ip filter rules
56.8
689.8
59.6
244.1
60.5
31.0
