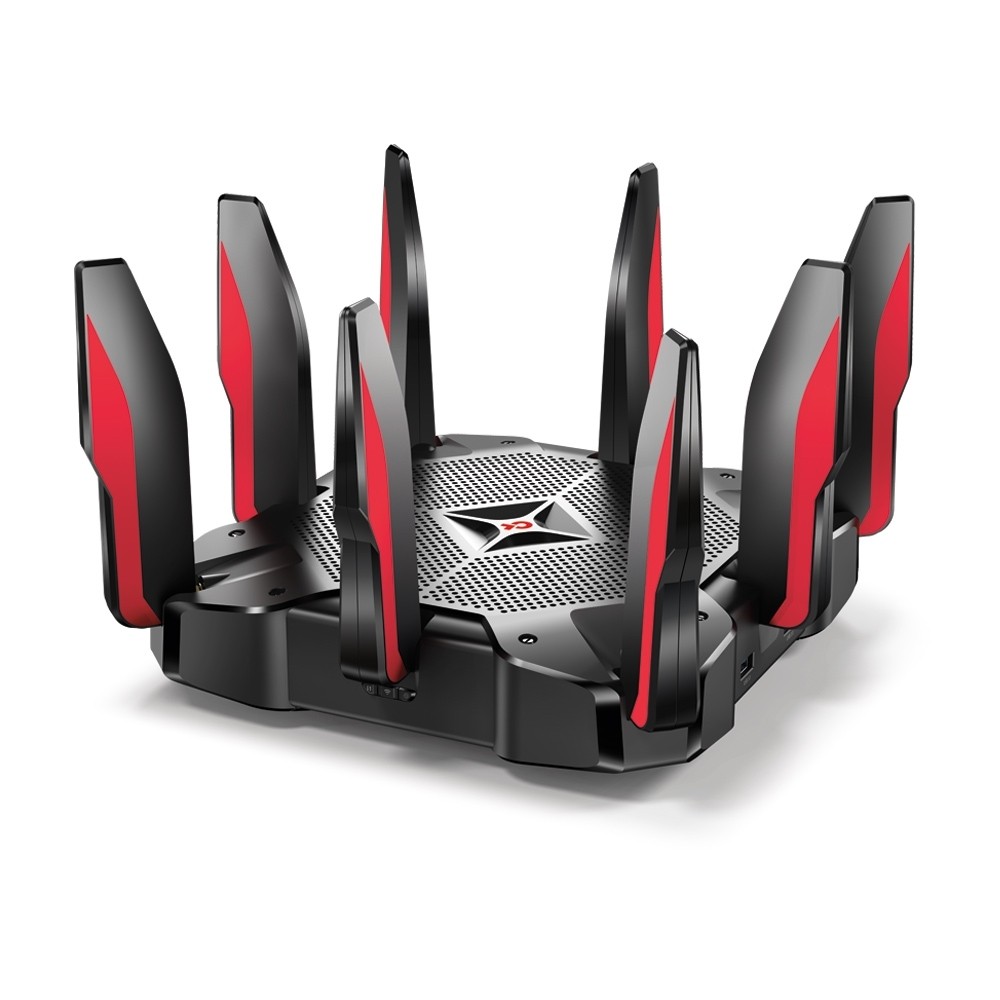

AC5400 MU-MIMO Tri-Band Gaming Router | Archer C5400X
TP-Link first gaming router
1.8GHz 64-bit quad-core CPU, 3 co-processor and 1GB RAM
Tri-band with blazing fast speed at 5334 Mbps in total
HomeCare for all-around protection
VPN acceleration for 5 times faster VPN connection
BATTLE-TESTED PROCESSING
When you game at the highest settings, it’s imperative you have impressive processing power. Quad-core means power. With a 1.8 GHz 64-bit quad-core CPU, three co-processors and 1 GB RAM, the Archer C5400X delivers the raw power required to perfectly execute every service, thread and application to eradicate latency and deliver smooth gameplay.
1.8GHz
QuadCore
64bit
1GBRAM
INTELLIGENT TRAFFICPRIORITIZATION
The Archer C5400X conquers lag, immediately eradicating it from your gaming experience. Its dynamic optimization engine automatically identifies gaming traffic to give you the tactical advantage during heated raids, PvP encounters and ranked matches. When you aren’t gaming, fast-track streaming to watch immersive 4K movies.
CONVENIENT FILE STORAGE
The Archer C5400X has 16 GB of free storage built-in and protected behind its firewall, which you can access through the TP-Link FileBank app whenever you have an internet connection. Expand storage by connecting USB drives to the router.
BLISTERING WI-FI SPEEDS
2.4 GHz
5 GHz
5 GHz
Get into the action with incredible AC5400 tri-band Wi-Fi speeds over the 2.4 GHz (1000 Mbps) and two 5 GHz bands (2167 Mbps). Three Wi-Fi bands make it easier to streamline your network and stay competitive in the heat of battle.
Dedicate one band to gaming traffic while the remaining two deliver high-speed Wi-Fi to the rest of your home. Or enable Smart Connect to have the router zero in on the best Wi-Fi band for every device, intelligently driving them to peak performance.

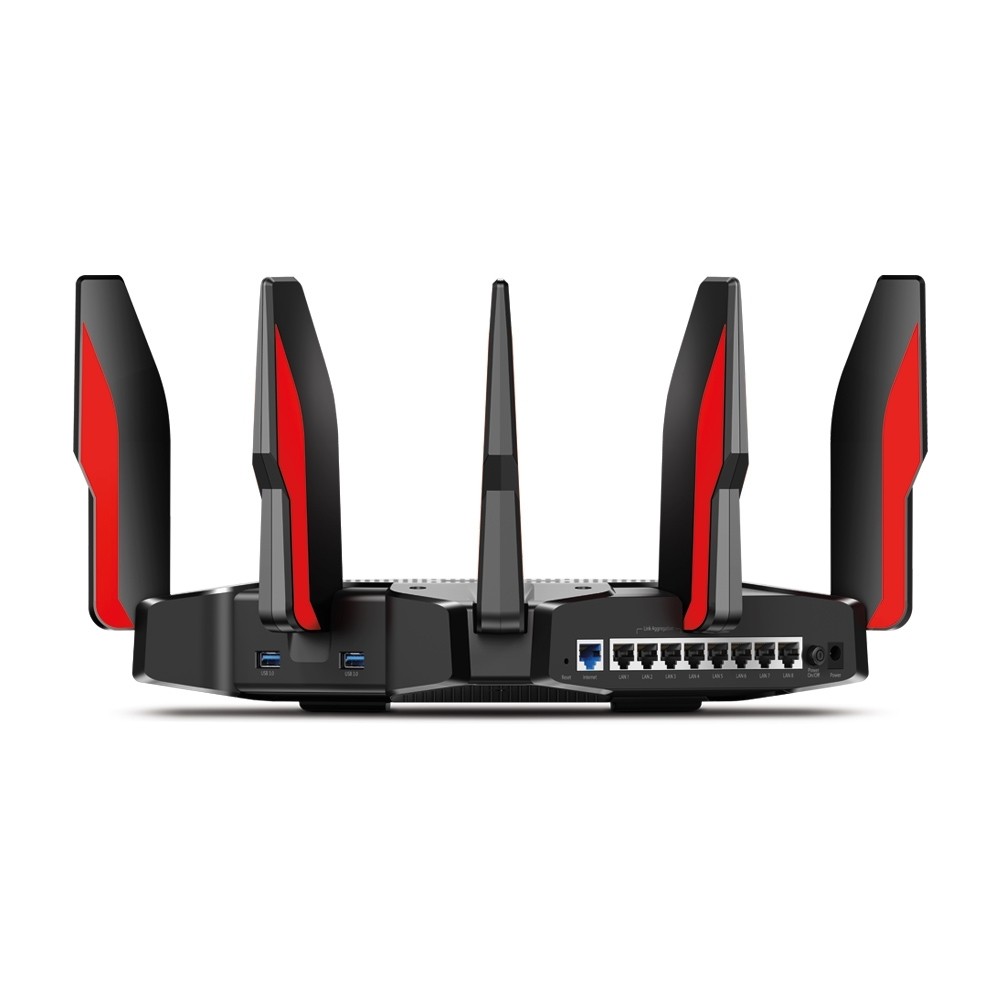

HARDWARE FUNCTIONSProcessor1.8GHz quad-core CPU and three co-processorsStandards and protocols802.11a/b/g/n/ac, 802.3abPorts1x WAN
8x GE LAN
2x USB3.0Button1x Power
1x Wi-Fi On/Off
1x WPS
1x Reset
1x LED On/OffLED Panel1x LED with multiple stateMass3.3lb(with antennas)
2.65lb(without antennas)
1.5kg(with antennas)
1.2kg(without antennas)Dimensions( L x D x H )11.3 X 11.3X 7.2 in.(with antennas)
9.5X9.5X2.2 in.(without antennas)
288X288X184mm(with antennas)
240.6X240.6X55.4mm(without antennas)Antenne8 external and detachable antennas
ChipsetMU-MIMO
Beamforming
Airtime Fairness
RangeBoost
NitroQAMWIRELESS FUNCTIONSFrequency1000Mbps @ 2.4GHz
2167Mbps @ 5GHz
2167Mbps @ 5GHzSOFTWARE FUNCTIONSManagementTether App
Andriod 4.1 or higher
iOS 8 or higherSystem ToolsTime Settings
Diagnostics
Fw OTA Upgrade
Config backup/resotre
Administration
Syslog
SNMP
Statistics
LED ControlBasic FunctionalityNetwork Map(Internet Status/Client List/Speedtest)
Internet Settings
Wireless Settings
USB Sharing Settings(USB Storage Sharing/FTP Server/Print Server/Media Server)
HomeCare(Parental Control/Antivirus/QoS)
Guest Network Settings
TP-Link Cloud Settings
Multiple LanguagesProtocolIPv4, IPv6Advanced FunctionsWorking Mode (Router Mode or AP Mode)
Wireless Schedule
Time Machine
TP-Link DDNS
Parental Controls/Antivirus/QoS
IPv6
VPN Server (OpenVPN and PPTP Servers)
NAT Forwarding(DMZ/UPnP…)
Link aggregation(WAN/LAN)
Airtime Fairness
SmartConnect
Portal Authentication for Guest Wi-FiSupported Operating SystemsTime Settings
Diagnostics
Fw OTA Upgrade
Config backup/resotre
Administration
Syslog
SNMP
Statistics
LED Control
