Server Premier
Kingston DDR5 Server Premier Memory For Server / Workstation.
All Kingston DDR5 Server / Workstation memory is backed by 100% testing, a lifetime warranty and over 30 years of design and manufacturing expertise. Select our industry-standard Server Premier or system-specific memory to get the exact RAM you need in your systems.
Chip Brand and Performance.
When Kingston designs a new memory module for a newly released system, Kingston engineers test several brands of chips on the new module design. This testing allows us to determine which brands of chips provide the best performance. Kingston uses a controlled bill of materials for our system-specific module designs to deliver the best performance for your system.
DDR5 Chip Compatibility.
While Kingston tests the chip performance for a specific system, it also tests the chips for compatibility. As memory speeds get faster, chip compatibility becomes increasingly important and varies from system to system, so Kingston tests several different chip brands in each system it supports and has approved vendor lists for its modules.
In addition, module physical dimensions affect a module design’s compatibility. In many systems, the number of chips makes a module physically installable and electrically compatible. Designing modules for chip compatibility as well as chip quantity allows us to guarantee absolute compatibility with the system or class of systems in which the module will be installed.
In-System Testing.
Kingston’s engineering process includes the testing of each new module design in the system in which it will ultimately be used. The memory is tested on the system motherboard and with the applications and operating systems most commonly used in the system. This is just one step in the seven-stage pre-production testing process. The in-system testing allows us to ensure that the memory is compatible with all aspects of the system we are designing for including hardware, operating systems and applications.
Specifications
Brand
Kingston
Memory Capacity
96GB
Module Quantity
1 Module
Speed (Data Rate)
5600MT/s (PC5-44800)
Speed (Clock Rate)
2800MHz
Module Type
DIMM
Error Check
ECC Registered
Chip Build
SK-Hynix
Model/Series/Type
Server Premier
CAS Latency
CL46
Rank
2R (Dual Rank)
Pins
288 Pin
Fixed BOM (Build Of Materials)
SK-hynix
Operating Temperature
0°C to 85°C
DRAM Density
24Gbit
Memory Voltage
1.2V
Memory Depth
12G
DRAM Die
M Die
Product Condition
New
Product Type/Family
RAM
Packaging Type
Retail
Chip Organization
x4
Data Width
X80

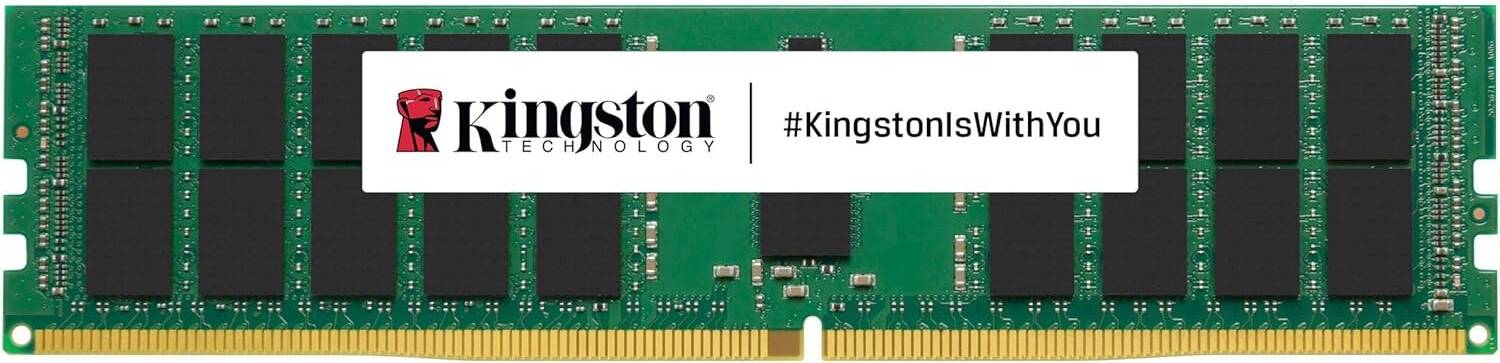

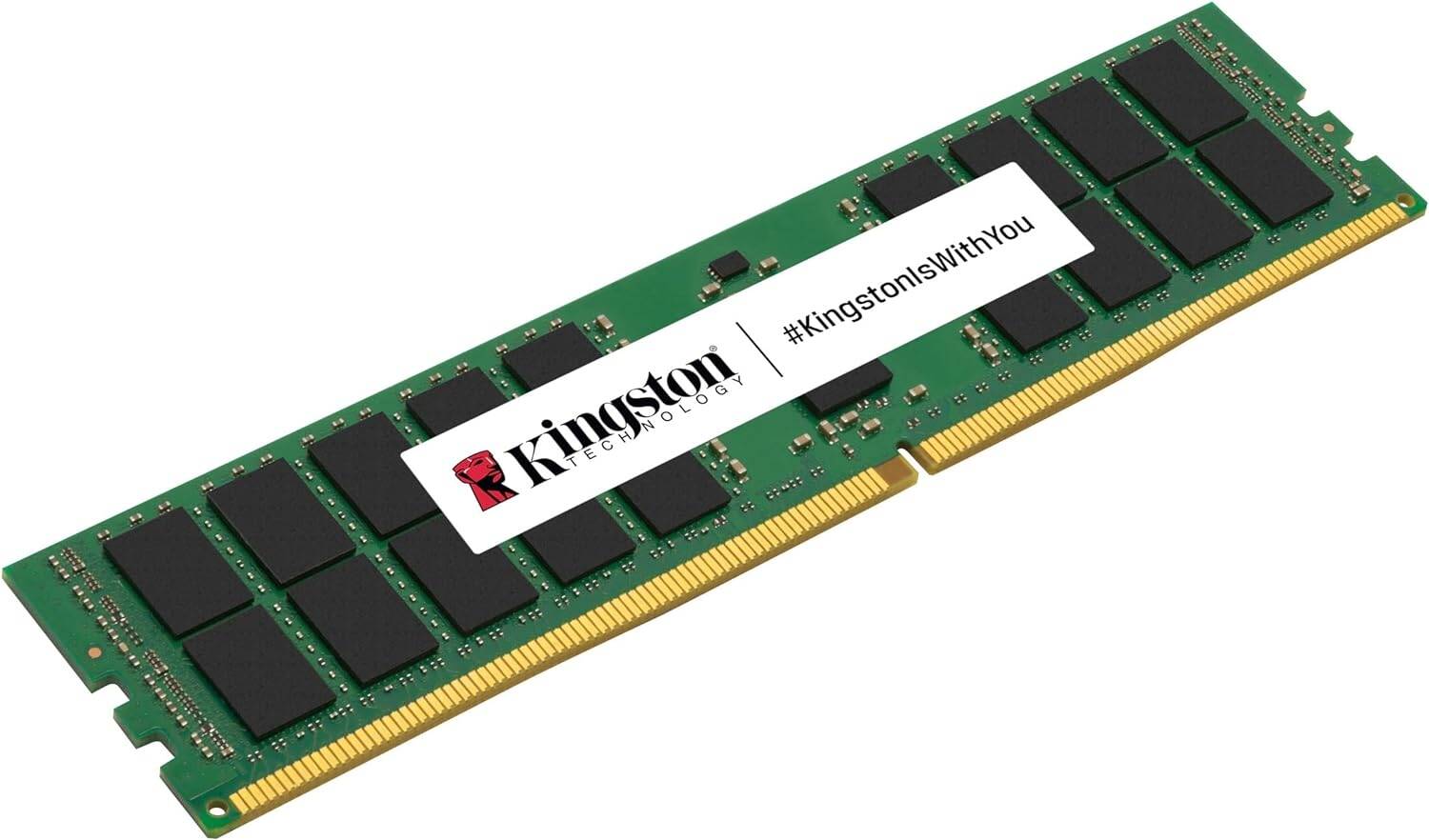

Kingston Server Premier 96GB DDR5 DIMM Memory Module, 5600MT/s Data Rate Speed, 2800Mhz Clock Rate Speed, CL46 CAS Latency, 288-Pin, 1.2 Voltage, Dual Rank | KSM56R46BD4PMI-96HMI
$660.00
Power Supply: VDD = 1.1V Typical | VDDQ = 1.1V Typical | VPP = 1.8V Typical | VDDSPD = 1.8V to 2.0V
On-Die ECC
x80 ECC (x40, 2 independent I/O sub channels)
32 internal banks
Hard/Soft Post Package Repair
Sideband access with I3C/I2C
PCB: Height 1.23” (31.25mm)
RoHS Compliant and Halogen-Free
| Brand |
Kingston |
|---|---|
| Model |
Server Premier |
| Date first available |
08 April; 2024 |
| Shipping Weight |
0.10 Kg |
| Shipping Dimensions |
1.00 cm x 5.00 cm x 16.51 cm |
