AP4423A

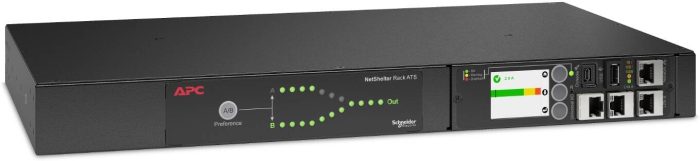

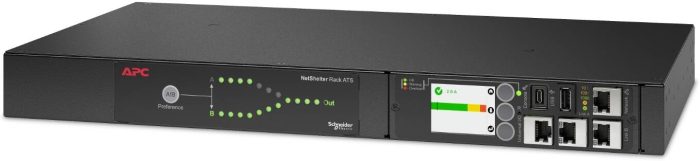

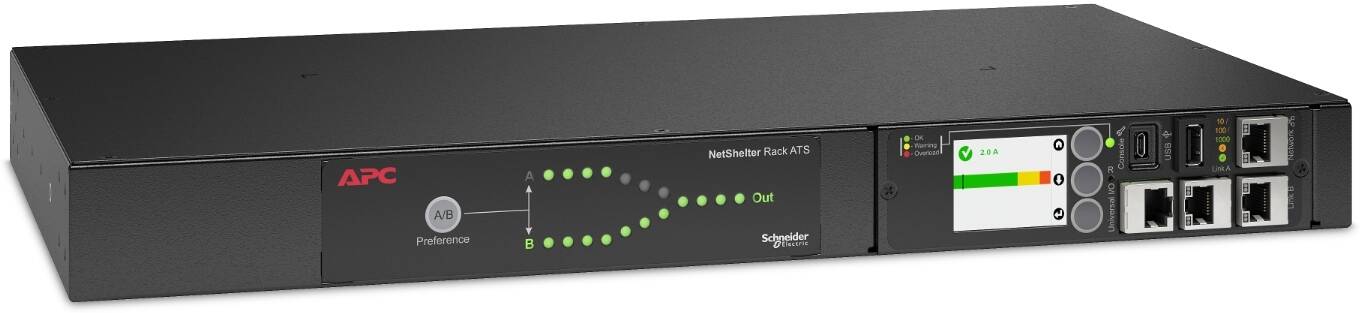

APC NetShelter Rack Automatic Transfer Switch (ATS) AP4423A is the Fifth-Generation range of high availability switches offering greater control of your IT equipment from Cloud to Edge. With Industry leading reliability, agility, and manageability the APC NetShelter Rack ATS provides redundant power to single-corded equipment loads in the IT rack. AP4423A is single-phase 1U Rack ATS with 16A rated current, 230V rated voltage and 3700VA load capacity. It comes with 2 IEC C20 inlet and 8 IEC C13, 1 IEC C19 outlet sockets. This has been upgraded with APC NMC3 and various technical advancements for network port sharing, environmental monitoring and enhanced security. Users can access and configure Rack ATS through secure Web UI, SNMP, CLI and are fully compatible with EcoStruxure IT.
Specification
Lead time
Usually in Stock
Main
Main Input Voltage
230 V AC 1 phase
Product or Component Type
Automatic transfer switch
Main Output Voltage
230 V AC 1 phase
Input Connection Type
IEC 60320 C20 16 A 2P + E
Number of Rack Unit
1U
Provided Equipment
Mounting hardware, Rack mounting brackets
Physical
Colour
Black
Height
4.4 cm
Width
43.2 cm
Depth
23.6 cm
Net Weight
3.74 kg
Mounting Location
Front
Mounting Preference
No preference
Mounting Mode
Rack-mounted
Mounting Position
Horizontal
Input
Network Frequency
50/60 Hz
[In] Rated Current
16 A
Permissible Voltage
207…253 V
Max Line Current
20 A
Input Current Limits
20 A
Load Capacity
3700 VA
Output
Number of Power Socket Outlets

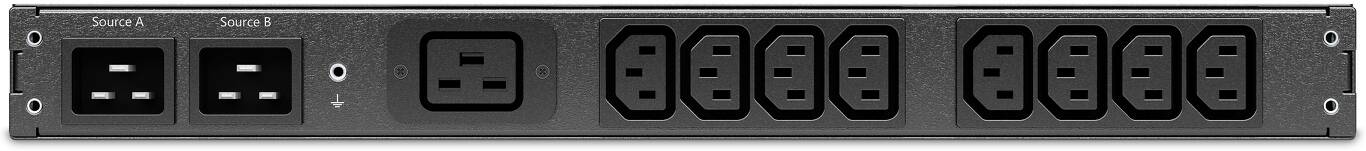

8 IEC 60320 C13 10 A 2P + E, 1 IEC 60320 C19 16 A 2P + E
Total Number of Power Socket Outlets
9
Protection Type
Without circuit breaker
Power Cable Length
2.44 m
Conformance
Product Certifications
cUL listed, CE, UL listed
Standards
EN 55022 class A, FCC part 15 class A
Environmental
Ambient Air Temperature for Operation
-5…45 °C
Relative Humidity
5…95 %
Operating Altitude
0…10000 ft
Ambient Air Temperature for Storage
-25…65 °C
Storage Relative Humidity
5…95 %
Storage Altitude
0…15240 m
Packing Units
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Height
12.000 cm
Package 1 Width
35.500 cm
Package 1 Length
60.000 cm
Package 1 Weight
5.492 kg
Unit Type of Package 2
P12
Number of Units in Package 2
40
APC NetShelter Rack Automatic Transfer Switch, 1U Rachmount, 16A Rated Current, 230V Output Voltage, 2 C20 Inlet & 8 C13, 1 C19 OUT, 50/60Hz Network Frequency, Black | AP4423A
$1,080.00
Seamless switching with transfer time
Minimized downtime disruption with Field-replaceable NMC
Monitor temperature and humidity efficiently
Dual input power cords to enhance uptime for critcal loads
Connect and manage up to 32 Rack ATSs from one IP address
| Brand |
APC |
|---|---|
| Model |
AP4423A |
| Date first available |
22 May; 2024 |
| Shipping Weight |
233.00 Kg |
| Shipping Dimensions |
35.00 cm x 60.00 cm x 12.00 cm |
