Cisco Catalyst WS-C2960-24PC-S LAN Lite Switch, 24x 10/100 PoE Ports, 370W PoE Power, 2x SFP 1G Uplink, 16 Gbps, Rack-mount 1U | WS-C2960+24PC-S

Catalyst WS-C2960-24PC-S
Catalyst WS-C2960-24PC-S is one of the Cisco Catalyst 2960 Series switches. This series support voice, video, data, and highly secure access. They also deliver scalable management as your business needs change. The Common Features are included: Enhanced security including Cisco TrustSecfor providing authentication, access control, and security policy administration, Multiple Fast or Gigabit Ethernet performance options, Cisco EnergyWise for power management, and Scalable network management.
Features
24 Ethernet 10/100 PoE ports for connecting devices.
Power over Ethernet (PoE): The switch supports PoE, allowing it to provide power to connected devices such as IP phones or wireless access points over the Ethernet cables.
Uplink Interfaces: It has 2 dual-purpose uplink ports that can be used as either Ethernet 10/100/1000 ports or as SFP ports for fiber optic connectivity.
Switching Capacity: The switch has a switching capacity of 32 Gbps, indicating the maximum amount of data it can process per second.
Forwarding Rate: It has a forwarding rate of 6.5 million packets per second (Mpps), which denotes the number of packets the switch can forward per second.
VLAN Support: The switch supports VLAN functionality, allowing you to segment your network into multiple virtual networks.
Security Features: It includes security features such as access control lists (ACLs), port security, DHCP snooping, and IP Source Guard to enhance network security.
Quality of Service (QoS): The switch supports QoS features to prioritize specific types of network traffic, ensuring critical applications receive the necessary bandwidth and reducing latency.
Management: It can be managed using Cisco IOS software through a command-line interface (CLI) or a web-based graphical user interface (GUI).

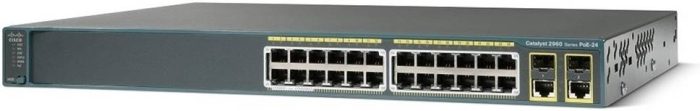

① Switch LEDs
② Mode button
③ 24*10/100 ports
④ Dual-purpose ports
·The switch LEDs include SYST, RPS, Status, Duplex, Speed and PoE LED.
·Dual-purpose ports support SFP or 1000BASE-T uplink port.

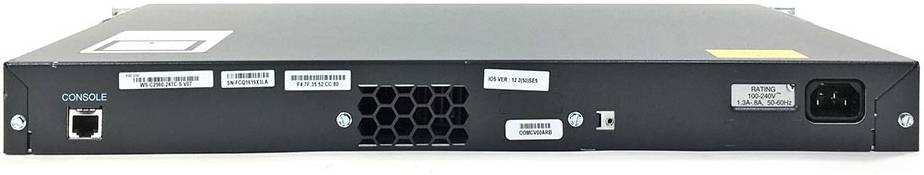

① RJ-45 console port
② Fan exhaust
③ RPS connector
④ AC power connector
Specification
Configurations
10/100 Ethernet Interfaces
24
Uplink Interfaces
2 (SFP or 1000BASE-T)
Cisco IOS Software Feature Set
LAN Lite
Available PoE Power
370W (24 ports up to 15.4W)
Hardware
Flash memory
64 MB
DRAM
128 MB
Performance and Scalability
Forwarding bandwidth
16 Gbps
Maximum active VLANs
644
VLAN IDs available
4K
Maximum transmission unit (MTU) – L3 packet
9000 bytes
Jumbo frame – Ethernet frame
9018 bytes
Forwarding Rate: 64-Byte L3 Packets, Millions of packets per second
6.5
Mechanical
Dimensions (H x W x D)
1.73 x 17.70 x 13.07 in (4.4 x 45.0 x 33.2 cm)
Weight
12 lb (5.4 Kg)
Package Weight
20.26 lb (9.19 Kg)
Environmental Ranges
Operating temperature up to 5000 ft (1500 m)
23º to 113ºF
(-5º to 45ºC)
Operating temperature up to 10,000 ft (3000 m)
23º to 104ºF
(-5º to 40ºC)
Short-term exception at sea level*
23º to 131ºF
(-5º to 55ºC)
Short-term exception up to 5000 feet (1500 m)*
23º to 122ºF
(-5º to 50ºC)
Short-term exception up to 10,000 feet (3000 m)*
23º to 113ºF
(-5º to 45ºC)
Short-term exception up to 13,000 feet (4000 m)*
23º to 104ºF
(-5º to 40ºC)
Storage temperature up to 15,000 feet (4573 m)
23º to 158ºF
(-25º to 70ºC)
Operating altitude
Up to 10,000 Feet
(Up to 3,000 Meters)
Storage altitude
Up to 13,000 Feet
(Up to 4,000 Meters)
Operating relative humidity
10% to 95% noncondensing
Storage relative humidity
10% to 95% noncondensing
Sound Pressure, dBA
Typical, LpAm: 33
Maximum, LpAD: 36
Sound Power, dbA
Typical, LwA: 43
Maximum, LwAD: 46
MTBF in thousands of hours
381
Connectors and Interfaces
Ethernet Interfaces
10BASE-T ports: RJ-45 connectors, 2-pair Category 3, 4, or 5 unshielded twisted-pair (UTP) cabling
100BASE-TX ports: RJ-45 connectors, 2-pair Category 5 UTP cabling
1000BASE-T ports: RJ-45 connectors, 4-pair Category 5 UTP cabling
1000BASE-T SFP-based ports: RJ-45 connectors, 4-pair Category 5 UTP cabling
Indicator LEDs
Per-port status: Link integrity, disabled, activity, speed, and full duplex
System status, Port Status, PoE, RPS, link duplex, and link speed
Console
Cisco Catalyst console cables:
CAB-CONSOLE-RJ45 Console cable 6 ft. with RJ-45
Power
The internal power supply is an auto-ranging unit and supports input voltages between 100 and 240V AC.
Use the supplied AC power cord to connect the AC power connector to an AC power outlet.
The Cisco RPS connector offers connection for an optional Cisco RPS 2300 that uses AC input and supplies DC output to the switch.
Only the Cisco RPS 2300 (model PWR-RPS2300) should be attached to the redundant-power-system receptacle.
Management and Standards Support
Management
BRIDGE-MIB
CISCO-CABLE-DIAG-MIB
CISCO-CDP-MIB
CISCO-CLUSTER-MIB
CISCO-CONFIG-COPY-MIB
CISCO-CONFIG-MAN-MIB
CISCO-DHCP-SNOOPING-MIB
CISCO-ENTITY-VENDORTYPE-OID-MIB
CISCO-ENVMON-MIB
CISCO-ERR-DISABLE-MIB
CISCO-FLASH-MIB
CISCO-FTP-CLIENT-MIB
CISCO-IGMP-FILTER-MIB
CISCO-IMAGE-MIB
CISCO-IP-STAT-MIB
CISCO-LAG-MIB
CISCO-MAC-NOTIFICATION-MIB
CISCO-MEMORY-POOL-MIB
CISCO-PAGP-MIB
CISCO-PING-MIB
CISCO-POE-EXTENSIONS-MIB
CISCO-PORT-QOS-MIB
CISCO-PORT-SECURITY-MIB
CISCO-PORT-STORM-CONTROL-MIB
CISCO-PRODUCTS-MIB
CISCO-PROCESS-MIB
CISCO-RTTMON-MIB
CISCO-SMI-MIB
CISCO-STP-EXTENSIONS-MIB
CISCO-SYSLOG-MIB
CISCO-TC-MIB
CICSO-TCP-MIB
CISCO-UDLDP-MIB
CISCO-VLAN-IFTABLE
RELATIONSHIP-MIB
CISCO-VLAN-MEMBERSHIP-MIB
CISCO-VTP-MIB
ENTITY-MIB
ETHERLIKE-MIB
IEEE8021-PAE-MIB
IEEE8023-LAG-MIB
IF-MIB
INET-ADDRESS-MIB
OLD-CISCO-CHASSIS-MIB
OLD-CISCO-FLASH-MIB
OLD-CISCO-INTERFACES-MIB
OLD-CISCO-IP-MIB
OLD-CISCO-SYS-MIB
OLD-CISCO-TCP-MIB
OLD-CISCO-TS-MIB
RFC1213-MIB
RMON-MIB
RMON2-MIB
SNMP-FRAMEWORK-MIB
SNMP-MPD-MIB
SNMP-NOTIFICATION-MIB
SNMP-TARGET-MIB
SNMPv2-MIB
TCP-MIB
UDP-MIB
ePM MIB
Standards
IEEE 802.1D Spanning Tree Protocol
IEEE 802.1p CoS Prioritization
IEEE 802.1Q VLAN
IEEE 802.1s
IEEE 802.1w
IEEE 802.1X
IEEE 802.1ab (LLDP)
IEEE 802.3ad
IEEE 802.3af
IEEE 802.3ah (100BASE-X single/multimode fiber only)
IEEE 802.3x full duplex on 10BASE-T, 100BASE-TX, and 1000BASE-T ports
IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX
IEEE 802.3ab 1000BASE-T
IEEE 802.3z 1000BASE-X
RMON I and II standards
SNMP v1, v2c, and v3
RFC compliance
RFC 768 – UDP
RFC 783 – TFTP
RFC 791 – IP
RFC 792 – ICMP
RFC 793 – TCP
RFC 826 – ARP
RFC 854 – Telnet
RFC 951 – Bootstrap Protocol (BOOTP)
RFC 959 – FTP
RFC 1112 – IP Multicast and IGMP
RFC 1157 – SNMP v1
RFC 1166 – IP Addresses
RFC 1256 – Internet Control Message Protocol (ICMP) Router Discovery
RFC 1305 – NTP
RFC 1492 – TACACS+
RFC 1493 – Bridge MIB
RFC 1542 – BOOTP extensions
RFC 1643 – Ethernet Interface MIB
RFC 1757 – RMON
RFC 1901 – SNMP v2C
RFC 1902-1907 – SNMP v2
RFC 1981 – Path MTU Discovery for IPv6
FRC 2068 – HTTP
RFC 2131 – DHCP
RFC 2138 – RADIUS
RFC 2233 – IF MIB v3
RFC 2373 – IPv6 Aggregatable Addrs
RFC 2460 – IPv6
RFC 2461 – IPv6 Neighbor Discovery
RFC 2462 – IPv6 Autoconfiguration
RFC 2463 – ICMP IPv6
RFC 2474 – Differentiated Services (DiffServ) Precedence
RFC 2597 – Assured Forwarding
RFC 2598 – Expedited Forwarding
RFC 2571 – SNMP Management
RFC 3046 – DHCP Relay Agent Information Option
RFC 3376 – IGMP v3
RFC 3580 – 802.1X RADIUS
Voltage and Power Ratings
Voltage (Autoranging)
100 to 240 VAC
Current (Amperes)
4.0 – 2.0
Frequency
50 to 60Hz
Power Rating (kVA)
0.43
DC Input Voltages (RPS Input)
2A at 12V (7A at -52V)
Power Consumption
0% traffic: 35.0
10% traffic: 34.8
100% traffic: 35.2
ATIS weighted average: 34.9
Safety and Compliance
Regulatory Compliance
Products should comply with CE Marking per directives 2004/108/EC and 2006/95/EC
Safety
UL 60950-1 Second Edition
CAN/CSA-C22.2 No. 60950-1 Second Edition
EN 60950-1 Second Edition
IEC 60950-1 Second Edition
AS/NZS 60950-1
EMC – Emissions
47CFR Part 15 (CFR 47) Class A
AS/NZS CISPR22 Class A
CISPR22 Class A
EN55022 Class A
ICES003 Class A
VCCI Class A
EN61000-3-2
EN61000-3-3
KN22 Class A
CNS13438 Class A
EMC – Immunity
EN55024
CISPR24
EN300386
KN24
Environmental
Reduction of Hazardous Substances (RoHS) including Directive 2011/65/EU
