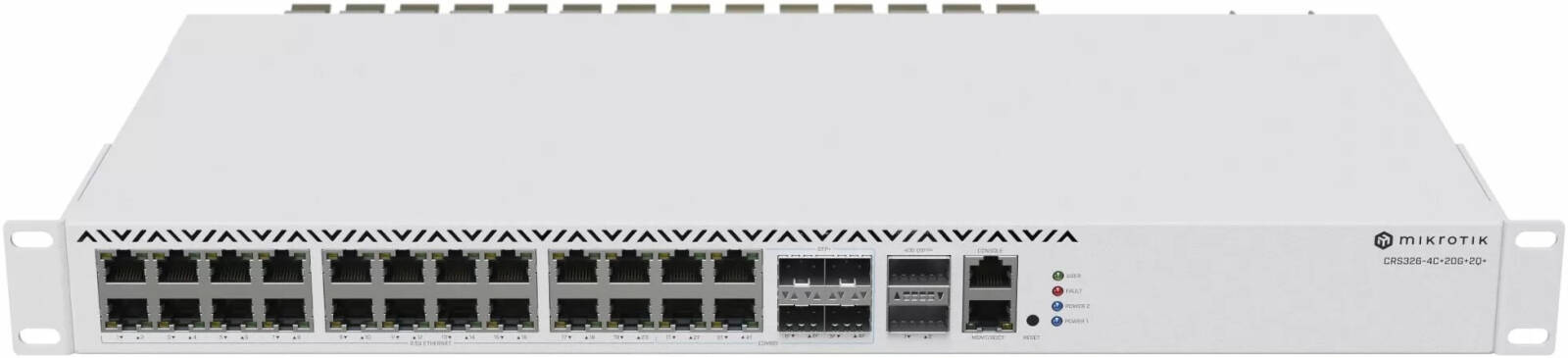

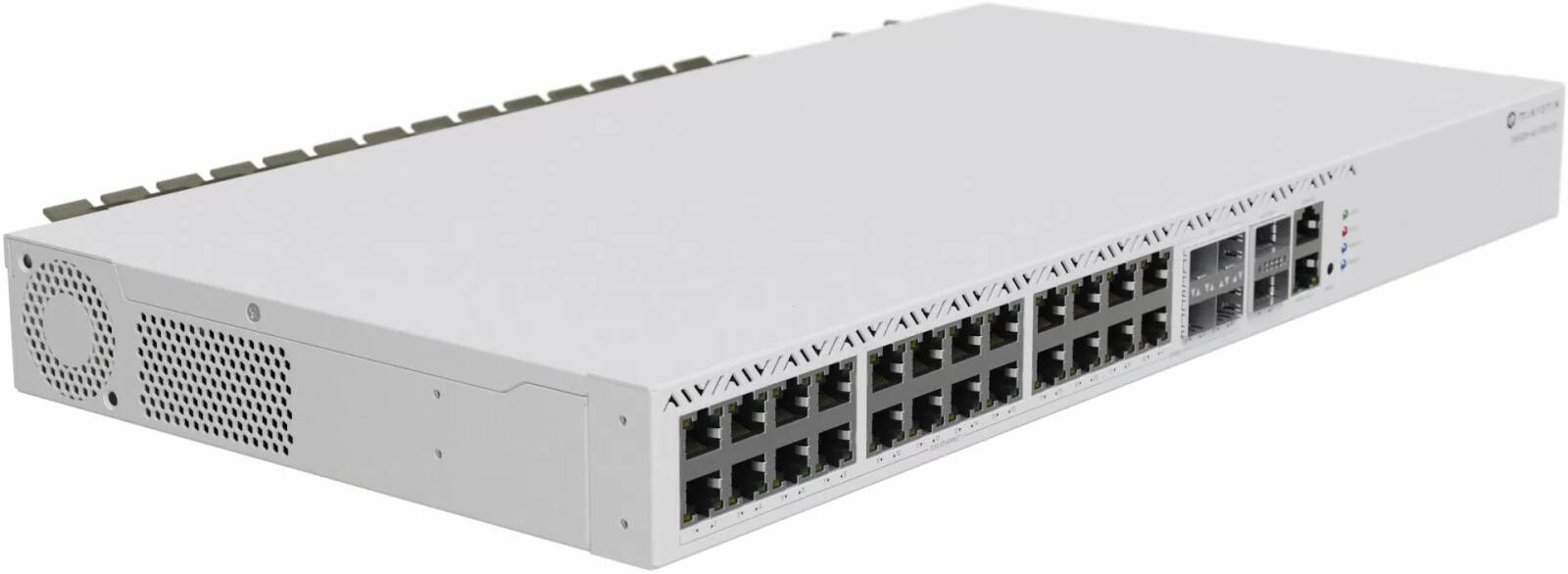

CRS326-4C+20G+2Q+RM
Our top-of-the-line switch with incredible 2.5 Gigabit port density, Combo ports, and even a pair of 40 Gbps QSFP+ cages.
More offices, studios, and other professional environments are making the switch to the fast and reliable 2.5 Gigabit standard. So we wanted to create an affordable solution that could be at the heart of this everchanging landscape, making your life easier, saving your budget, and offering extra flexibility with excellent port-density and additional ultra-fast fiber interfaces. The new CRS326 offers all that and even more!

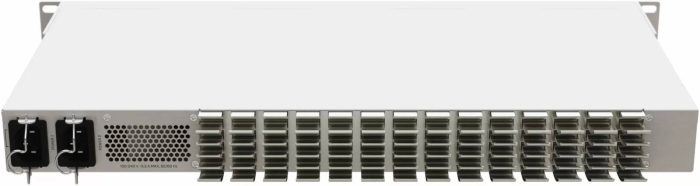

Dual-redundant power supplies and an extra 100 Mbps Ethernet port for management purposes will save you a lot of troubles in the long run. And we’ve included everything you need to secure this marvelous switch in a standard 19” rackmount!
Specifications
Product code
CRS326-4C+20G+2Q+RM
Architecture
MIPSBE
CPU
QCA9531
CPU core count
1
CPU nominal frequency
650 MHz
Switch chip model
98DX8332
RouterOS license
6
Operating System
RouterOS v7
Size of RAM
128 MB
Storage size
32 MB
Storage type
FLASH
MTBF
Approximately 200’000 hours at 25C
Tested ambient temperature
-20°C to 60°C
Tested Ambient Temperature
-20°C to 60°C
Powering
Number of AC Inputs
2
AC Input Range
100-240
Max Power Consumption
70 W
Max Power Consumption without Attachments
51 W
Cooling Type
2 fans
Ethernet
10/100 Ethernet Ports
1
Number of 2.5G Ethernet Ports
20
Number of Combo 10G Ethernet/ SFP+ Ports
4* (2.5G ETH/10G SFP+)
Fiber
Number of 40G QSFP+ Ports
2
Peripherals
Serial Console Port
RJ45
Other
PCB Temperature Monitor
Yes
Voltage Monitor
Yes
Certification & Approvals
Certification
CE, EAC, ROHS
IP
20
