MikroTik CRS504-4XQ-IN Cloud Router Switch, 650MHz, 4x QSFP28 Ports, Compatible 40G/25G/10G/1G Fiber, 25W Power, White | CRS504-4XQ-IN

MikroTiks 100 Gigabit family keeps expanding – you’ve already seen the incredible CCR2216 100 Gigabit router. Now it’s time for a matching switch – the CRS504-4XQ-IN. The small size combined with the low power consumption (25W without attachments!) is perfect to start expanding 100 Gigabit networking in everyday setups. This speed is no longer limited to data centers, ISPs, and large offices. You too can upgrade your 10 or 25 Gigabit network and join the one hundred club!

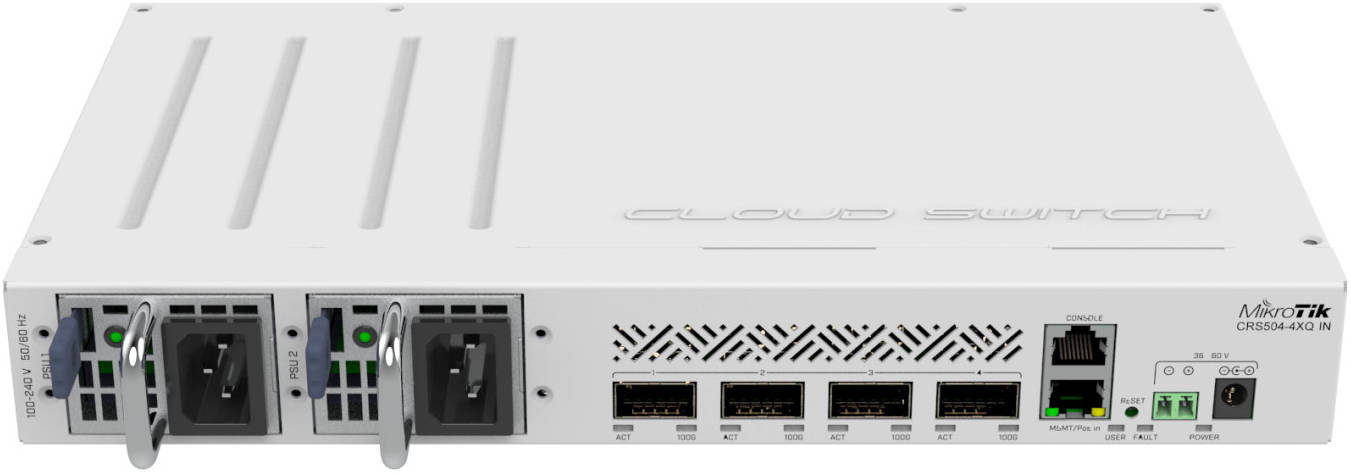

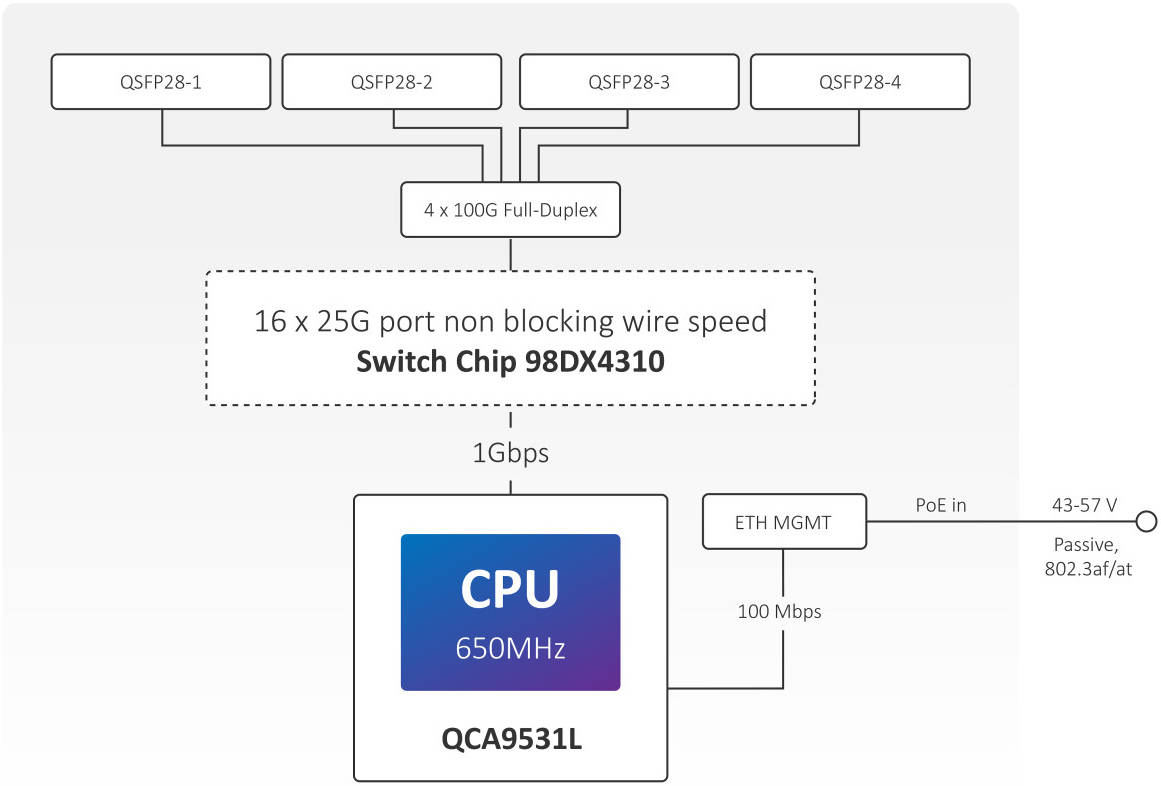

There are four 100 Gigabit QSFP28 ports. Use them to connect other 100 Gigabit devices or grab a breakout cable to connect multiple 25 Gigabit devices: each port is connected to four 25 Gigabit lines, allowing you to connect 16 x 25 Gigabit devices. In fact, you can mix and match all kinds of connections this way: 100 Gigabits on one port, 40 Gigabits on the other, 4×25 Gigabits on the third, and maybe even some 10G or 1G cables on the fourth. The mighty Marvell DX4310 switch-chip will handle everything without breaking a sweat!
Obviously, there is an Ethernet port for management purposes as well.
We’ve been using this switch for quite some time now in the Genomics Data Network project. A high-capacity data network for our local scientists working on ground-breaking cancer treatments. Genome data can take up a lot of space, so you need exceptionally fast connections there. Also, with these devices, Latvia became the first Baltic country to establish a 100 Gigabit connection to the pan-European research network.

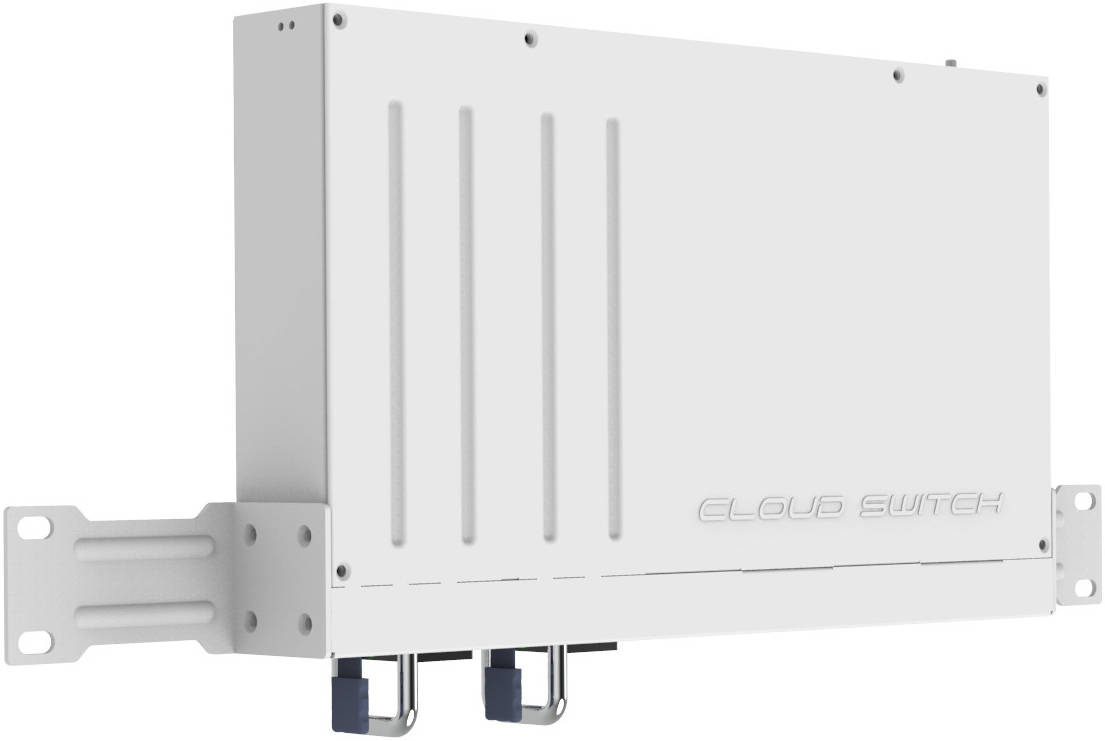

With multiple powering options and the ability to be mounted on the wall, this switch will make any system administrator happy.
Technical parameters
Connectors and interfaces
LAN speed: (1) 10/100Mbps
Optical interface: (4) 100G
Serial port: RJ45
Power supply
Power supply via PoE: 802.3af, 802.3at, 43 .. 57V DC
Redundant power supply: Yes
Power supply type: PoE, DC connector, DC terminal block, Mains (230V)
PoE types: PoE-In (only)
Max. power consumption [W]: 25
Power supply via connector/terminal block: 36 .. 57V DC, 230V AC
Physical characteristics
Design: Desktop, Rackmount
Number of “U” positions: 1
Fans: (2) 40 x 40 mm
Chassis: Metal
Buttons: Reset
Operating temperature [° C]: – 40 to 70
Width [mm] 320
Height [mm]: 44
Depth [mm] 185
Hardware
CPU: QCA9531
CPU frequency [MHz]: 650
Number of CPU cores: 1
Internal storage [MB]: 16
RAM [MB]: 64
Software
Web management: Yes
Management: Web interface
Functions: VLAN, QoS, L3
Operating system: RouterOS – L5
IPv6 support: Yes
Default IP address: 192.168.88.1
