NETGEAR M4300-28G-PoE+ 26-Port 1G/10G PoE+ Managed Network Switch with SFP+, 128Gb/s Switching, 480W Power Budget, 95.2Mpps Fwd Rate, 24x Gb ETH PoE+, 2x 10G SFP+, 2x 10G ETH | GSM4328PA-100AJS

M4300
28G PoE+ Managed Switch 480W

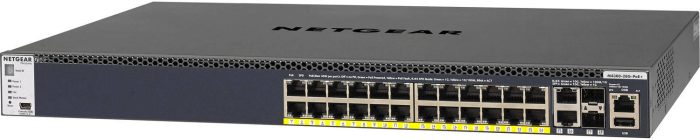

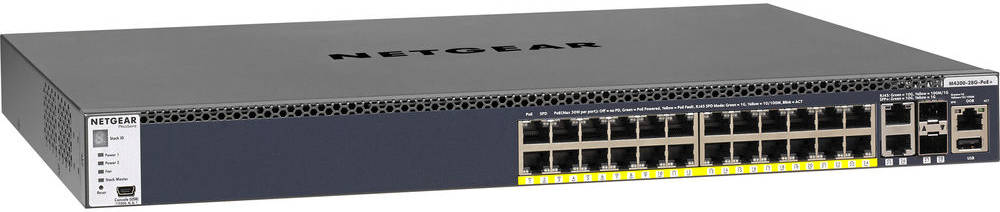

Expand your small to medium-sized business’s network capacity with the M4300-28G PoE+ 26-Port 1G/10G PoE+ Compliant Managed Network Switch from Netgear. This fully managed rackmount network switch includes Layer 2, 3, and 4 feature sets, such as hot-swappable mixed stacking, with up to eight switches in a single logical switch. There are no license requirements to support video broadcast and other high-bandwidth applications.
Key Features
24 x Gigabit Ethernet PoE+ Ports
2 x 10G Ethernet Ports
2 x 10G SFP+ Ports
128 Gb/s Switching Capacity
95.2 Mpps Forwarding Rate
800 MHz Processor | 1GB RAM
Rackmount Design
480W Power Budget
550W Power Supply | Redundancy Support
The M4300 series scales from 24x1G to 48x10G and up to 384 ports per stack. Nonstop forwarding, spine and leaf, edge-to-core connectivity for unified wired and wireless networks. Unstoppable operation with management unit hitless failover and no service interruption for the clients connected to the other switches in the stack.

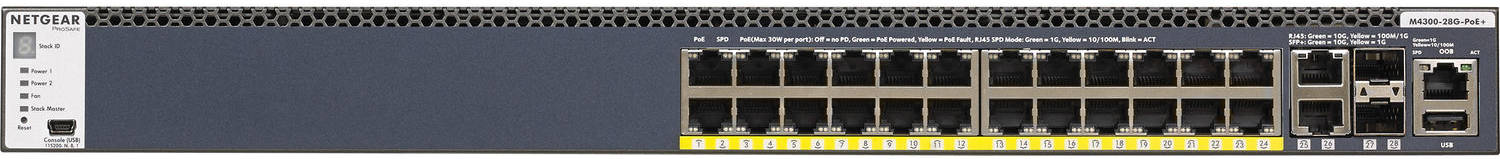

Provides 24 Gigabit PoE+ ports with 2 10GBASE-T and 2 10GBASE-X SFP+ uplink connectivity
All (4) 10G ports are independent and 1G backwards compatible for progressive transition to 10G speeds

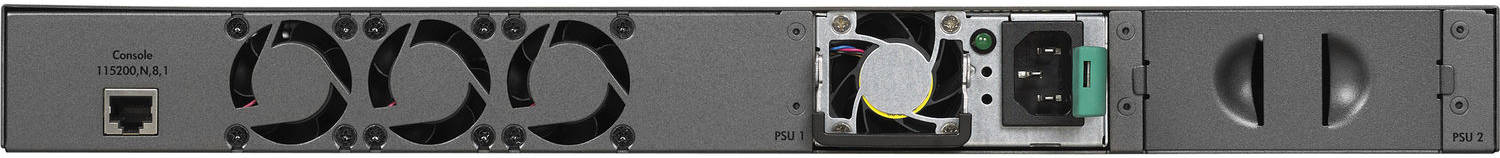

Hot swap APS550 W power supplies deliver 480 W redundant PoE+ budget across 24 ports or 720 W in share mode
With 176 Gbps non-blocking fabric, M4300-52G-PoE+ delivers L2/L3/L4 and IPv4/IPv6 rich services for wireless access layer, IP video and unified communications.
Virtual Chassis stacking provides non-stop forwarding (NSF) and hitless failover for highest availability (HA).
1 Gigabit models such as M4300-52G-PoE+ can stack with 10 Gigabit models enabling line-rate spine and leaf topologies.
PoE deployment at the edge
Common for intermediate distribution frames (IDF) in K-12, horizontal or vertical ring stacking topologies greatly simplify Power over Ethernet deployments at the edge and bring network resiliency with distributed 10G uplinks in aggregation to the core.
Top-of-rack and server installations
For midsize server installations, two half-width M4300 10 Gigabit models can be paired in an effective single rack space for redundant top-of-rack. Non-stop switching, non-stop routing stacking technology ensures no single point of failure for servers connecting to the stack.
Spine and Leaf topologies
For typical collapsed core installations with a variety of 1G and 10G access ports in high-performance local area networks, M4300 10G models can stack with M4300 1G models creating ‘spine and leaf’ topologies, reducing oversubscription, even enabling line-rate aggregation to the spine.
Specifications
Interfaces
Inputs/Outputs
– 24 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) PoE+
– 2 x 10Gb Ethernet (RJ45)
– 2 x 10Gb SFP+
– 1 x 10/100/1000 Mb/s Gigabit Ethernet (Console)
– 1 x RS-232 (Console)
– 1 x Mini-USB (Console)
– 1 x USB-A
Protocols
Layer Services Supported
– Layer 2 Support
– Layer 3 Support
– Layer 4 Support
Supported Protocols
– Auto-VoIP
– DHCP Server
– IGMP Snooping
– IPv4
– IPv6
– Link Aggregation
– RADIUS
MAC Address Table Size
16K
VLAN IDs
4000
Security
Security Features
– DHCP Snooping
– DoS Attack Prevention
– RADIUS Authentication
– Storm Control
Static Routes
64
Standards
Supported IEEE Standards
– 802.1ax
– 802.1p
– 802.1q
– 802.1qbb
– 802.1s
– 802.1w
– 802.1x
– 802.3
– 802.3ad
– 802.3af
– 802.3at
Performance
Latency
1.9 to 3.8 µs
Forwarding Rate
95.2 Mpps
Switching Bandwidth
128 Gb/s (Non-Blocking)
Packet Buffer
16 Mb
Computer
Flash Memory
256 MB
CPU
Single-Core: Up to 800 MHz
Memory
1 GB
Electrical
Power Draw
577.00 W (Max)
AC Input Power
110 to 220 VAC, 50 / 60 Hz
PoE Power Budget
480 W
PoE per Port
30 W
Power Supply Type
Internal
Environmental
Noise Level
39.8 dB
General
Cooling System
Fan
Mean Time Between Failures (MTBF)
1,328,968 Hours
Rack Form Factor
1 RU
Dimensions
17.3 x 12.2 x 1.7″ / 44 x 31 x 4.4 cm
Weight
11.22 lb / 5.09 kg
