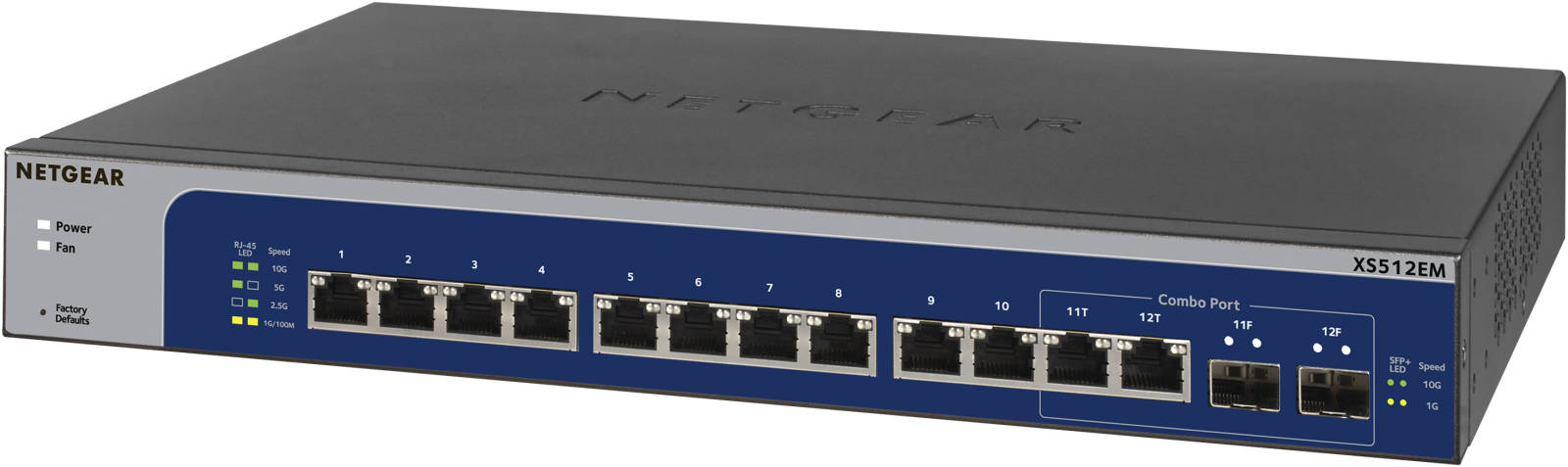

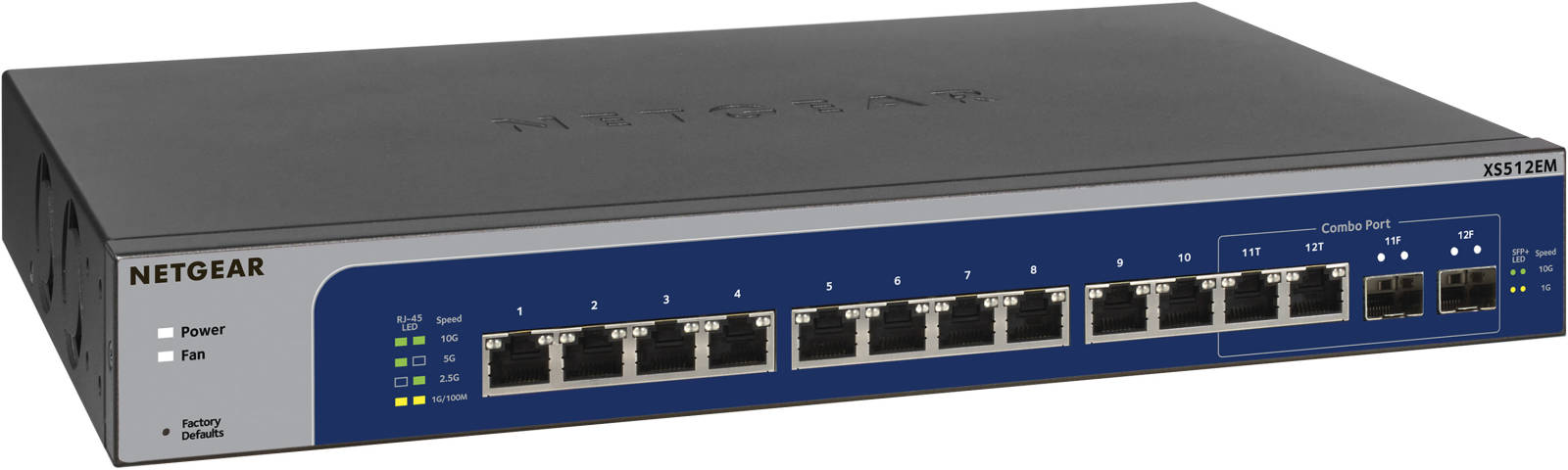

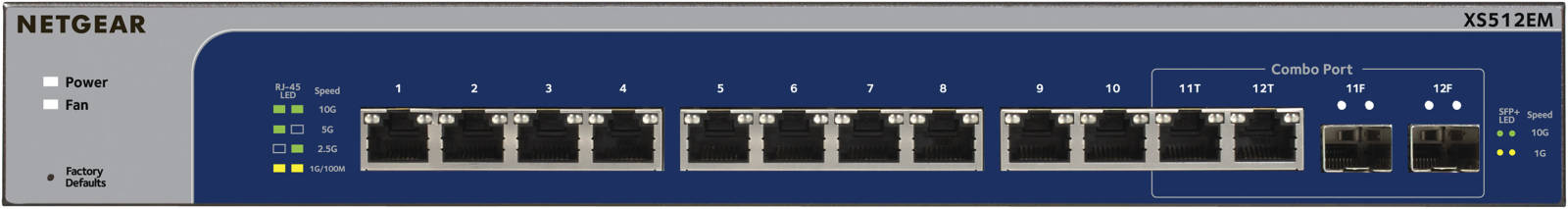

NETGEAR XS512EM 12-Port Gigabit Managed 5-speed Networking Switch with 2x Shared SFP+ Ports, 240 Gb/s Bandwidth, Supports up to 64 VLANs & up to 128 Multicast Groups, 76.5W Power, | XS512EM-100EUS

10-Gigabit/Multi-Gigabit Plus
12-Port 10G-Gigabit/Multi-Gigabit Ethernet Switch with 2 SFP+ Combo Ports
As a leading provider of network equipment for SMBs, NETGEAR® understands the importance of reliable and high-performance networks. With the growth of virtualization, cloud-based services and applications like VoIP, video streaming, and IP surveillance, SMB networks need to extend beyond simple reliability to higher speed and performance. The 10-Gigabit and Multi-Gigabit Plus Switches from NETGEAR present the right solution for this requirement; delivering unprecedented non-blocking10-Gigabit bandwidth at the most affordable cost. All of them are perfect for removing the SMB network bottlenecks caused by the proliferation of Gigabit-to-the-desktop and the upcoming 10-Gigabit/Multi-Gigabit high-end workstations.
Key Features
12 x 1G/2.5G/5G/10G 5 speed Multi-gig Ethernet Ports
2 x 1G/10G SFP+ ports (both are shared)
12 x Gigabit Copper Ports
2 x Shared SFP+ Ports
240 Gb/s Full-Duplex Bandwidth
32K MAC Address Table Size
Supports up to 64 VLANs
Supports up to 128 Multicast Groups
Up to 9K Jumbo Frame Support
802.3az Energy Efficient Ethernet
Quiet operation
Specifications
100M/1G/2.5G/5G/10G RJ-45 copper ports
12
SFP+ Ports
2 (shared)
Form Factor
Rackmount
Packet Buffer Memory
3MB
Bandwidth
240Gbps
MAC Address Database Size
32K
VLAN (# Supported)
64
Number of LAGs & Number of Members
8 LAGs with max 8 members in each LAG
Supported Multicast Groups
128
Max Number of Source Ports Allowed
11 (Many-to-One Port Mirroring)
Fan(s)
2 (Active Fans)
IEEE 802.3az (Energy Efficient Ethernet)
Yes
Max Power Consumption (Watts)
76.56W
LEDs
Power, Speed, Fan, Link/Activity
Acoustic Noise Level @ 25°C (dBA)
29.3dBA
Operating Temperature
0°C to 50°C
Electromagnetic Compliance (A or B)
A
