S16
Specifications
Network Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3x
LED Indicator
1× Power, 16× Link/Act
Interfaces
16× 10/100 Base-TX Ethernet ports (Auto MDI/MDIX)
Transmission Media
Recommended: CAT5/5e UTP or better
Dimension
218.0mm × 135.0mm × 41.6mm
Material
Plastic
Level of Protection
ESD Protection:
Air discharge: ±8kV
Contact discharge: ±6kV
Forwarding Mode
Store-and-forward
Switch Capacity
3.2Gbps
Packet Forwarding Rate
2.38Mpps
Buffer
1.25Mb
MAC Address Table
4K
Power
Input: 100-240V AC 50/60Hz
Output: 9V 0.6A (External power adapter)
Power Consumption
/
Mounting
Desktop mounting: Supported
Wall mounting: Supported
Rack mounting: Not Supported
Environment
Operating Temperature: 0°C – 45°C
Storage Temperature: -40°C – 70°C
Operating Humidity: 10% – 90% RH, non-condensing
Storage Humidity: 5% – 90% RH, non-condensing
Certification
CE, FCC, RoHS
Protocols
CDMA/CD
MAC Address Learning
Auto-Learning and Auto-Aging
Functions
Plug-and-play

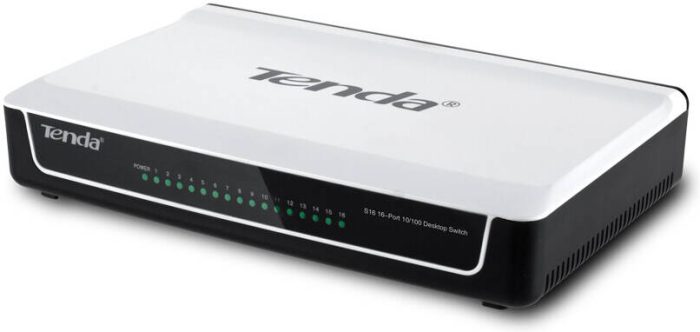

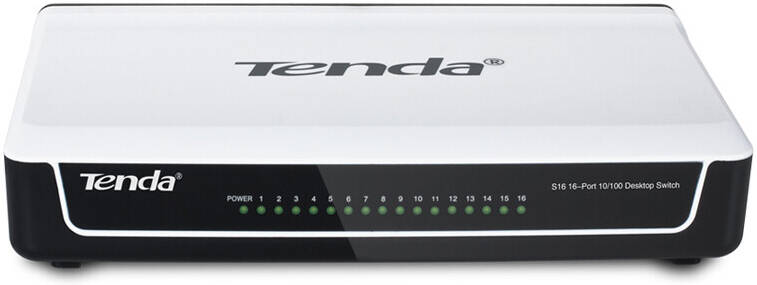

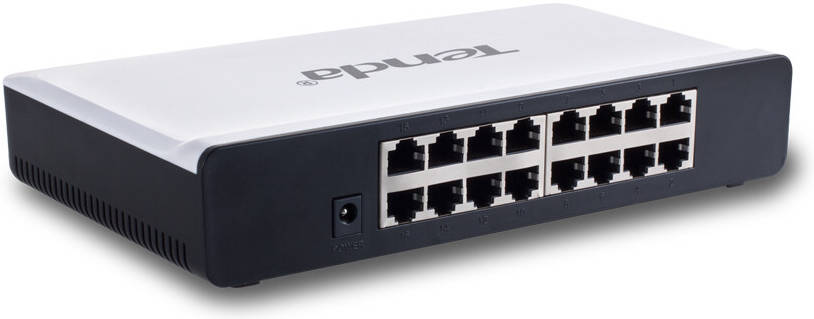

Tenda S16 16-Port 10/100Mbps Switch, 3.2Gbps Switch Capacity, 2.38Mpps Forwarding Rate, 1.25Mb Buffer, Plug And Play, LED Indicator, Desktop & Wall Mounting Support, 50 Pieces, White/Black | S16
$660.00
16 Autosensing 10/100Mbps switched ports with auto MDI/MDI-X crossover detection
Up to 200Mbps full duplex bandwidth on each port
Compact size fits into any environment
Address Learning and Aging, and Data Flow Control for enhanced transmission
| Brand |
Tenda |
|---|---|
| Model |
S16 |
| Date first available |
18 February; 2025 |
| Shipping Weight |
1.50 Kg |
| Shipping Dimensions |
15.00 cm x 25.00 cm x 10.00 cm |
