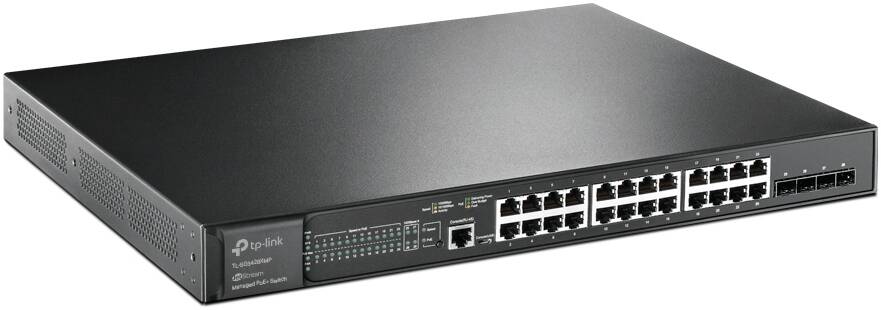

TP-Link JetStream 4-Port 10GE SFP+ L2+ Managed Switch with 24-Port PoE+, 24x 10/100/1000 Mbps RJ45 Ports, 128 Gbps Switching Capacity, Advanced L3 Features, Black | SG3428XMP

SG3428XMP
JetStream 24-Port Gigabit and 4-Port 10GE SFP+ L2+ Managed Switch with 24-Port PoE+
Specifications
HARDWARE FEATURES
Interface

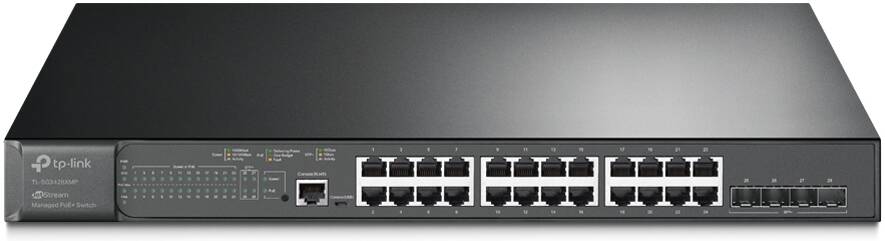

24× 10/100/1000 Mbps RJ45 Ports, 4× 10G SFP+ Slots, 1× RJ45 Console Port, 1× Micro-USB Console Port
Fan Quantity
2
Power Supply
100-240 V AC~50/60 Hz
PoE+ Ports (RJ45)
Standard: 802.3at/af compliant, PoE+ Ports: 24 Ports, up to 30 W per port, Power Budget: 384 W
Dimensions (W x D x H)
17.3 × 13.0 × 1.7 in (440 × 330 × 44 mm)
Mounting
Rack Mountable
Max Power Consumption
34.4 W (110V/60Hz) (no PD device connected), 465.8 W (110V/60Hz) (with 384 W PD device connected)
Max Heat Dissipation
117.38 BTU/h (110 V/60 Hz) (no PD device connected), 1589.31 BTU/h (110 V/60 Hz) (with 384 W PD device connected)
PERFORMANCE
Switching Capacity
128 Gbps
Packet Forwarding Rate
95.23 Mpps
MAC Address Table
16 K
Packet Buffer Memory
12 Mbit
Jumbo Frame
9 KB
SOFTWARE FEATURES
Quality of Service
8 priority queues, 802.1p CoS/DSCP priority, Queue scheduling (SP, WRR, SP+WRR), Bandwidth Control (Port/Flow based Rating Limiting), Smoother Performance, Action for Flows (Mirror, Redirect, Rate Limit, QoS Remark)
L3 Features
16 IPv4/IPv6 Interfaces, Static Routing (48 static routes), Static ARP (128 Static Entries), Proxy ARP, Gratuitous ARP, DHCP Server, DHCP Relay (Interface Relay, VLAN Relay), DHCP L2 Relay
L2 and L2+ Features
Link Aggregation (static link aggregation, 802.3ad LACP, up to 8 aggregation groups, 8 ports per group), Spanning Tree Protocol (802.1d STP, 802.1w RSTP, 802.1s MSTP, STP Security: TC Protect, BPDU Filter, Root Protect), Loopback Detection (Port based, VLAN based), Flow Control (802.3x Flow Control, HOL Blocking Prevention), Mirroring (Port Mirroring, CPU Mirroring, One-to-One, Many-to-One, Tx/Rx/Both)
L2 Multicast
IGMP Snooping (IGMP v1/v2/v3 Snooping, Fast Leave, IGMP Snooping Querier, IGMP Authentication), MLD Snooping (MLD v1/v2 Snooping, Fast Leave, MLD Snooping Querier, Static Group Config, Limited IP Multicast), MVR, Multicast Filtering (256 profiles, 16 entries per profile)
Advanced Features
Support Omada Hardware Controller (OC200/OC300), Software Controller, Cloud-Based Controller, Automatic Device Discovery, Batch Configuration, Batch Firmware Upgrading, Intelligent Network Monitoring, Abnormal Event Warnings, Unified Configuration, Reboot Schedule, ZTP (Zero-Touch Provisioning)
VLAN
VLAN Group (Max 4K VLAN Groups), 802.1Q Tagged VLAN, MAC VLAN (7 Entries), Protocol VLAN (Protocol Template 16, Protocol VLAN 16), Private VLAN, GVRP, VLAN VPN (QinQ), Port-Based QinQ, Selective QinQ, Voice VLAN
Access Control List
Time-based ACL, MAC ACL (Source MAC, Destination MAC, VLAN ID, User Priority, Ether Type), IP ACL (Source IP, Destination IP, Fragment, IP Protocol, TCP Flag, TCP/UDP Port, DSCP/IP TOS, User Priority), Combined ACL, Packet Content ACL, IPv6 ACL, Policy (Mirroring, Redirect, Rate Limit, QoS Remark), ACL apply to Port/VLAN
Security
IP-MAC-Port Binding (512 Entries, DHCP Snooping, ARP Inspection, IPv4 Source Guard: 100 Entries), IPv6-MAC-Port Binding (512 Entries, DHCPv6 Snooping, ND Detection, IPv6 Source Guard: 100 Entries), DoS Defend, Static/Dynamic Port Security (up to 64 MAC addresses per port), Broadcast/Multicast/Unicast Storm Control (kbps/ratio control mode), 802.1X (Port base authentication, Mac base authentication, VLAN Assignment, MAB, Guest VLAN, Support Radius authentication and accountability), AAA (including TACACS+), Port Isolation, Secure web management through HTTPS with SSLv3/TLS 1.2, Secure Command Line Interface (CLI) management with SSHv1/SSHv2, IP/Port/MAC based access control
IPv6
IPv6 Dual IPv4/IPv6, Multicast Listener Discovery (MLD) Snooping, IPv6 ACL, IPv6 Interface, Static IPv6 Routing, IPv6 neighbor discovery (ND), Path maximum transmission unit (MTU) discovery, Internet Control Message Protocol (ICMP) version 6, TCPv6/UDPv6, IPv6 applications (DHCPv6 Client, Ping6, Tracert6, Telnet (v6), IPv6 SNMP, IPv6 SSH, IPv6 SSL, Http/Https, IPv6 TFTP)
Management
Web-based GUI, Command Line Interface (CLI) through the console port, telnet, SNMP v1/v2c/v3 (Trap/Inform, RMON (1,2,3,9 groups)), SDM Template, DHCP/BOOTP Client, 802.1ab LLDP/LLDP-MED, DHCP AutoInstall, Dual Image, Dual Configuration, CPU Monitoring, Cable Diagnostics, EEE, Password Recovery, SNTP, System Log
MIBs
MIB II (RFC1213), Interface MIB (RFC2233), Ethernet Interface MIB (RFC1643), Bridge MIB (RFC1493), P/Q-Bridge MIB (RFC2674), RMON MIB (RFC2819), RMON2 MIB (RFC2021), Radius Accounting Client MIB (RFC2620), Radius Authentication Client MIB (RFC2618), Remote Ping, Traceroute MIB (RFC2925), Support TP-Link private MIB
MANAGEMENT
Omada App
Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller
Centralized Management
Omada Cloud-Based Controller, Omada Hardware Controller (OC300), Omada Hardware Controller (OC200), Omada Software Controller
Cloud Access
Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller
Zero-Touch Provisioning
Yes. Requiring the use of Omada Cloud-Based Controller
Management Features
Web-based GUI, Command Line Interface (CLI) through the console port, telnet, SNMP v1/v2c/v3 (Trap/Inform, RMON (1,2,3,9 groups)), SDM Template, DHCP/BOOTP Client, 802.1ab LLDP/LLDP-MED, DHCP AutoInstall, Dual Image, Dual Configuration, CPU Monitoring, Cable Diagnostics, EEE, Password Recovery, SNTP, System Log
OTHERS
Certification
CE, FCC, RoHS
Package Contents
TL-SG3428XMP Switch, Power Cord, Quick Installation Guide, Rackmount Kit, Rubber Feet
System Requirements
Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux
Environment
Operating Temperature: 0–45 ℃ (32–113 ℉); Storage Temperature: -40–70 ℃ (-40–158 ℉); Operating Humidity: 10–90% RH non-condensing; Storage Humidity: 5–90% RH non-condensing
