TP-Link Omada 24-Port Gigabit Stackable L3 Managed Switch with 4 10G Slots, 24x 10/100/1000 Mbps RJ45 Ports, 2x USB 2.0 Ports, 128 Gbps Switching Capacity, Black | SG6428X

SG6428X

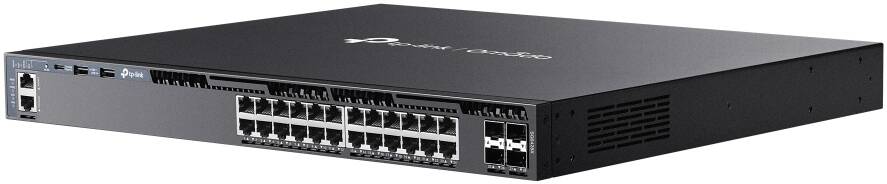

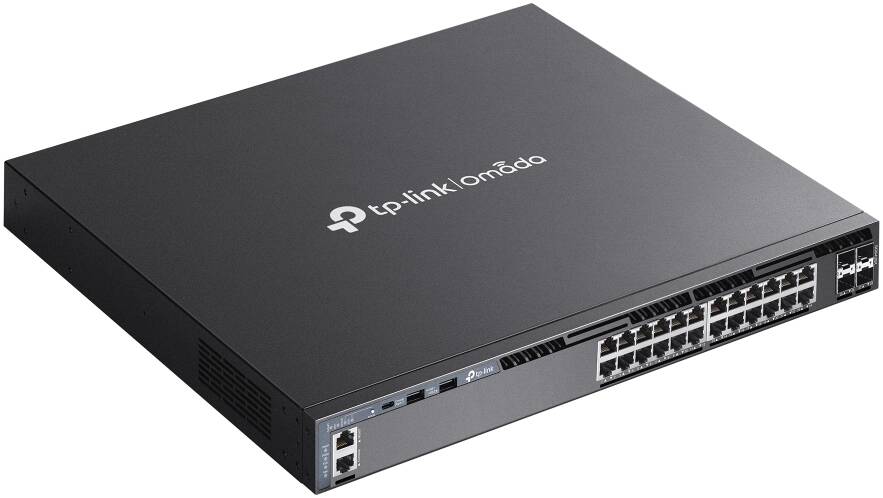

Omada 24-Port Gigabit Stackable L3 Managed Switch with 4 10G Slots
What This Product Does
Omada SG6428X is a high-performance L3 managed switch tailored for the convergence layer, featuring L3 routing, fast 10 Gbps wired speeds, stacking options, and redundant power supply modules. It includes 24× Gigabit RJ45 ports, 4× 10 Gbps SFP+ slots, physical stacking ability, and centralized management. Integrated with strong security and extensive management features, the SG6428X offers a dependable networking solution for SMBs, enterprises, and ISPs.
High-speed Connectivity and Powerful Stacking
24× Gigabit RJ45 ports and 4× 10 Gbps SFP+ slots provide up to 128 Gbps switching capacity per unit. Up to 4 units of physical stacking with up to 512 Gbps switching capacity empowers the networking structure with built-in redundancy and performance.
Abundant Layer 3 Capabilities
Comes with abundant Layer 3 routing protocols that support a scalable network. Static Routing, RIP, OSPF, ECMP, VRRP, DHCP Server, and DHCP Relay are supported. PIM-DM multicast routing protocol guarantees efficient routing for multicast groups.
Highly Available
Internal fixed redundant power supplies and VRRP make it an ideal choice for reliable networking architecture. ERPS supports rapid protection and recovery in a ring topology.
Enhanced Security Functions
Defend against a range of network threats with ACL support (IPv4 & IPv6), Dynamic ARP Inspection, IEEE 802.1X, MAB, Port Security, and Secure Shell.
Omada SDN
Integration into the Omada system brings centralized cloud management and a series of management features such as Zero-Touch Provisioning (ZTP).* The Omada Software Defined Networking (SDN) platform integrates network devices, including access points, switches, and routers, providing 100% centralized cloud management—all controlled from a single interface.
Apart from the ability to be centrally managed via the web or the Omada app, SG6428X is also easy to manage via an intuitive web-based Graphical User Interface (GUI) or an industry-standard Command Line Interface (CLI). For both management methods, traffic is protected through SSL or SSH encryption. SNMP (v1/v2c/v3) and RMON support enable the switch to be polled for valuable status information and to send traps for abnormal events.
Specifications
HARDWARE FEATURES
Interface

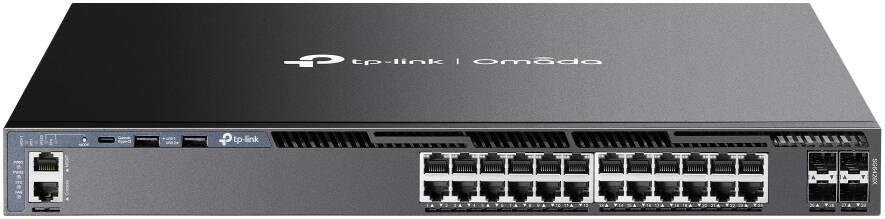

24× 10/100/1000 Mbps RJ45 Ports
4× 10G SFP+ Slots
2× USB 2.0 Ports
1× RJ45 Console Port
1× USB Type-C Console Port
1× RJ45 Management Port
Fan Quantity

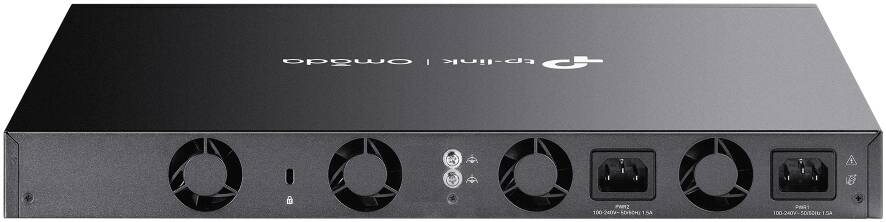

Four Internal Fixed Fans
Power Supply
Two Internal Fixed Power Supply Modules (100–240 VAC, 50/60 Hz)
Dimensions (W x D x H)
17.3 × 15.0 × 1.7 in (440 × 380 × 44 mm)
Mounting
Rackmountable
Max Power Consumption
28.4 W (220 V/50 Hz)
Max Heat Dissipation
96.91 BTU/hr (220 V/50 Hz)
PERFORMANCE
Switching Capacity
128 Gbps per Unit
Stacking
Stacking Number: 4
Stacking Port: 10G SFP+ Slot (all uplink ports can be used as stacking ports)
Stack Bandwidth: 20 Gbps Per Port (Full-Duplex)
Packet Forwarding Rate
95.2 Mpps
MAC Address Table
32 K
Packet Buffer Memory
3 MB
Jumbo Frame
9 KB
SOFTWARE FEATURES
Quality of Service
Various QoS features including Class of Service, Bandwidth Control, Voice VLAN, etc.
L3 Features
IP Interfaces, Static Routing, RIP, OSPF, VRRP, DHCP Server/Relay, ARP, IPv6 support, etc.
L2 and L2+ Features
Link Aggregation, Spanning Tree Protocol, IGMP/MLD Snooping, Multicast support, etc.
Advanced Features
Device Discovery, Batch Configuration, Firmware Upgrading, Network Monitoring, etc.
ISP Features
Ethernet Link OAM, Layer 2 Protocol Tunneling, DLDP, DDM, sFlow
VLAN
VLAN management including 802.1Q VLANs, VLAN VPN, Voice VLAN, Private VLAN, etc.
Security
Various security features such as Port Isolation, DoS Defend, ARP Inspection, 802.1X, etc.
MANAGEMENT
Omada App
Yes, requires Omada Hardware/Cloud-Based/Software Controller
Centralized Management
Omada Cloud-Based/Hardware/Software Controller
Cloud Access
Yes, requires Omada Hardware/Cloud-Based/Software Controller
Zero-Touch Provisioning
Yes, requires Omada Cloud-Based Controller
Management Features
Web-based GUI, CLI, SNMP, SDM Template, DHCP/BOOTP Client, etc.
OTHERS
Package Contents
SG6428X Switch, Power Cords, Console Cable, Installation Guide, Rackmount Kit, Rubber Feet
System Requirements
Compatibility with various operating systems
Environment
Operating and storage temperature/humidity specifications
