TP-Link Omada 48-Port Gigabit Stackable L3 Managed Switch with 6 10G Slots, 48x 10/100/1000 Mbps RJ45 Ports, 6x 10G SFP+ Slots, 2x USB 2.0 Ports, 216 Gbps Switching Capacity, Black | SG6654X

SG6654X

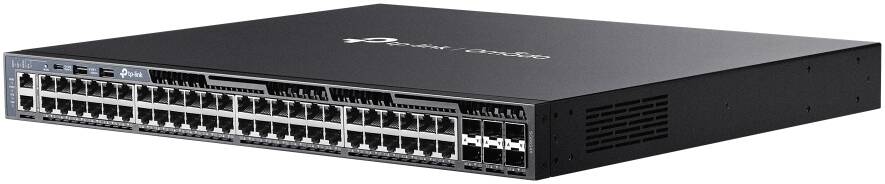

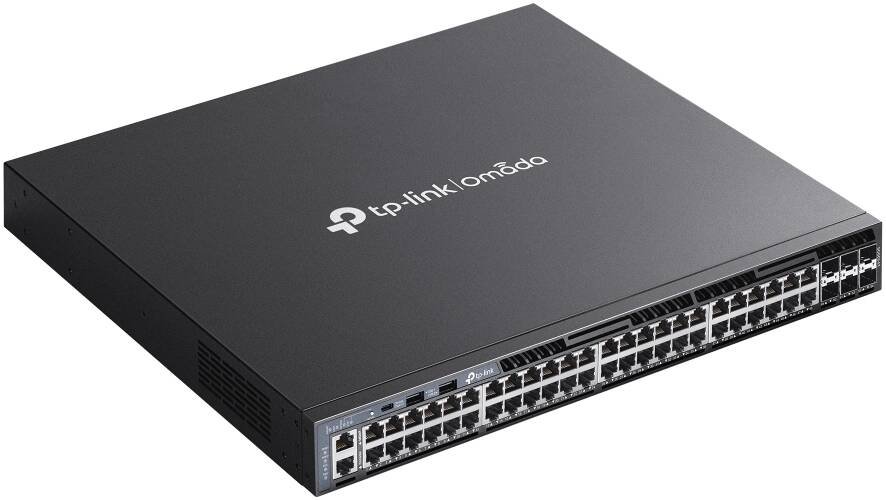

Omada 48-Port Gigabit Stackable L3 Managed Switch with 6 10G Slots
What This Product Does
Omada SG6654X, a L3 managed switch, offers L3 routing, swift 10 Gbps wired speed, stacking, and redundant power supplies, catering to convergence layer demands. It comes with 48× gigabit RJ45 ports, 6× 10 Gbps SFP+ slots, and physical stacking. Integrated with robust security and comprehensive management features, this switch ensures reliable performance for SMB, enterprise, and ISP networks.
High-speed Connectivity and Powerful Stacking
48× Gigabit RJ45 ports and 6× 10 Gbps SFP+ slots provide up to 216 Gbps switching capacity per unit. Up to 4 units of physical stacking with up to 864 Gbps switching capacity empower the networking structure with built-in redundancy and performance.
Abundant Layer 3 Capabilities
Comes with abundant Layer 3 routing protocols that support a scalable network. Static Routing, RIP, OSPF, ECMP, VRRP, DHCP Server, and DHCP Relay are supported. PIM-DM multicast routing protocol guarantees efficient routing for multicast groups.
Highly Available
Internal fixed redundant power supplies and VRRP make it an ideal choice for reliable networking architecture. ERPS supports rapid protection and recovery in a ring topology.
Enhanced Security Functions
Defend against a range of network threats with ACL support (IPv4 & IPv6), Dynamic ARP Inspection, IEEE 802.1X, MAB, Port Security, and Secure Shell.
Omada SDN
Integration into the Omada system brings centralized cloud management and a series of management features such as Zero-Touch Provisioning (ZTP).* The Omada Software Defined Networking (SDN) platform integrates network devices, including access points, switches, and routers, providing 100% centralized cloud management—all controlled from a single interface.
Apart from the ability to be centrally managed via the web or the Omada app, SG6654X is also easy to manage via an intuitive web-based Graphical User Interface (GUI) or an industry-standard Command Line Interface (CLI). For both management methods, traffic is protected through SSL or SSH encryption. SNMP (v1/v2c/v3) and RMON support enable the switch to be polled for valuable status information and to send traps for abnormal events.
Specifications
HARDWARE FEATURES
Interface

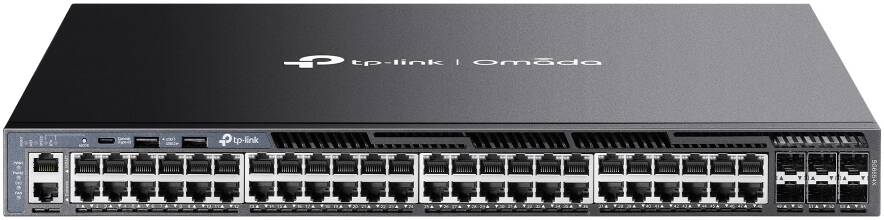

48× 10/100/1000 Mbps RJ45 Ports, 6× 10G SFP+ Slots, 2× USB 2.0 Ports, 1× RJ45 Console Port, 1× USB Type-C Console Port, 1× RJ45 Management Port
Fan Quantity

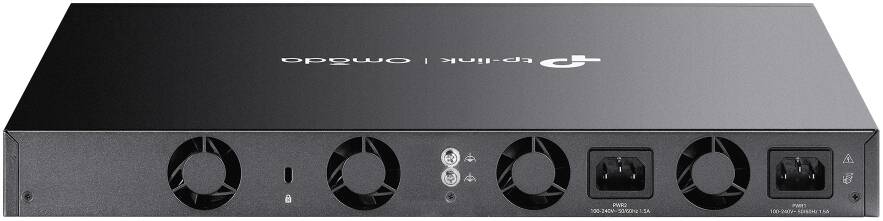

Four Internal Fixed Fans
Power Supply
Two Internal Fixed Power Supply Modules (100–240 VAC, 50/60 Hz)
Dimensions
17.3 × 15.0 × 1.7 in (440 × 380 × 44 mm)
Mounting
Rackmountable
Max Power Consumption
39.8 W (220 V/50 Hz)
Max Heat Dissipation
135.81 BTU/hr (220 V/50 Hz)
PERFORMANCE
Switching Capacity
216 Gbps per Unit
Stacking
Stacking Number: 4, Stacking Port: 10G SFP+ Slot, Stack Bandwidth: 20 Gbps Per Port (Full-Duplex)
Packet Forwarding Rate
160.7 Mpps
MAC Address Table
32 K
Packet Buffer Memory
3 MB
Jumbo Frame
9 KB
SOFTWARE FEATURES
Quality of Service
Class of Service, Bandwidth Control, Voice VLAN, User-Defined OUI, Smoother Performance, Action for Flows
L3 Features
IP Interfaces, Static Routing, RIP, OSPF, VRRP, ECMP, Static ARP, Dynamic ARP, Proxy ARP, DHCP Server, DHCP Relay
L2 and L2+ Features
Link Aggregation, Spanning Tree Protocol, Port-based and VLAN-based Loopback Detection, 802.3x Flow Control, IGMP groups, ERPS, Mirroring, RSPAN, MAC Address Table, PIM-DM, Multicast
Advanced Features
Automatic Device Discovery, Batch Configuration, Batch Firmware Upgrading, Intelligent Network Monitoring, Abnormal Event Warnings, Unified Configuration, Reboot Schedule
ISP Features
802.3ah Ethernet Link OAM, L2PT, DLDP, DDM, sFlow
VLAN
Max 4K VLAN Group, 802.1Q Tagged VLAN, MAC VLAN Entries, Multicast VLAN, Management VLAN, VLAN VPN, GVRP, Protocol VLAN, Voice VLAN, Private VLAN
Security
Port Isolation, CPU-Defend, ARP Inspection, DoS Defend, IP-MAC-Port Binding, DHCP Snooping, IPv6-MAC, DHCP Filter, Static/Dynamic Port Security, Storm Control, 802.1X, AAA, Secure Web and CLI Management
MANAGEMENT
Omada App
Yes
Centralized Management
Omada Cloud-Based Controller, Omada Hardware Controller, Omada Software Controller
Cloud Access
Yes
Zero-Touch Provisioning
Yes
Management Features
Web-based GUI, Command Line Interface (CLI), SNMPv1/v2c/v3, SDM Template, DHCP/BOOTP Client, LLDP/LLDP-MED, DHCP Auto Install, Dual Image/Configuration, CPU Monitoring, Cable Diagnostics, Password Recovery, SNTP, System Log, EEE
OTHERS
Package Contents
SG6654X Switch, 2× Power Cords, RJ45 Console Cable, Quick Installation Guide, Rackmount Kit, Rubber Feet
System Requirements
Microsoft® Windows®, MAC® OS, NetWare®, UNIX®, Linux
Environment
Operating Temperature: 0–45 ℃, Storage Temperature: -40–70 ℃, Operating Humidity: 10–90% RH non-condensing, Storage Humidity: 5–90% RH non-condensing
