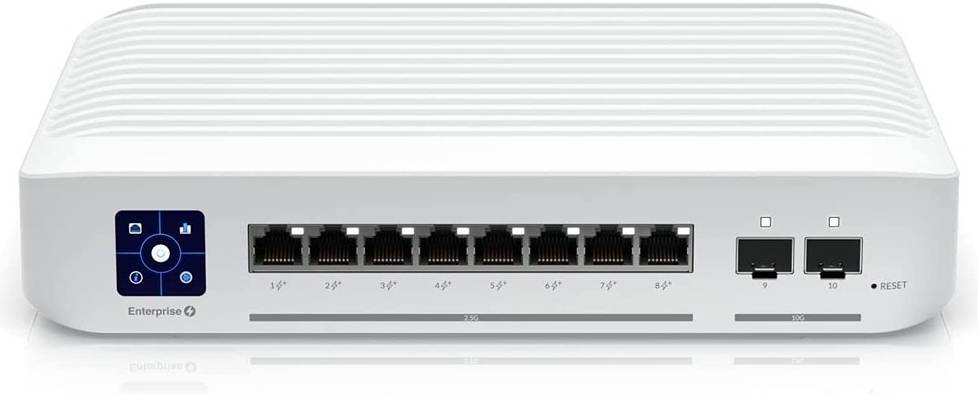

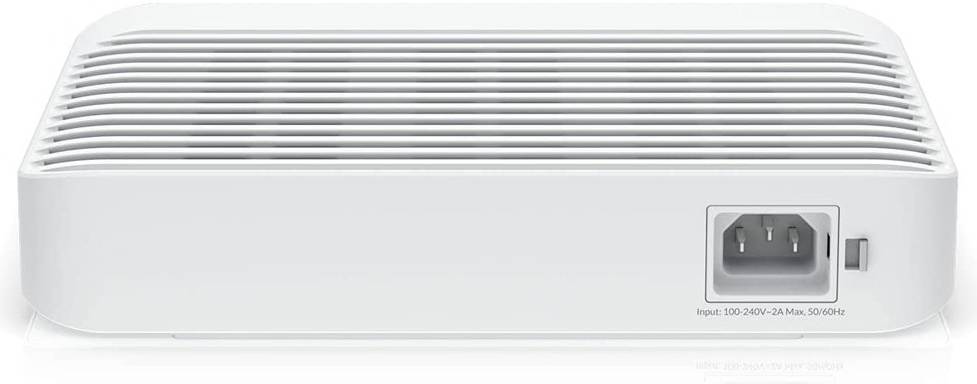

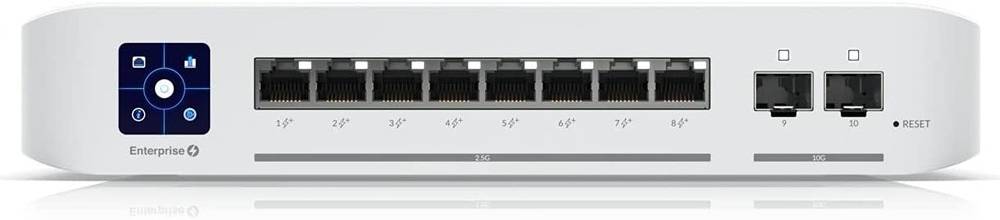

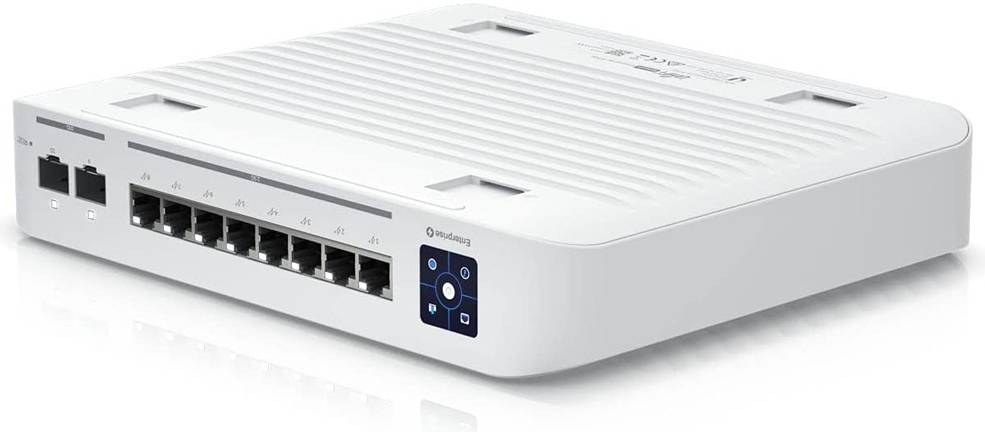

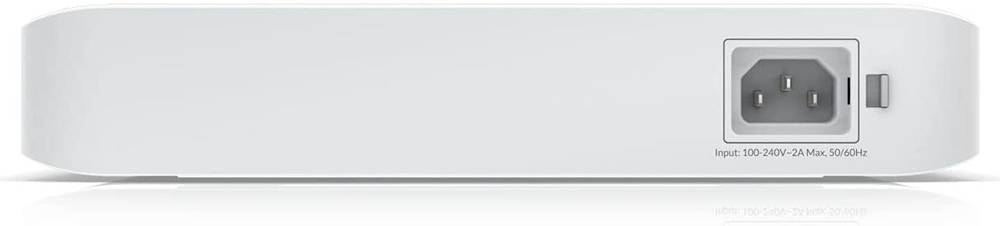

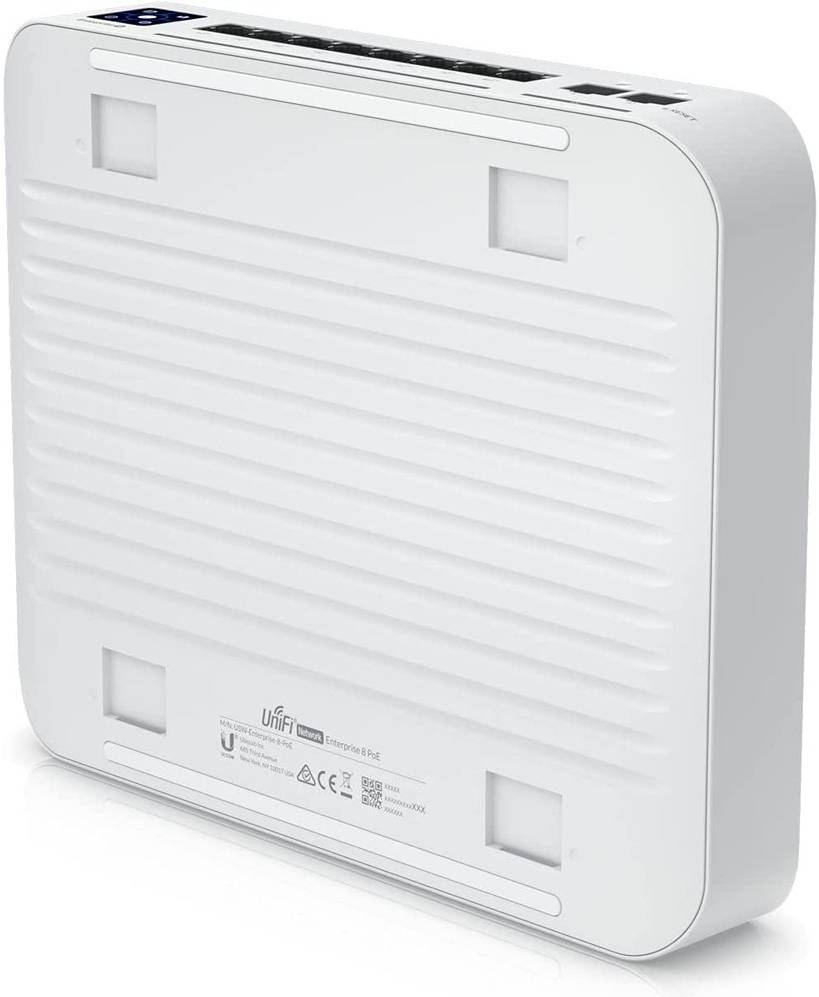

Enterprise 8 PoE
The Switch Enterprise 8 PoE (USW Enterprise 8 PoE) is a fully managed, Layer 3 switch with (8) 2.5GbE, PoE+ RJ45 ports and (2) 10G SFP+ ports.The USW Enterprise 8 PoE also features a 1.3″ LCM color touchscreen that concisely displays key system and connection insights. This switch can be monitored or configured from anywhere with the powerful, intuitive UniFi Network web application and mobile app.
Key Features
8 x 2.5Gb Ethernet PoE+ Ports
2 x 10Gb SFP+ Ports
80 Gb/s Switching Capacity
59.52 Mpps Forwarding Rate
Desktop & Wall-Mountable Design
120W Power Budget
1.3″ LCM Touchscreen with AR Management
Works with UniFi Network Application
Specifications
Total Non-Blocking Throughput
40 Gbps
Switching Capacity
80 Gbps
Forwarding Rate
59.52 Mpps
Max PoE Power
120W
Power Method
(1) 100-240VAC, 2A Max., 50/60 Hz, Universal Input
Power Supply
AC/DC, Internal, 150W
Management Interface
Ethernet In-Band
Networking Interfaces
(8) 1/2.5 GbE RJ45
SFP+ Interfaces
(2) 1/10 Gbps SFP+
PoE Interfaces
(8) PoE/PoE+ (Pins 1, 2+; 3, 6-)
Max. PoE+ Wattage per Port by PSE
32W
Voltage Range PoE Mode
44 – 57V
Voltage Range PoE+ Mode
50 – 57V
Services
SMB Layer 3* PoE GbE Switch
* Layer 3 feature will be available in the future firmware release.
LCM Display
(1) 1.3″ Touchscreen
Bootup Animation: Bootup in Progress
Firmware Upgrade Icon: Firmware Upgrading
Steady White: Factory Defaults, Awaiting Adoption
Steady Blue: Device is Adopted
ESD/EMP Protection
Air: ± 16 kV, Contact: ± 12 kV
Operating Temperature
-5 to 45° C (23 to 113° F)
Operating Humidity
10 to 90% Noncondensing
Certifications
CE, FCC, IC
