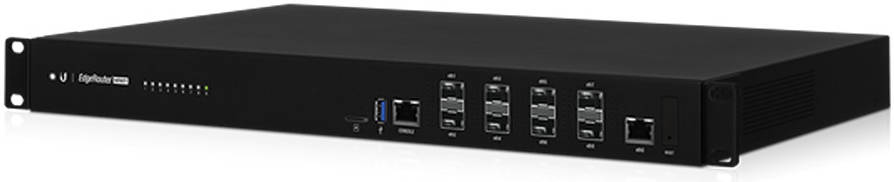

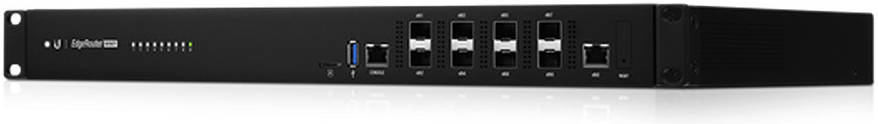

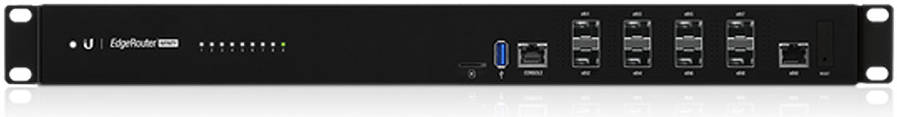

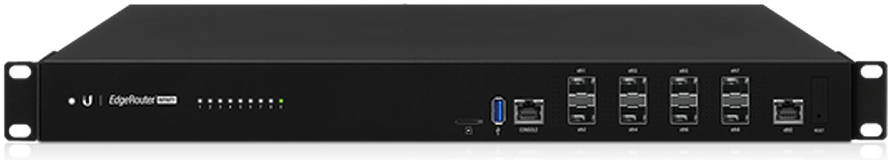

EdgeRouter Infinity ER-8-XG
The EdgeRouter Infinity combines 80 Gbps aggregate throughput with price/performance value in a compact rack-mountable form factor. Eight SFP+ ports offer 10G fiber connectivity, and a Gigabit Ethernet RJ45 port offers copper connectivity. The EdgeRouter Infinity includes primary and backup AC/DC power supply modules for redundancy. It supports scalable configuration using EdgeOS or UISP.
Key Features
8 x SFP+ Data Ports
1 x RJ45 Gigabit Ethernet Port
1 x RJ45 Serial Port
Enhanced Layer 3 Forwarding Performance
1.8 GHz MIPS64 16 Core Processor
16 GB DDR4 RAM
Rack-Mountable Design
Intuitive User Interface
10G Routing Technology
Redundant Power Supply
Specifications
Serial Console Port Interface
(1) RJ45 Serial Port
Data Ports Interface
(8) SFP+ Ports
(1) RJ45 Gigabit Ethernet Port
Processor
MIPS64 16 Core 1.8 GHz
System Memory
16 GB DDR4 RAM
On-Board Flash Storage
8 MB NOR Flash
4 GB eMMC NAND Flash
Max. Power Consumption
100W
Power Method
110 – 240VAC
Power Supply
(2) Hot-swappable AC/DC PSU
Supported Voltage Range
AC Input: 100 to 240VAC
Button
Reset
LEDs
System SFP+ Data
Ports RJ45
Data Port
Status
Link/Activity
Link/Activity
Mounting
Rack
ESD/EMP Protection
Air: ± 24 kV, Contact: ± 24 kV
Operating Temperature
-5 to 40° C (23 to 104° F)
Operating Humidity
5 – 95% Noncondensing
Certifications
CE, FCC, IC
