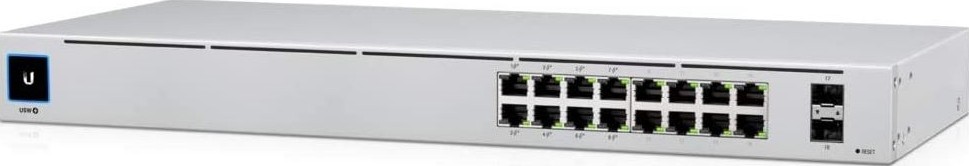

Ubiquiti UniFi USW-16-PoE
Ethernet Switch
A 16-port, Layer 2 PoE switch with a silent, fanless cooling system.
Specification
Category
Specification
Mechanical
Dimensions
442 x 200 x 44 mm (17.4 x 7.9 x 1.7″)
Weight
Without mounting brackets: 2.8 kg (6.2 lb)
With mounting brackets: 2.9 kg (6.4 lb)
Enclosure Material
SGCC steel
Hardware
Management Interface
Ethernet In-Band
Networking Interface
(16) GbE RJ45 ports
(2) 1G SFP ports
PoE Interface
(8) PoE/PoE+ (Pins 1, 2+; 3, 6-)
Total Non-blocking Throughput
18 Gbps
Switching Capacity
36 Gbps
Forwarding Rate
26.78 Mpps
Power Method
Universal input, 100—240V AC, 50/60 Hz
Power Supply
AC/DC, internal, 60W
Supported Voltage Range
100—240V AC
Max. Power Consumption
18W (Excluding PoE output)
Total Available PoE
42W
Max. PoE Wattage per Port by PSE
PoE+: 32W
Voltage Range PoE Mode
PoE: 44—57V
PoE+: 50—57V
ESD/EMP Protection
Air: ± 16kV, contact: ± 12kV
LCM Display
(1) 1.3″ touchscreen
Button
Factory reset
Shock and Vibration
ETSI300-019-1.4 Standard
Ambient Operating Temperature
-5 to 40° C (23 to 104° F)
Ambient Operating Humidity
10 to 90% non-condensing
Certifications
CE, FCC, IC
Switching Features
Layer 2 Features
IGMP snooping, STP/RSTP with priorities and port-level disable, Port isolation, Storm control, Voice VLAN, Port mirroring, LACP port aggregation, Multicast/broadcast rate limiting, MAC address blocking, Flow control, 802.1X control, Jumbo frames, Proprietary loop protection, DHCP snooping/guarding, Egress rate limit, LLDP-MED, Port restricted by MAC, Device isolation with ACLs
Layer 3 Features
–
LEDs
System: Status
Ethernet: PoE, Speed/link/activity
SFP: Link/activity
Application Requirements
UniFi Network: Version 7.2.94 and later
Ubiquiti Networks UniFi USW-16-POE Gen2 Configurable 16-Port Gigabit PoE Ethernet Switch With SFP | USW-16-PoE
$300.00
(8) GbE PoE+, (8) GbE ports
(2) 1G SFP ports
42W total PoE availability
Fanless, silent cooling
Description
Additional information
| Brand |
UBIQUITI |
|---|---|
| Model |
USW-16-PoE |
| Date first available |
27 January; 2021 |
| Shipping Weight |
3.60 Kg |
| Shipping Dimensions |
12.50 cm x 52.00 cm x 31.01 cm |
