Switch 8
The fully manageable US-8-60W UniFi 8-Port Gigabit PoE Compliant Managed Switch from Ubiquiti Networks features 8 Gigabit Ethernet ports in a small form factor offering improved performance and intelligent switching capabilities for expanding networks. In addition to the 8 Gigabit Ethernet ports, this switch offers 8 Gbps non-blocking throughput, a 16 Gbps switching capacity, and a 11.9 mpps forwarding rate. It also delivers up to 15.4W of power per PoE port.
UniFi Switch 8 5-Pack: Five Fully Managed Gigabit Switches
The UniFi Switch 8-port models feature Gigabit Ethernet ports in a compact form factor. The switches are fully manageable, delivering robust performance and intelligent switching for your networks.
8-Port Managed Gigabit Switches

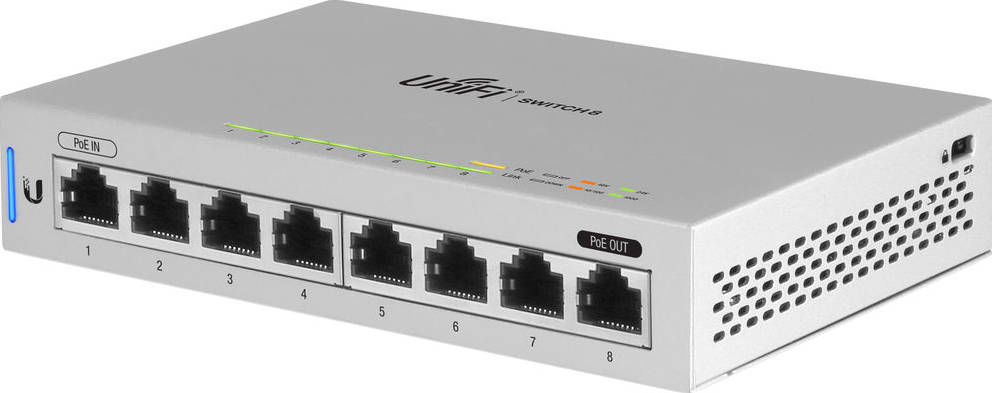

The US-8 is a PoE Powered 8-port gigabit switch with PoE Pass-through. Perfect for cleanly adding Ethernet ports where needed, with pass-through to keep your PoE device powered.
Key Features

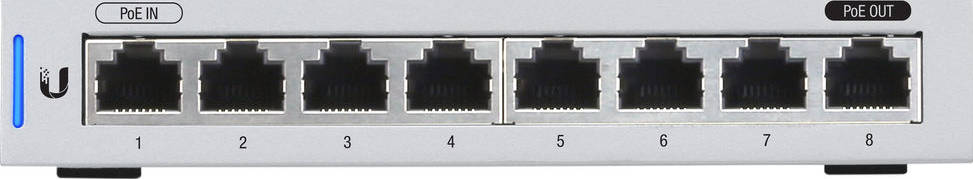

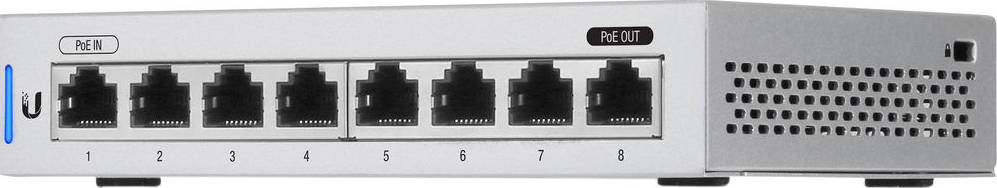

8 x RJ-45 Gigabit Ethernet Ports
4 x Auto-Sensing 802.3af PoE Ports
8 Gbps Non-Block Throughput
16 Gbps Switching Capacity
11.9 Mpps Forwarding Rate
12 W Maximum Power Consumption
UniFi Controller Administration Software
Non-Blocking Throughput
The new 8-port models feature Gigabit Ethernet ports in a compact form factor. For its total, non-blocking throughput, each UniFi Switch supports up to 8 Gbps.
Switching Capacity
The UniFi Switch offers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss, with a switching capacity of 16 Gbps.
UniFi Controller
Designed for convenient management, the UniFi Controller software allows admins to configure and monitor the UniFi Switch and other UniFi devices using a graphical user interface. You can download it from www.ubnt.com at no extra charge – there is no separate software, licensing, or support fee.
Multi-Site Management
A single instance of the UniFi Controller running in the cloud can manage multiple UniFi sites within a centralized interface. Each site is logically separated and has its own network monitoring, configuration, maps, statistics, and admin accounts.
Switch Configuration
You can access any managed UniFi Switch through the UniFi Controller to configure a variety of features
Operation mode (switching, mirroring, or aggregate) per port.
Network/VLAN configuration.
Jumbo frame and flow control services.
Network settings.
Storm control setting per port.
Spanning tree configuration.
802.1x control and RADIUS VLAN
Specifications
Mechanical
Dimensions
148 x 99.5 x 30.7 mm (5.8 x 3.9 x 1.2″)
Weight
432 g (15.2 oz)
Enclosure material
SGCC steel
Hardware
Management interface
Ethernet In-Band
Networking interface
(8) GbE RJ45 ports
PoE interface
PoE In:
PoE Out
PoE Mode 1: PoE/PoE+(Pins +1, 2; -3, 6)
PoE Mode 2: 48V (Pins +4, 5; -7, 8)
PoE Mode 1: 48V (Pins +1, 2; -3, 6)
PoE Mode 2: Passive 48V (Pins +4, 5; -7, 8)
DC Input Mode: DC passthrough (Pins +1, 2; -3, 6)
Total non-blocking throughput
8 Gbps
Switching capacity
16 Gbps
Forwarding rate
11.9 Mpps

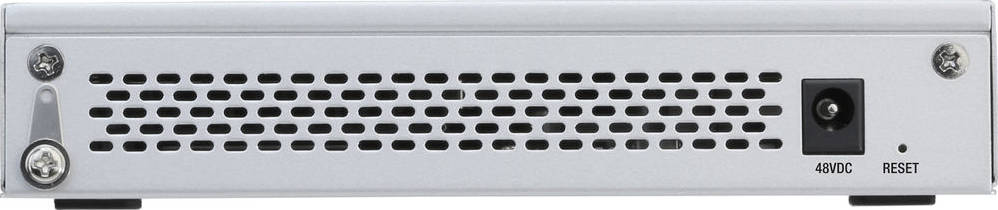

Power method
(1) 48V DC, Max. 1.25A
(1) PoE/PoE+ In, (Pins +1, 2; -3, 6)
Power supply
External AC/DC adapter*: 100-240V AC, 50/60 Hz; 48V DC, 0.5A
Included only in single-pack.
Supported voltage range
DC: 48V
48V Mode: 40–56V
Max. power consumption
12W (Excluding PoE output.)
Total available PoE
12W
Max. PoE wattage per port by PSE
PoE Mode 1: 12W at PoE+
PoE Mode 2: 12W at 48V
DC Input Mode: 12W at 48V
Voltage range PoE mode
Depends on power source
ESD/EMP protection
Air: ± 24kV, contact: ± 24kV
Operating temperature
-5 to 45° C (23 to 113° F)
Operating humidity
5 to 95% noncondensing
Certifications
CE, FCC, IC
LEDs
Ethernet
PoE
Link/Speed/Activity
