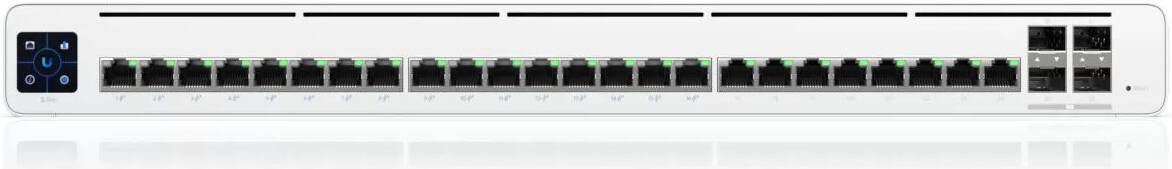

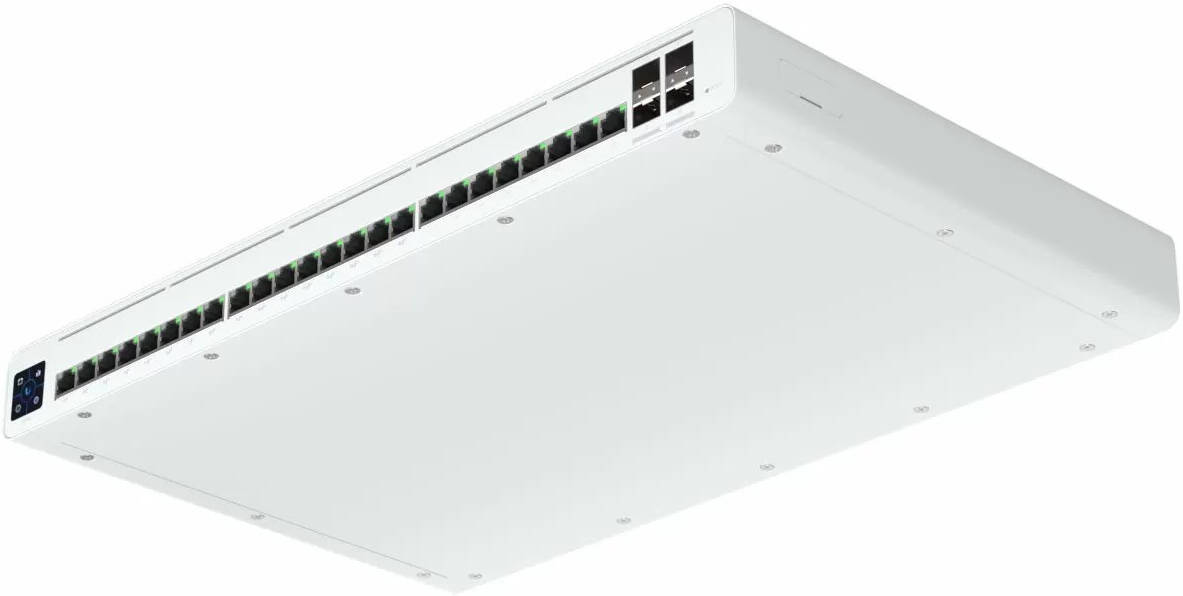

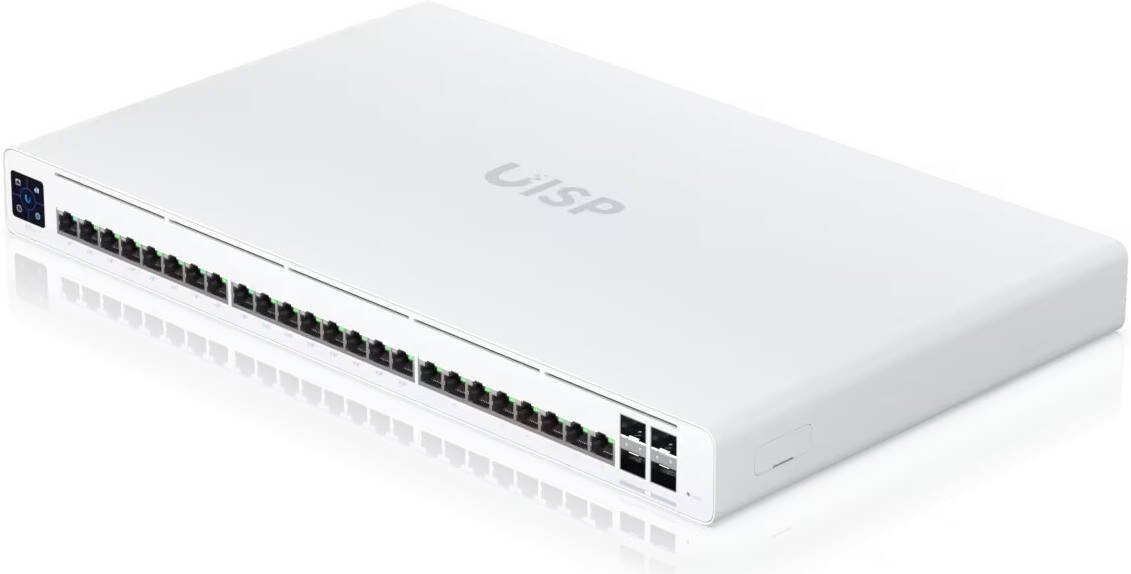

UISP Switch Pro
UISP-S-Pro
220W (27V) PoE switch with (24) GbE RJ45 ports, including (16) with 27V passive PoE, and (4) 10G SFP+ ports.
Gigabit Layer 2 PoE switch for ISP networks
Ideal for ISP deployments, the UISPâ„¢ Switch Pro is a Layer 2 PoE switch with (24) GbE RJ45 ports and (4) 1/10G SFP ports for fiber uplinks. The UISP Switch Pro is an effective solution for ISPs looking to quickly deliver Gigabit wireless speeds to their customers. With its hefty 220W total PoE supply, the UISP Switch Pro delivers substantial power to every radio in your service network. The UISP Switch Pro is managed with the UISP application, a centralized platform where you can monitor and manage all of your UISP devices.
In addition, the rackmount UISP S Pro comes with a 1.3-inch color LCM touchscreen that provides a concise way to provide important device and network status information. The UISP S Pro can be set up in minutes and fully managed through the UISP App, a centralized platform for managing and configuring all UISP devices.
UISP application support
Bluetooth-powered setup via the UISP Mobile app is available. Thanks to UISP app you can centrally manage your networks and clients with ease. Simply organize your clients’ plans, setup billing and invoicing, and grow your customer base. UISP application allows viewing network topology, advanced data analytics, quickly set up devices and manage them on the go with a powerful mobile app. Managed with the UISP application: Version 1.5.7 and later.
Specifications
Mechanical
Dimensions
442.4 x 267.5 x 43.7 mm (17.4 x 10.5 x 1.7 inches)
Weight
4 kg (8.8 lb)
Enclosure materials
SGCC steel, polycarbonate/acrylonitrile butadiene styrene
Hardware
Networking interface
(24) GbE RJ45 LAN ports
(4) 1/10G SFP+ ports
Management interface
Ethernet In-band
Bluetooth
Total non-blocking throughput
64 Gbps
Switching capacity
128 Gbps
Forwarding rate
95.23 Mpps

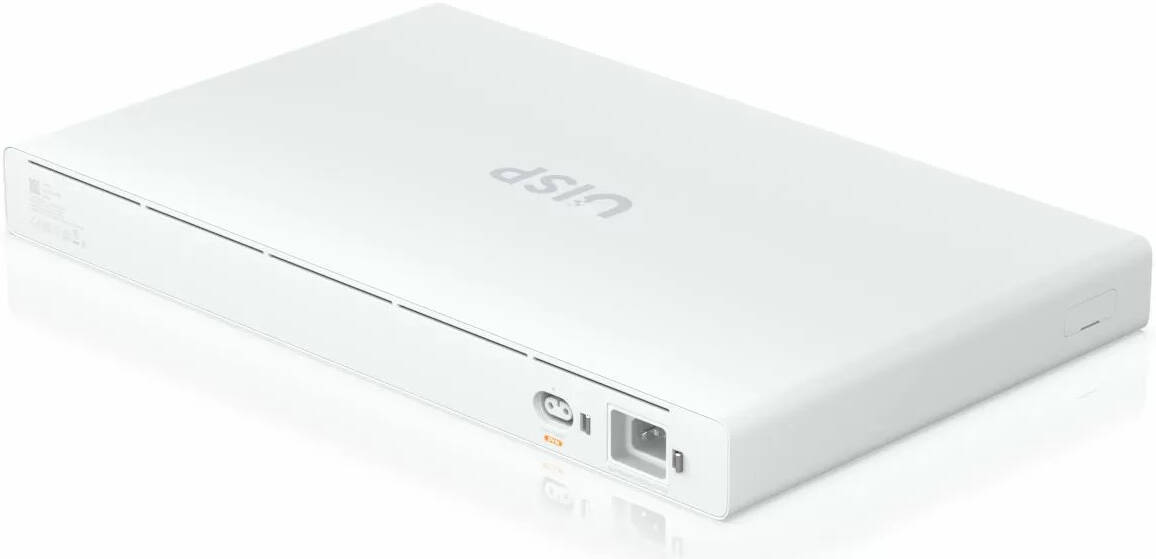

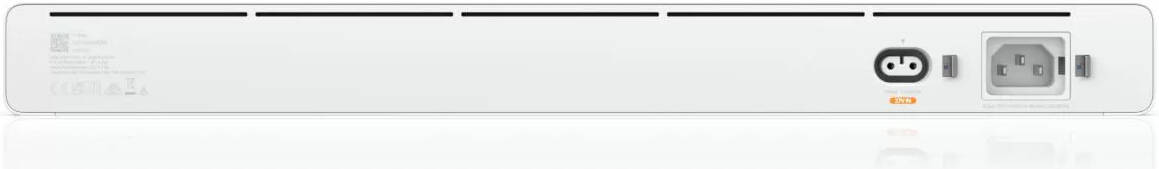

Power method
(1) Universal AC input, 100-240V AC, 4.4A Max., 50/60 Hz
(1) Power TransPort DC input 27V DC, 9.3A
Power supply
AC/DC, Internal, 250W
Supported voltage range
100—240V AC
Max. power consumption
30W (Excluding PoE output)
ESD/EMP protection
Air: ± 15 kV, contact: ± 8 kV
LCM display
(1) 1.3″ touchscreen
Ambient operating temperature
-10 to 50° C (14 to 122° F)
Ambient operating humidity
5 to 95% noncondensing
Certifications
CE, FCC, IC
PoE
PoE interface
(16) 27V passive PoE: 2-pair (Pins 4, 5+/7, 😎 or 4-pair (Pins 1, 2, 4, 5+/3, 6, 7, 8-); Ports 1 to 16
Total available PoE
220W
Max. passive PoE wattage per port
30W/27V DC
Passive PoE voltage range
27V DC
LEDs
RJ45 data ports
PoE
Speed/link/activity
SFP+ data ports
Speed/link/activity
Software
Management application
UISP: Version 1.5.7 and later
