Ubiquiti UniFi Dream Machine, Dual Band 802.11ac, 4-Port Gigabit, Arm Cortex-A57 1.7 GHz Quad-Core Processor, White, | UDM

Specifications
Mechanical
Dimensions
Ø110 x 184.1 mm (Ø4.3 x 7.3″)
Weight
1.1 kg (2.3 lb)
Enclosure material
Polycarbonate
Hardware
Processor
Quad-core Arm® Cortex® A57 at 1.7 GHz
System memory
2 GB DDR RAM
Management interface
Ethernet
Bluetooth
Networking interface

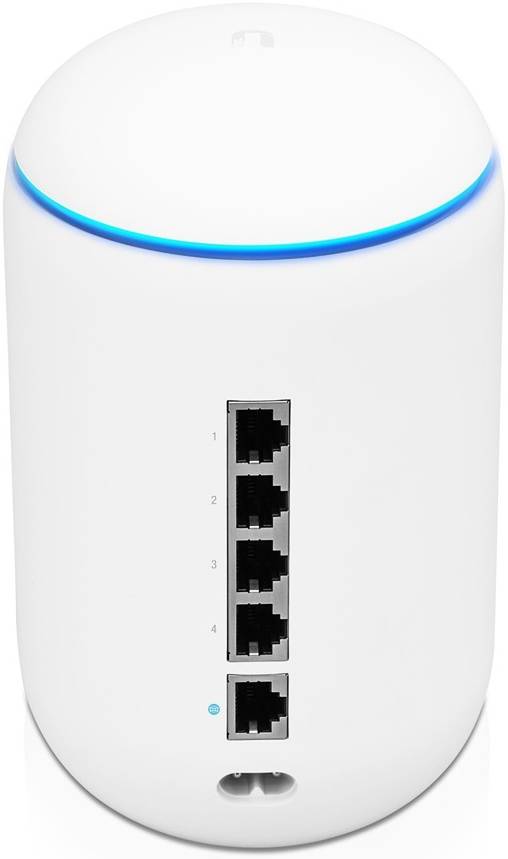

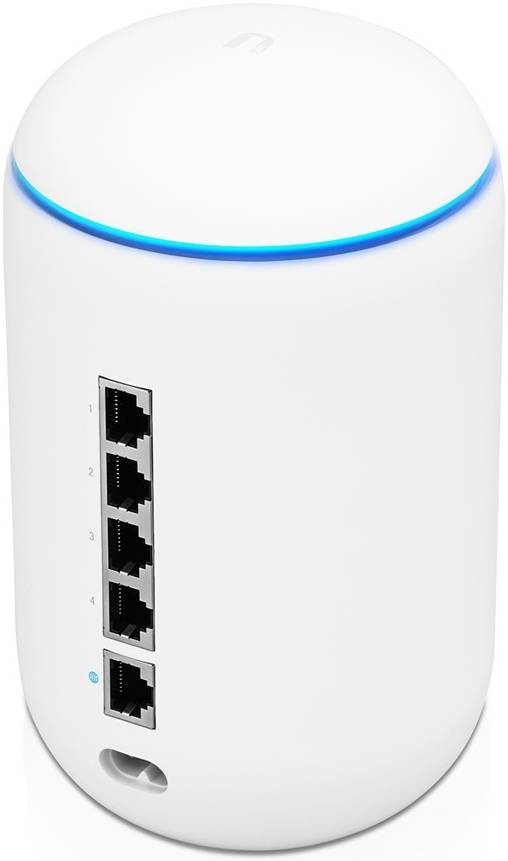

(4) LAN: GbE RJ45 ports
(1) WAN: GbE RJ45 port
Power method
Universal AC input, 100—240V AC, 0.6A Max., 50/60 Hz
Power supply
AC/DC, internal, 50W
Supported voltage range
100—240V AC
Max. power consumption
26W
Max. TX power
2.4 GHz
5 GHz
23 dBm
26 dBm
MIMO
2.4 GHz
5 GHz
2 x 2
4 x 4
Throughput rate
2.4 GHz
5 GHz
300 Mbps
1.7 Gbps
Antenna gain
2.4 GHz
5 GHz
3 dBi
4.5 dBi
Antenna
(1) Internal, dual-band, quad-polarity antenna
Button
Factory reset
LEDs
White/blue
Operating temperature
-10 to 45° C (14 to 113° F)
Operating humidity
5 to 95% Noncondensing
Certifications
CE, FCC, IC
Software
WiFi standards
802.11a/b/g
WiFi 4/WiFi 5
Wireless security
WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES), 802.11w/PMF
BSSID
Up to 8 per radio
VLAN
802.1Q
Advanced QoS
Per-user rate limiting
Guest traffic isolation
Supported
Concurrent clients
100+
Supported Data Rates
802.11a
6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b
1, 2, 5.5, 11 Mbps
802.11g
6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n (WiFi 4)
6.5 Mbps to 300 Mbps (MCS0 – MCS15, HT 20/40)
802.11ac (WiFi 5)
6.5 Mbps to 1.7 Gbps (MCS0 – MCS9 NSS1/2/3/4, VHT 20/40/80/160)
