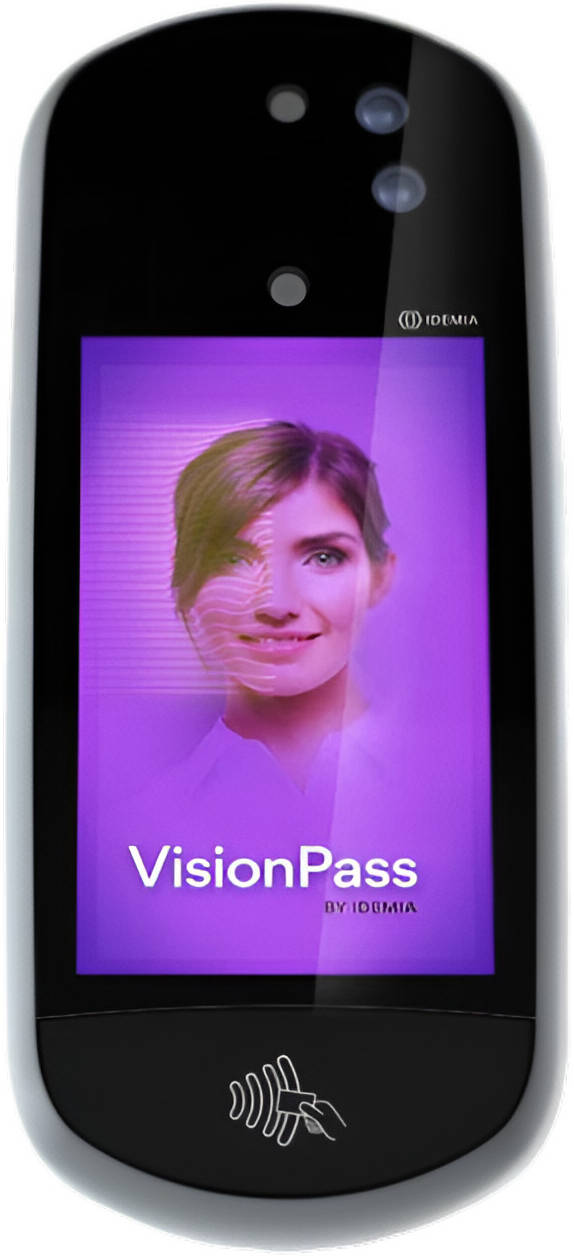

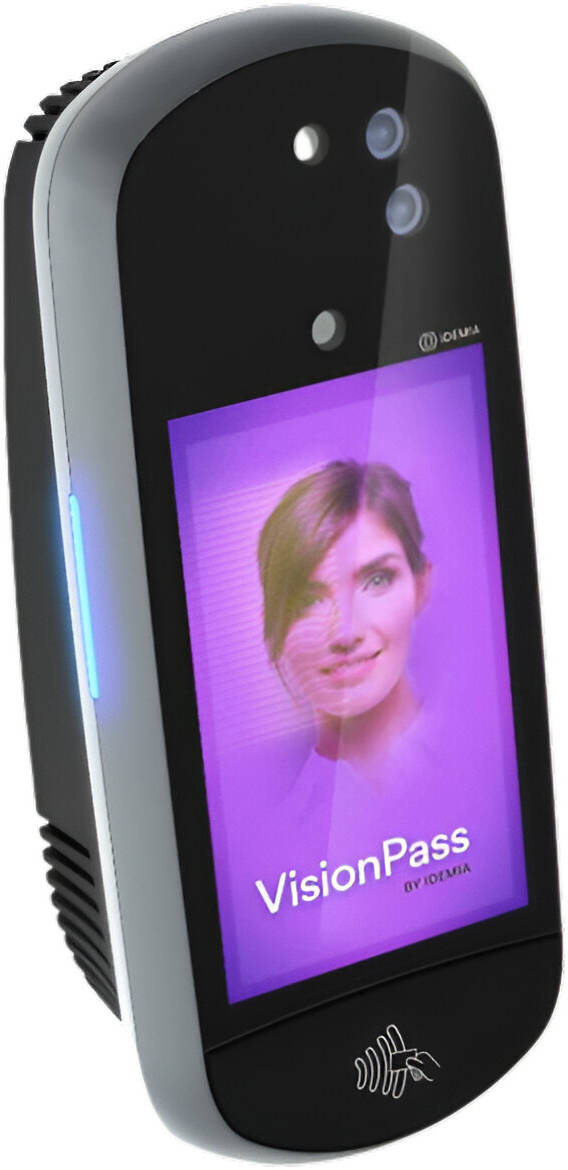

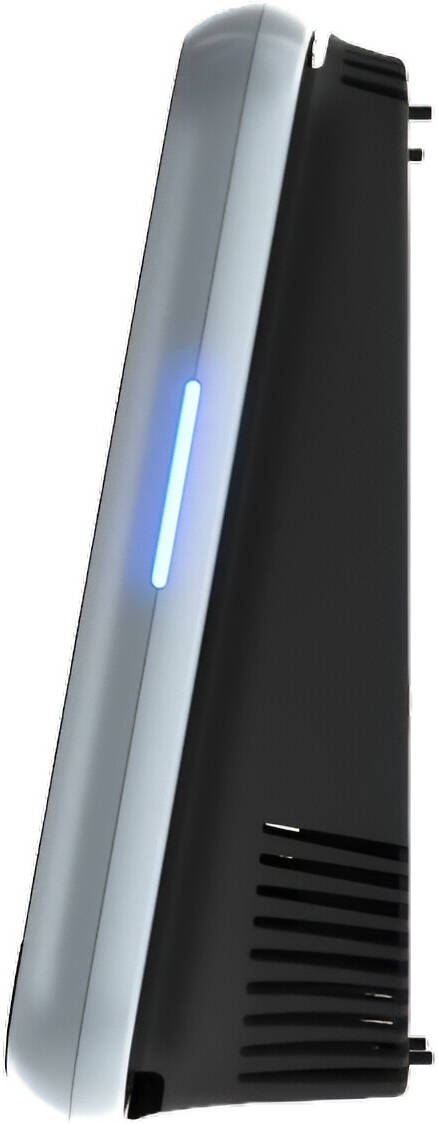

Visionpass
Specifications
CPU
Nvidia ARM Cortex-A15 Quad-Core 2.1GHz
Display
7” WVGA color capacitive touchscreen
Audio
Loudspeaker & microphone
Media
Audio & video player
Face Sensor
Touchless: Visible light camera (2D), Infrared camera (2D), 3D camera
Contactless Reader
MIFARE DESFire, iClass, HID Prox
Storage Capacity
Internal: 20,000 user records (extendable to 40,000 with license), 250,000 IDs, 1 Million transaction logs
Network/Communication
Ethernet, RS485, RS422
Inputs/Outputs
Wiegand In & Out (customizable up to 512 bits), OSDP, Door relay, 3 GPI, 3 GPO (including door monitoring)
Power Supply
12 to 24 V DC (3A min @12V)
Operating Conditions
Temperature: -10°C to 45°C (14°F to 113°F), Humidity: 10% to 80% (non-condensing)
Ingress Protection
IP65
Dimensions
HxWxD: 325x143x110 mm / 12.8×5.6×4.3 in
Weight
2.1 kg / 4.63 lbs
EMC/Safety Standards
CE, CB, FCC
Compliance
RoHS, REACH, California Proposition 65, WEEE compliant
Idema Visionpass MDPI, 7″ WVGA Color Capacitive Touchscreen, Nvidia ARM Cortex-A15 Quad-Core 2.1GHz, IP65, Ethernet, RS485, RS422, MIFARE DESFire, iClass, HID Prox, Black | 293744604
$2,400.00
Unique performances: state of-the-art optical set of 2D/3D/infrared cameras, embedded with Artificial Intelligence, high level of security and real user convenience.
Enhanced Security: Idemia’s latest spoof detection mechanisms. Copes with face changes(helmet, headset, change of haircut, glasses, etc.)
Easy deployment: can be deployed at any location both indoor (wall or gate-mounted) or outdoor (IP 65), the device reuses many of the technology bricks used in other devices such as MorphoWaveTM Compact, thus simplifying its integration among a fleet of devices.
QR Code reading
