Idemia Visionpass SP MD, 5″ WVGA Color Capacitive Touchscreen, Multi-Core 1.8 GHz + NPU, 4GB RAM, 16GB Flash, Ethernet & RS485, 60 GHz Radar, with SE OS, Buzzer, Black | 293803151-SEOS

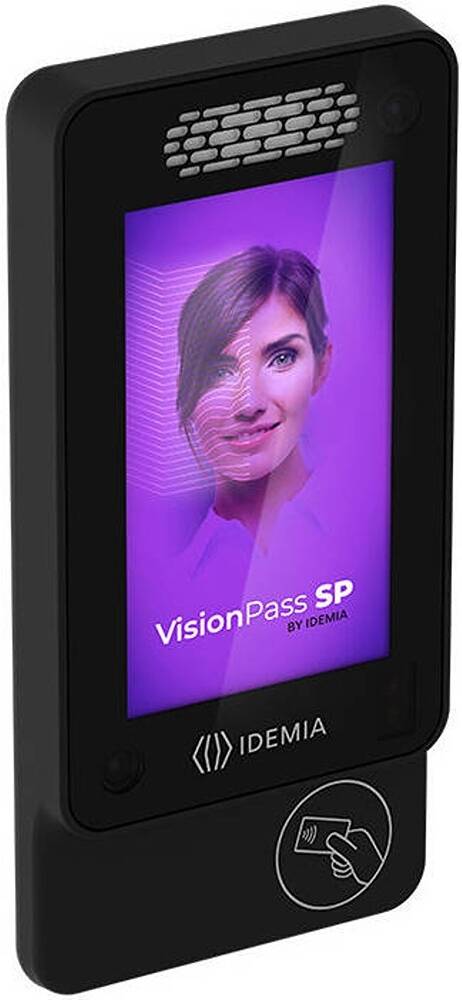

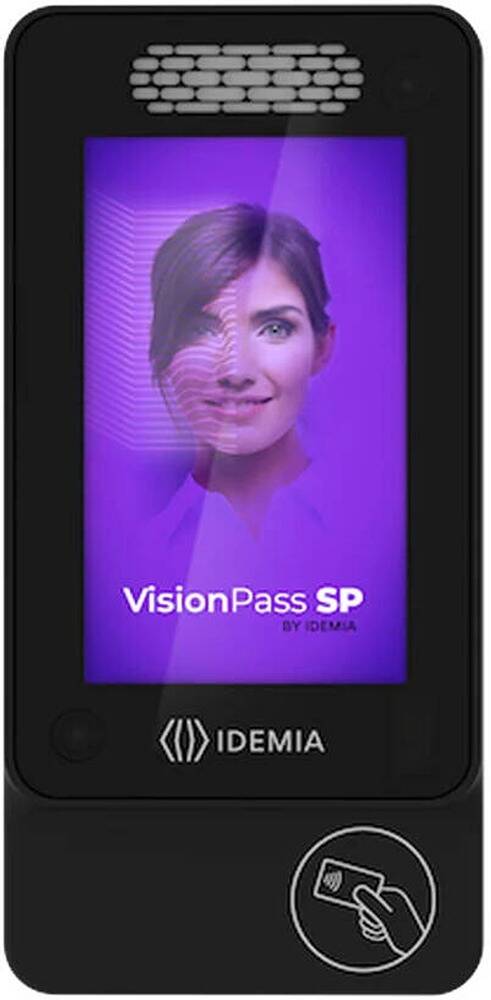

Visionpass SP MD
Specifications
CPU
Multi-Core 1.8 GHz + NPU
Display
5-inch WVGA color capacitive touchscreen
Facial Acquisition
2 x 2 MP visible/IR, 3D stereovision
Lighting
White and infrared LEDs
Proximity Sensor
60 GHz radar
Sound
Buzzer
Facial Performance
Intention area 0.3 to 1.0 m (adjustable), Field of view (HxV): 55°x90°, User height from 1.2 to 2.0 m, Matching speed
Contactless Reader Options
SEOS
Internal Storage Capacity
16Gb Flash and 4Gb RAM, Up to 10,000 users in the database, 250,000 IDs in authorized user list, 1 million transaction logs
Security
Secure booting and authenticity check, Cryptographic technologies for sensitive data security, Data protection with AES-256 database encryption, Network communication encryption with TLS 1.2, Network authentication with 802.1.X, OSDP secure channel, Tamper switches
Network/Communication
Ethernet, RS485
Inputs/Outputs
Wiegand in and out, OSDP, door relay, three GPI (including door monitoring), three GPO
Power Supply
12 to 24 V DC (2.5 A min @12V), Power over Ethernet with PoE+ switches
Operating Conditions
Temperature: -10°C to 45°C (14°F to 113°F), Humidity: 10% to 80% (non-condensing)
Intrusion Protection
IP65
Dimensions and Weight
HxWxD: 21×10.2×3.5 cm (8.2”x4”x1.4”), Weight: 0.8 kg
EMC/Safety Standards
CE, CB, FCC
Compliance
RoHS, REACH, California Proposition 65, WEEE
Manufacturing
Made in France
