G5 Pro
UVC-G5-Pro

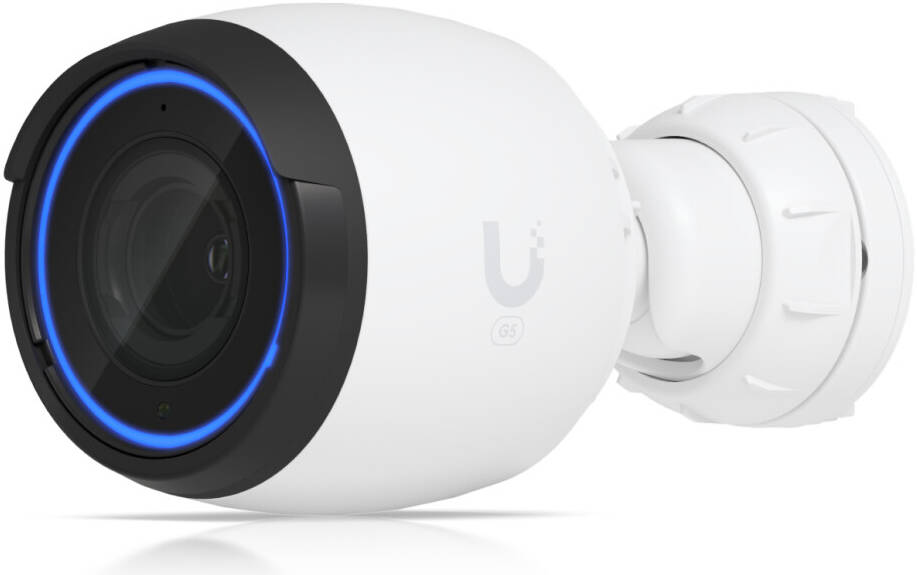

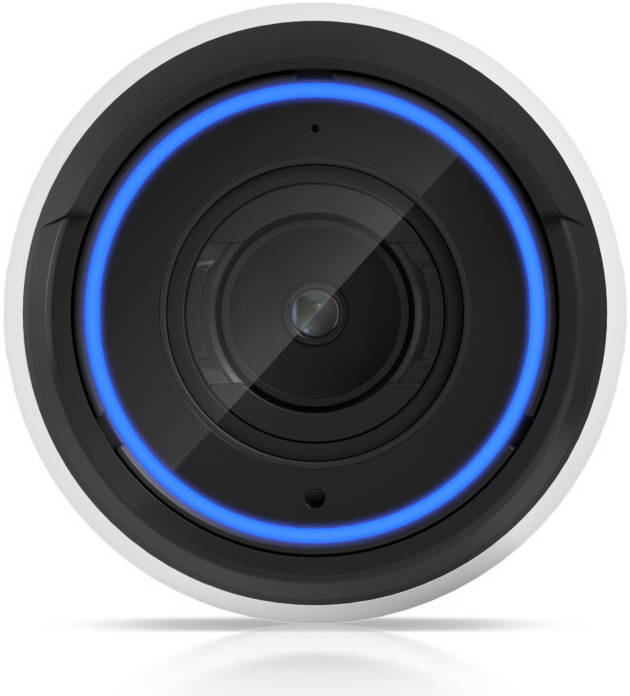

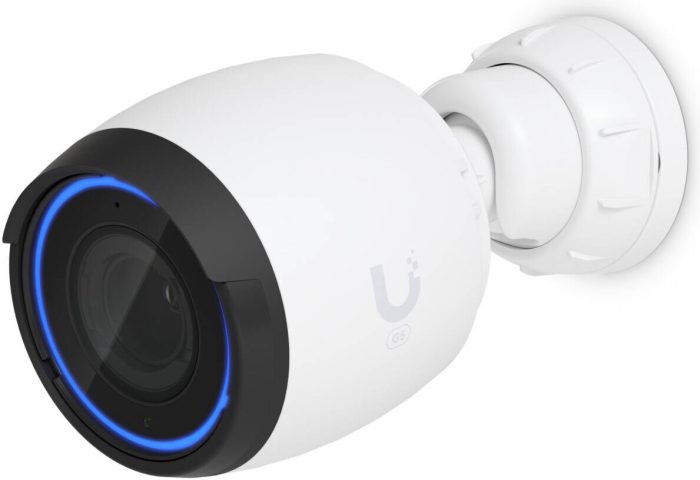

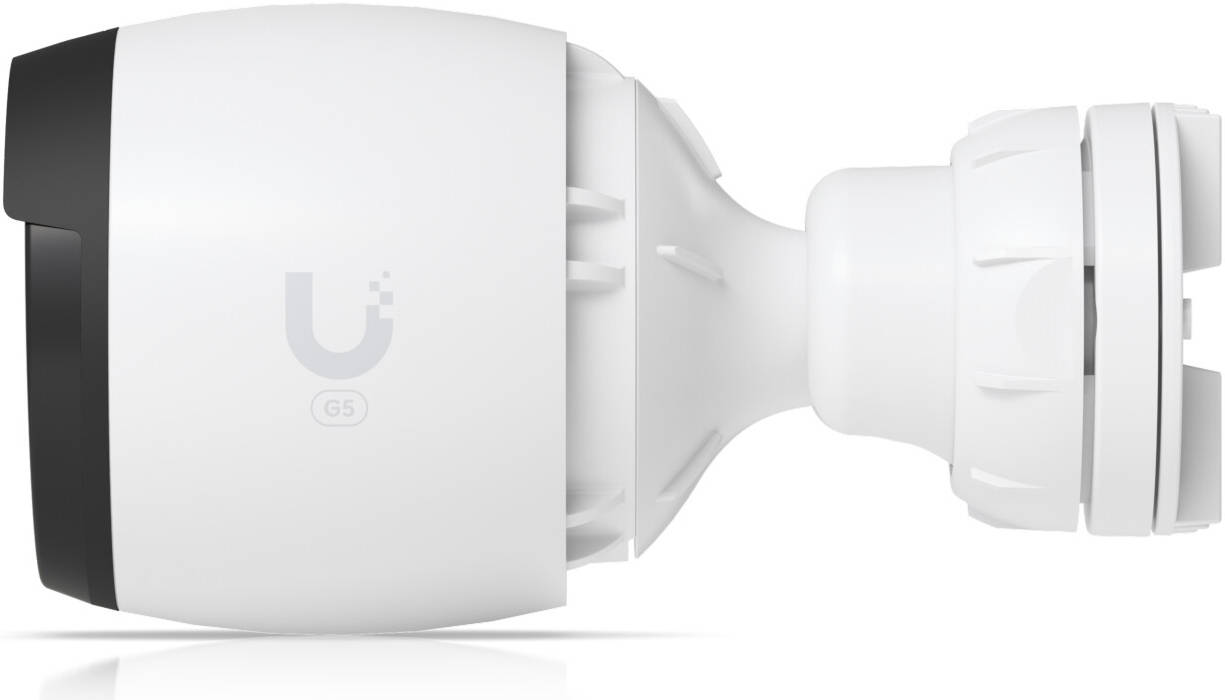

Monitor your surroundings with the UniFi G5 Professional 4K UHD Outdoor Network Bullet Camera from Ubiquiti Networks. This unit uses a 1/2″ sensor to capture 4K UHD resolution video at 30 fps. IR LEDs provide up to 25 Meters of night vision. The camera’s 4.1-12.3mm varifocal lens delivers a 109.9 to 35° horizontal field of view and 3x optical zoom. A built-in microphone enables the camera to pick up audio. Integrated PoE technology simplifies connectivity by transferring data and power over one cable. The UniFi Protect app for iOS and Android enables remote management.
Deployment
Build Features
Image Performance
Specifications
Mechanical
Dimensions
Ø86 x 154.3 mm (Ø3.4 x 6.1″)
Weight
650 g (1.4 lb)
Enclosure material
UV stabilized polycarbonate, aluminum alloy
Mount material
Aluminum alloy
Weatherproofing
IP65
Resistance
IK04
Optics
Sensor
1/2″ 8MP
Lens
F 4.1–12.3 mm; ƒ/1.53–ƒ/3.3
View angle
Wide: H 109.9°, V 60°, D 127.7°
Zoom: H 35°, V 19.8°, D 40°
Night mode
Built-in IR LED illumination and IR cut filter
Video
Resolution
8MP 3840 x 2160 (16:9)
Max. frame rate
30 FPS
Image settings
Color, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, NR by motion, masking, text overlay
System
Processor
Dual-core Arm® Cortex®-A53 based chip
Networking interface
10/100 MbE RJ45 port
Max. power consumption
Device: 10W
Device with Enhancer: 12.95W
Power method
PoE
Supported voltage range
37—57V DC
Button
Factory reset
Mounting
Wall, pole mount
Ambient operating temperature
-20 to 50º C (-4 to 122º F)
Ambient operating humidity
0 to 90% noncondensing
Certifications
FCC, IC, CE
Audio
Microphone
Yes (Can be disabled)
Software
Web application
UniFi Protect
Mobile app
UniFi Protect iOS™ and Android™
